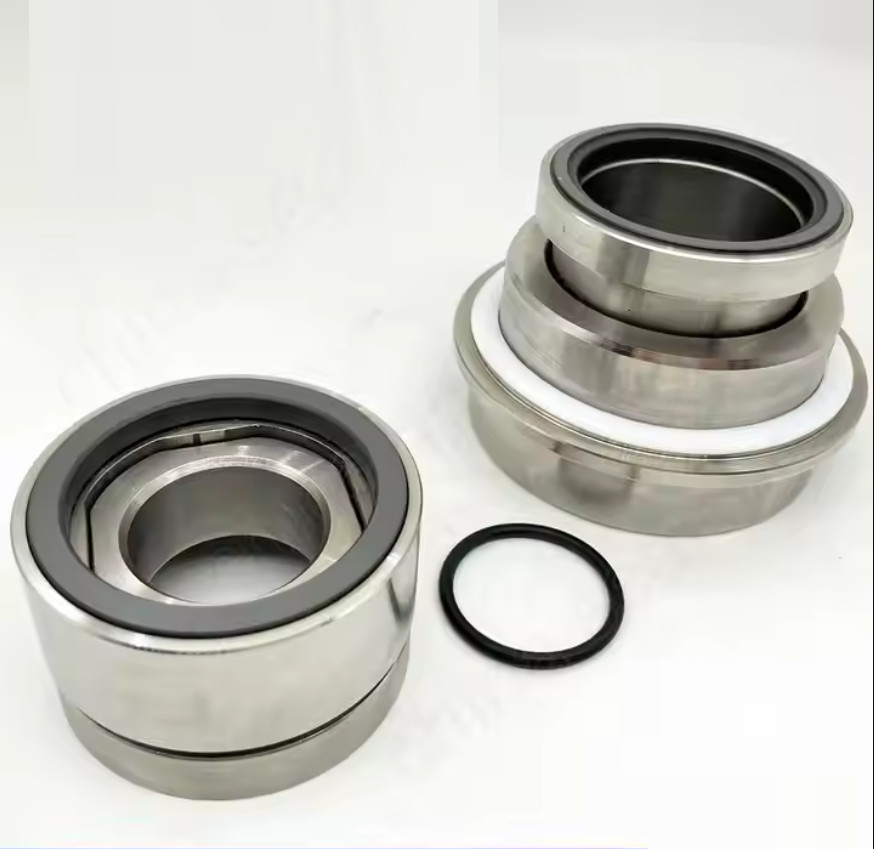

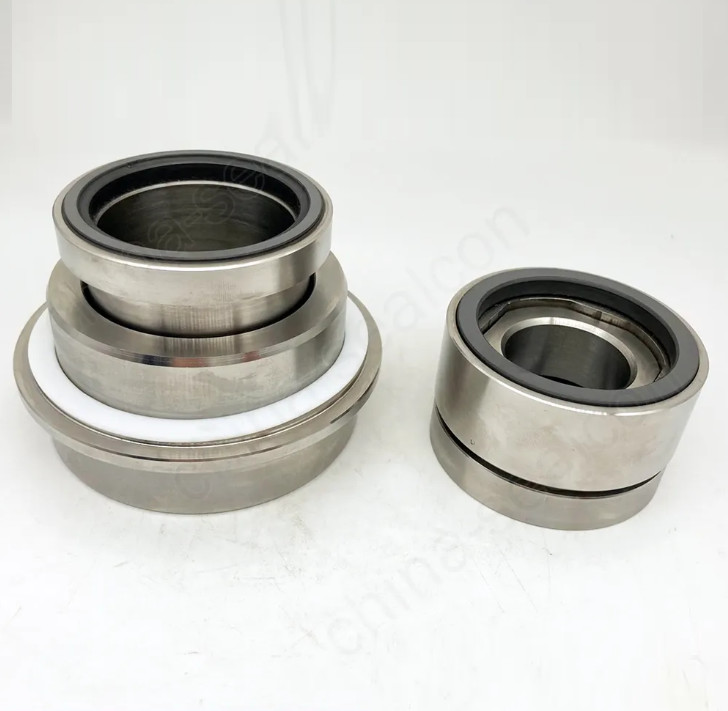

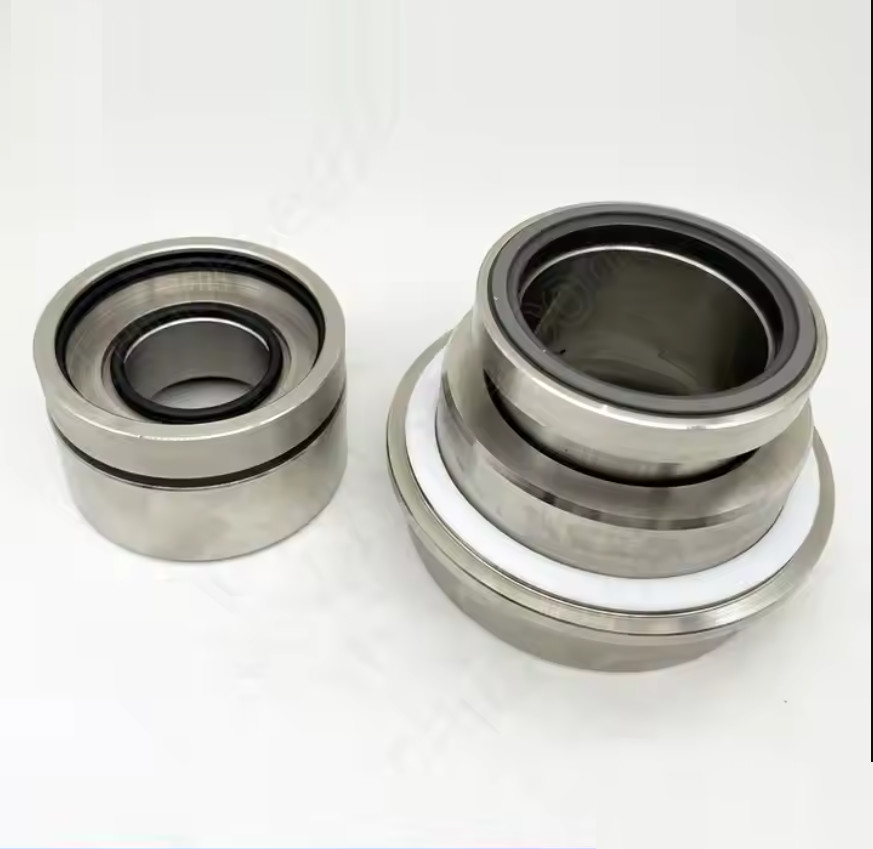

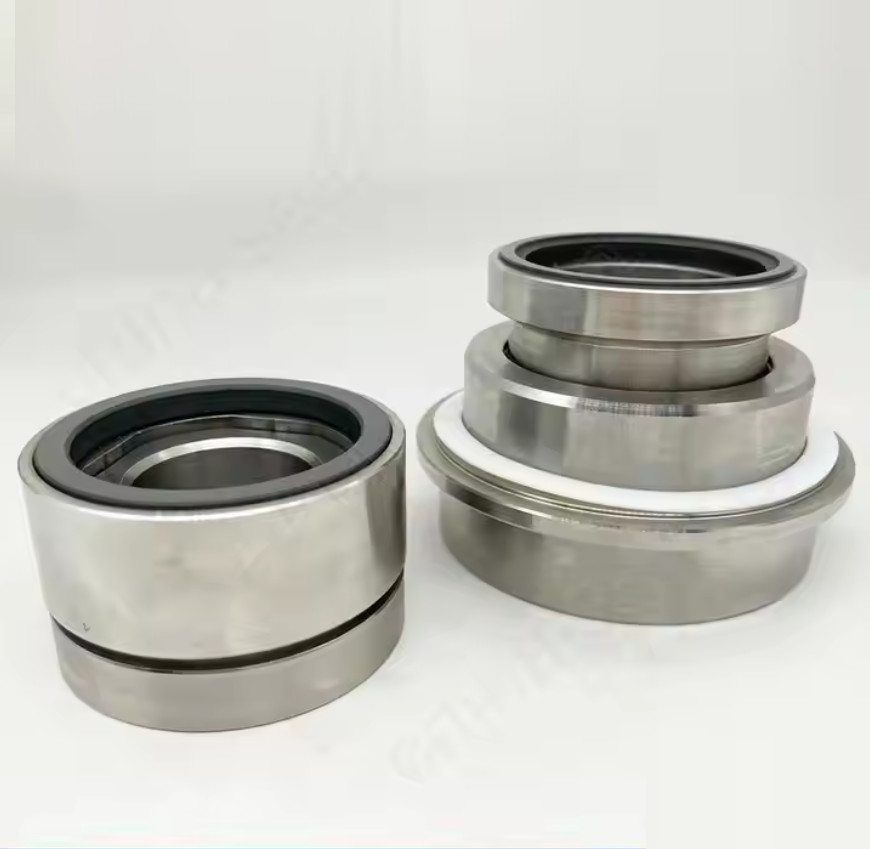

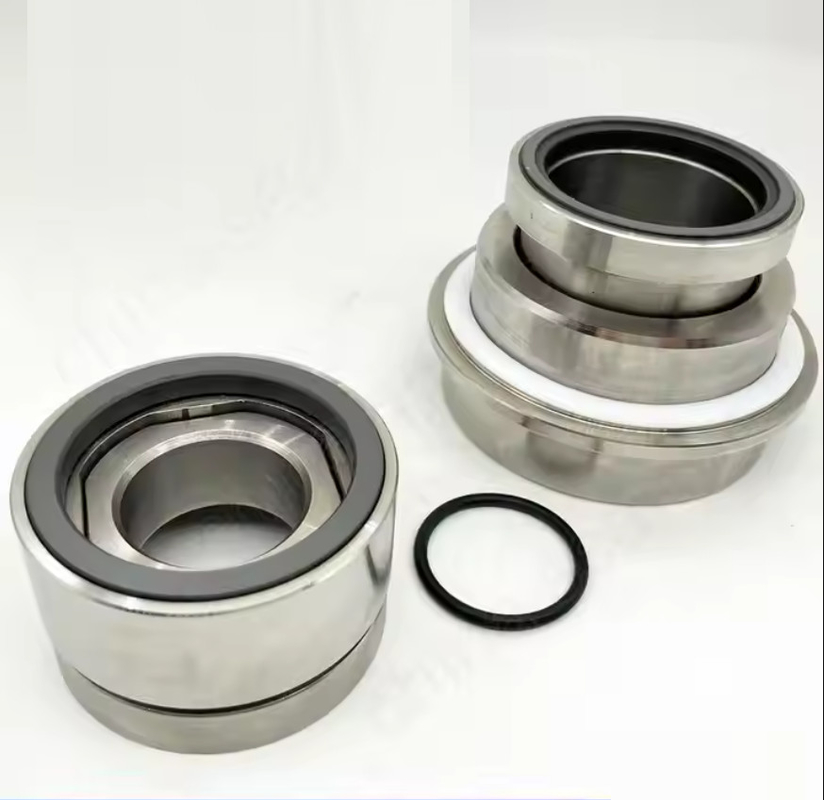

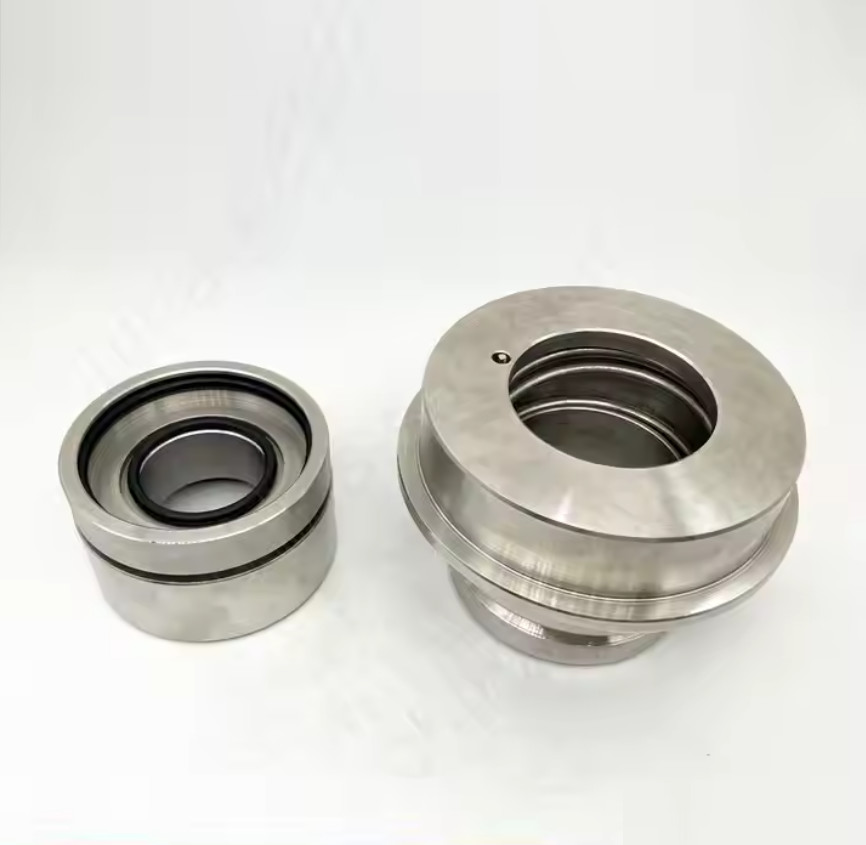

Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps
Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps
Contact Now

Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps

Minimum Order Quantity : 1PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: SE1-AP-40 John crane mechanical seal

Detail Information
Material: TC TC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Gorman Rupp Cartridge Mechanical Seal Certificate: ISO9001
Type: Gorman Rupp Pump Standard: Standard
Size: SE1-AP-40 John Crane Mechanical Seal Name: SE1-AP-40 John Crane Seal
Highlight:

John Crane Seal SE1-AP-40

,

Sulzer Flow Pumps Mechanical Seal

,

SE1-AP-40 Mechanical Seal

Product Description

SE1-AP-40 John crane mechanical seal for Sulzer Ahlstar Pumps



Operational Conditions:

  1. Structure: Single-End
  2. Pressure: High Pressure Mechanical Seals
  3. Speed: High Speed Mechanical Seal
  4. Temperature: High Temperature Mechanical Seal
  5. Performance: Corrosion
  6. Standard: Specific Customization
  7. Model NO.: SE1, SE1-AP and SEG
  8. Balance: Balanced
  9. Specification: Inner Diameter: 30 mm to 100 mm

       Materials:

       Rotary Ring Face: SiC/TC
       Stationary Ring Face: SiC/TC
       Elastomers: FKM/EPDM/FFKM
       Springs: SS304/SS316
       Metal Parts: SS304/SS316

Product Detailed Description

  • SE1, SE1-AP and SEG Single End Mechanical Seal for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps, Safematic Replacement Seal

    Structural Features: single end, multi springs, balanced, independent rotary direction, still structure, pin transmission. The still springs are suitable for high operating speed. The springs are separated from the sealed mediums so they will not be jammed. Piston design allows great axial shifting. The seal is separated assembled with easy installation and reliable performance. The double end versions of SE1 series is SE2 series mechanical seals.

    Industrial Standards: Specific Customization.

    Scopes of Application: mainly used in paper-making equipment, slurry pumps, pressure screens, flue gas desulphurization for chemical engineering, power plants, mining, oil refining, alumina plants, food processing, pharmacy, and paper making. This seal works as an alternative to similar products of Sulzer, working as Safematic SE1 replacement seals


Performance Capabilities:

mechanical seal Replacement for sale
Operational Condtions
Size
Material
Temperature:
-40℃ to220℃, depend on o-ring material
30-100MM
Face: TC
Pressure: Up to25 bar

Seat: TC
Speed:Up to 20m/s
Elastomer: FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS316, hastelloy C, A

Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps 0Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps 1Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps 2Mechanical Seal John Crane Seal SE1-AP-40 For Sulzer Flow Pumps 3



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
