Rubber Bellow Mechanical Seal 24 Similar To Vulcan 24 Crude Oil Pump

Minimum Order Quantity : 1PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: 24

Detail Information

Material: TC TC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Mechanical Seal 24 Certificate: ISO9001
Type: Rubber Bellow Mechanical Seal Standard: Standard
Size: 10-100MM Name: Mechanical Seal 24 Similar To Vulcan 24 Crude Oil Pump
High Light:

mechanical pump seal


spring mechanical seal

Product Description

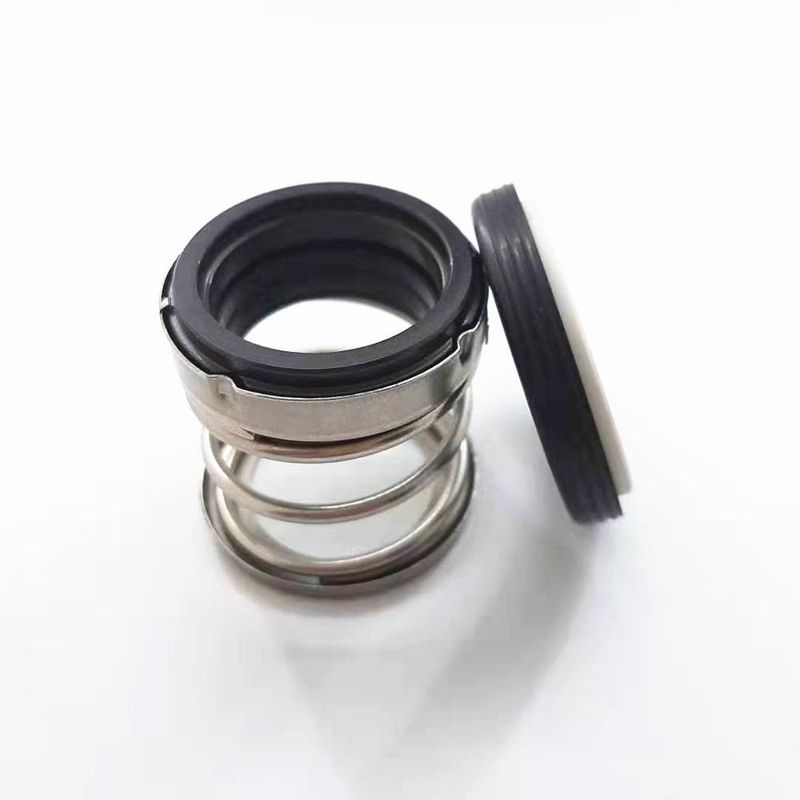

Mechanical Seal 24 Similar to Vulcan 24 Crude Oil Pump Rubber Bellow Mechanical Seal


Operations Conditions:

  1. Burgmann to MG912/ D1-G60 seal
  2. John Crane 521 seal
  3. Aesseal P03 seal
  4. Temperature:-30ºC to +200ºC
  5. Pressure:≤1.5bar
  6. Speed:≤15m/s


  • 1. Sealing face: Graphite, Silicon carbide,
  • 2. Secondary sealing: FKM ,Nbr ,Epdm
  • 3. Metal component: Stainless steel


Performance Capabilities:

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 1.5 MPA
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 10-100MM,0.375INCH-3INCH
Brand JR
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
  • 1. it is equivalent to
  • Flowserve 240 seal
  • Latty T400 seal
  • Roplan RB03 seal
  • Roten 52/ L4K seal
  • Sealol 43 Din seal
  • Sterling 522 seal
  • 2. Our seals can replace the original seals.
  • 3.Customized products and OEM is welcomed
  • 4. We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.
  • 5. Our seals are high-qualified due to we strictly follow the DIN24960, ISO3069,
  • API628 standards.

Rubber Bellow Mechanical Seal 24 Similar To Vulcan 24 Crude Oil Pump 0Rubber Bellow Mechanical Seal 24 Similar To Vulcan 24 Crude Oil Pump 1Rubber Bellow Mechanical Seal 24 Similar To Vulcan 24 Crude Oil Pump 2Rubber Bellow Mechanical Seal 24 Similar To Vulcan 24 Crude Oil Pump 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
