FB Series Mechanical Seal for Automotive Seals Pump NBR/SIC/GPH Materials Diameter 12-20mm Shaft Seal Standard Seals

Minimum Order Quantity : 10PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10-20DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: FB

Detail Information

Transport Package: Box HS Code: 848420090
Function: For Auto Water Pump Seals Car Pump, Car Compressor Specification: 10mm-20mm And Inch Size As Requirment
Certificate: ISO9001 Material: CAR CER NBR
Size: 12-20mm Type: Water Pump Seal
Product Name: Automotive Seal FB Application: Auto Engine Seal FB Series Mechanical Seal

Product Description

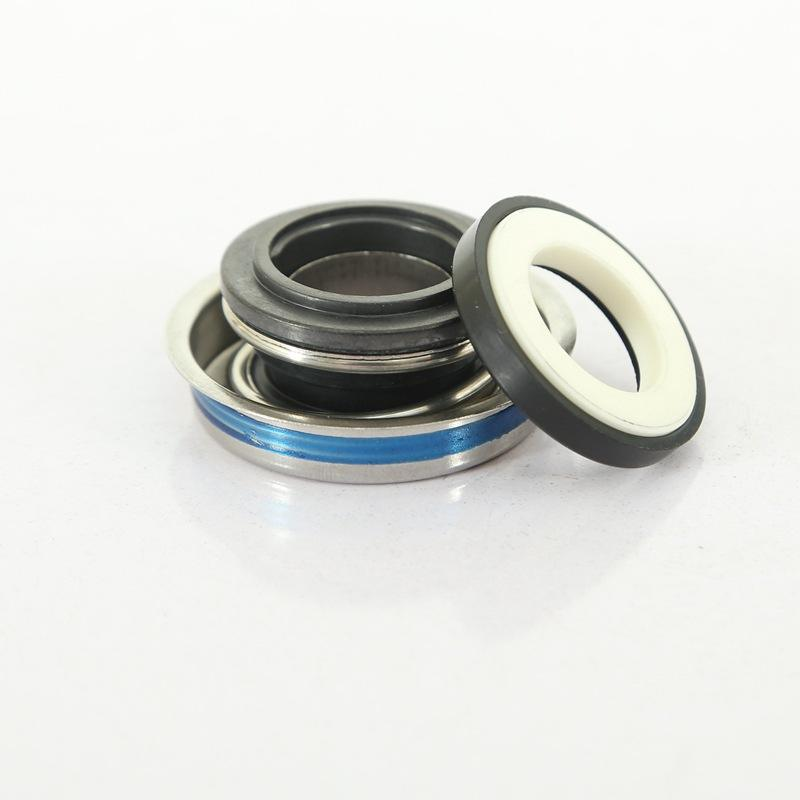

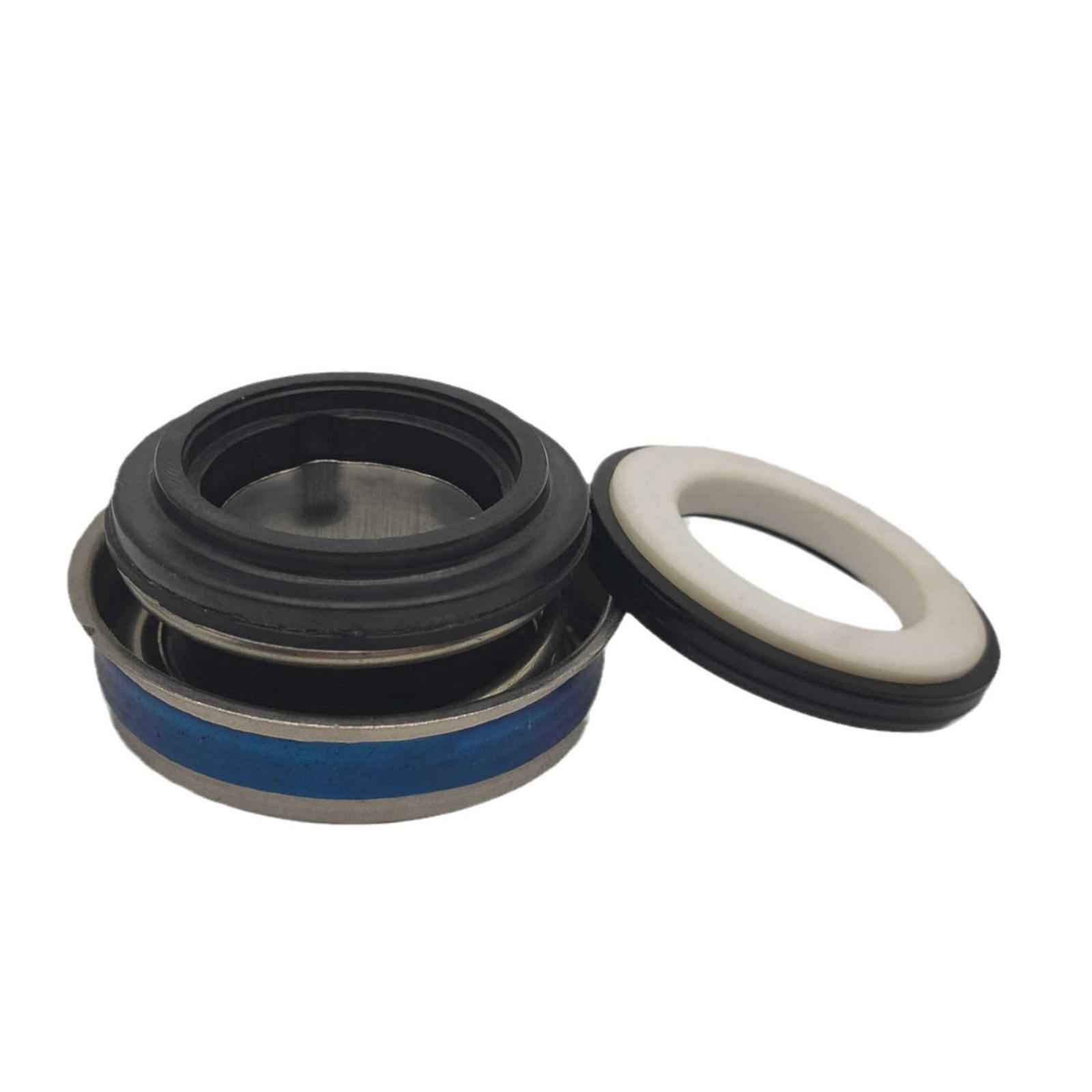

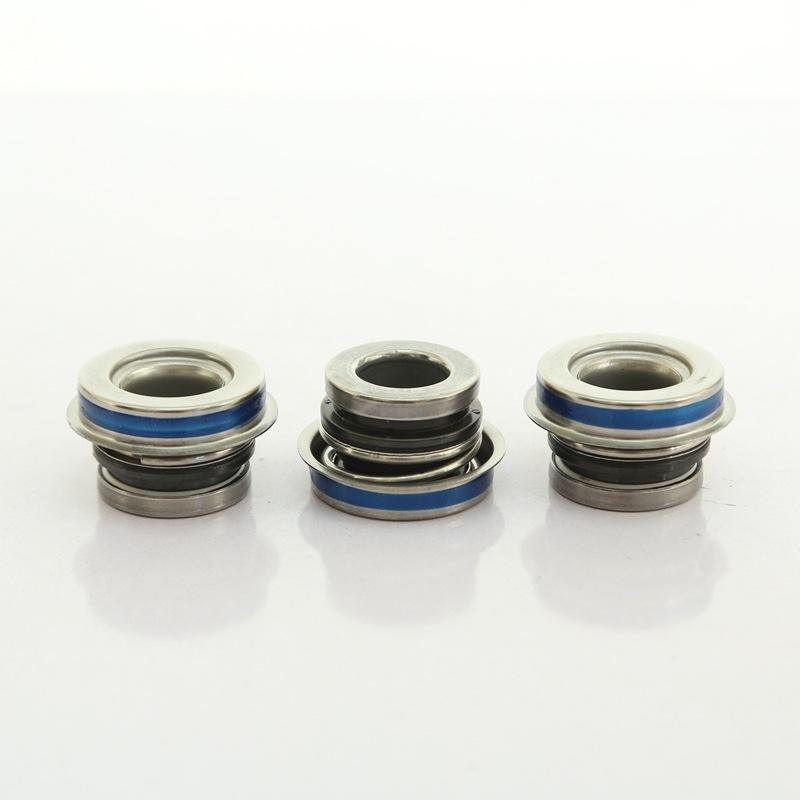

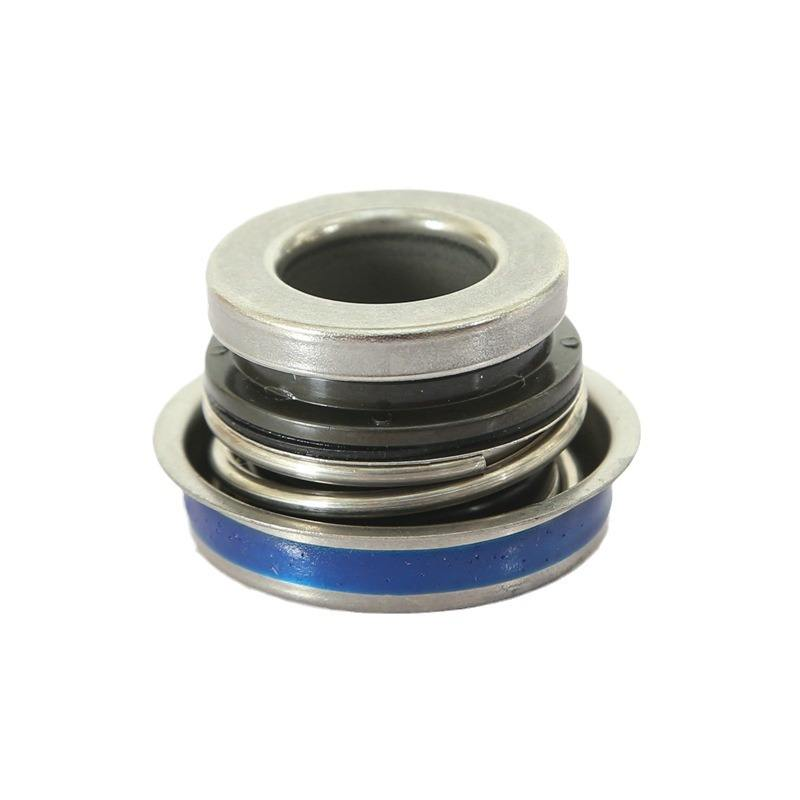

FB Series Mechanical Seal for Automotive Seals Pump NBR/SIC/GPH Materials Diameter 12-20mm Shaft Seal Standard Seals

Description:
  1. FB water seal Auto Water Pump Seals mechanical seal shaft seal for water pump
  2. Temperature -50°C to 220°C
  3. Pressure 25 bar (87 PSI)
  4. Speed ≤20m/s
  5. Medium Water,oil,ect,weak corrosive medium
Material:
  • 1. Auto Water Pump Seals Stationary Seat: Ceramic/ Carbon/Silicon/TC;
  • 2. Rotary Ring: SIC/TC;
  • 3. Retainer: SUS304/SUS316;
  • 4. Spring: SUS304/SUS316;
  • 5. O-Ring: NBR/FKM/EPDM/PTFE

Performance Capabilities:

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
12mm to 20mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.
  • The Auto Water Pump Seals is an essential component that ensures the smooth operation of the water pump in a vehicle'sengine cooling system.
    Itacts as a barrier, preventing the coolant from leaking and maintaining the pressure required to cool theengine effectively.
    This high-quality water pump seal is designed specificaly for automotive application, providing relability.durability, and optimal performance.
    The primary function of the Automotive Water Pump Seal is to maintain a tight seal between the impeller shaft and the waterpump housing. As the impeller shaft rotates, it drives the circulation of coolant throughout the engine, preventing it fromoverheating.
    The water pump seal prevents any leakage in this process, ensuring that the coolant stays contained and circulatesefficienty. By preventing leaks, ithelps maintain the desired temperature range in the engine, optimizing its performance andpreventing any potential damage.
    Features: High-Quality Construction: The Automotive Water Pump Seal is crafted using top-quality materials, such as CA/CE/NBR .These materials are chosen for their resistance to temperature extremes, corrosion, and wear and tear



FB Series Mechanical Seal for Automotive Seals Pump NBR/SIC/GPH Materials Diameter 12-20mm Shaft Seal Standard Seals

FB Series Mechanical Seal for Automotive Seals Pump NBR/SIC/GPH Materials Diameter 12-20mm Shaft Seal Standard Seals



FB Series Mechanical Seal for Automotive Seals Pump NBR/SIC/GPH Materials Diameter 12-20mm Shaft Seal Standard SealsFB Series Mechanical Seal for Automotive Seals Pump NBR/SIC/GPH Materials Diameter 12-20mm Shaft Seal Standard Seals

We are a professional manufacturer, installer, exporter and wholesaler of a comprehensive range of high-performance industrial sealing solutions.

Our core product portfolio covers: Industrial Seals, Single Spring Seals, Balanced & Unbalanced Spring Seals, External Mounted Seals, PTFE Bellow External Mounted Seals, Cartridge Balanced Seals, Multi-Spring Balanced Seals, Dry Running Reverse Balanced Seals, Agitator Double Acting Unbalanced Seals, Single Conical Helical Springs, Rubber Bellow Seals, Multi-Spring Seals, Metal Bellow Seals, Elastomer Bellow Seals, Conical Spring Seals, Air Conditioner Compressor Seals,Auto Water Pump Seals Automotive Cooling Seals and Metallic Bellow Seals.

We also supply full-series interchangeable mechanical seals compatible with mainstream pump brands, including Flygt, Grundfos, APV, Grindes, Fristam, ABS, Alleeiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha and Vogelsang.

Beyond standard products, we deliver full custom manufacturing services: we can produce precision seals strictly based on your provided samples, technical drawings, or tailor-made designs to match your unique operating conditions.





  1. Are you a factory or a trading company?
    Answer: We are a professional manufacturing factory based in Ningbo, China, with our own dedicated international trade team to provide you with one-stop sourcing and export services.

  2. Can I get a sample before placing a formal order?
    Answer: Absolutely, samples are available for your quality evaluation. Normally, our standard samples are provided free of charge, you only need to cover the corresponding courier freight.

  3. Where is your factory located? How can I arrange a visit?
    Answer: Our factory is located in Ningbo, Zhejiang, China. You can take an international flight to Ningbo Lishe International Airport, or arrive at Shanghai Pudong/ Hongqiao Airport which is around 2 hours' drive from our factory. All global customers are warmly welcomed to visit our production line and quality control workshop at any time.

  4. How does your factory carry out quality control?
    Answer: Quality is always our top priority. We implement full-process strict quality control from raw material incoming inspection, production process tracking to finished product testing. Our entire manufacturing system is certified to ISO 9001 standard to ensure consistent and reliable product performance.

  5. What is your normal production lead time?
    Answer: Our standard lead time is 10-20 working days after receiving your formal prepayment, for urgent orders we can also arrange a special production schedule to meet your delivery requirements.

  6. What payment terms can you accept?
    Answer: For small sample orders and courier fees, we support both PayPal and T/T (Telegraphic Transfer). For bulk formal orders, we adopt 100% T/T at sight or negotiable partial deposit + balance before shipment terms to protect both parties' interests.

  7. Is OEM/ODM service available?
    Answer: Yes, we provide full-range OEM and ODM services. Our professional engineering team can customize products according to your drawings, samples or specific on-site working condition requirements.

  8. Can I purchase complete pumps and related pump parts from you?
    Answer: Certainly, beyond our full series of mechanical seals, we also supply compatible pumps and supporting pump parts, including lobe pumps, homogeneous pumps, emulsification pumps and other related accessories to meet your one-stop procurement needs.
