Single Spring 40mm Auto Water Pump Seals EBARA Pump Mechanical Seal

Minimum Order Quantity : 10PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10-20DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: FTK

Detail Information

Material: CAR CER NBR Function: For Car Pump, Car Compressor FTK Seal
HS Code: 848420090 Specification: 16mm-40mm And Inch Size As Requirment
Certificate: ISO9001 Size: Standard
Type: Water Pump Product Name: Auto Water Pump FTK
Application: Auto Engine Packing: Neutral Packing
High Light:

EBARA Pump Auto Water Pump Seals

,

40mm Auto Water Pump Seals

,

40mm EBARA Pump Mechanical Seal

Product Description

Mechanical Seal FTK Automobile Water Pump O-Ring Single Spring Automobile Pump Seal For EBARA Pump
Operating Limits:
  1. FTK/FTK2 Mechanical Seal for auto cooling pump
  2. Pressure: ≤0.3MPa
  3. Rotary Speed: ≤5m/s
  4. Temperature: -30ºC~+200ºC
  5. Medium: water

Material:

  • Rotary Ring(Ceramic/SiC)
  • Stationary Ring(Carbon)
  • Secondary Seal (nbr)
  • Spring & Other Parts (Sus304)

Performance Capabilities:

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
16mm to 40mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.From 16mm to 20mm is packed in plastic sheets grouply and M box.

2.From 25mm to 40mm is wrapped in plastic paper individually then grouply in M box.



1. O-Ring single spring auto cooling Al2o3 mechanical seal Pusher seal

2.Our seals can replace the original seals.

3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

4.Auto cooling pump mechanical seal auto cooling pump seal FTK

5. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

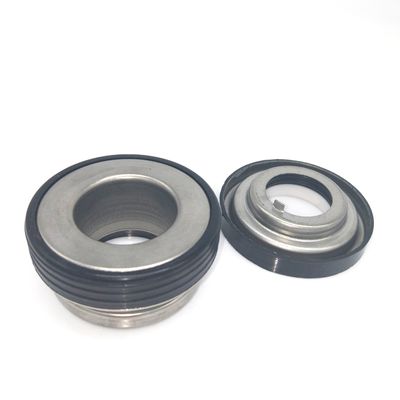

Single Spring 40mm Auto Water Pump Seals EBARA Pump Mechanical Seal 0

Single Spring 40mm Auto Water Pump Seals EBARA Pump Mechanical Seal 1Single Spring 40mm Auto Water Pump Seals EBARA Pump Mechanical Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
