Mechanical Seal FT FT AutoMobile Seal For Vehicle Auto Cooling Water Pump

Minimum Order Quantity : 10PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10-20DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 CE Model Number: FT

Detail Information

Material: Carbon/Ceramic/NBR Function: For Car Pump, Car Compressor
Transport Package: Box HS Code: 848420090
Specification: Auto Water Pump Seals As Requirment Certificate: ISO9001
Size: 10-30MM Type: FT-16 Carbon Ceramic Seal Face 16mm Stainless Steel Mechanical Seal
Product Name: FT Auto Mobile Mechanical Seal Application: Auto Cooling Pump Seal
Car Model: Auto

Product Description

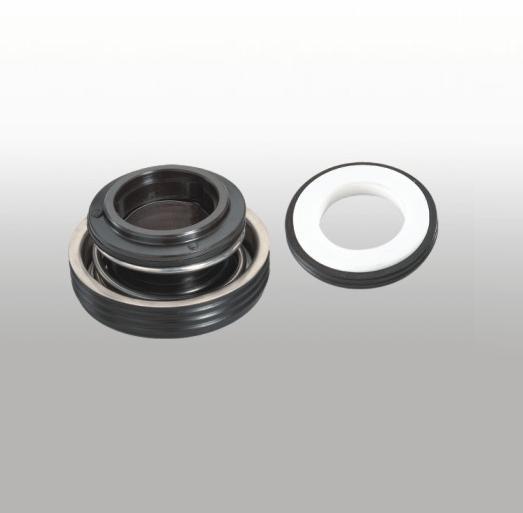

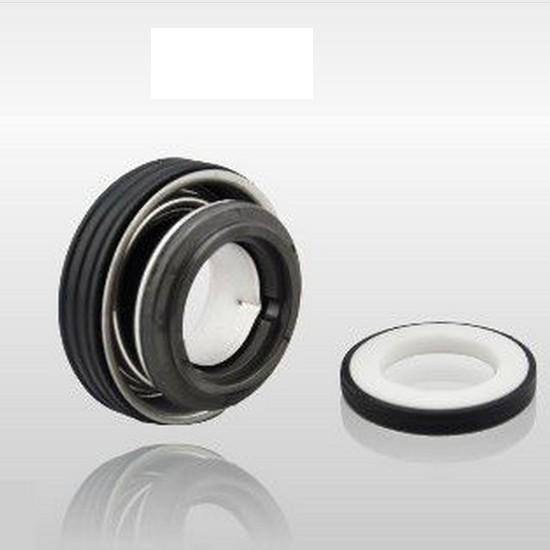

Mechanical Seal FT-16 Ceramic Ring Seals Auto Water Pump

Description:

Factory Wholesale Single Spring Rubber Bellows Seal FT Agricultural Water Pump Mechanical Seal

Auto Water Pump Seals Used in mini-water pump and automobile engine cooling water pump.

Materials should be selected according to operation condition.

FT  AutoMobile Mechanical Seal For Automobile Water Pump (Material:Carbon/Ceramic/NBR) Gasoline Generators Shaft Seal

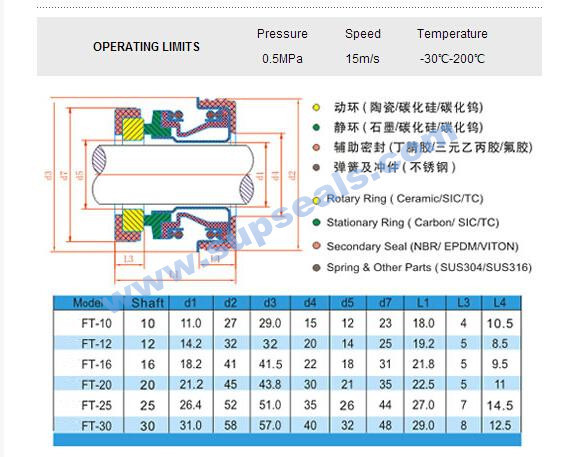

Auto Water Pump Seals Operating Limits:

  1. Pressure: ≤0.3MPa
  2. Rotary Speed: ≤9000r/min
  3. Temperature: -30ºC~+150ºC
  4. Medium: Clean water, seawater,
  5. gas engine antifreeze

Material:

  • Rotary Ring(Ceramic/SiC)
  • Stationary Ring(Plastic Carbon/Carbon/SiC)
  • Secondary Seal (nbr/Epdm/Hnbr/FKM)
  • Spring & Other Parts (Sus304/Sus316)

Performance Capabilities:

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
10mm to 30mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.From 10mm to 20mm is packed in plastic sheets grouply and M box.

2.From 25mm to 30mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.



(1)Features single coil spring, rubber bellows structure, durability and stability.
(2)Widely used in the food and beverage processing industries, etc.
Auto Water Pump Seals Product Parameter:
Product Name : Mechanical Seal
Model No. : FT-20
Internal Diameter : 20mm
Material : Rubber, Metal, Ceramic
Color : Black, White, Silver Tone

Mechanical Seal FT FT  AutoMobile Seal  For Vehicle Auto Cooling Water Pump 0

We are a professional supplier engaged in manufacturing, installation, export and wholesale of premium mechanical seals. Our product line includes Industrial Seals, Single Spring Seals, Balanced/Unbalanced Spring Seals, External Mounted Seals, PTFE Bellow External Mounted Seals, Cartridge Balance Seals, Multiple Spring Balance Seals, Dry Running Reverse Balance Seals, Agitator Double Acting Unbalance Seals, Single Conical Helical Springs, Rubber Bellow Seals, Multi Spring Seals, Metal Bellow Seals, Elastomer Bellow Seals, Conical Spring Seals, Air Condition Compressor Seals and Auto Cooling Seals.

We also provide full ranges of mechanical seals compatible with Flygt, Grundfos, APV, Grindes, Fristam, ABS, Alleeiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang .Auto Water Pump Seals and other mainstream pump brands.

Customization services are available: we can manufacture seals based on your samples or drawings, and develop exclusive designs as per your requirements. Material adjustments can be made to adapt to different operating parameters. Just send us your specific demands, and we will respond promptly.

If you have special needs, we are more than capable of helping! We can produce seals exactly according to your samples or drawings, and even design brand-new products tailored to your unique working scenarios. We can adjust different material options to meet various operating parameter requirements. Don't hesitate to reach out to us with your specific demands anytime!
Are you a factory or a trade company?
We are a professional manufacturing factory dedicated to mechanical seals and fluid equipment, with a full in-house international sales team to deliver one-stop trade services for global industrial clients.

Can I get a sample before placing a formal order?
Absolutely. Standard mechanical seal samples are available upon request, and most of them are provided completely free of charge for your performance testing.

Where is your factory located and how can I arrange a visit?
Our production base is located in Ningbo, China. You can take a direct flight to Ningbo Lishe International Airport (30 minutes' drive from our factory) or Shanghai's airports, and we offer free pick-up service for all visiting domestic and overseas clients. You are warmly welcome to inspect our production lines and testing facilities at any time.

How does your factory manage quality control?
Quality is our top priority for all mechanical seal products. We implement strict full-process quality inspection from raw material incoming check to finished product pressure and wear testing. Our factory has obtained ISO9001 quality system certification, and all products are traceable with complete quality records.

What is your standard production lead time?
The standard lead time for mechanical seal orders is 10 to 20 working days after receiving your prepayment. For urgent replacement orders of common models, we can arrange priority production to shorten the delivery period.

What payment methods do you support?
For small sample shipping fees, you can choose to pay via PayPal or T/T. For large formal industrial orders, we adopt T/T at sight as the standard payment term, and we can discuss flexible payment plans for long-term cooperative clients.

Do you support OEM and ODM services?
Yes, we provide full OEM and ODM services for all our mechanical seals and fluid equipment. We can customize materials, dimensions, logos and packaging according to your requirements, and also develop exclusive seal solutions for special working conditions.

Can I purchase complete pumps and related pump parts from your company?
Certainly. We not only supply full-series mechanical seals, but also provide supporting pumps and pump spare parts, including lobe pumps, compound homogeneous pumps, homogeneous emulsification pumps and other fluid equipment products.
