12 - 20mm FBM Mechanical Pump Seals For Auto Cooling Pump Seal

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: FBM

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Water Pump Seal For Auto Bearing Certificate: ISO9001
Type: Car Auto Cooling Engine Pump Seals Standard Or Nonstand: Standard
Style: FBM Mechanical Seal Auto Spare Parts Size: 12-20mm
High Light:

Auto Cooling Mechanical Pump Seals

,

FBM Mechanical Pump Seals

,

Mechanical Auto Cooling Pump Seals

Product Description

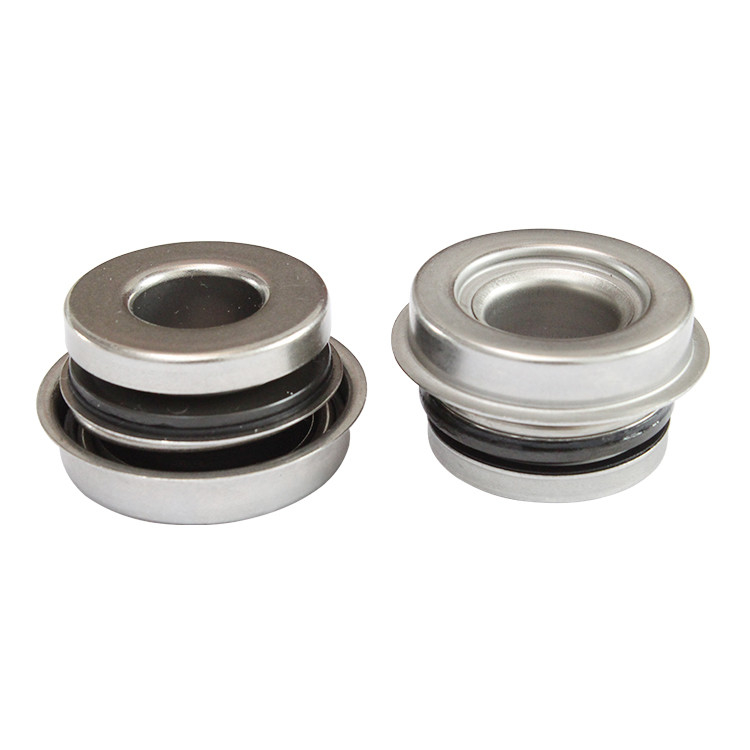

Auto Cooling Pump Seal FBM Mechanical Seal for Car Water Pump

Operations Conditions:

  1. Auto Cooling Pump Seal FBM
  2. Temperature: -30°C~+200°C
  3. Pressure: ≤0.3MPa
  4. Speed: ≤15m/s
  5. Medium:Clean water. seawater
  6. Gas engine antifreeze

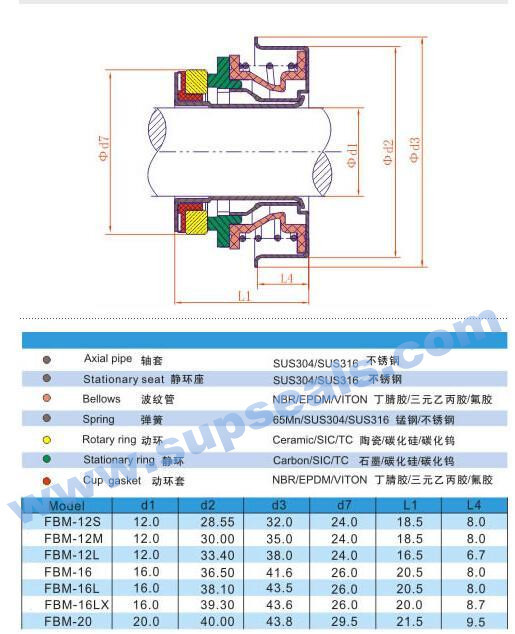

Materials:

  • Axial pipe(SUS304/SUS316)
  • Stationary seat(SUS304/SUS316)
  • Bellows(NBR/EPDM/FKM)
  • Spring(65Mn/SUS304/SUS316)
  • Rotary Ring(Ceramic/SiC/TC)
  • Stationary Ring(Plastic Carbon/Carbon/SiC)
  • Cup gasket(NBR/EPDM/FKM)

Performance Capabilities:


Operational conditions: Materials
temperature -30℃to +200℃ Stationary ring Q2, U2,B,
Pressure <<1.0Mpa Rotary ring U22,Q22
Speed <<25M/S Secondary seal P,E,N,V,Aflas
Standard DIN24960 Spring and metal parts F,G,
Application: clean water, sewage water, Oiland other moderately corrosive fluids

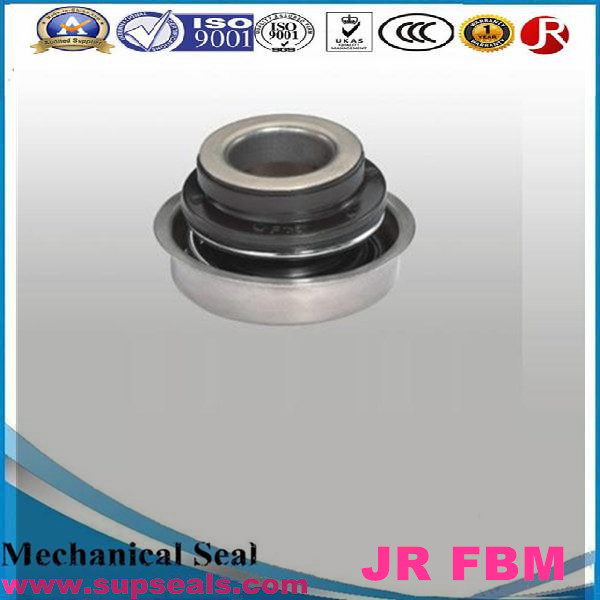

FBM O-Ring single spring auto cooling pump mechanical seal


12 - 20mm FBM Mechanical Pump Seals For Auto Cooling Pump Seal 0

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so o
