Home ProductsO Ring Mechanical SealSIC FKM 1527 O Ring Mechanical Seal 10 - 100MM

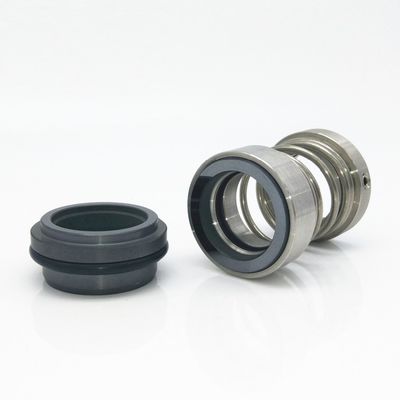

SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM
SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM
Contact Now

SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM

Minimum Order Quantity : 1PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: 1527

Detail Information
Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Mechanical Seal Certificate: ISO9001
Type: Mechanical Seal Pump Standard: Standard
Size: 10-100MM Name: 1527 Mechanical Seal
High Light:

100MM O Ring Mechanical Seal

,

100MM Mechanical Shaft Seal

,

O Ring Mechanical Shaft Seal

Product Description

Equal to Fristam Pump Mechanical Seal 1527 O-Ring Mechanical Shaft Seal



Operational Conditions:

  1. Temperature: -40℃~150℃
  2. Pressure: ≤1.0 MPa
  3. Speed: ≤10 m/sec

 Materials:

  • 1- Rotary ring: SIC / TC.
  • 2- Stationary ring: Carbon / SIC / TC.
  • 3- Bellows: EPDM / FKM.
  • 4- Spring: SS304.
  • 5- Metal parts: SS304.


Performance Capabilities:

 mechanical seal 1527
Operational Condtions
Size
Material
Temperature:
-40℃ to220℃, depend on o-ring material



10-100mm

Face: Carbon, SiC, TC
Pressure: Up to25 bar

Seat: Ceramic, SiC, TC
Speed:Up to 25m/s
Spring: SS316
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS316, hastelloy C, AM
  • 1. 1527 Mechanical Seal Vulcan Type 97 Pump Seal
  • 2. Our seals can replace the original seals.
  • 3.Application: seals are primarily used in Clean water,sewage water,oil and other moderately corrosive fluids etc.
  • 4..Standard:the products are in according with Din24960,ISO3069,en12576,API682 standards
  • 5..OEM and Customized products is welcomed.
  • 6. Factory Price,High Quality ,Fast Delivery and Best Sevice.

SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM 0

SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM 1

SIC FKM 1527 O Ring Mechanical Seal 10 - 100MM 2



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
