Temperature
|
-30℃ to 200℃, dependent on the elastomer
|
|
Pressure
|
Up to 16 bar
|
|
Speed
|
Up to 20 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
14mm to 100mm
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Carbon, SiC, TC
|
|
Elastomer
|
NBR, EPDM, etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|

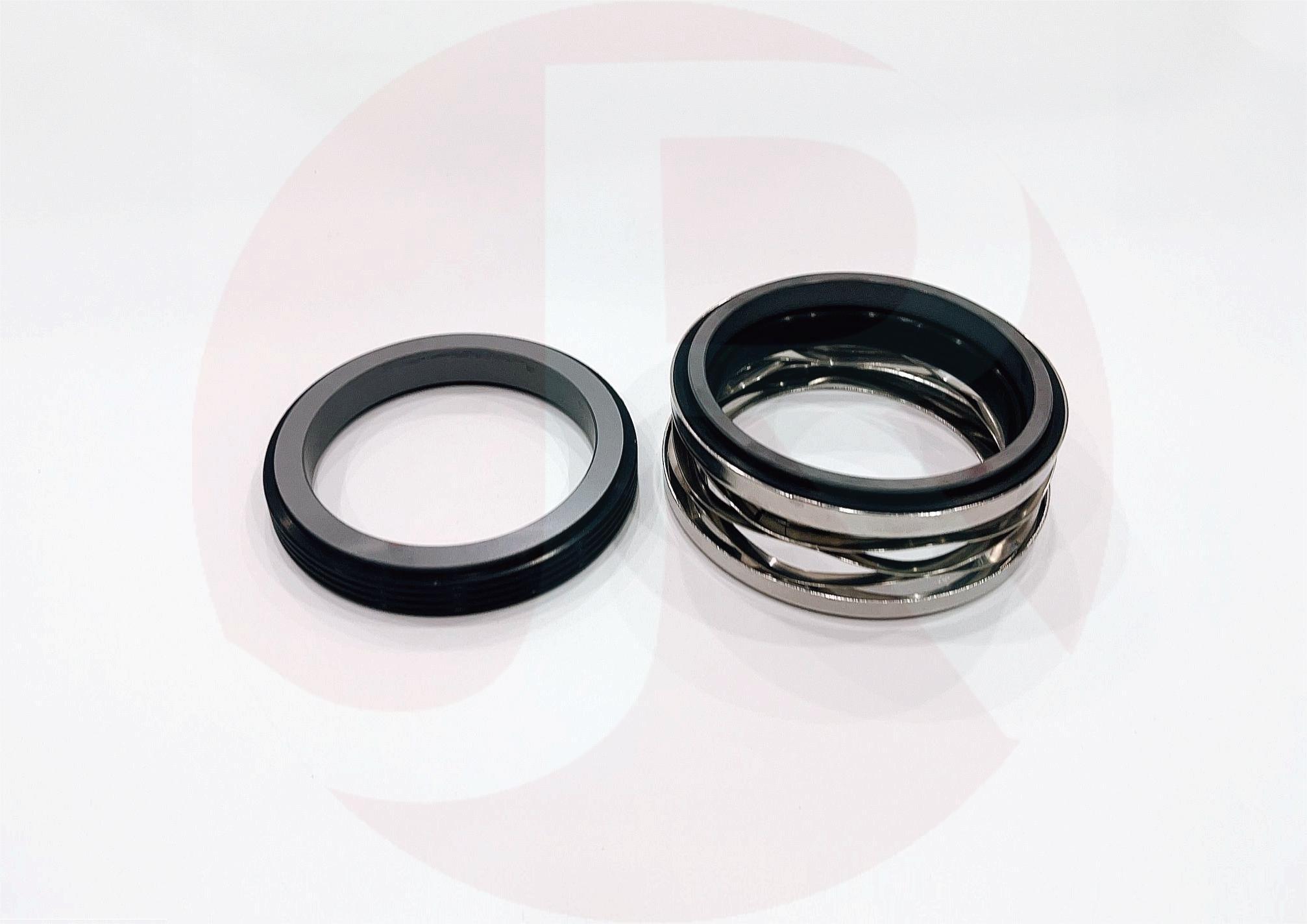

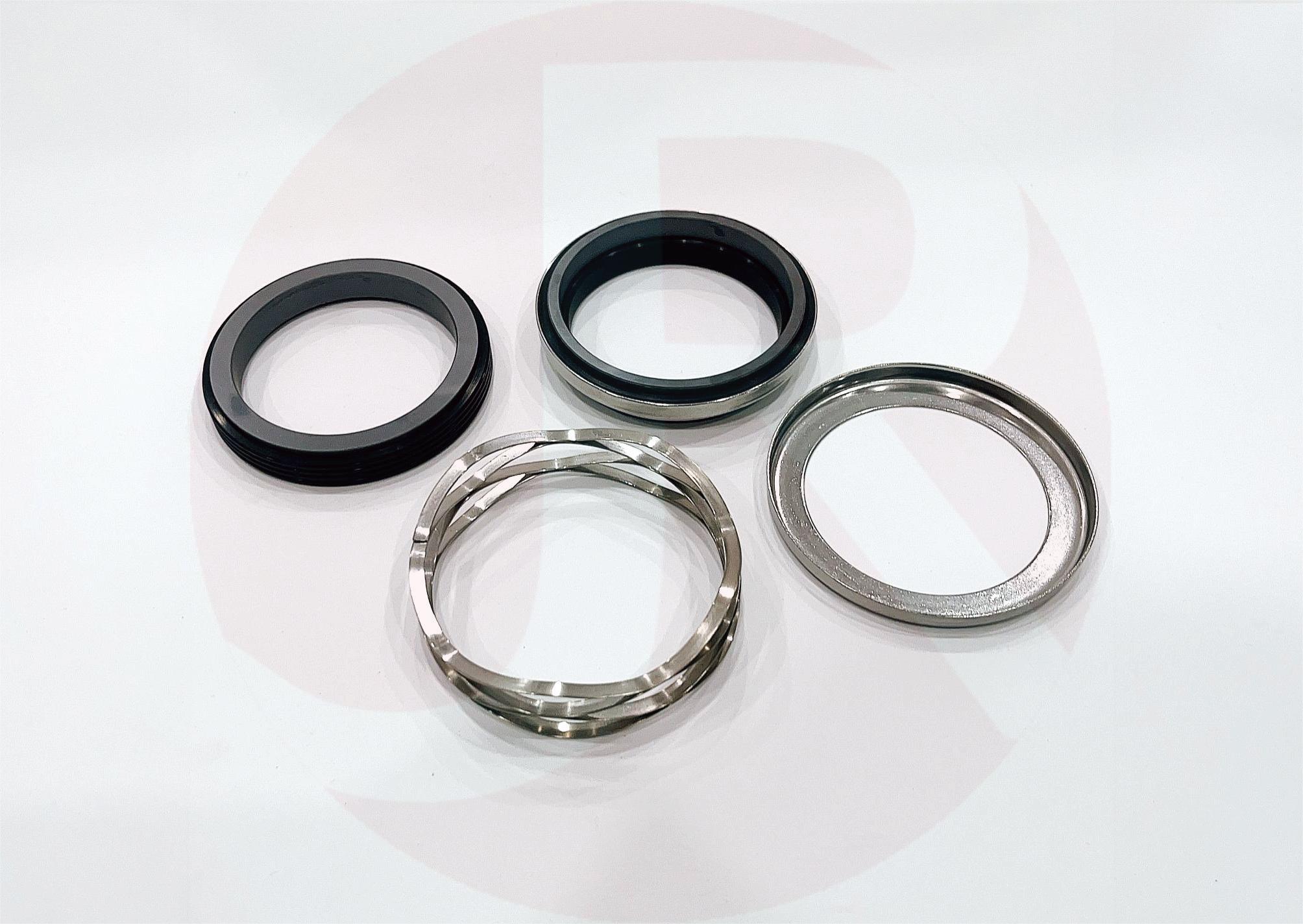

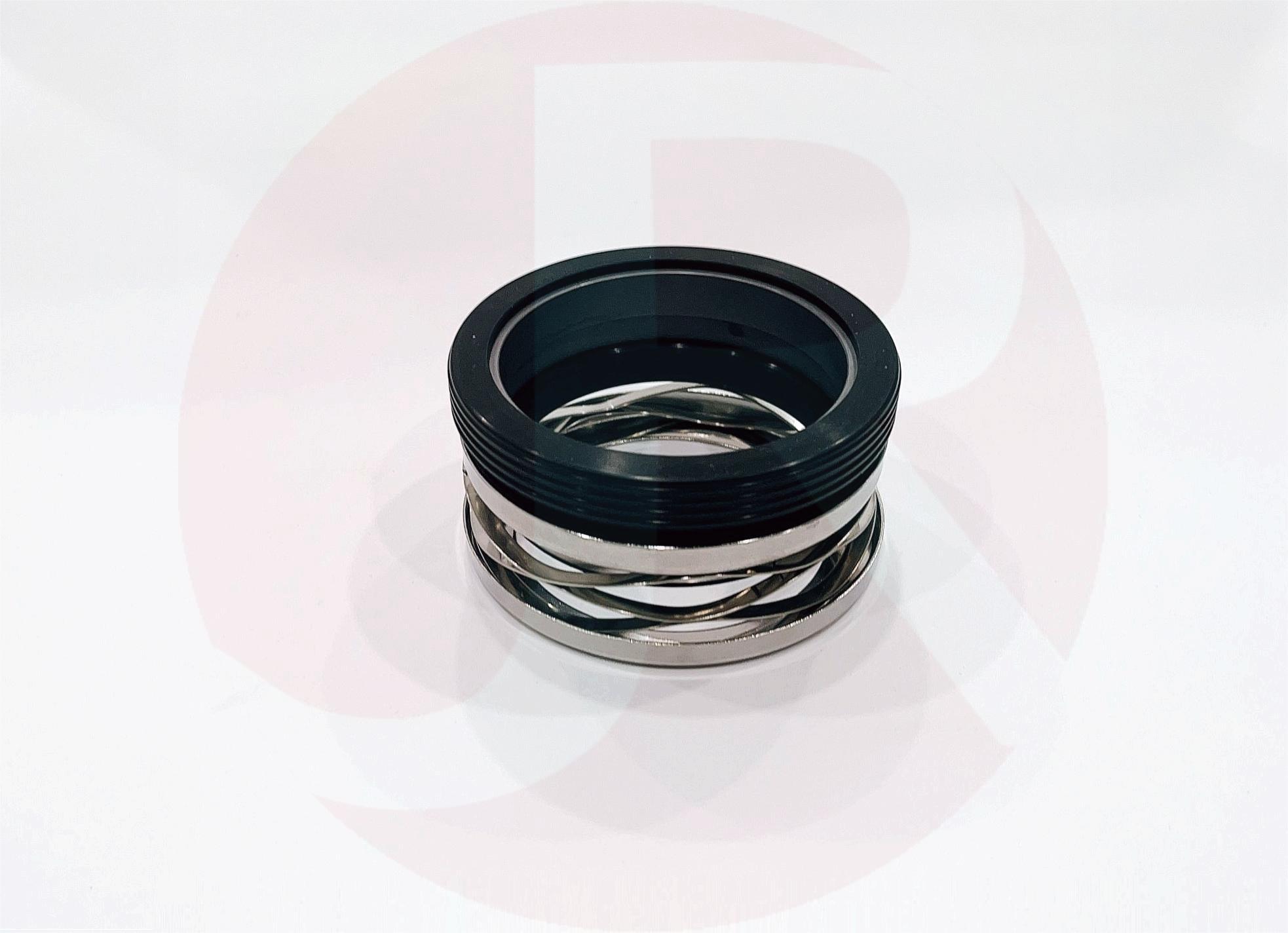

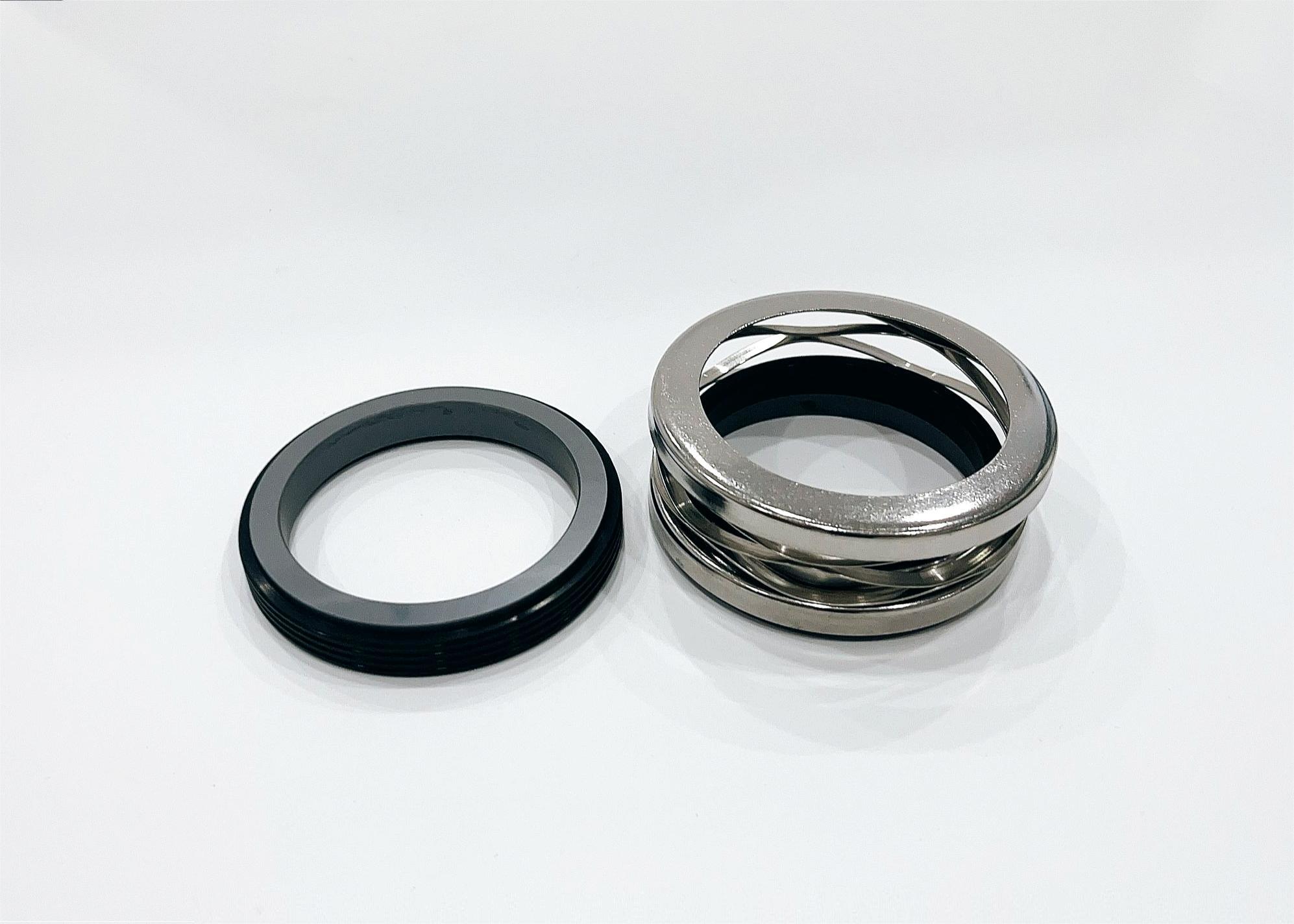

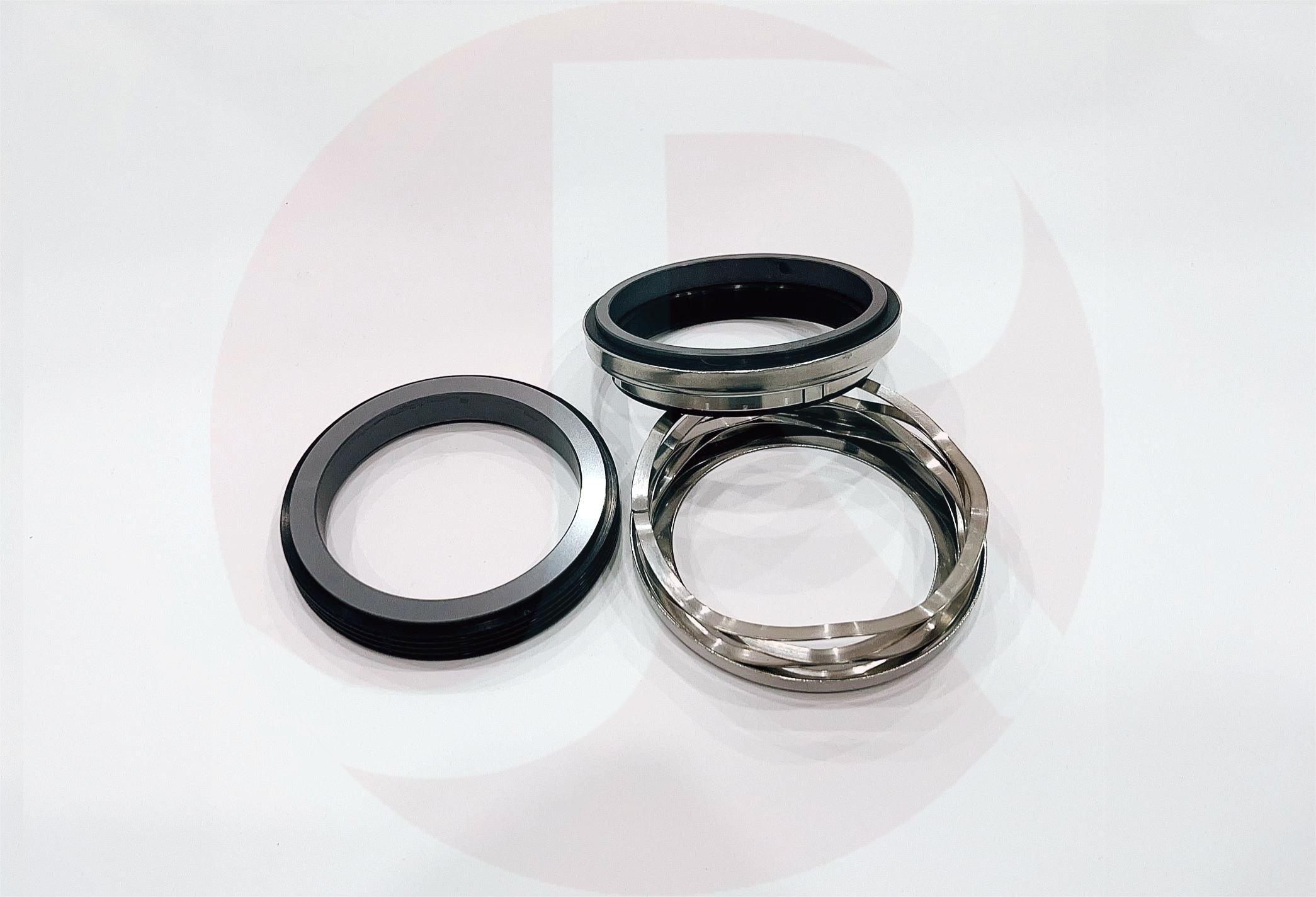

Mechanical Seals To Suit A.B.S. Pumps AFP, K Series And Mixers,Especially Submersible Pumps,VULCAN 1577,1578,1632,195
the Vulcan Seals Type 1577 elastomer diaphragm mounted wave spring seals with boot stationaries intended to suit the upper bearing side of seal chambers of Wilo submersible and former submersible pumps,
The Vulcan Seals Type 1577 seals will often be used in conjunction with Vulcan Seals Type 195 seals as the lower (impeller) position seal in these submersible pumps. Please see the relevant Vulcan Seals Type 195 datasheet.
We specialize in the manufacture, installation, export, and wholesale of a comprehensive quality range of industrial sealing solutions, including single spring seals, balanced and unbalanced spring seals, externally mounted seals, PTFE bellow externally mounted seals, cartridge balanced seals, multiple spring balanced seals, dry running reverse balanced seals, agitator double-acting unbalanced seals, single conical helical springs, rubber bellow seals, multi-spring seals, metal bellow seals, elastomer bellow seals, conical spring seals, air conditioning compressor seals, and automotive cooling seals.
We also supply full-series mechanical seals compatible with Flygt, Grundfos, APV, Grindes, Fristam, ABS, Alleeiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang and other mainstream pump brands.
Meanwhile, we support full customization services: we can produce seals strictly according to your provided samples or drawings, and adjust materials to meet special operating parameter requirements. Just share your specific working conditions, and our team will deliver a tailored sealing solution for you.
-
