Godwin 50mm Mechanical Seal For Godwin Upper And Lower Seals Code:38-1802-9912

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: 20R

Detail Information

Material: SIC SIC PTFE Function: Chemically Inert Materials In All Areas And On All Surfaces
Transport Package: Box HS Code: 848420090
Specification: John Crane Type 20r-2.5b PTFE Bellow Mechanical Seal Certificate: ISO9001
Type: John Crane 20R Standard Or Nonstand: Standard
Style: Mechanical Seal 20R Size: 1"/25mm To 4"/101mm

Product Description

John Crane Type 20R-2.5B PTFE Bellow Mechanical Seal White PTFE Elastomer Bellow Seal



Operations Conditions:

  • Structure: Single End
  • Pressure: High Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: High Temperature Mechanical Seal
  • Performance: High Pressure
  • Standard: Unbalanced
  • Model NO.: Godwin Pump Upper and Lower Seals
  • Balance: Balanced
  • Specification: Inner Diameter: 40mm, 50mm, 60mm, 75mm

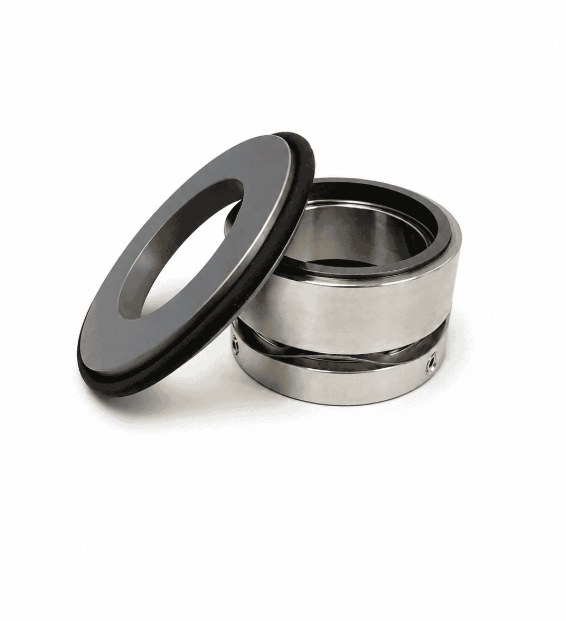

Godwin 50mm Mechanical Seal — 38-1802-9912

The Godwin 50mm mechanical seal is a direct-fit shaft seal for Godwin pumps, cross-referenced to Godwin part number 38-1802-9912. It is built to OEM-equivalent standards or higher for the same fit and longevity as the original.

At a glance:
  • Shaft size: 50mm

  • Manufacturer reference: Godwin 38-1802-9912

  • Faces: Silicon Carbide / Silicon Carbide

  • Elastomers: Viton (FKM)


Applications

Godwin Dri-Prime CD75, CD80D, CD80M, CD100M, CD103M, CD150M and CD200M, and the HL80, NC80, NC100 and NC150.



Pressure: ≤ 1MPa
Speed: ≤ 13m/s
Temperature: -35ºC ~+120ºC
Rotary Ring :Filled PTFE/SiC
Stationary Ring: 99%Ceramic/SiC
Secondary SeaI:PTFE
Spring & Other Parts(SS304/SS316/SS316L)

Performance Capabilities:



Temperature
-20℃ to 120℃, dependent on the elastomer
Pressure
Up to 0.5mpa
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size-
50MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well

These are replacement mechanical seals for Godwin pump upper and lower seals. These 2 types of seals work togather.

Structural Features: single end, single spring, unbalanced, any direction of rotation.

Industrial Standards: Customized

 Application: specifically designed for Godwin pumps.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.







We specialize in the manufacture, installation, export and wholesale of a comprehensive quality range of industrial mechanical seals, covering:
Single Spring Seals, Balanced & Unbalanced Spring Seals, External Mounted Seals, PTFE Bellow External Mounted Seals,
Cartridge Balanced Seals, Multiple Spring Balanced Seals, Dry Running Reverse Balanced Seals,
Agitator Double Acting Unbalanced Seals, Single Conical Helical Springs, Rubber Bellow Seals,
Multi Spring Seals, Metal Bellow Seals, Elastomer Bellow Seals, Conical Spring Seals,
Air Conditioner Compressor Seals, Automotive Cooling System Seals, Metallic Bellow Seals.

We also supply full-series replacement mechanical seals compatible with major pump brands including Flygt, Grundfos, APV, Grindes, Fristam, ABS, Allweiler, EMU, GEA Tuchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha and Vogelsang.

Beyond standard offerings, we deliver custom-manufactured seals tailored strictly to your samples, technical drawings or unique operational requirements.


‌Q1: Are you a factory or a trading company?‌
A: We are a professional manufacturing factory with a dedicated in-house sales team to deliver full-spectrum trade services for global clients.

‌Q2: Can I get a sample before placing a formal order?‌
A: Absolutely. Sample requests are always welcome, and in most cases, samples are provided free of charge.

‌Q3: Where is your factory located? How can I arrange a visit?‌
A: Our facility is based in Ningbo, China. You can fly directly to Ningbo Lishe International Airport or Shanghai Pudong Airport, and we warmly welcome all domestic and overseas clients to visit our factory at any time.

‌Q4: What quality control standards does your factory follow?‌
A: Quality is our top priority. We enforce strict full-process quality management from raw material incoming inspection through to final product delivery, and our factory is fully certified to ISO 9001 standards.

‌Q5: What is your typical production lead time?‌
A: Standard lead time is 10–20 days upon receipt of your prepayment.

‌Q6: What payment terms do you accept?‌
A: For small sample shipping fees, we support both PayPal and T/T. For bulk order payments, we accept T/T at sight.

‌Q7: Is OEM service available?‌
A: Yes, we offer full OEM and ODM customization services across our entire product line.

‌Q8: Can I purchase complete pumps or related pump parts from you?‌
A: Yes, we also supply a full range of pumps and pump components, including lobe pumps, compound and homogeneous pumps, homogenizing and emulsifying pumps, and other related spare parts.
