Home ProductsIndustrial Mechanical SealsElastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump

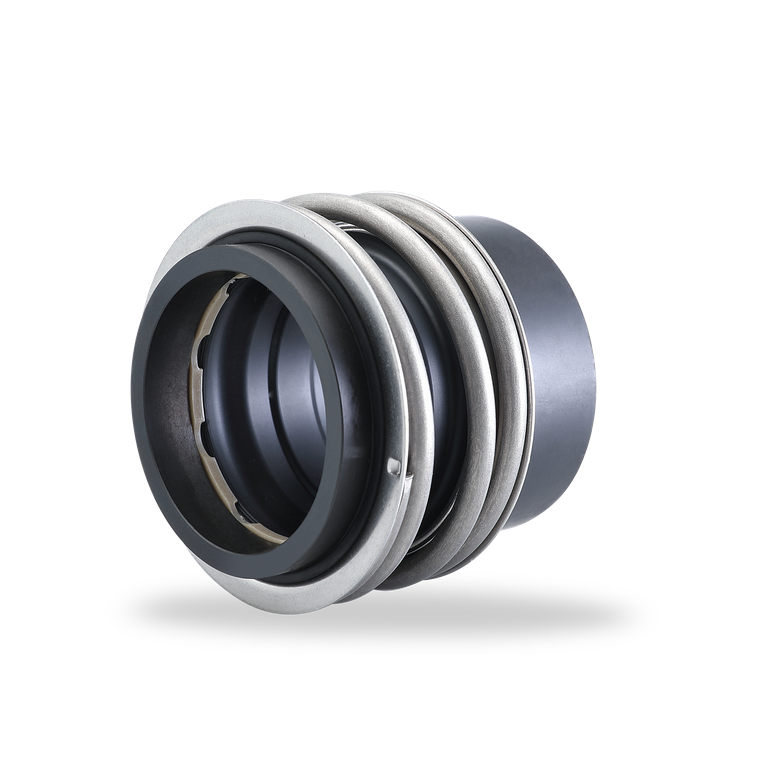

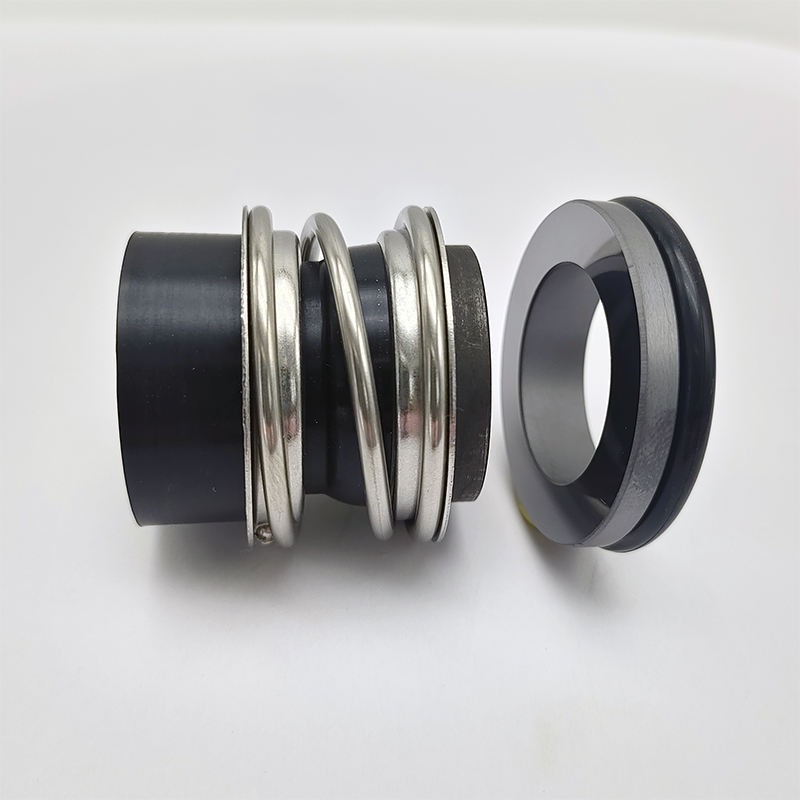

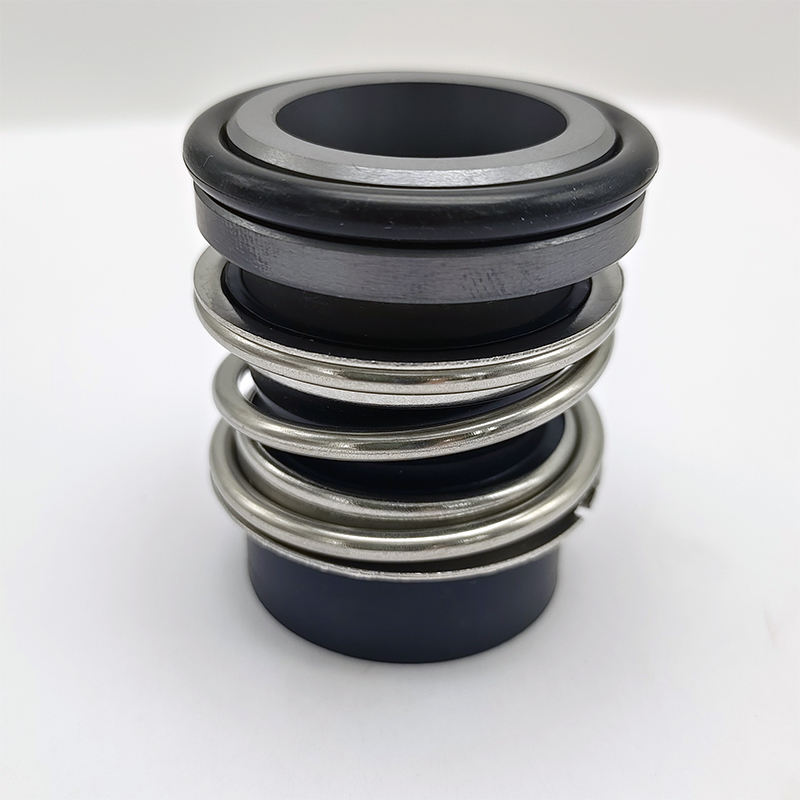

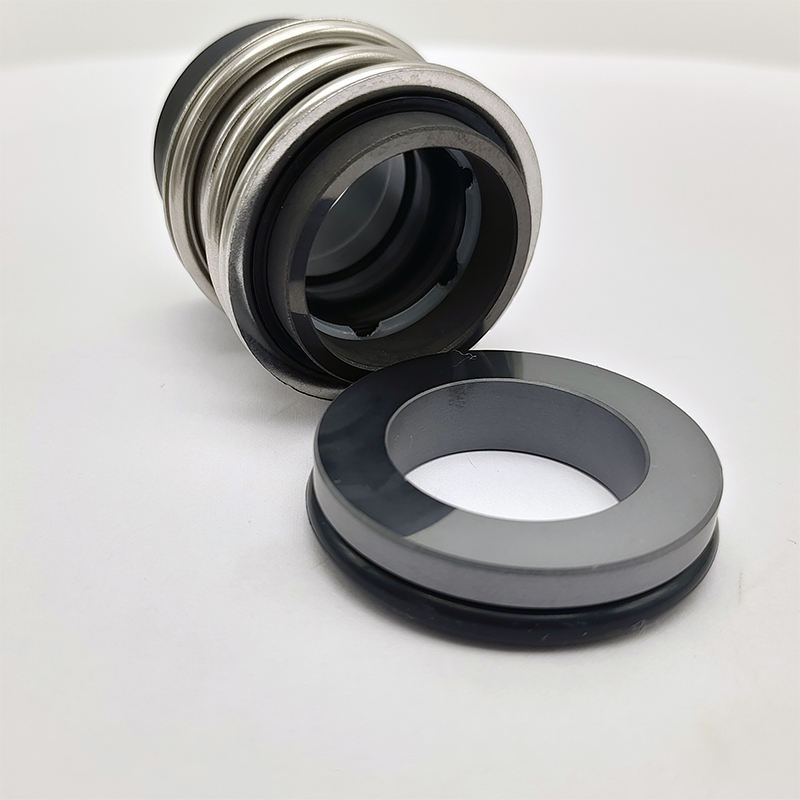

Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump
Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump
Contact Now

Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: EMG13

Detail Information
Material: SIC SIC EPDM Function: For NB NK TP Pump Oil Pump, Water Pump
HS Code: 848420090 Specification: Industrial Mechanical Seals EMG13
Certificate: ISO9001 Borgmann Type: Burgmann EMG13 Seal
Standard Or Nonstand: Standard Size: 12-40MM
Product Name: Mechanical Seal EMG13 Sample: Allowed
Pump: Burgmann EMG13
Highlight:

Elastomer Bellows Mechanical Seal

,

German original imported Borgmann seal

,

EMG13 mechanical seal for pump

Product Description

Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump



Operations Conditions:



  1. Industrial Mechanical Seals EMG13
  2. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  3. Temperature: -30°C~200°C
  4. Pressure: ≤1.2MPa
  5. Speed: ≤ 12 m/Sec
  6. Material: SIC/SIC/VIT/304 or SIC/SIC/NBR/304 or CAR/SIC/EPDM/304
    Shaft size: 10mm-100mm
  7. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.

Materials:

  • Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,
  • Ni-binder Tungsten Carbide Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,
  • Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded Secondary Seal:Nitrile(NBR),
  • Ethylene Propylene(EPDM),Fluorocarbon Rubber(FKM) Spring and Metal Parts:Stainless Steel,Stainless Steel
  • Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids

Performance Capabilities

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 12mm to 100mm
Brand Industrial Mechanical Seals EMG13
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.



The Industrial Mechanical Seals EMG13 is a rotor, which can be categorized as a rubber bellow rotor.
It is an alternative to the Qseals QRB03, AES B093U, AES B013 and 89 others.
It is suited for the DVR Pumpen D40-160KM- IIS433, Errelle RL2T 80-120, KSB Movichrom NG9/132R 1-P25-912B15
Material: SIC/SIC/VIT/304 or SIC/SIC/NBR/304 or CAR/SIC/EPDM/304
Shaft size: 10mm-100mm
Single and dual seals for plain shafts. Elastomer bellows rotating, balanced, independent of direction of rotation. Fitting length I1N according to EN 12756 in combination with seat G6 or G60 (da exceeds EN 12756). 100 % compatible with seal type MG13. Variants with seal faces in DiamondFace technology available.

Photos and drawings show the product in the standard configuration. Product variants may differ technically.

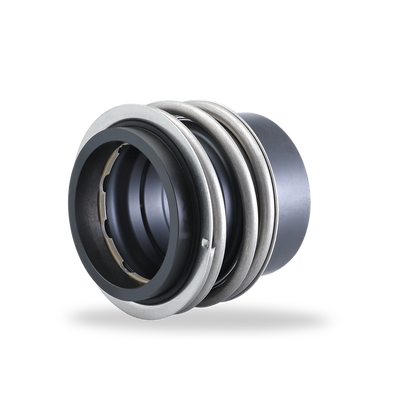

Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump

d1

d3

d6

d7

d11

d12

da

db*)

dST

lS

l

l1

l1k

l2

l1N

l5

l6

l10

l12

l14

l15

l16

l28

R
14 19.7 21 25 20.5 24.6 27 17.5 28.5 15 17 28.4 35 - - 1.5 4 7.5 6.5 5.6 1.2 3.8 6.6 1.2
15 20.8 - - 20.5 24.6 28.5 18.5 30 15 17 - - - - - - - 7.5 6.6 1.2 3.8 - 1.2
16 21 23 27 22 28 28.5 19.5 30 15 17 28.4 35 33.4 40 1.5 4 7.5 8.5 7.5 1.5 5 6.6 1.5
18 23.7 27 33 24 30 32 21.5 33 17 19.5 30 37.5 - - 2 5 8.5 9 8 1.5 5 7.5 1.5
20 26.7 29 35 29.5 35 37 24 38 19 21.5 30 37.5 - - 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
22 27.7 31 37 29.5 35 37 26 38 19 21.5 30 37.5 37.5 45 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
24 31.2 33 39 32 38 42.5 28 44 19 22.5 32.5 40 - - 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
25 31.2 34 40 32 38 42.5 29 44 19 23 32.5 40 - - 2 5 8.5 8.5 7.5 1.5 5 7.5 1.5
28 35 37 43 36 42 49 32 50 23 26.5 35 42.5 42.5 50 2 5 8.5 10 9 1.5 5 7.5 1.5
30 37 39 45 39.2 45 49 34 50 23 26.5 35 42.5 - - 2 5 8.5 11.5 10.5 1.5 5 7.5 1.5
32 40.2 42 48 42.2 48 53.5 36 55 23.5 27.5 35 42.5 - - 2 5 8.5 11.5 10.5 1.5 5 7.5 1.5
33 40.2 42 48 44.2 50 53.5 37 55 23.5 27.5 35 42.5 - - 2 5 8.5 12 11 1.5 5 7.5 1.5
35 43.2 44 50 46.2 52 57 40 59 24.5 28.5 35 42.5 - - 2 5 8.5 12 11 1.5 5 7.5 1.5
38 46.2 49 56 49.2 55 59 43 61 25 30 36 45 46 55 2 6 10 11.3 10.3 1.5 5 9 1.5
40 48.8 51 58 52.2 58 62 45 64 25.5 30 36 45 - - 2 6 10 11.8 10.8 1.5 5 9 1.5
43 51.8 54 61 53.3 62 65.5 48 67 25.5 30 36 45 - - 2 6 10 13.2 12 2 6 9 2.5
45 53.8 56 63 55.3 64 68 50 70 25.5 30 36 45 - - 2 6 10 12.8 11.6 2 6 9 2.5
48 56.8 59 66 59.7 68.4 70.5 53 74 26 30.5 36 45 51 60 2 6 10 12.8 11.6 2 6 9 2.5
50 58.8 62 70 60.8 69.3 74 55 77 26 30.5 38 47.5 - - 2.5 6 10.5 12.8 11.6 2 6 9.5 2.5
53 62.2 65 73 63.8 72.3 78.5 58 81 29 33 36.5 47.5 - - 2.5 6 12 13.5 12.3 2 6 11 2.5
55 64.2 67 75 66.5 75.4 81 60 83 30 35 36.5 47.5 59 70 2.5 6 12 14.5 13.3 2 6 11 2.5
58 67.2 70 78 69.5 78.4 85.5 64 88 31 37 - - - - 2.5 6 12 14.5 13.3 2 6 11 2.5
60 70 72 80 71.5 80.4 88.5 66 91 32 38 41.5 52.5 59 70 2.5 6 12 14.5 13.3 2 6 11 2.5
65 75 77 85 76.5 85.4 93.5 71 96 34 40 41.5 52.5 - - 2.5 6 12 14.2 13 2 6 11 2.5
68 78 81 90 82.7 91.5 96.5 74 100 34 40 - - - - 2.5 7 12.5 14.9 13.7 2 6 11.3 2.5
70 80 83 92 83 92 99.5 76 103 34 40 48.7 60 - - 2.5 7 12.5 14.2 13 2 6 11.3 2.5
75 85.5 88 97 90.2 99 107 81 110 34 40 48.7 60 - - 2.5 7 12.5 15.2 14 2 6 11.3 2.5
80 90.5 95 105 95.2 104 112 86 116 34 40 48 60 - - 3 7 13 16.2 15 2 6 12 2.5
85 96 100 110 100.2 109 120 92 124 35 41 46 60 - - 3 7 15 16 14.8 2 6 14 2.5
90 102 105 115 105.2 114 127 97 131 38 45 51 65 - - 3 7 15 16 14.8 2 6 14 2.5
95 107 110 120 111.6 120.3 132 102 136 39 46 51 65 - - 3 7 15 17 15.8 2 6 14 2.5
100 112 115 125 114.5 123.3 137 107 140 40 47 51 65 - - 3 7 15 17 15.8 2 6 14 2.5
110 123 - - - - 150 118 154 43 49 - - - - - - - - - - - - -

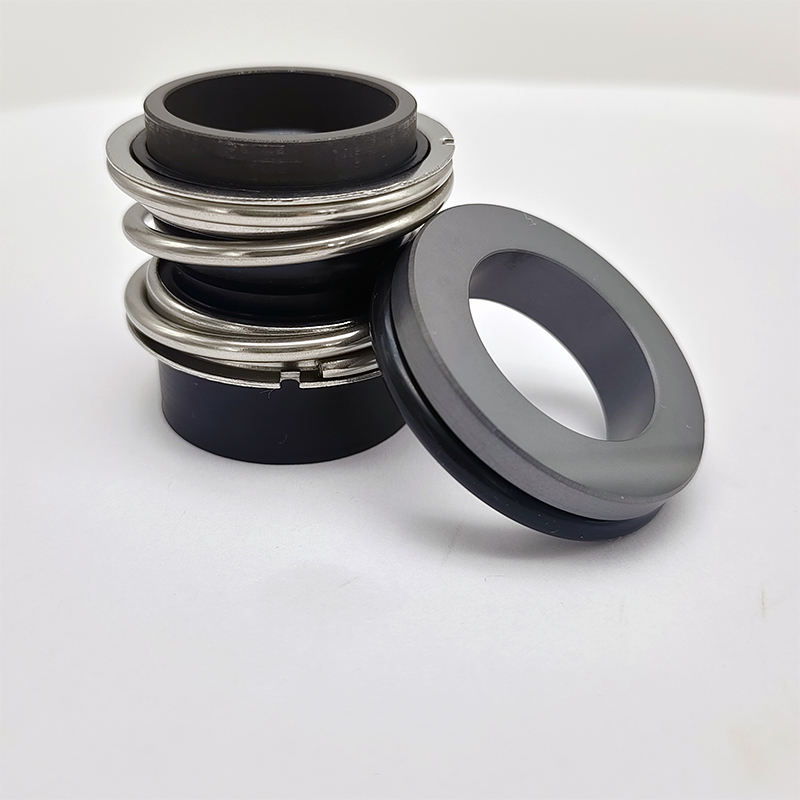

Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump

Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump

Elastomer Bellows Mechanical Seal EagleBurgmann Type EMG13 Authentic German original imported Borgmann supporting NB NK TP pump

We specialize in the manufacture, installation, export and wholesale of a full quality range of industrial mechanical seals, including single spring seals, balanced and unbalanced spring seals, externally mounted seals, Industrial Mechanical Seals ,PTFE bellow externally mounted seals, cartridge balanced seals, multiple spring balanced seals, dry-running reverse balance seals, agitator double-acting unbalanced seals, single conical helical spring seals, rubber bellow seals, multi-spring seals, metal bellow seals, elastomer bellow seals, conical spring seals, air conditioning compressor seals, automotive cooling system seals and metallic bellow seals.

We also supply a complete series of drop-in replacement mechanical seals compatible with Flygt, Grundfos, APV, Grindes, Fristam, ABS, Allweiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang and many other mainstream pump brands.

Beyond our extensive standard product portfolio, we offer full customization services: we can produce mechanical seals strictly according to your provided samples, engineering drawings, or specific design requirements. We also support targeted material modification to meet special operating parameters for extreme working conditions. Feel free to contact us with your detailed specifications for a tailored solution



  1. Are you a factory or a trading company?
    We operate as a professional manufacturing facility based in Ningbo, China, with an in-house dedicated trade team to deliver seamless global sourcing and export services to our clients. This setup allows us to balance strict production quality control with responsive, customer-focused international trade support.

  2. Can I get a sample before placing a formal order?
    Absolutely. We offer complimentary samples for most of our standard mechanical seal products, so you can verify fit, material quality and performance before committing to a bulk order. You are only required to cover the corresponding international courier shipping cost.

  3. Where is your factory located, and how can I arrange a visit?
    Our manufacturing base is situated in Ningbo, one of China’s major industrial and port cities. You can fly directly to Ningbo Lishe International Airport, or arrive at Shanghai Pudong Airport which is only a 2.5-hour high-speed train ride away. All domestic and international clients are warmly welcomed to schedule a factory tour at your convenience.

  4. What is your factory’s quality control system like?
    Quality is always our top priority. We implement full-process quality management covering raw material incoming inspection, production in-process monitoring and final 100% performance testing. Our facility is fully certified to ISO 9001 standards, ensuring consistent and reliable product performance across every batch.

  5. What is your typical production lead time?
    For standard models and regular orders, our lead time is 10–20 days after receiving your formal prepayment. For complex custom or OEM projects, we will provide you with a precise, mutually agreed delivery schedule at the time of quotation.

  6. What payment methods do you accept?
    For small orders such as sample freight charges, both PayPal and T/T are acceptable. For formal bulk orders with larger amounts, our standard term is 100% T/T at sight, or negotiable partial deposit plus balance before shipment based on cooperation history.

  7. Is OEM/ODM service available?
    Yes, we provide full OEM and ODM support for all our product lines. We can customize materials, dimensions, seal face configurations, packaging and branding to fully match your specific application requirements.

  8. Can I also purchase complete pumps and pump spare parts from you?
    Certainly. Beyond our extensive mechanical seal range, we also supply a full portfolio of related pump products and components, including lobe pumps, compound homogeneous pumps, emulsification pumps and other precision fluid handling parts.
