Temperature
|
-20℃ to 180℃, dependent on the elastomer
|
|
Pressure
|
Up to 10 bar
|
|
Speed
|
Up to 15 m/s
|
|
End play/axial float allowance
|
±0.1mm
|
|
Size
|
25mm 35mm 55mm
|
|
Brand
|
JR
|
|
Face
|
Carbon, SiC, TC
|
|
Seat
|
Ceramic, SiC, TC
|
|
Elastomer
|
NBR, EPDM, FKM etc.
|
|
Spring
|
SS304, SS316
|
|
Metal parts
|
SS304, SS316
|
|
Idividual Packing
|
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
|

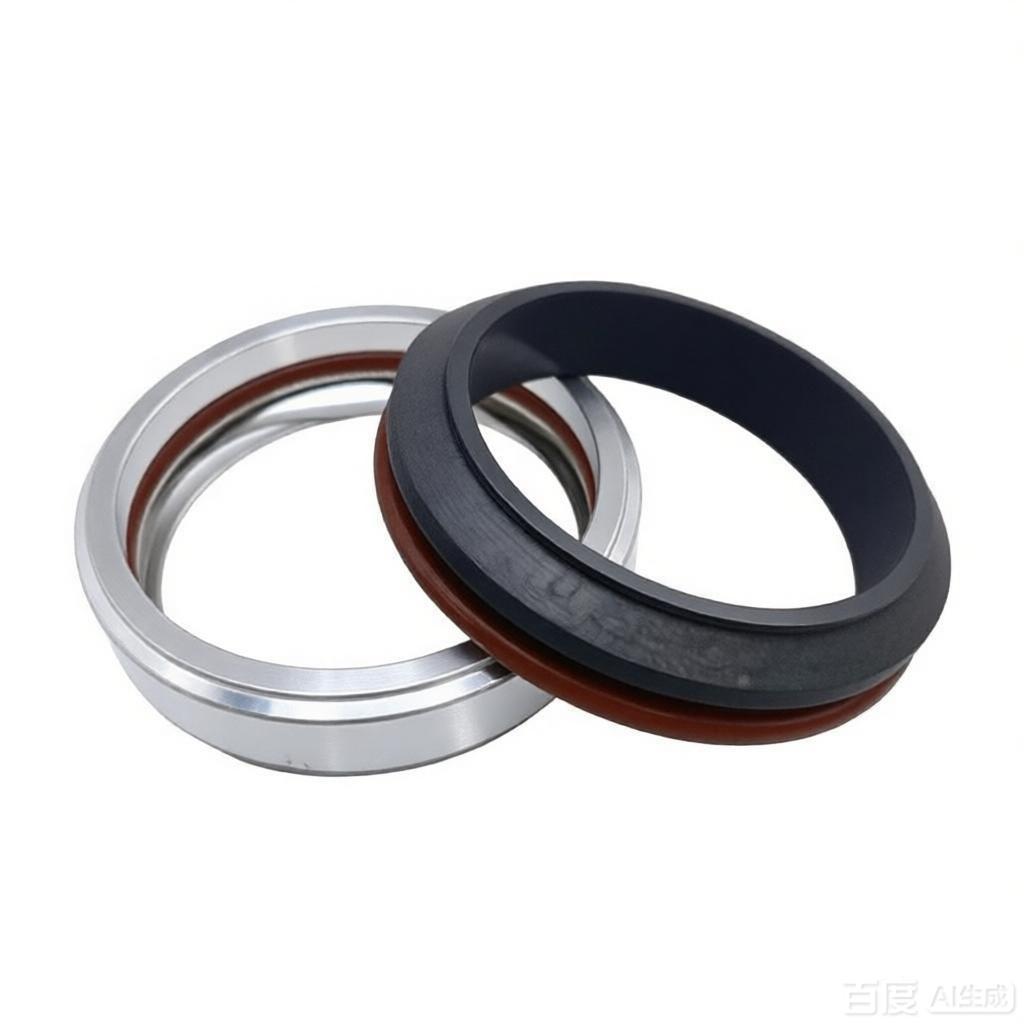

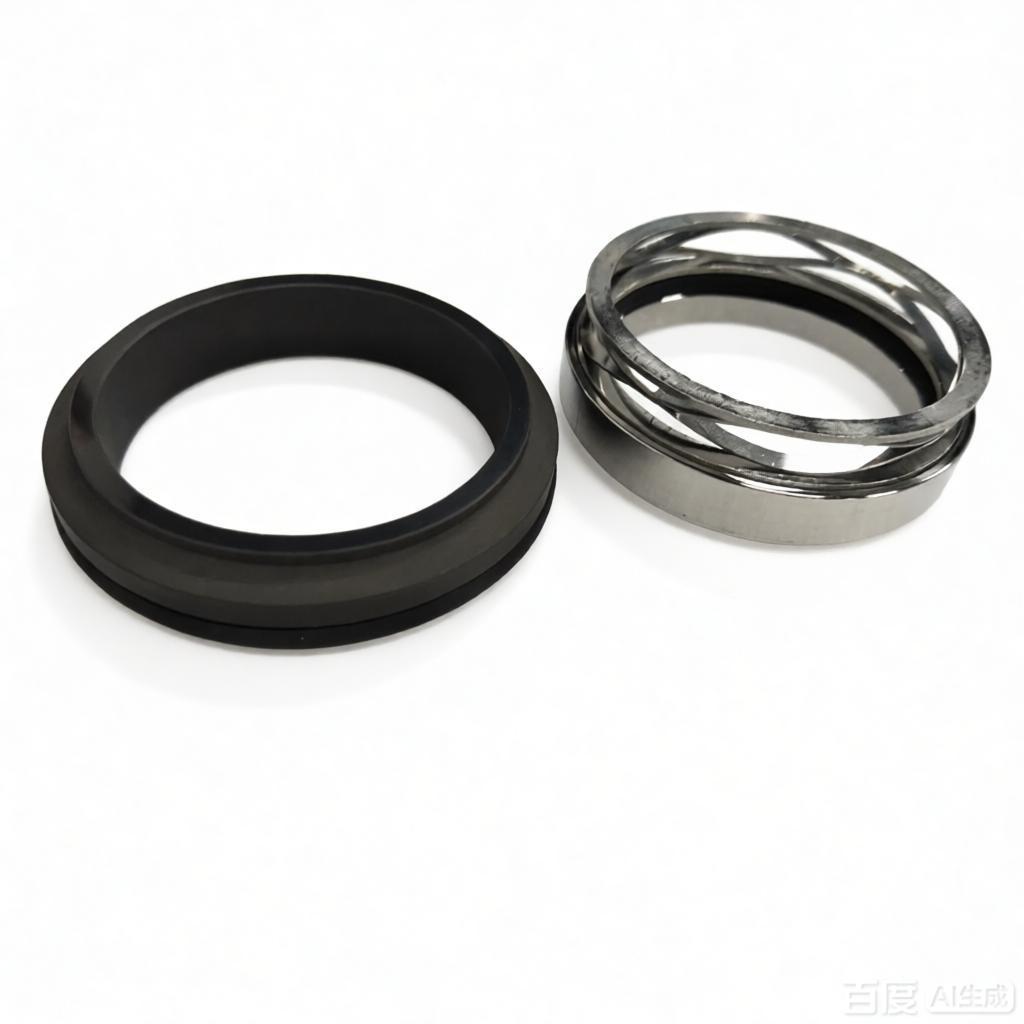

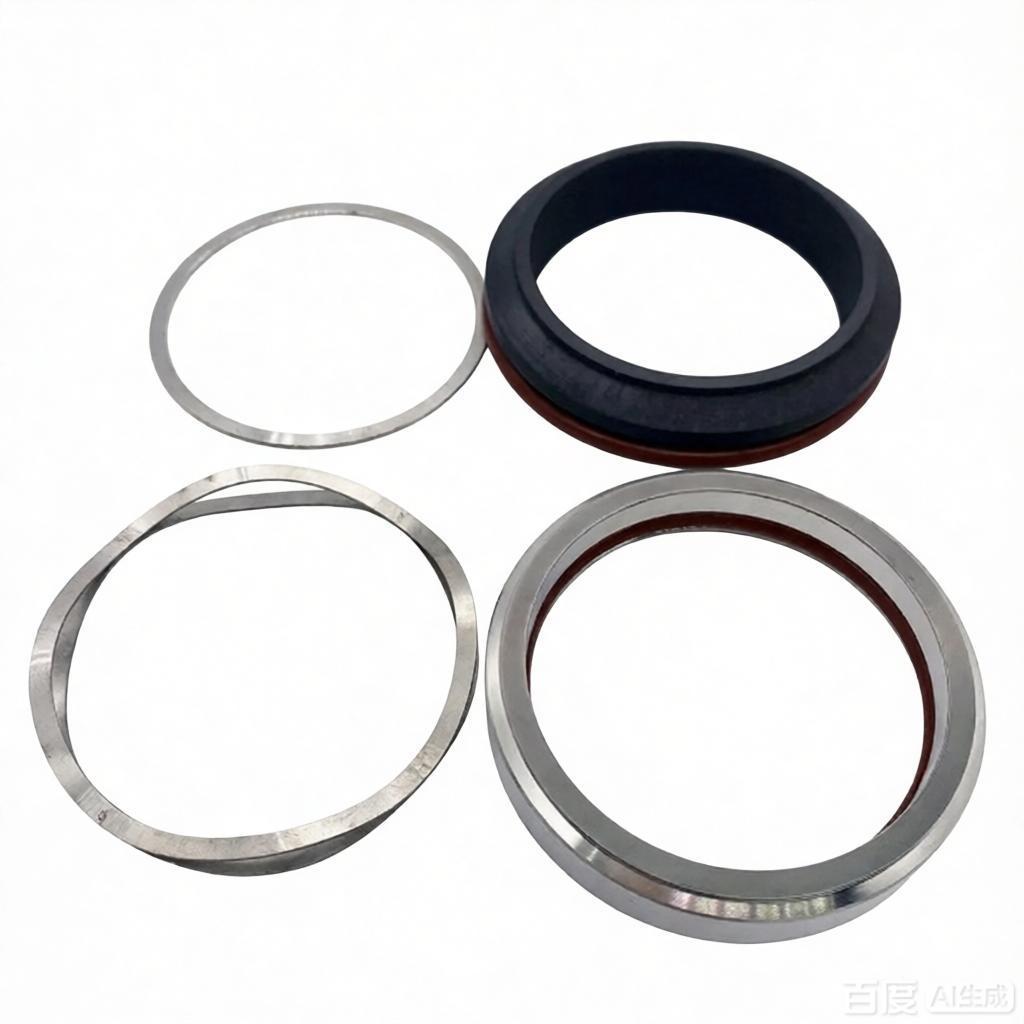

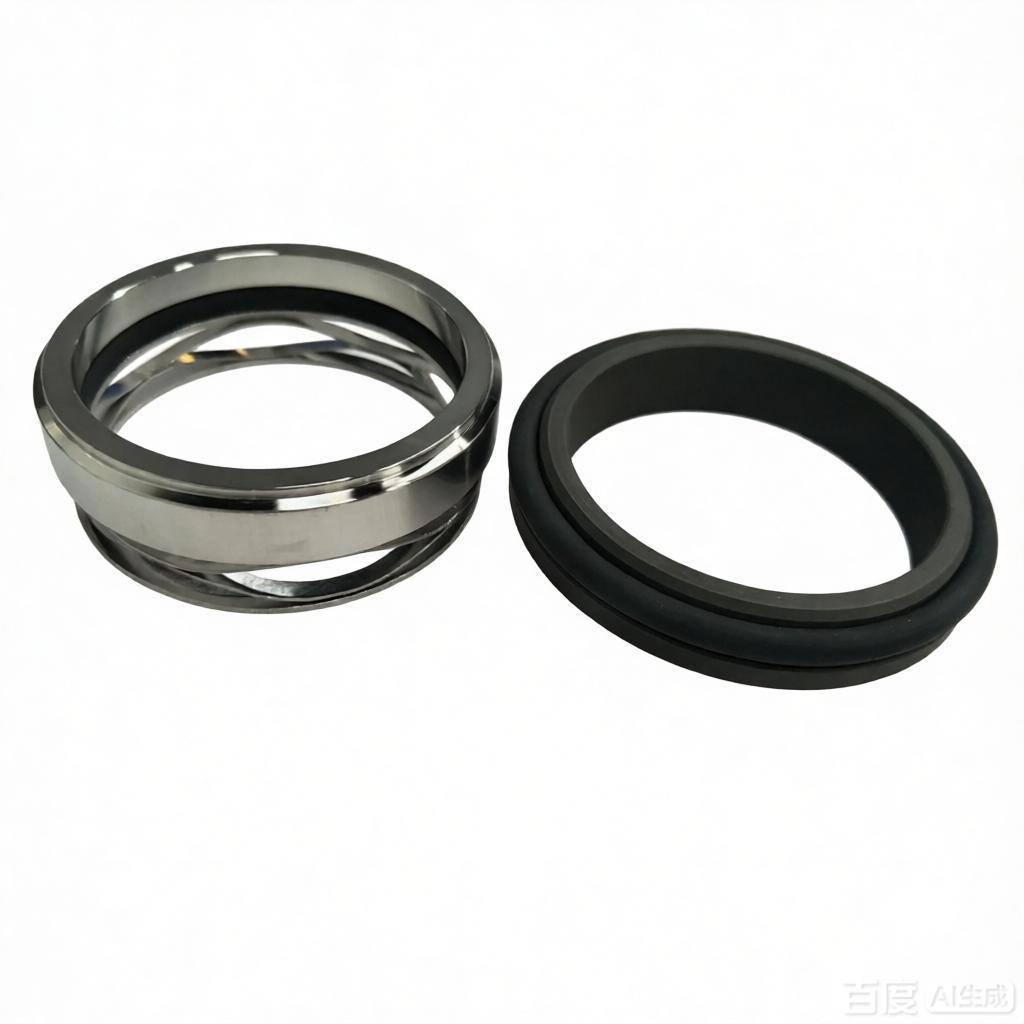

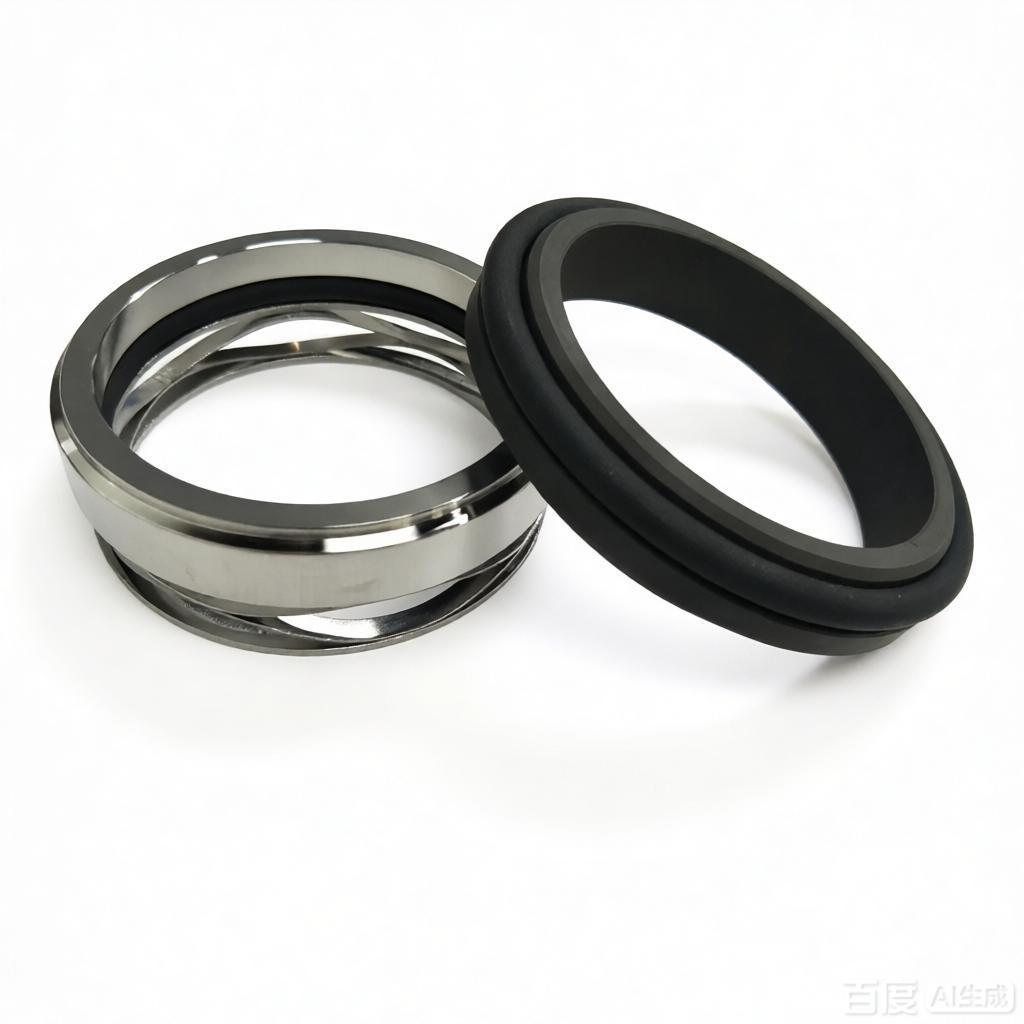

Type Vulcan 1632 Mechanical Seal for ABS Afp Pumps
20mm-11100066
48mm-11100058
65mm-11100059
80mm-11100053
90mm-11100055
100mm-11100052
|
d
(mm)
|
D1
|
D3
|
L1
|
L2
|
O.E.M.Part
Number
|
|
20
|
52
|
31
|
13.5
|
6.0
|
11100066
|
|
48
|
67
|
62
|
15.8
|
14.5
|
11100058
|
|
65
|
86
|
79
|
17.8
|
15.3
|
11100059
|
|
80
|
104
|
98
|
19.5
|
16.3
|
11100053
|
|
90
|
114
|
105
|
19.5
|
16.3
|
11100055
|
|
100
|
123
|
116
|
21.0
|
17.1
|
11100052
|
We are a China-based industrial mechanical seal manufacturer headquartered in Ningbo, specializing in the full-cycle supply of high-performance sealing solutions — covering in-house R&D, precision manufacturing, on-site installation, global export and bulk wholesale.
Our comprehensive product portfolio spans the full spectrum of sealing types: Industrial Seals, Single Spring Seals, Balanced & Unbalanced Spring Seals, External Mounted Seals, PTFE Bellow External Mounted Seals, Cartridge Balanced Seals, Multiple Spring Balanced Seals, Dry Running Reverse Balanced Seals, Agitator Double Acting Unbalanced Seals, Single Conical Helical Springs, Rubber Bellow Seals, Multi Spring Seals, Metal Bellow Seals, Elastomer Bellow Seals, Conical Spring Seals, Air Condition Compressor Seals, Auto Cooling Seals and Metallic Bellow Seals.
We also deliver 100% compatible full-series replacement mechanical seals for global mainstream pump brands, including Flygt, Grundfos, APV, Grindes, Fristam, ABS, Alleeiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang and many more.
Beyond standard catalog products, we offer flexible custom manufacturing services: we can produce precision seals strictly in line with your provided physical samples, technical drawings, or tailor-made design requirements to perfectly match your unique working conditions.
-
Q: Are you a factory or a trading company?
A: We are a professional manufacturing factory based in Ningbo, China, with our dedicated in-house trade team to provide you with full-chain export and wholesale services.
-
Q: Can I get a sample before placing a formal order?
A: Absolutely. We offer free samples for most of our standard mechanical seal products, you only need to cover the corresponding shipping cost.
-
Q: Where is your factory located? How can I arrange a visit?
A: Our factory is situated in Ningbo, Zhejiang, China. You can fly directly to Ningbo Lishe International Airport, or take a 1.5-hour high-speed rail ride from Shanghai Hongqiao Airport to Ningbo. All global clients are warmly welcomed to visit our production workshop at any time.
-
Q: What is your factory's quality control system?
A: Quality is always our top priority. We implement full-process quality inspection from raw material incoming check, semi-finished product testing to finished product pressure test, and our factory has been certified with ISO9001 quality management system.
-
Q: What is your usual lead time?
A: For standard products, the delivery time is 10-20 days after we receive your prepayment. For customized OEM/ODM products, we will confirm the exact schedule with you separately.
-
Q: What payment terms do you support?
A: For small sample shipping fees, both PayPal and T/T are acceptable. For bulk formal orders, we support T/T at sight as the main payment term.
-
Q: Do you support OEM and ODM services?
A: Yes, we provide full-range OEM and ODM services. We can produce seals strictly according to your provided samples, drawings, or customized design requirements.
-
Q: Can I purchase complete pumps or other pump spare parts from you?
A: Sure, besides mechanical seals, we also supply a full series of pumps and related pump parts, including lobe pumps, compound homogeneous pumps, homogeneous emulsification pumps, and other matching accessories.
