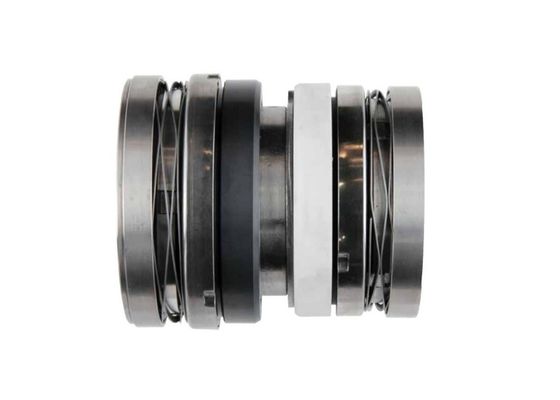

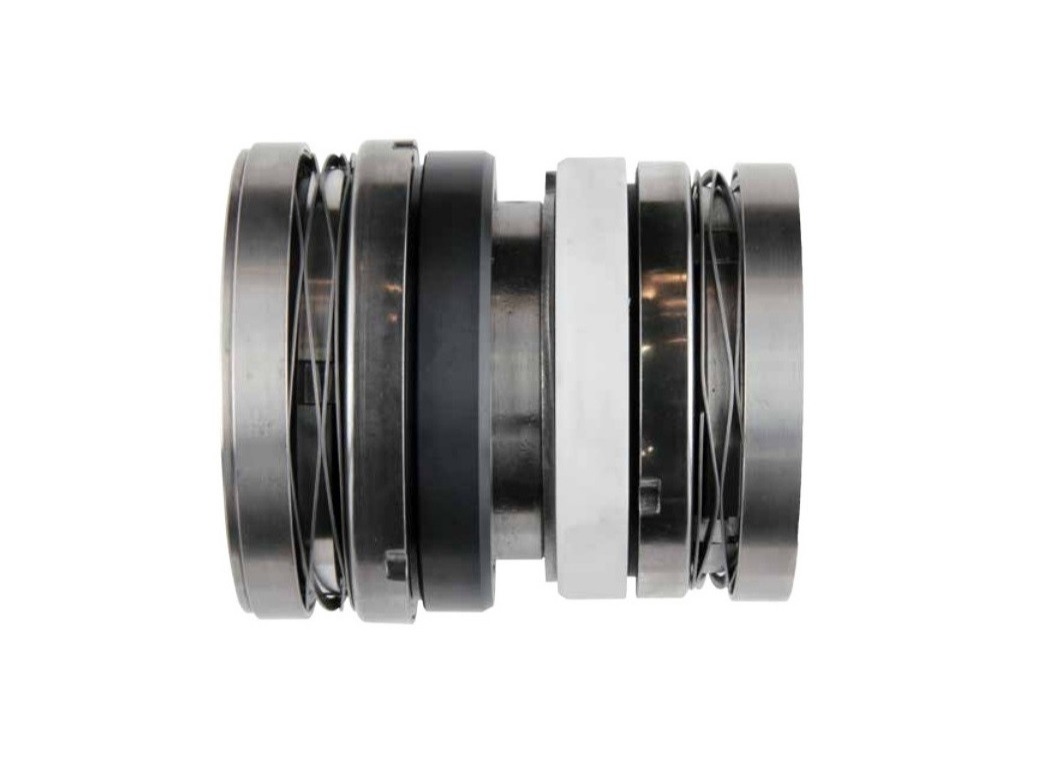

Vulcan 1578 50mm Wave Spring Mechanical Seal For ABS K-Series Pump

Minimum Order Quantity : 1PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: Vulcan 1578

Detail Information

Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: ABS K-Series Pumps Mechanical Seal Certificate: ISO9001
Type: Vulcan 1578 Seal Pump Standard: Standard
Size: 20,48,65,80,90,100MM Name: Vulcan 1578 ABS K-Series Pumps
High Light:

50mm Wave Spring Mechanical Seal


Vulcan 1578 Wave Spring Mechanical Seal


50mm Pump Mechanical Seal

Product Description

Mechanical Seals Elastomer Seals With Wave-Spring Vulcan 1578 Seal 50mm Suit For ABS K-Series Pump


  1. Type:Suit for ABS K-Series Pumps
  2. Replacement:Vulcan 1578
  3. Temperature:-20 to +140℃
  4. Pressure:≤1.4Mpa
  5. Speed:≤15m/s


  • Rotating face: silicon carbide, graphite, tungsten carbide alloy.
  • Stationary face: silicon carbide, tungsten carbide alloy
  • Secondary seal: FKM, NBR, EPDM, PTFE, FFKM.
  • Spring and Metal parts: SS, SS304, 316, 316L, HAST.B, C

Performance Capabilities:


-20℃ to 140℃, dependent on the elastomer
Up to 14 bar
Up to 15 m/s

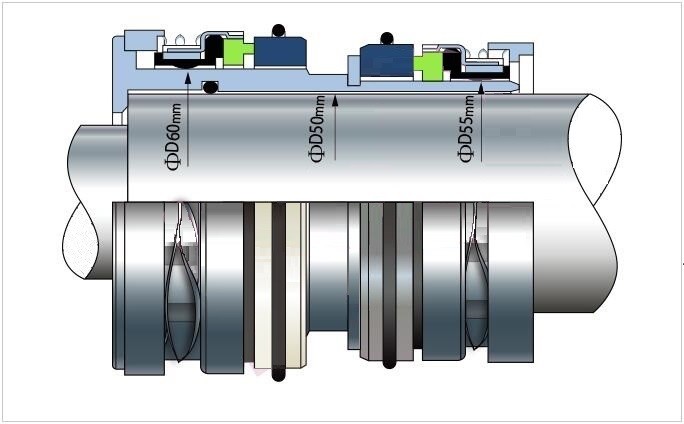

End play/axial float allowance
25mm 35mm 55mm
Carbon, SiC, TC
Ceramic, SiC, TC
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.


Vulcan 1578 50mm Wave Spring Mechanical Seal For ABS K-Series Pump 0
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request



Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.


Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.


Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.


Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.


Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
