Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: KB

Detail Information

Material: Carbon, SIC, TC Function: Double Mechanical Seal Pump Mechanical Seals
HS Code: 848420090 Specification Size: 2.500″ / 3.000″ / 95MM / 100MM
Certificate: ISO9001 CE Type: Equivalent With HIDROSTAL PUMPS Seals
Standard: Industrial Pump Slurry Pump Standard Style: Mechanical Seal
Product Name: HIDROSTAL PUMPS Seals Produce OEM: Elastomer Mechanical Seal Kb
Leadtime: 5-10DAYS
Highlight:

Hidrostal KB mechanical seal

,

Hydro rubber pump seal

,

Industrial mechanical replacement seal

Product Description

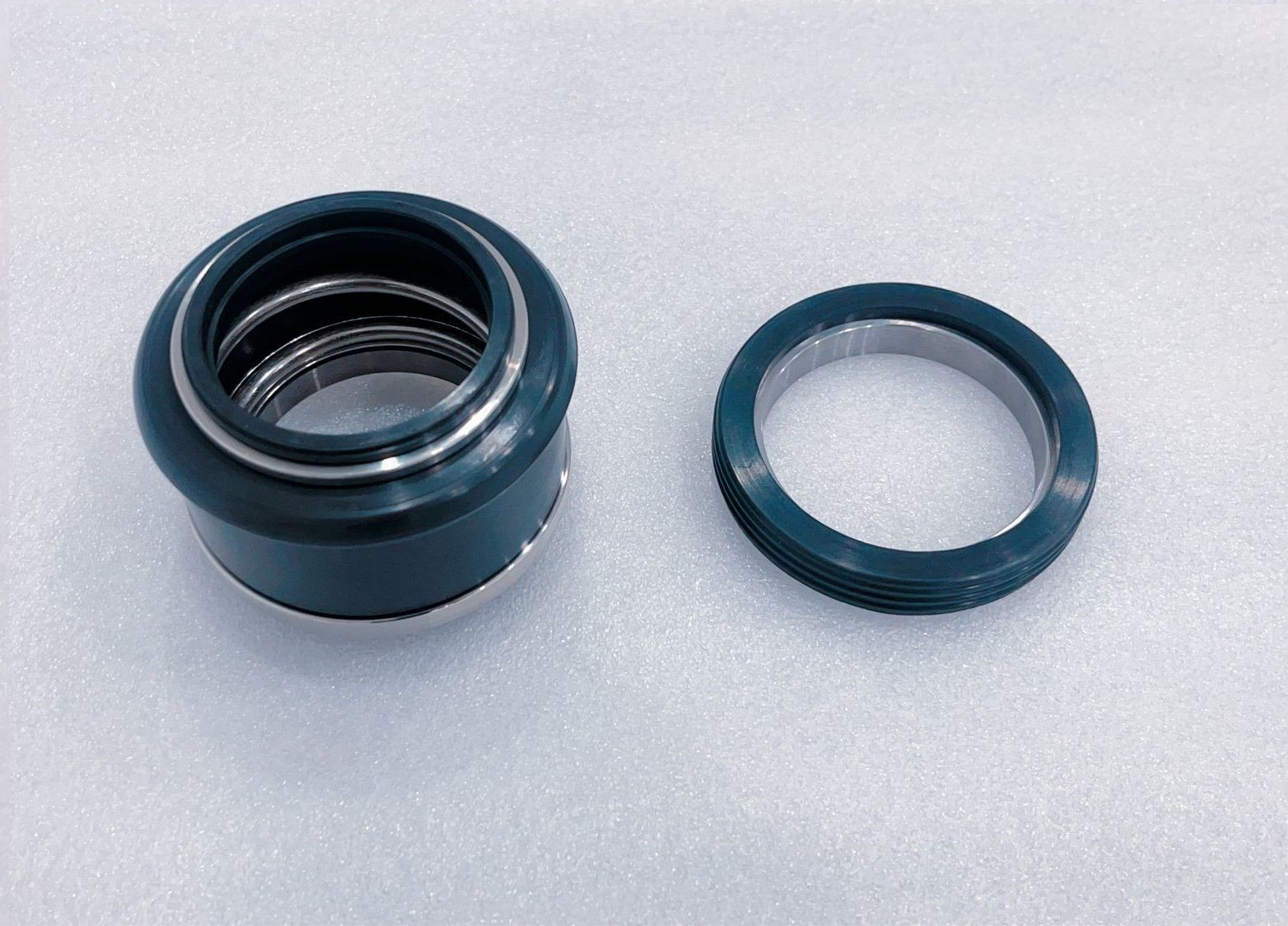

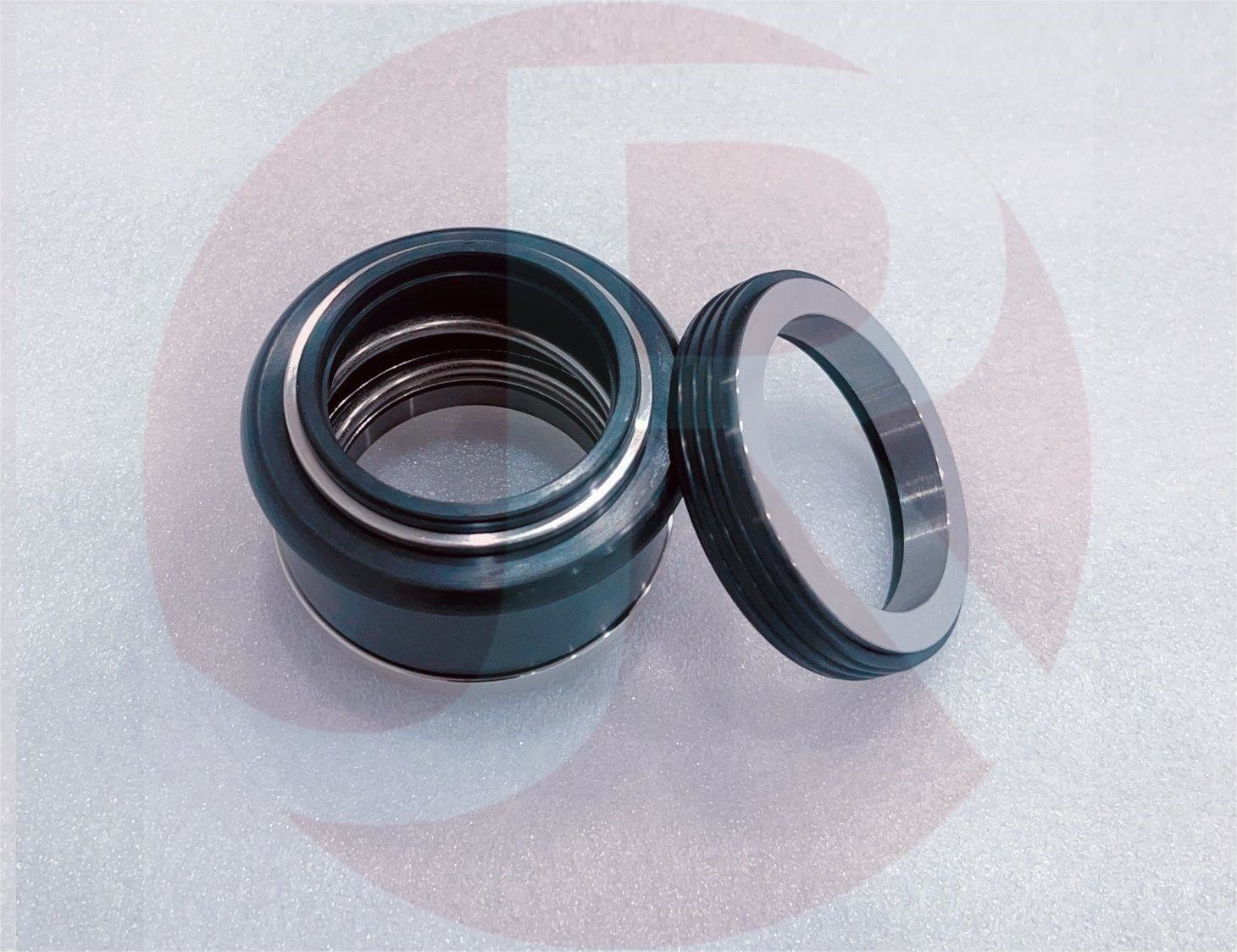

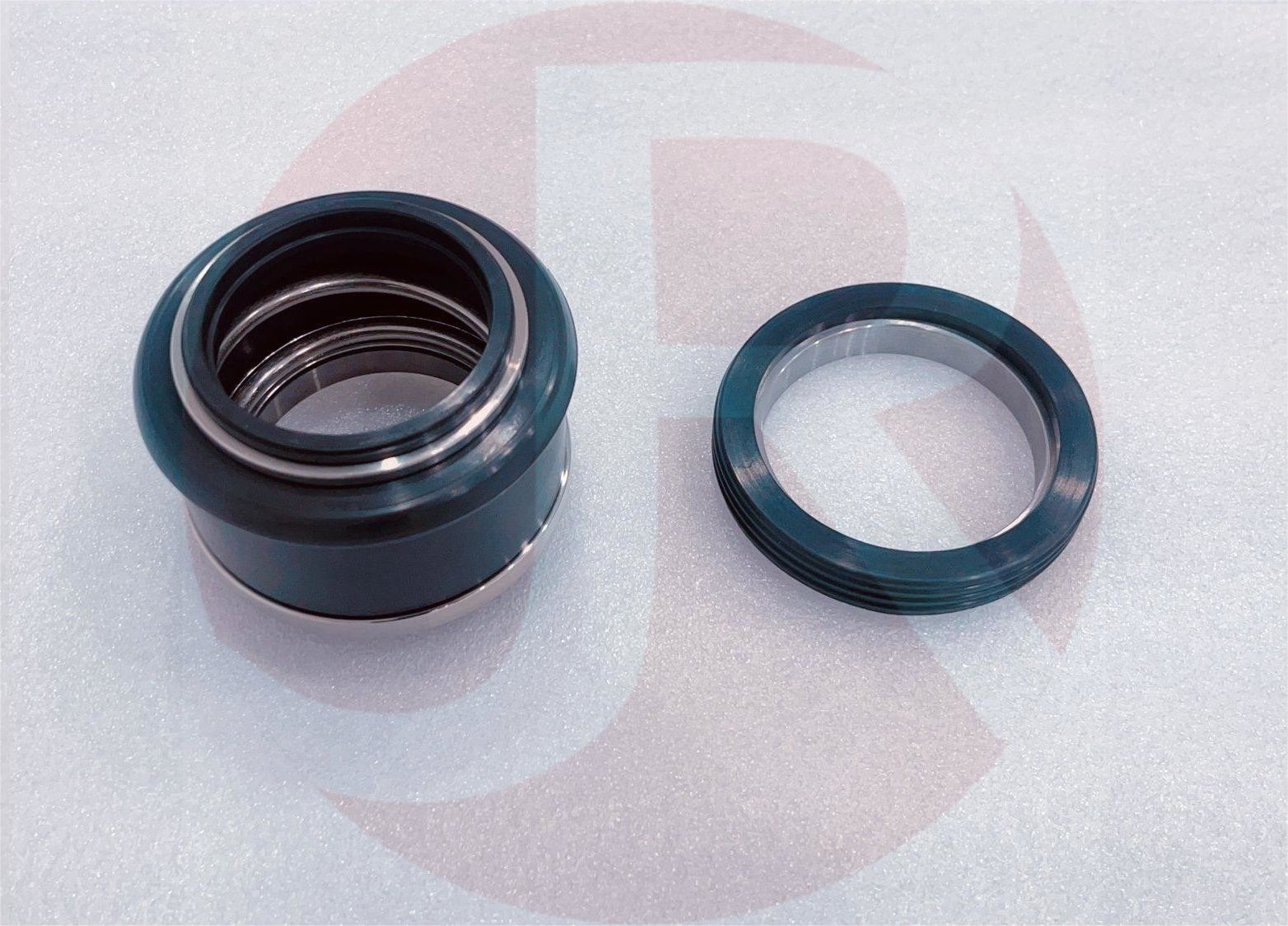

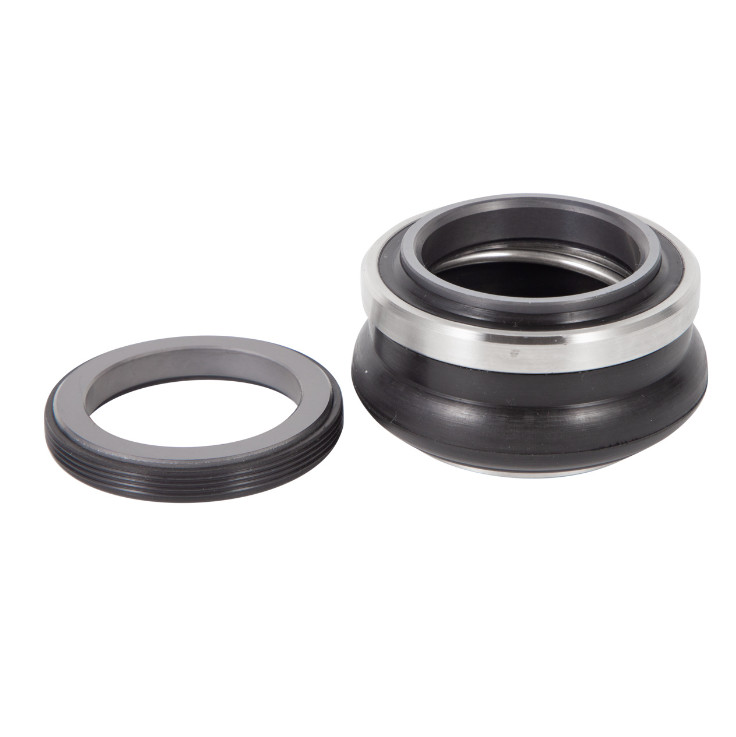

Wemco Hidrostal KB Mechanical Seal Rubber Bellows Seal



Operational Conditions:

  1. Mechanical Pump Mechanical Seals for Hidrostal Pump Seals
  2. Wave sprung grub screwed 'Thin Cross Section' short working length mechanical seal.

    Available in Food Grade materials as standard (with FDA compliant materials).

  3. Elastomer Mechanical Seal Kb for Hidrostal Pumps Tungsten Carbide Pump Seal Wave spring mechanical seal

  4. Mediums: Water, oil, weak acid, weak alkali, etc.
  5. Temperature: -20°C~200°C
  6. Pressure: ≤0.8MPa
  7. Speed: ≤ 15m/Sec

 Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel

Performance Capabilities

  • Pump Mechanical Seals F04K-MH /F06K-S/F10K-MD F06K-H /F06K-S H05K-MH /F06K-H

    F04K-MH/ F04K-S F04K-MH /F06K-M F10K-HD
    F10K-MD F10K-HD F10K-SS
    OEM# DESCRIPTION SIZE SAF SEALS#
    157261 LOWER SEAL 1-1/8″ 'M'
    157257 UPPER SEAL 1-1/8″ 'C'
    157262 LOWER SEAL 1-1/2″ 'M'
    157258 UPPER SEAL 1-1/2″ 'C'
    157263 LOWER SEAL 2.000″ 'M'
    157259 UPPER SEAL 2.000″ 'C'
    TYPE 'X' SEALS ALSO AVAILABLE IN THE FOLLOWING SIZES:

    2.500″ / 3.000″ / 95MM / 100MM

    Pump Mechanical Seals compatible for WEMCO-Hidrostal® pumps.
    Type M and Type G and X seals are available.
    Possibility of supplying these special designs for different shaft diameters in inches.

    Equivalent with HIDROSTAL PUMPS seals
    Shaft size:5/8 inch, 1 1/8 inch, 1 1/2 inch,2 inch, 28mm, 35mm and 50mm .

Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal

Mechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump SealMechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump SealMechanical Seal Hidrostal KB Hydro Rubber Hidrostal Replacement Pump Seal

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Pump Mechanical Seals Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
