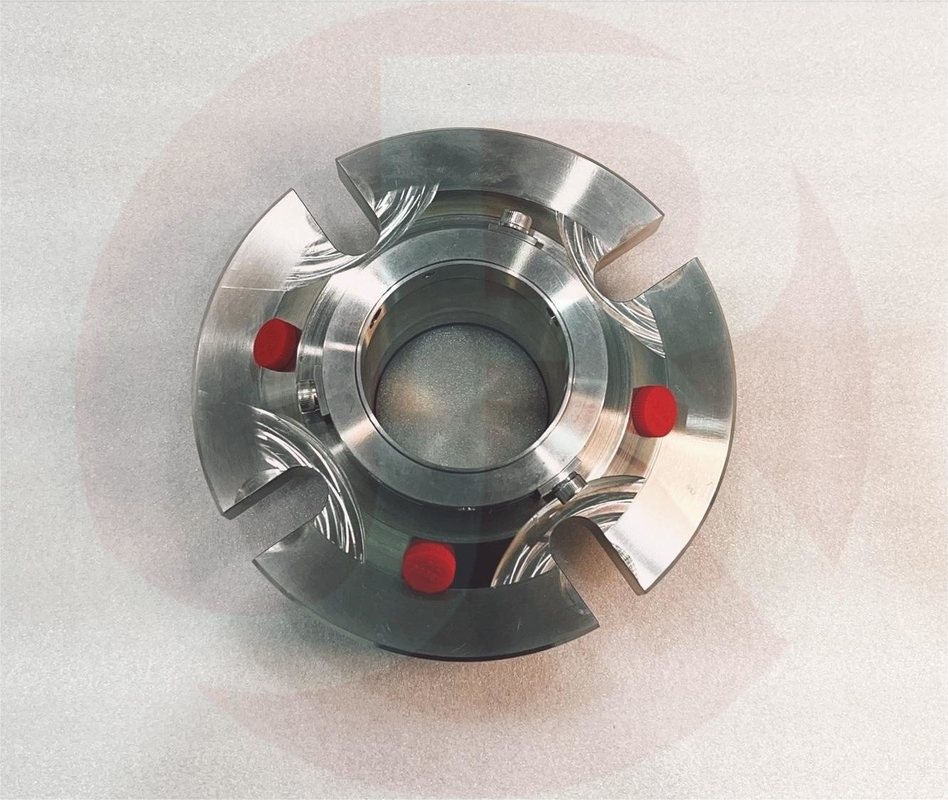

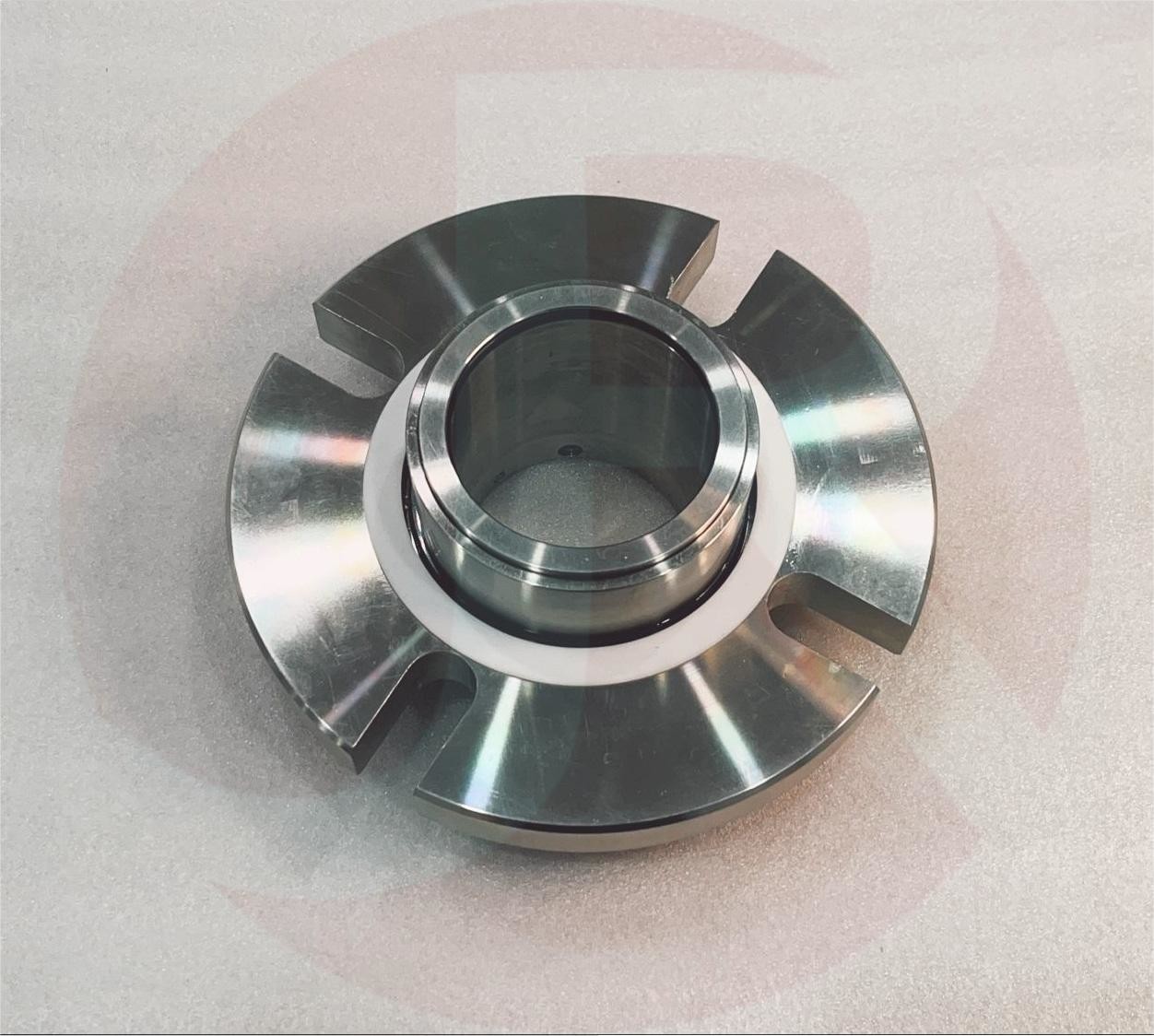

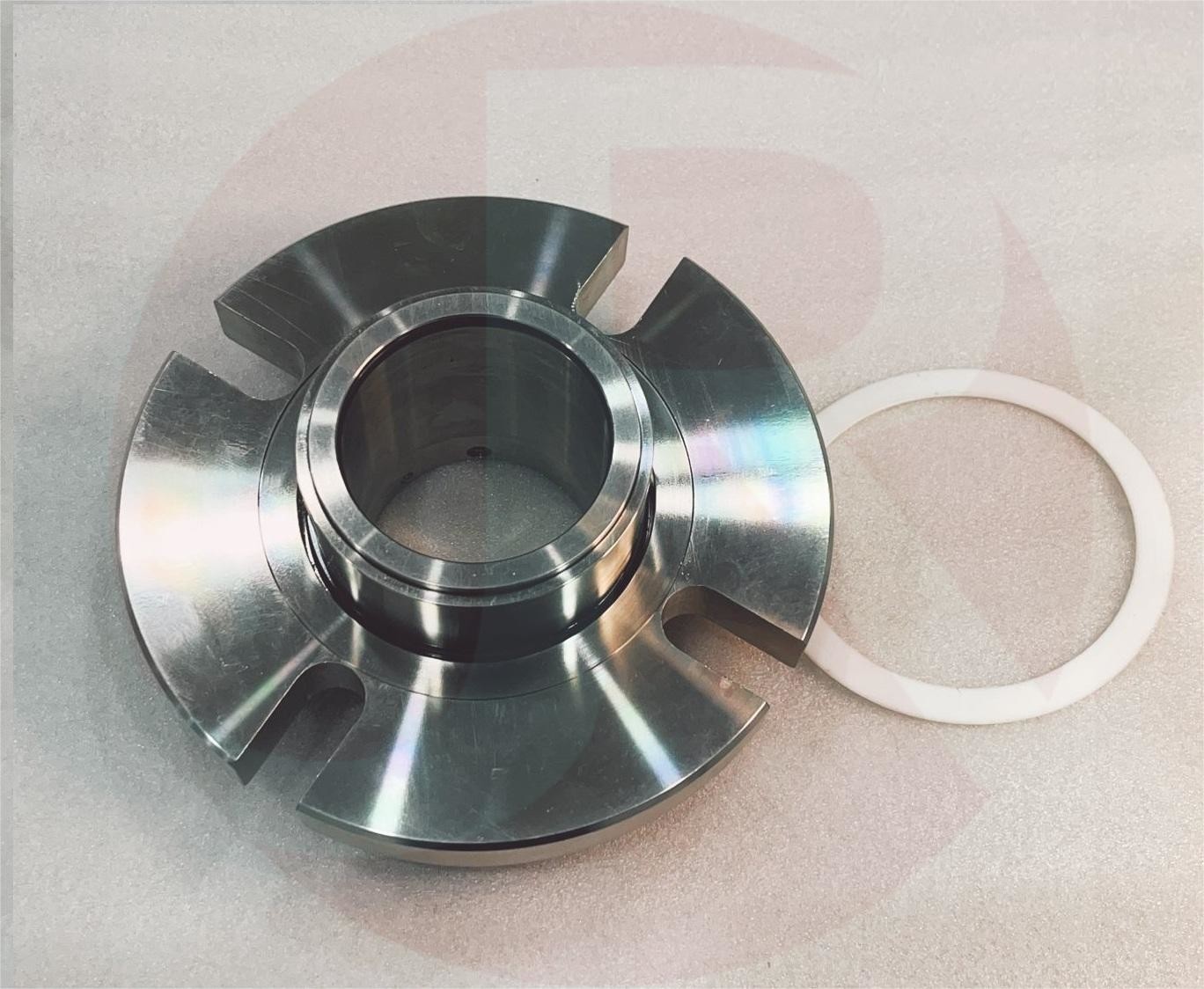

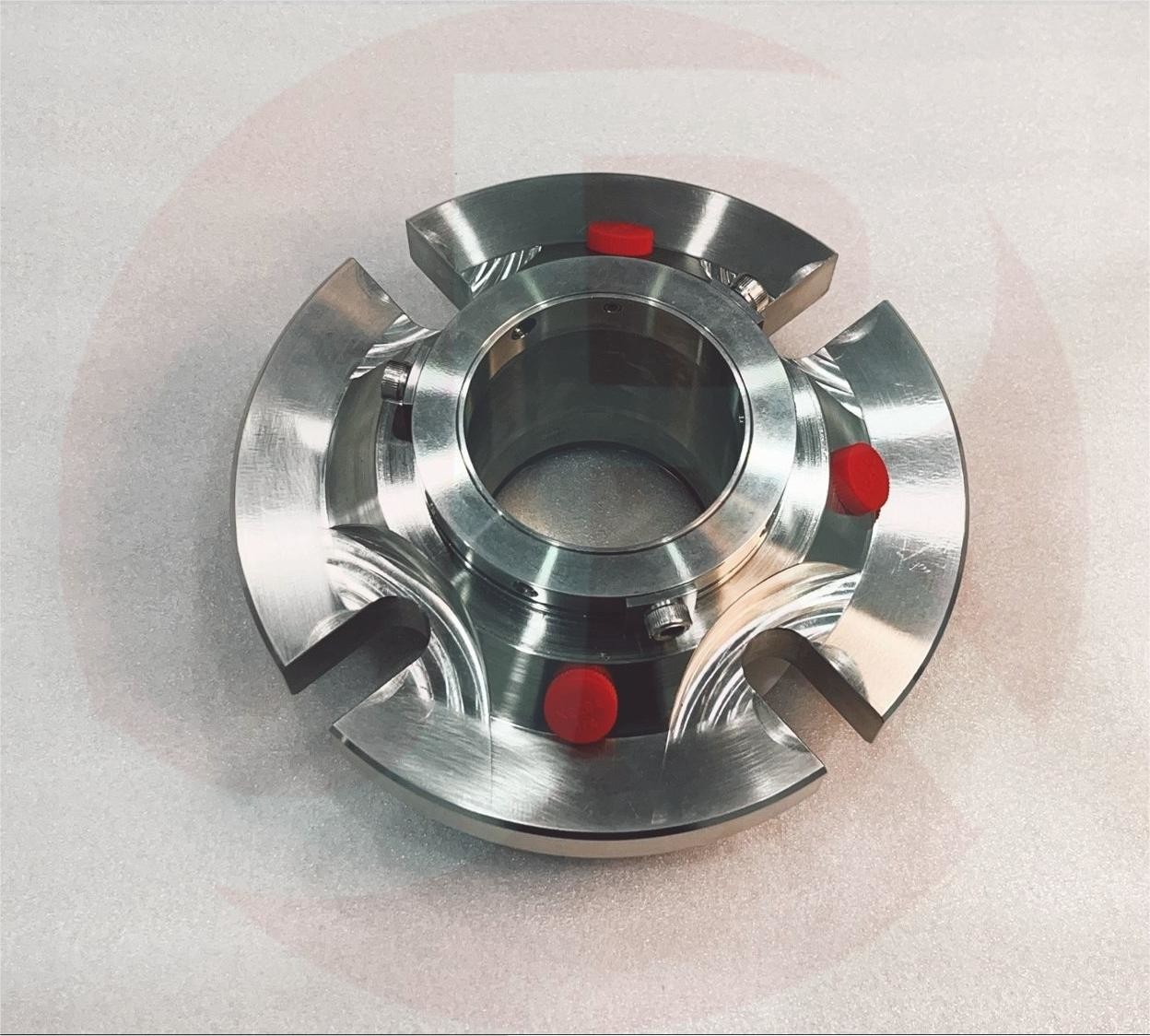

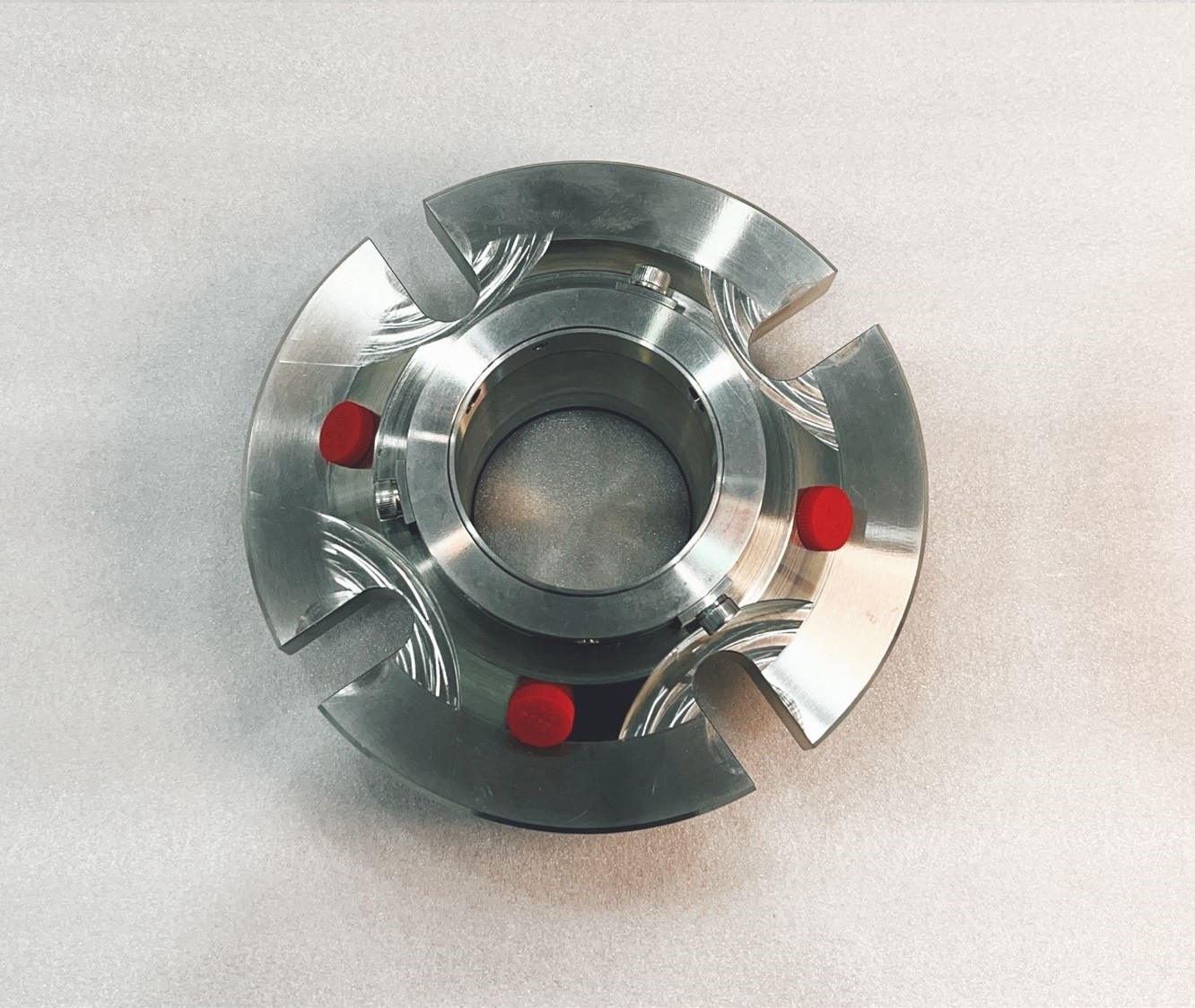

Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE
Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE
Contact Now

Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: CURU

Detail Information
Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Aesseal CURC Cartridge Mechanical Seal Certificate: ISO9001
Type: Pump Cartridge Seal Aesseal CURC Double Mechanical Seal Standard Or Nonstand: Standard
Application: Industrial Pump Seal Product Name: Mechanical Seal Type AES Type CURC Cartridge Seal
Highlight:

CRCO Cartridge Mechanical Seal

,

CURE Cartridge Mechanical Seal

,

CURC Cartridge Mechanical Seal

Product Description

Single Cartridge Mechanical Seal Aesseal CURC Cartridge Seal Mechanical Seal For Goulds 3196 Pump





Operations Conditions:



  1. Temperature:-20℃-220℃
  2. Speed:≦15M/S
  3. Pressure:≦2.5Mpa
  4. Size:24mm-100mm/1”-5”​

Materials:

  • Face: Carbon, SiC, TC
  • Seat: SiC, TC
  • rings: NBR, EPDM, FKM, Aflas, FEP, Kalrez, Chemraz etc.
  • Spring: SS316, hastelloy C
  • Metal parts: SS316

  • The type seal can replace with AES type CURU cartridge seal.

Single Mechanical Seal
The AESSEAL CURU, CRCO™ and CURC™ mechanical seals are part of a range of seals specifically designed to optimize the use of Silicon Carbide.

All these seals incorporate improved third generation self aligning technology. The design objective was to minimize metal to Silicon Carbide impact, particularly on start–up.

In some seal designs, impact between metal anti–rotation pins and Silicon Carbide can be sufficiently severe to induce stress cracking in the Silicon Carbide. Silicon Carbide has many advantages when used in mechanical seals. The material has superior chemical resistance, hardness and heat dissipation properties compared to practically any other material used as a mechanical seal face. Silicon Carbide is, however, brittle by nature, so the design of the self–aligning stationary in the CURC™ range of mechanical seals seeks to minimize this metal to Silicon impact on start–up.

ATEX Range Certifications
CURU
Category 2 (Zone 1/21) & Category 3 (Zone 2/22)
Features:

Self Aligning stationary face, maximizing seal life
Stationary face with radial locating pins minimizes damage in stop / start applications with viscous fluids
Quench flush and drain ports for cooling or heating options to maximize seal life

Bi-Metal option with exotic alloy wetted components for maximum versatility at minimum price premium
Hydraulically balanced seal face technology for reduced power consumption
Non-clogging rotaries and non shaft fretting elastomers
Multiple spring and positive set screw shaft drive
Single Seals with Environmental Control Options


Performance Capabilities:

Temperature
-20℃ to 150℃, dependent on the elastomer
Pressure
Up to 28 bar
Speed
Up to 25m/s
End play/axial float allowance
±0.1mm
Size
 Sizes: 24mm-125mm/1”-5”​
Brand
JR
Face
Carbon, SiC, TC
Seat

Elastomer
FKM, EPDM, Kalrez
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

​

​Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE 0Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE 1Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE 2Aesseal Spring Single Mechanical Seal Cartridge Seal CURU -CURC- CRCO - CURE 3

We are engaged in manufacture and installation exporting and wholesalig quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
