FKM elastomer 1.6Mpa Pump Cartridge Seal Replacing Anga BED

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: Anga BED

Detail Information

Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Pump Cartridge Seal Anga BED Cartridge Mechanical Seal Certificate: ISO9001
Type: Pump Cartridge Seal Anga BED Double Mechanical Seal Standard Or Nonstand: Standard
Application: Industrial Pump Seal Product Name: Mechanical Seal Type Anga BED
High Light:

1.6Mpa Pump Cartridge Seal

,

Anga BED Pump Cartridge Seal

,

BED Anga Mechanical Seals

Product Description

Double Cartridge Engineering Mechanical Seals Tandem Dueal Cartridge Seal To Replace Anga BED Seal


Operations Conditions:

  1. Temperature: -20℃-200℃
  2. Speed: ≦12.5M/S
  3. Pressure: ≦1.6Mpa
  4. Size: 22mm-100mm

Materials:

  • Face: Carbon, SiC, TC
  • Seat: SiC, TC
  • rings: NBR, EPDM, FKM, Aflas, FEP, Kalrez, Chemraz etc.
  • Spring: SS316, hastelloy C
  • Metal parts: SS316

Performance Capabilities:

Temperature
-20℃ to 200℃, dependent on the elastomer
Pressure
Up to 1.6Mpa
Speed
Up to 12.5m/s
End play/axial float allowance
±0.1mm
Size24-65MM
Sizes:22mm-100mm
Brand
JR
Face
Carbon, SiC, TC
Seat

Elastomer
FKM, EPDM, Kalrez
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • It is designed for process centrifugal pumps and mixers handling fluids containing
  • abrasive particles (ashes, ores, cement and other similar substances), heavy consistence or gluey slurries, recommended for mediums hazardous to humans and the environment.
  • Cartridge mechanical seals Seal Anga BED,Engineering mechanical seals Anga BED, anga mechanical seals

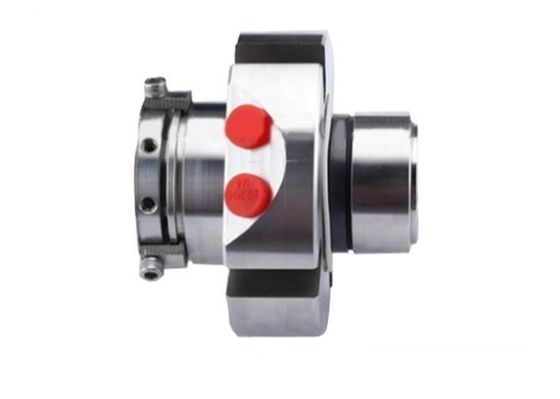

FKM elastomer 1.6Mpa Pump Cartridge Seal Replacing Anga BED 0

SIZE/INCH D3 D4 DM DZ L1 L2 L3 S G
MIN MAX
22 38.0 40.4 48.0 56 105 36 31 91 14 1/4
25 43.0 44.0 51.0 58 105 36 31 91 14 1/4
26 46.0 47.0 52.0 65 105 36 31 91 14 1/4
28 46.0 47.0 52.0 65 105 36 31 91 14 1/4
30 48.0 49.0 56.0 65 105 36 31 91 14 1/4
32 49.8 51.0 57.0 67 105 36 31 91 14 1/4
33 49.8 51.0 57.0 67 110 36 31 91 14 1/4
35 53.0 54.0 62.0 70 113 36 31 91 14 3/8
38 56.0 57.0 66.0 75 123 36 31 91 14 3/8
40 58.0 59.0 69.0 75 123 36 31 91 16 3/8
43 60.5 61.5 70.5 80 130 36 31 91 16 3/8
45 62.5 64.0 73.0 80 130 36 31 91 16 3/8
48 65.6 67.0 75.0 84 138 36 31 91 16 3/8
50 68.0 69.0 78.0 87 142 36 31 91 16 3/8
53 72.0 73.0 87.0 97 147 36 31 91 18 3/8
55 73.0 74.0 83.0 97 147 36 31 91 18 3/8
60 78.0 79.0 91.0 102 157 36 31 91 18 3/8
65 83.0 84.5 99.0 109 163 36 31 91 18 3/8
70 93.0 95.0 108.0 118 170 46 35 112 18 3/8
75 98.0 100.0 119.0 129 190 46 35 112 18 3/8
80 105.0 107.0 124.0 135 195 46 35 112 18 3/8
85 110.0 112.0 128.0 139 200 46 35 112 22 3/8
80 115.0 117.0 135.0 145 205 46 35 112 22 3/8
95 119.0 120.7 137.0 148 210 46 35 112 22 3/8
100 125.4 127.0 144.0 154 218 46 35 112 22 3/8





We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
