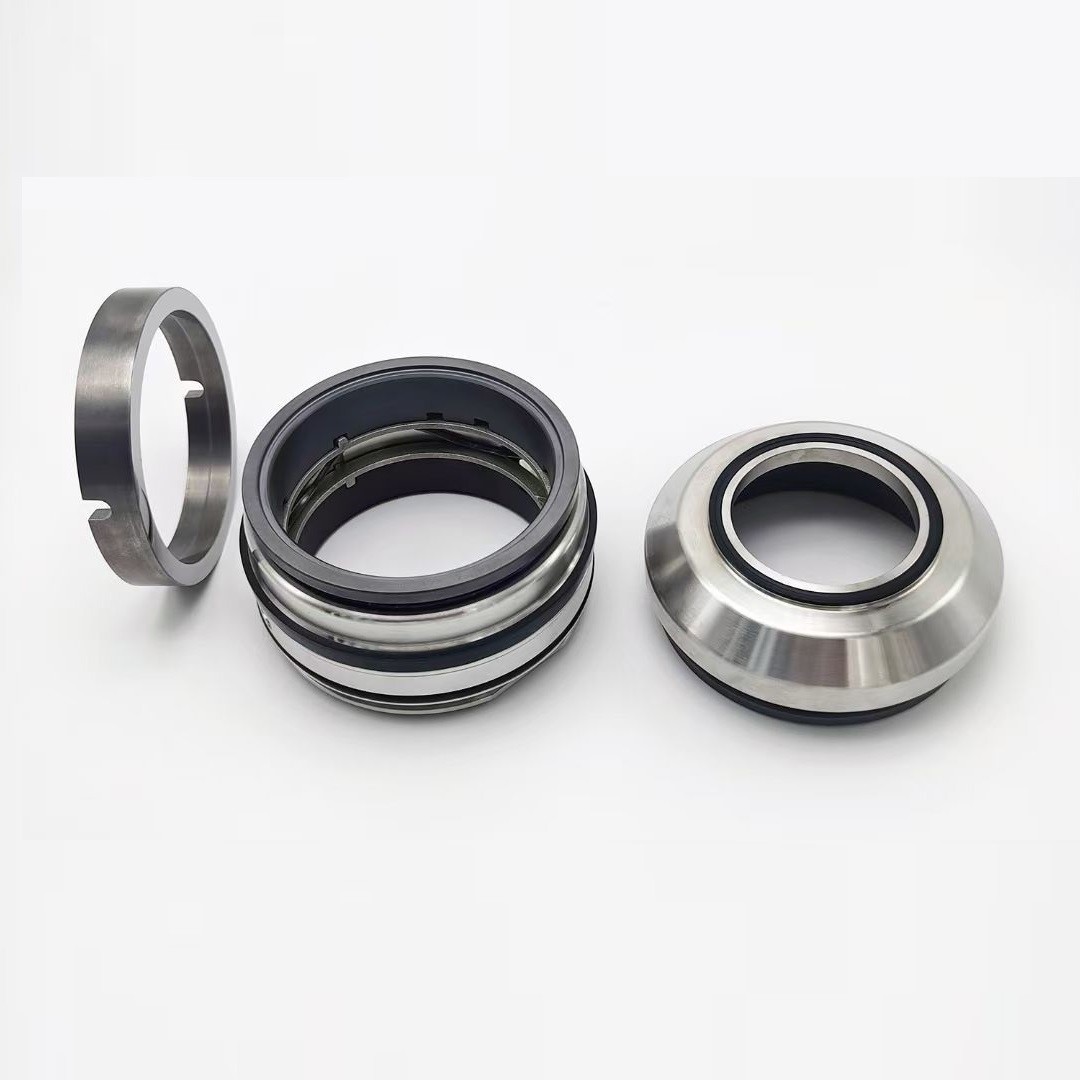

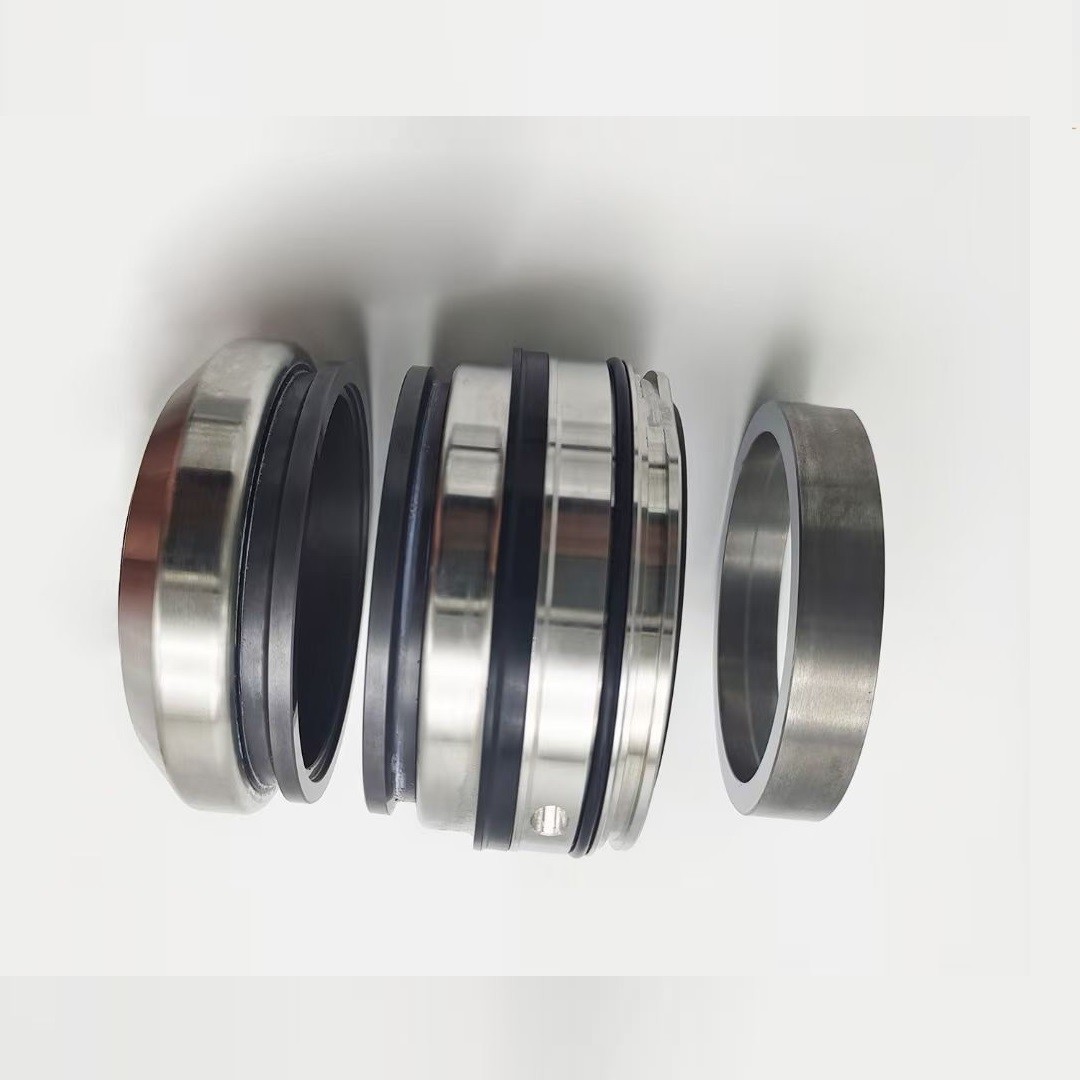

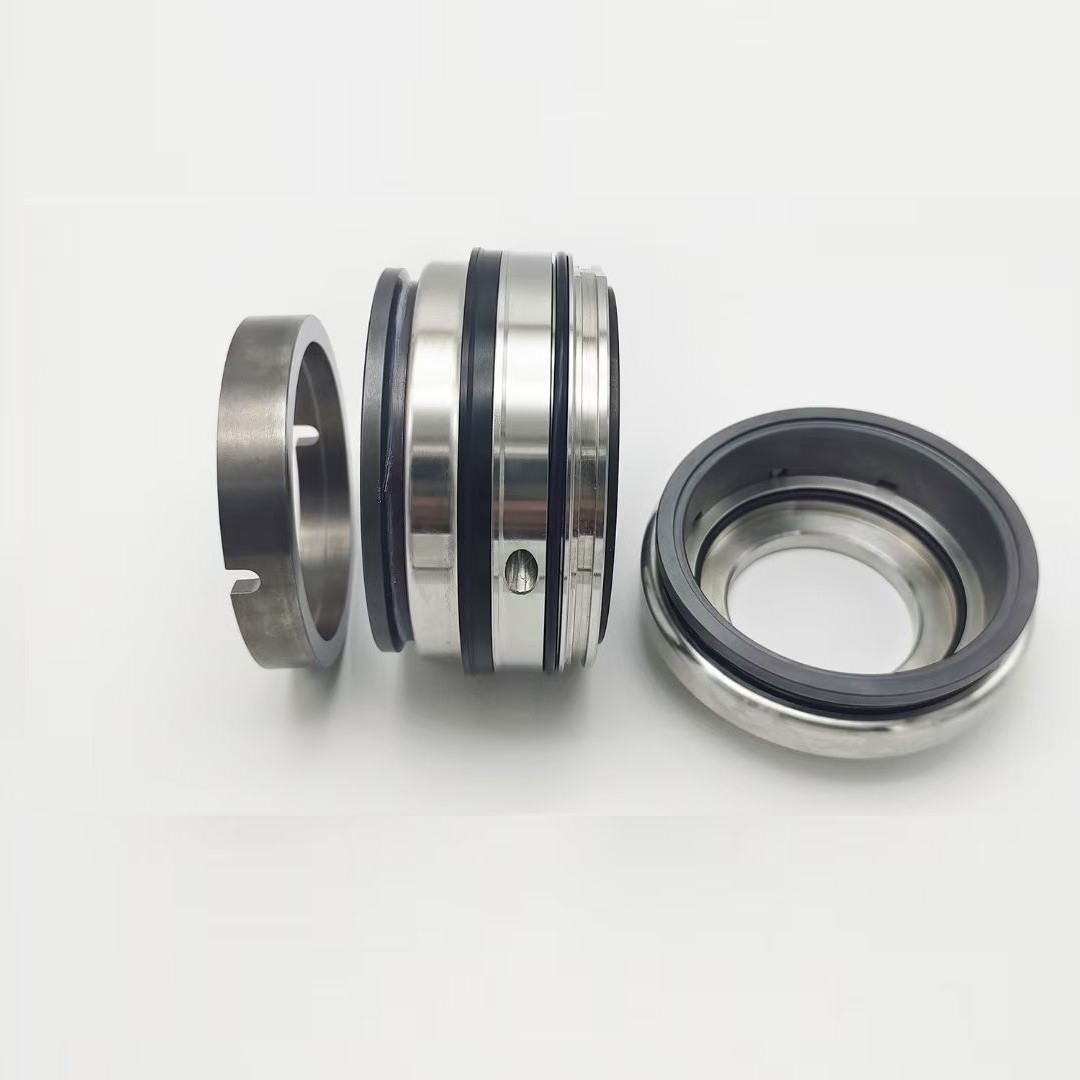

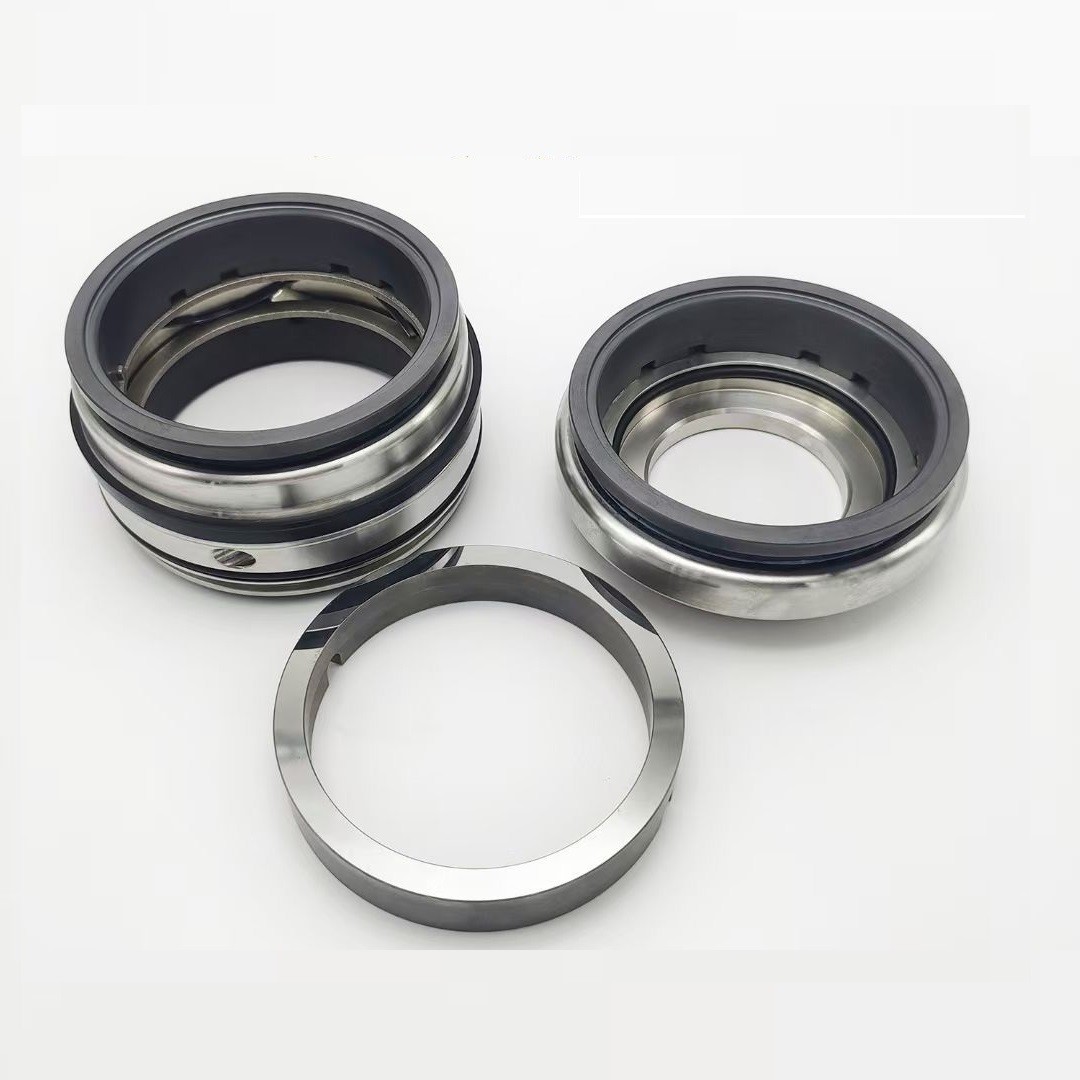

Double Screw Pump Mechanical Seal BCH-060 For Art. No. 0782525001 Fristam Fds

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: Fristam Art. No. 0782515001 GLRD FDS2

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: 68 Certificate: ISO9001
Type: For Fristam Art. No. 0782515001 GLRD FDS2seal Standard: Standard
Style: Mechanical Seal Product Name: Fristam Art. No. 0782515001 GLRD FDS2
High Light:

Wave Spring Mechanical Oil Pump Seal


Double Screw Pump Industrial Mechanical Seals


Water Pump FKM Mechanical Seal

Product Description

Mechanical Seal Fristam BCH-060 For Art. No. 0782525001 Fristam Fds Double Screw Pump


Operational Conditions:

  1. Wave sprung grub screwed 'Thin Cross Section' short working length mechanical seal.

    Available in Food Grade materials as standard (with FDA compliant materials).

  2. Wave spring mechanical seal

  3. Mediums: Water, oil, weak acid, weak alkali, etc.
  4. Temperature: -20°C~200°C
  5. Pressure: ≤0.8MPa
  6. Speed: ≤ 15m/Sec


  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel

Performance Capabilities

  • PN.0782525001 BCH-FDS-060-YYH071/C8H77
    PN:0782525001 Double Component Seal
    Drw No:17241-90
    Shaft Dia.: 60mm
    Seal face, Inboard: SIC(Y)-SIC(Y);Seal faces,outboard:Carbon-Tc;Elastomers,Inboard:HNBR/FDA;
    Elasters,Outboard:HNBR/FDA; Spring:17-7PH;Steel,Inboard:EN 1.4404(AISI316), Steel,Outboard:EN1.4404(AISI316)


Double Screw Pump Mechanical Seal BCH-060 For Art. No. 0782525001 Fristam Fds 0Double Screw Pump Mechanical Seal BCH-060 For Art. No. 0782525001 Fristam Fds 1Double Screw Pump Mechanical Seal BCH-060 For Art. No. 0782525001 Fristam Fds 2


We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.



Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.


Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.


Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.


Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.


Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
