Mechanical Seal Eagle Burgmann Type Multi Spring M74F-D Ring Seal For Pump Double Seal

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: M74F-D

Detail Information

Material: Carbon, Ceramic, Silicon Carbide CAR CER NBR Function: For Dry Gas Seal Equipment Mechanical Seal
Seat: TC, SiC, Ceramic, (V1) HS Code: 848420090
Specification: Pump Mechanical Seals M74F-D Type: M74F-D For Wave Spring Seal
Pressure: Up To 25 Bar Style: Mechanical Seal
Product Name: Burgmann M7N Seal M74F-D Size: 20-100M
Highlight:

M74F Multi Spring Mechanical Seal

,

Eagle Burgmann Type Mechanical Seal

,

O Ring Multi Spring Mechanical Seal

Product Description

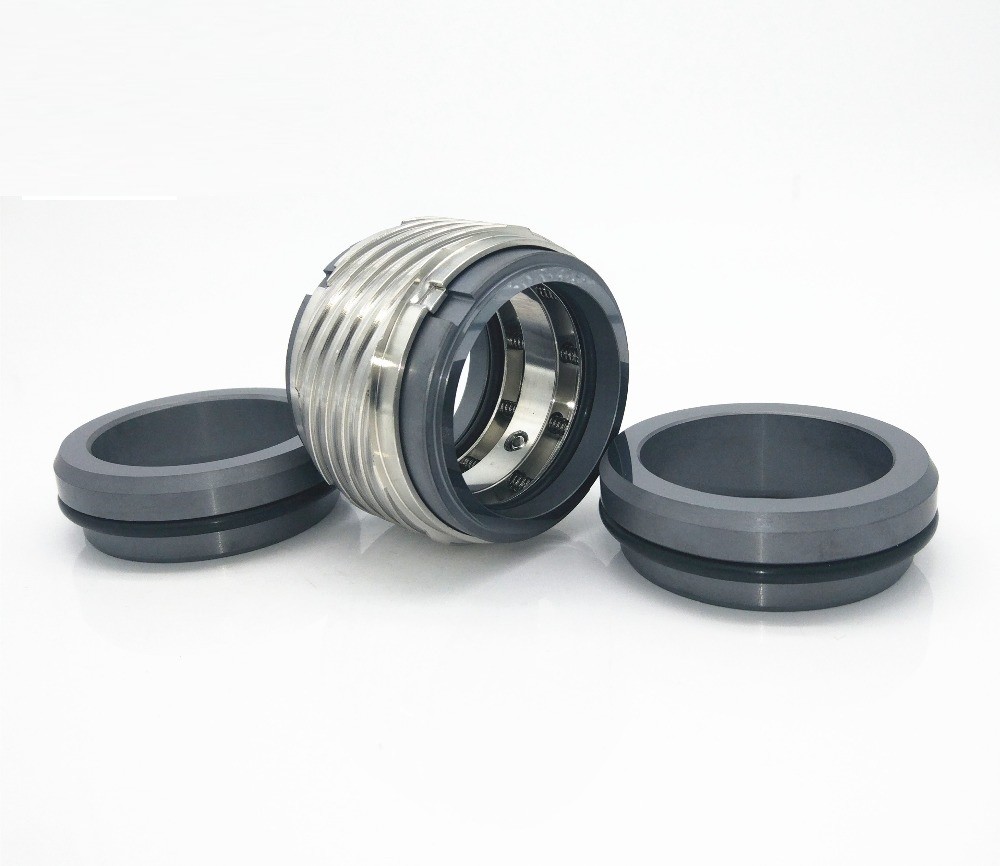

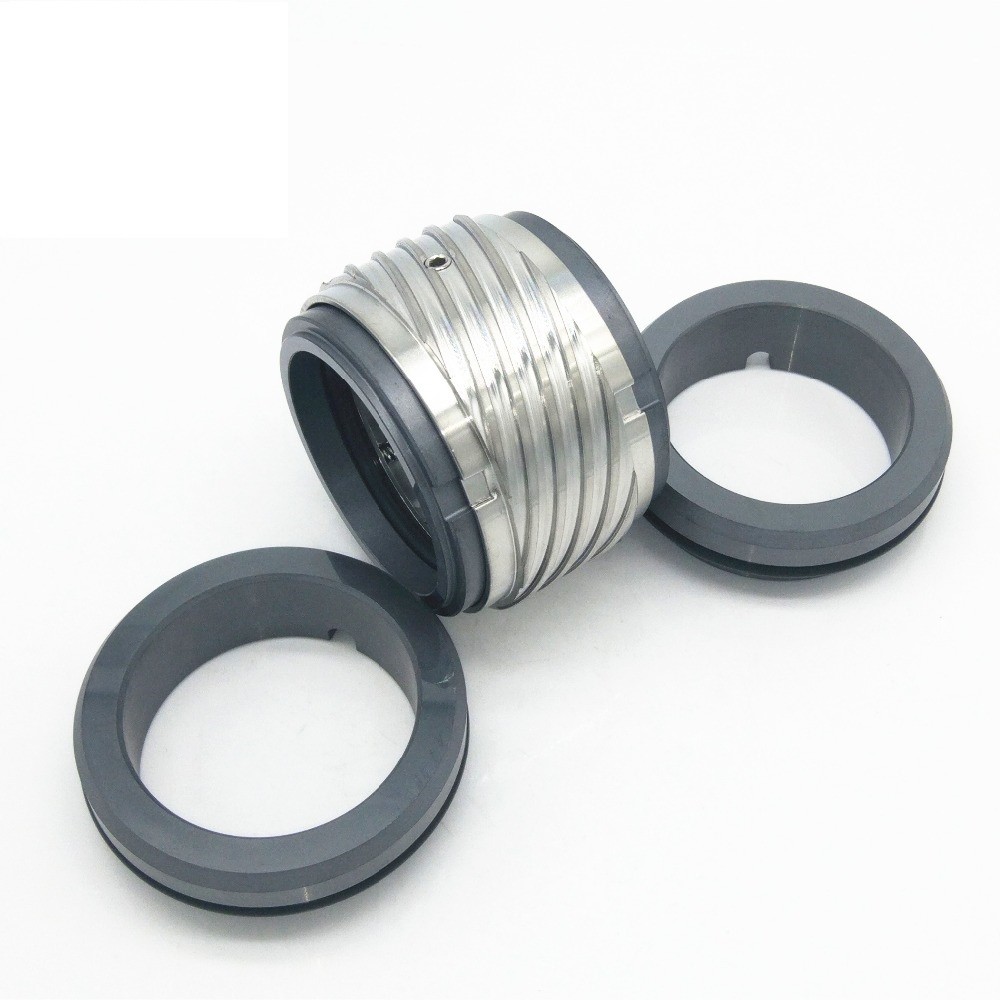

Multi Spring Mechanical Seal EagleBurgmann Type M74F-D Double Seal



Operational Conditions:

Double Mechanical Seal Pump Mechanical Seals

Temperature: -20ºC to +180ºC
Pressure: ≤2.5MPa
Speed: ≤15m/s
2. Pump Mechanical Seals Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel

O-rings: NBR, EPDM, VITON, Aflas, FEP, FFKM
Spring: SS304, SS316, hastelloy C
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities

M74F -D Pump Mechanical Seals
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
14mm to 100mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Pa




1. Features of structure: M74F -D,size is the same as M74D

2.it is equivalent to Pump Mechanical Seals

Burgmann M74F-D seal

3.Our seals can replace the original seals.

4.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

5.Customized products and OEM is welcomed

6. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

Mechanical Seal Eagle Burgmann Type Multi Spring M74F-D Ring Seal For Pump Double  Seal 0

Mechanical Seal Eagle Burgmann Type Multi Spring M74F-D Ring Seal For Pump Double  Seal 1Mechanical Seal Eagle Burgmann Type Multi Spring M74F-D Ring Seal For Pump Double  Seal 2Mechanical Seal Eagle Burgmann Type Multi Spring M74F-D Ring Seal For Pump Double  Seal 3Mechanical Seal Eagle Burgmann Type Multi Spring M74F-D Ring Seal For Pump Double  Seal 4Mechanical Seal Eagle Burgmann Type Multi Spring M74F-D Ring Seal For Pump Double  Seal 5

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal,Pump Mechanical Seals

Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal,

Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal,

Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal,

Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal,

Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps,

Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha,

Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Are you a factory or a trading company?
We are a professional manufacturing factory equipped with an experienced in-house sales team dedicated to providing full-range trade services for global customers.

Can I get a sample before placing an order?
Absolutely, samples are available upon request. In most cases, we offer samples free of charge, you only need to cover the corresponding shipping cost.

Where is your factory located? How can I arrange a visit?
Our factory is based in Ningbo, China. You can take a direct flight to Ningbo Lishe International Airport or Shanghai Pudong/ Hongqiao Airport, and we will arrange dedicated pick-up service for all domestic and overseas visiting clients. You are warmly welcomed to visit us at any time.

What is your factory's quality control process?
Quality has always been our top priority. We implement strict full-process quality management covering every stage from raw material procurement to finished product delivery. Our factory has obtained ISO9001 quality system certification to ensure stable and consistent product performance.

What is your production lead time?
The standard lead time is 10 to 20 working days after we receive your prepayment. For urgent orders, we can also provide customized production schedules upon communication.

What payment methods do you support?
For small sample orders and shipping fees, we accept both PayPal and T/T. For large formal orders, we adopt T/T at sight as the main payment term.

Do you support OEM service?
Yes, we provide full OEM and ODM services for all our products, including customized specifications, logos, packaging and other personalized requirements.

Can I purchase complete pumps and pump parts from your company?
Certainly, we supply a wide range of complete pumps and related spare parts, including lobe pumps, compound homogeneous pumps, homogeneous emulsification pumps and other series of products.
