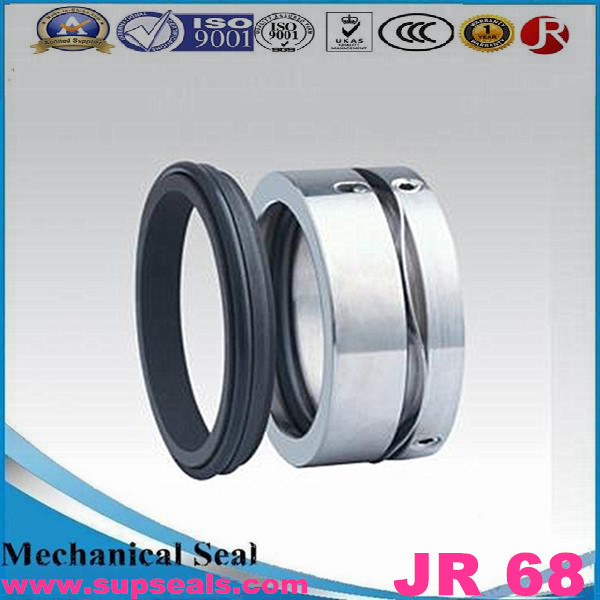

Roten 7k 68 Pump Mechanical Seals For Clean Water

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: 68

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Roplan 800/ 850 Seal Roten 7K Seal Sterling 280 Seal Certificate: ISO9001
Type: Mechanical Seal 68 Standard Or Nonstand: Standard
Style: John Crane 80 (DF/ FP) Seal Aesseal W01 Seal Flowserve 168 Seal Latty T510 Size: 14-100MM
High Light:

Roten 7k Pump Mechanical Seals

,

ISO9001 68 Pump Mechanical Seals

,

68 Roten Mechanical Seals

Product Description

Mechanical Seal 68 Type Aesseal W01 Seal Latty T510 Roplan 800/ 850 Seal Roten 7k Seal Sterling 280 Seal



Operations Conditions:

  1. John Crane 80 (DF/ FP) seal
  2. Aesseal W01 seal
  3. Flowserve 168 seal
  4. Latty T510
  5. Temperature:-40ºC to +200ºC
  6. Pressure:≤0.8bar
  7. Speed:≤18m/s

Materials:

  • Stationary Ring:Silicon Carbide Reaction Bonded
  • Rotary Ring:,Silicon Carbide Reaction Bonded
  • Secondary Seal:Fluorocarbon Rubber(FKM)
  • Spring and Metal Parts:Stainless Steel
  • Seat Types:
  • Applications:Clean Water



Performance Capabilities:



Temperature
-40℃ to 200℃, dependent on the elastomer
Pressure
Up to 0.8MPA
Speed
Up to 18 m/s
End play/axial float allowance
±0.1mm
Size
15.8-75
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
  • 1. it is equivalent to
  • Roplan 800/ 850 seal
  • Roten 7K seal
  • Sterling 280 seal
  • 2. Our seals can replace the original seals.
  • 3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
  • 4.Customized products and OEM is welcomed
  • 5. We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.



Roten 7k 68 Pump Mechanical Seals For Clean Water 0

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
