Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump
Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump
Contact Now

Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: LKH(P07-31.7)

Detail Information
Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Vulcan Type 9 Certificate: ISO9001
Type: For Vulcan Type 9 Standard: Standard
Style: Equal To Vulcan Type 9 Product Name: Vulcan Type 9 Mechanical Seal For Sanitary Pump
High Light:

Mechanical Seal Vulcan Type 9

,

Mechanical Seal SIC SIC FKM

,

Conical Spring Mechanical Seal

Product Description

Mechanical Seal Vulcan Type 9 Conical Spring Seal O Ring Mounted Water Pump Seal



Operational Conditions:

  1. The Vulcan Type 9 is a rotor, which can be categorized as a conical spring rotor. It is an alternative to the Qseals QCS06, Vulcan 9, Burgmann M2 and 5 others. It is suited for the Speck Y-5081.0002.
  2. Temperature: -30°C to +150°C
  3. Pressure: Up to 12 bar (174 psi)

Materials:

  • Stationary Ring: CAR,CER,SIC,SSIC
  • Rotary Ring: Q5, Resin Impregnated Carbon Graphite(Furan), SIC
  • Secondary Seal: FKM, NBR,EPDM
  • Spring and Metal Parts: 304/316

Performance Capabilities

vulcan type 912 mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
32mm, 42mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316

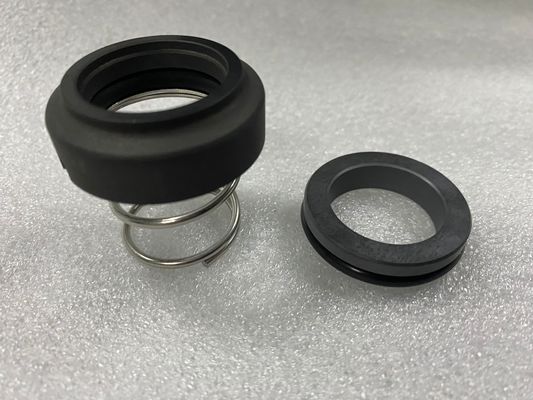

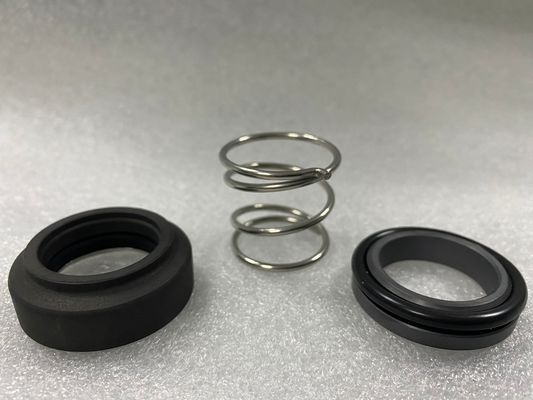

Conical spring, ‘O’-Ring mounted,shaft directional dependent seal, with a monolithic rotary head. Supplied as
standard with Type 8 STD stationary to suit European non-DIN housing sizes. Simple but effective, economical design
makes this seal suitable for a wide variety of lighter and general duty applications.The monolithic seal head provides
enhanced heat dissipation away from the seal faces.

Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump 0

Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump 1Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump 2Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump 3Vulcan Type 9 Conical Spring Mechanical Seal For O Ring Mounted Water Pump 4



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
