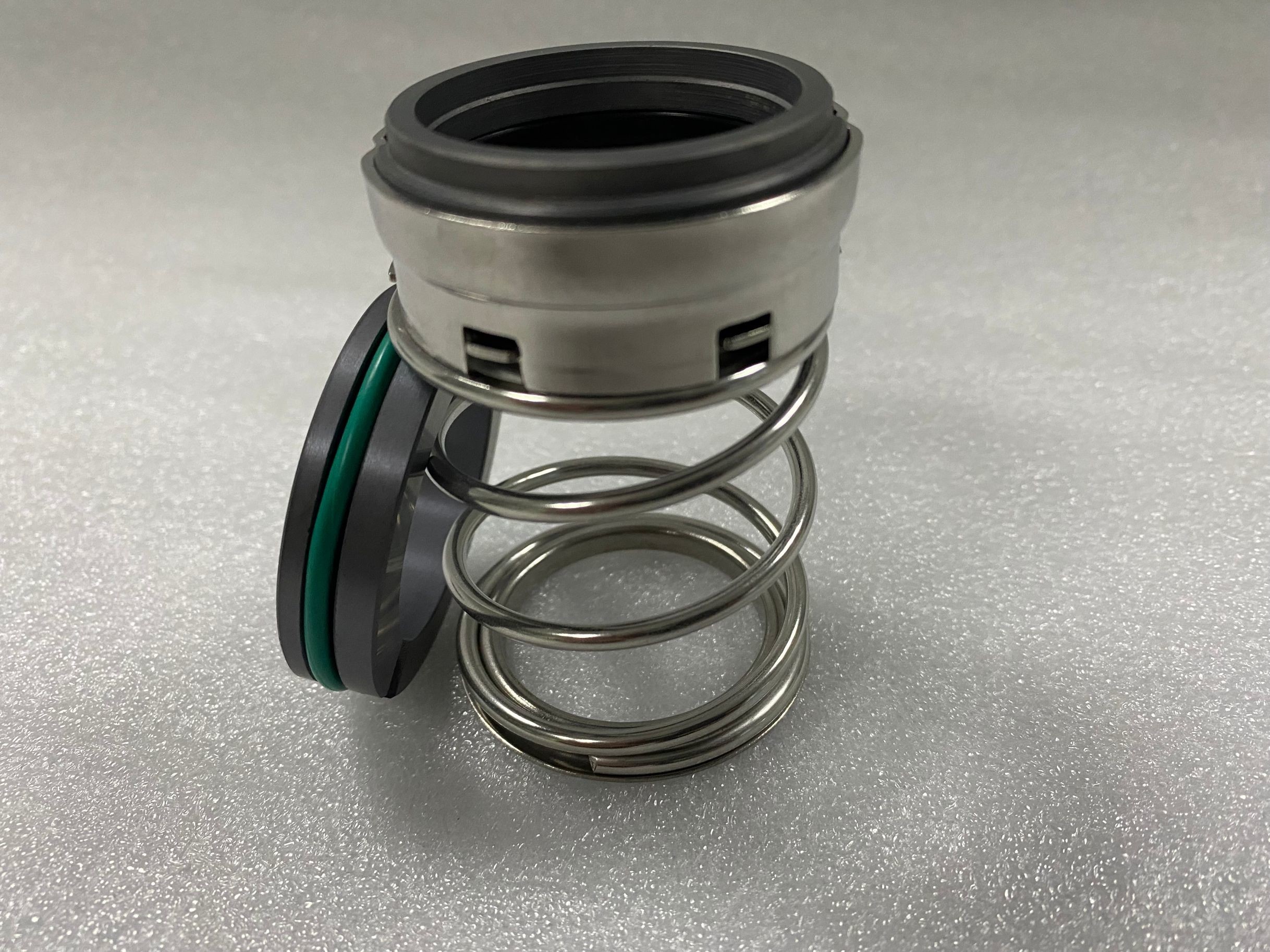

Single Spring Type 1 Elastomer Bellows Mechanical Seal For Pump

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: Type 1

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: John Crane Seal Type 1 Certificate: ISO9001
Type: For Burgmann MG901/ D1-G55 Aesseal P05U Seal John Crane Type 1 Seal Flowserve 51 Seal US Seal E Seal Standard: Standard
Style: Mechanical Seal Product Name: John Crane Type 1 Mechanical Seals
High Light:

Single Spring Elastomer Bellows Mechanical Seal


Type 1 Elastomer Bellows Mechanical Seal

Product Description

Elastomer Bellows Single Spring Mechanical Seal Type 1 Elastomer Bellows Seals


Operational Conditions:

  1. Reliable transmission due to special design in the drive band and drive notches.
  2. Special balancing in the elastomer bellows. design,avaliable in high-pressure application
  3. Temperature: -20ºC to +120ºC
  4. Pressure: ≤1.4MPa
  5. Speed: ≤15m/s
  6. Unbalanced
  7. Single Spring
  8. Bi-directional
  9. Elastomer Bellows
  10. Set screw lock collars available


  • ROTARY FACES: Carbon Graphite, Silicon Carbide, Tungsten Carbide
  • STATIONARY SEATS: Ceramic, Silicon Carbide, Tungsten Carbide, Stainless Steel
  • BELLOWS: Buna, FKM, EPDM, Aflas, Neoprene
  • METAL PARTS: 304 SS standard, 316 SS option available

Performance Capabilities

-30℃ to 200℃, dependent on the elastomer
Up to 14 bar
Up to 13 m/s
End play/axial float allowance
0.5" to 4"
Carbon, SiC, TC
Ceramic, SiC, TC
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • Replacement to:
  • Burgmann MG901/ D1-G55
  • Aesseal P05U seal
  • John Crane type 1 seal
  • Flowserve 51 seal
  • US Seal E seal
  • Single seal,balanced,Bi-directional
  • Good interchange ability, TG1U Dimensional data conform with US standard, TG1K conform with UK standard.
  • Available in metric and inch sizes

Single Spring Type 1 Elastomer Bellows Mechanical Seal For Pump 0

Single Spring Type 1 Elastomer Bellows Mechanical Seal For Pump 1Single Spring Type 1 Elastomer Bellows Mechanical Seal For Pump 2Single Spring Type 1 Elastomer Bellows Mechanical Seal For Pump 3Single Spring Type 1 Elastomer Bellows Mechanical Seal For Pump 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
