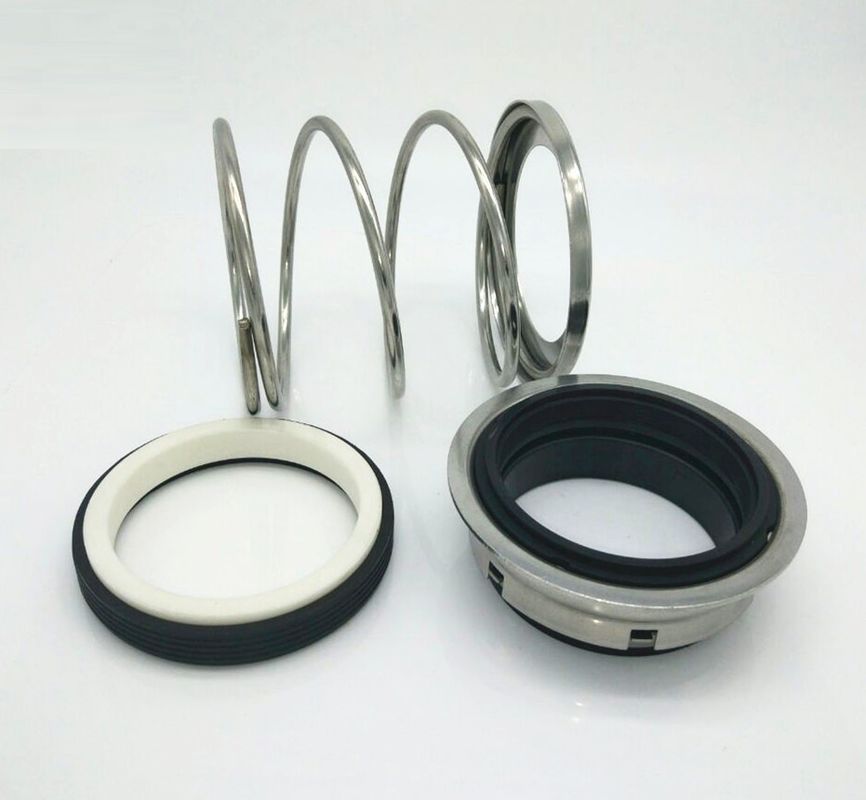

Elastomer Bellows Spring Mechanical Seal FBD For Hydraulic Pump

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: FBD

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Burgmann FBD Single Face Mechanical Seal Certificate: ISO9001
Type: For Mechanical Seal FBD Standard: Standard
Style: FBD Single Spring Mechanical Seal Product Name: JJohn Crane Type 2
High Light:

Elastomer Bellows Spring Mechanical Seal

,

Hydraulic Pump Spring Mechanical Seal

,

ISO9001 Spring Mechanical Seal

Product Description

Elastomer Bellows Spring Mechanical Seal FBD for Hydraulic Pump Water Seal



Operational Conditions:

  1. FBD Spring Inbuilt Rubber Bellows Pump Water Mechanical Seal
  2. Structure: Single End
  3. Pressure: General Pressure Mechanical Seals
  4. Speed: General Speed Mechanical Seal
  5. Temperature: General Temperature Mechanical Seal
  6. Performance: Wear, Weak Corrosion
  7. Standard: ISO3069, GB6556, DIN24960
  8. Model NO.: FBD
  9. Balance: Unbalanced
  10. Specification: Inner Diameter: 20 mm to 120 mm

 Materials Of FBD Elastomer Bellow Single Spring Mechanical Seal:

  1. Rotary Ring: SiC/TC/Carbon
  2. Stationary Ring: SiC/TC
  3. Elastomers: FKM/EPDM/Aflas/FFKM
  4. Springs: SS304/SS316L/HC276
  5. Metal Parts: SS304/SS316
 FBD Mechanical Seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
16mm to 120mm, 5/8" to 2.5"
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316




  1. FBD Elastomer Bellow Single Spring Mechanical Seal for Clean Water and Sewage Pumps
  2. Structural Features: single end, unbalanced, independent direction of rotation, single spring + elastomer bellow as compensation components.
  3. Industrial Standards: ISO3069, GB6556, DIN24960
  4. Scopes of Application: Clean Water, Sewage Water, Oil and other moderately corrosive fluids. Designed for industrial pump, blower pump, diving pump, circulating pump mechanical seal, replacing the mechanical of EagleBurgmann and John Crane mechanical seal



Elastomer Bellows Spring Mechanical Seal FBD For Hydraulic Pump 0





Mdel D1 D3 D4 D7 D12 L L3 L4 L5
 FBD-16 16 34 37 30 5 33 25 8 1.5
 FBD-18 18 36.8 40 32 5 33 25 8 2
 FBD-20 20 38.8 42 34 5 33 25 8 2
 FBD-22 22 41.5 45 36 5 33 25 8 2
 FBD-25 25 44.8 48 39 5 34 26 8 2
 FBD-28 28 48.5 52 43 5 34 26 8 2
 FBD-30 30 52 55 48 5 34 26 8 2
 FBD-35 35 57 60 53 5 40 30 10 2
 FBD-40 40 67 70 58 5 44 34 10 2
FBD-45 45 73 76 63 5 46 36 10 2
 FBD-50 50 79 81 68 8 51 41 10 2.5
 FBD-55 55 84 87 3 8 53 41 12 2.5
FBD-60 60 90 95 79 8 53 41 12 2.5
FBD-65 65 98.5 104 86 8 61 49 12 2.5
 FBD-70 70 103.5 109 91 8 64 52 12 2.5
FBD-75 75 110.5 116 96 8 64 52 12 2.5
FBD-80 80 120 125 105 11 70 56 14 3
FBD-85 85 125 130 110 11 70 56 14 3
 FBD-90 90 132 137 115 11 70 56 14 3
FBD-95 95 137 12 120 11 70 56 14 3
 FBD-100 100 144 149 125 11 76 62 14 3

Elastomer Bellows Spring Mechanical Seal FBD For Hydraulic Pump 1

Elastomer Bellows Spring Mechanical Seal FBD For Hydraulic Pump 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
