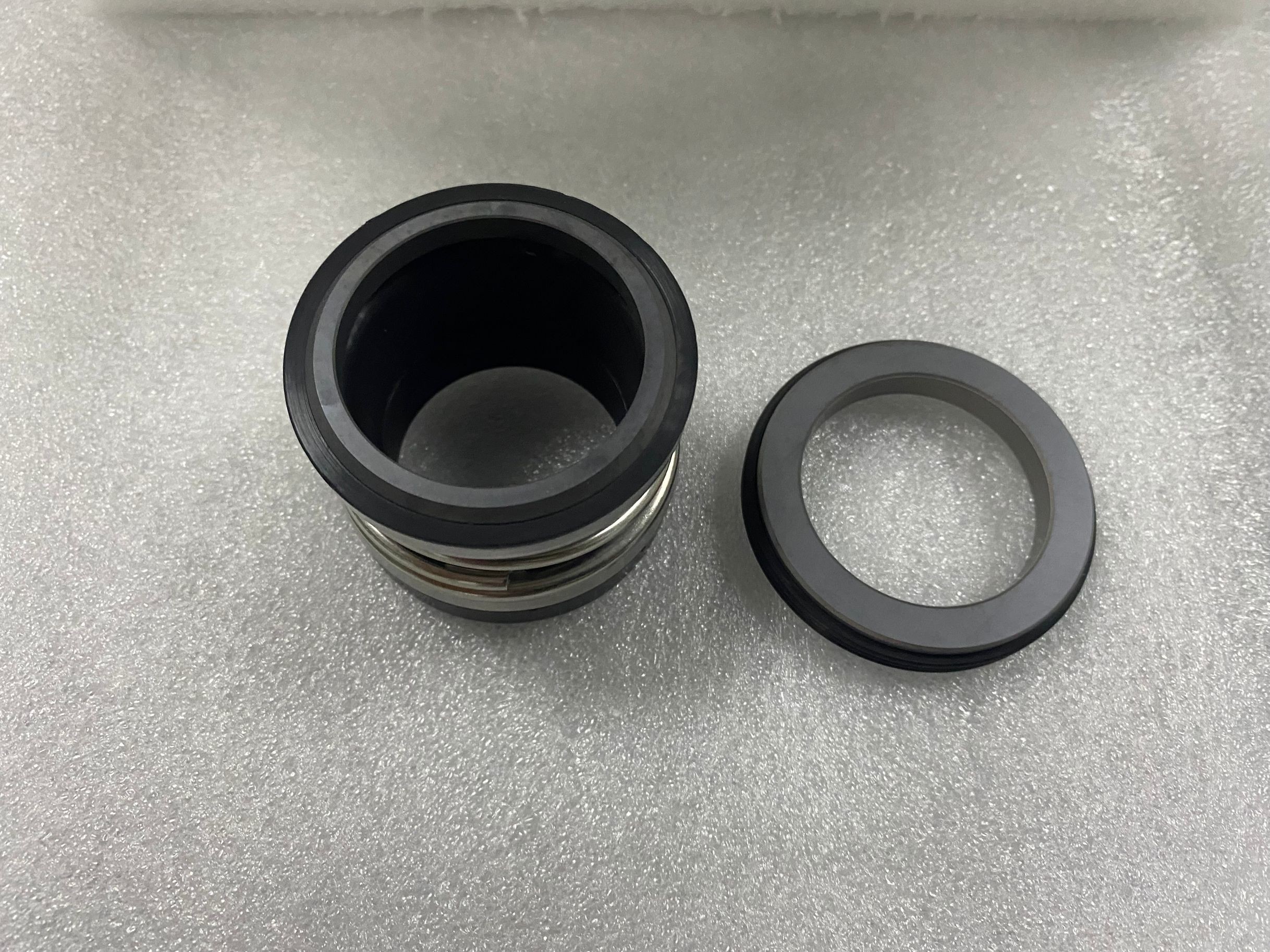

John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM
John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM
Contact Now

John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 2100

Detail Information
Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: John Crane Type 2100 Certificate: ISO9001
Type: 2100 Standard: Standard
Style: Mechanical Seal Application: John Crane 2100 Aesseal B05 Seal Flowserve Pac-Seal 140 Sterling 540
High Light:

John Crane Mechanical Seal

,

John Crane Elastomer Bellow Seals

,

ISO9001 Elastomer Bellow Seals

Product Description

John Crane Mechanical Seal Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM



Operational Conditions:

  1. Structure Description:
  2. Equivalent to John crane Type 2100,AES B05 seal, Flowserve Pac-Seal 140, Sterling 540, VULCAN 140
  3. Rubber bellows design
  4. Operating Limits:
  5. Temperature:-20---120℃
  6. Speed: 15m/s
  7. Pressure: 18bar
  8. Standard size: 10mm--100mm

Materials:

  • Rotary Face
    Carbon graphite resin impregnated Ak
    Hot-Pressing carbon Ac
    Silicon carbide (RBSIC) O
    Stationary Seat
    Aluminium oxide(Ceramic) B
    Silicon carbide (RBSIC) O
    Tungsten carbide W1
    Auxiliary Seal
    Nitrile-Butadiene-Rubber (NBR) P
    Fluorocarbon-Rubber (FKM) V
    Ethylene-Propylene-Diene (EPDM) E
    Spring
    Stainless Steel (SUS304) F
    Metal Parts
    Stainless Steel (SUS304) F


Performance Capabilities



sulzer pump John crane 2100 mechanical seal rotary seal mixer seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
10mm to 100mm
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316

Unitized construction allows for fast and easy installation and replacement. Design fits DIN24960, ISO 3069 and ANSI B73.1 M-1991 standards.

Innovative bellows design is pressure-supported and will not crease or fold under high pressure.

Non-clogging, single-coil spring keeps seal faces closed and properly tracking during all phases of operation.

Positive drive through interlocking tangs will not slip or break free during upset conditions.

Available in the widest array of material options, including high performance silicon carbides.



John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM 0

2100 Dimensions(mm)
d(mm) D3 D6 D7 L3 L31 L32 L4
10 20 15 21 15 27.5 35.0 5.0
12 22 17 23 15 26.5 34.0 6.0
14 24 19 25 15 29.0 34.0 6.0
15 25 20 26 15 29.0 34.0 6.0
16 26 23 27 15 29.0 34.0 6.0
18 32 25 33 20 31.5 39.0 6.0
20 34 27 35 20 31.5 39.0 6.0
22 36 29 37 20 31.5 39.0 6.0
24 38 31 39 20 34.0 44.0 6.0
25 39 32 40 20 34.0 44.0 6.0
28 42 35 43 26 36.5 44.0 6.0
30 44 37 45 26 35.5 43.0 7.0
32 46 40 48 26 35.5 48.0 7.0
33 47 40 48 26 35.5 48.0 7.0
35 49 42 50 26 34.5 47.0 8.0
38 54 47 56 30 37.0 47.0 8.0
40 56 49 58 30 37.0 47.0 8.0
43 59 52 61 30 37.0 52.0 8.0
45 61 54 63 30 37.0 52.0 8.0
48 64 57 66 30 35.0 50.0 10.0
50 66 60 70 30 37.5 50.0 10.0
53 69 63 73 30 37.5 60.0 10.0
55 71 65 75 30 37.5 60.0 10.0
58 78 68 78 33 42.5 60.0 10.0
60 80 70 80 33 40.5 58.0 12.0
63 83 73 83 33 40.5 58.0 12.0
65 85 75 85 33 40.5 68.0 12.0
68 88 79 90 33 40.5 68.0 12.0
70 90 81 92 33 48.0 68.0 12.0
75 99 86 97 40 48.0 68.0 12.0
80 104 92 105 40 47.5 77.5 12.5
85 109 97 110 40 47.5 77.5 12.5
90 114 102 115 40 52.5 77.5 12.5
95 119 117 120 40 52.5 77.5 12.5
100 124 122 125 40 52.5 77.5 12.5



John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM 1

John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM 2John Crane Mechanical Elastomer Bellows Seals 2100 2100K 2100N SIC SIC FKM 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
