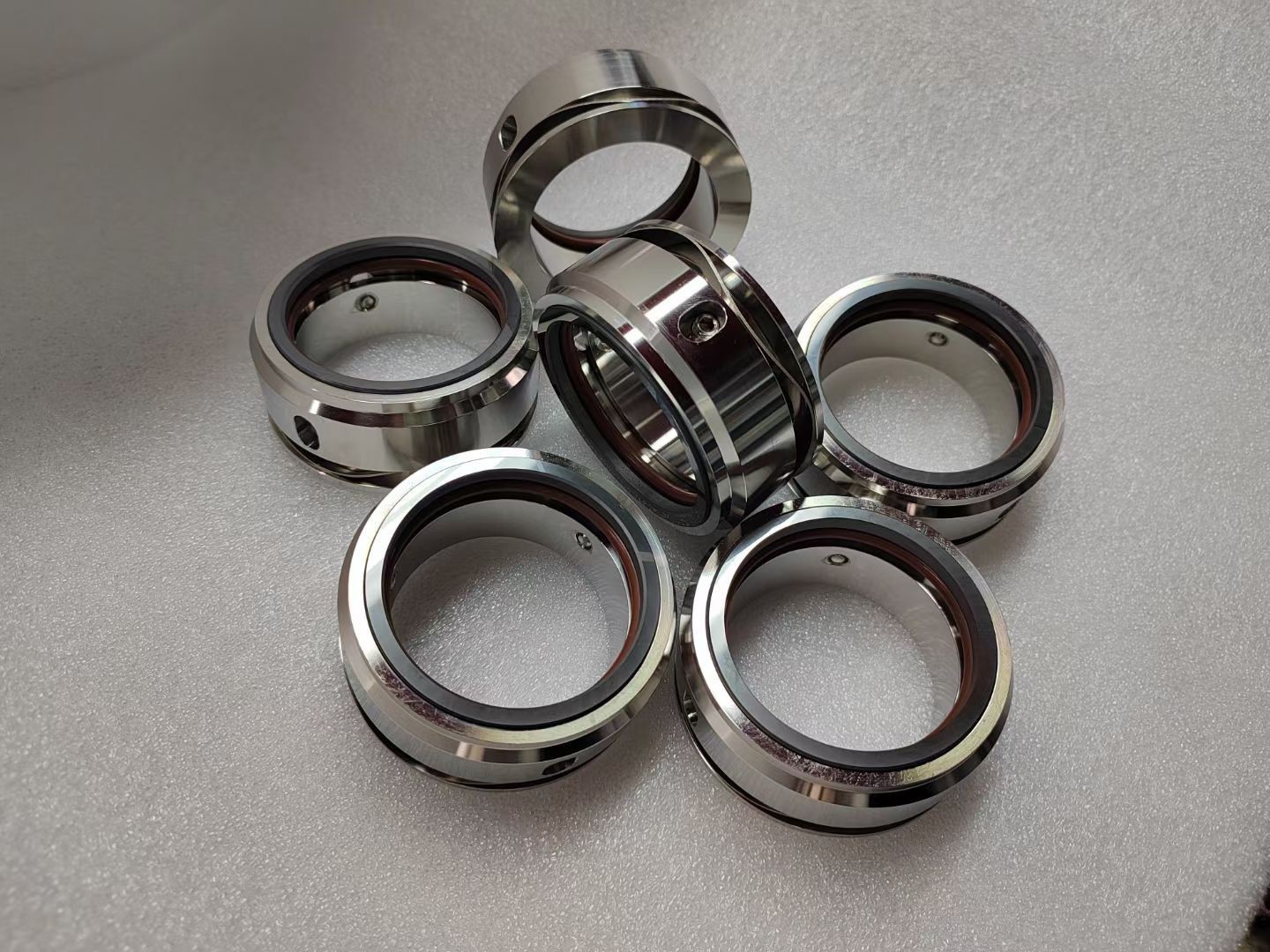

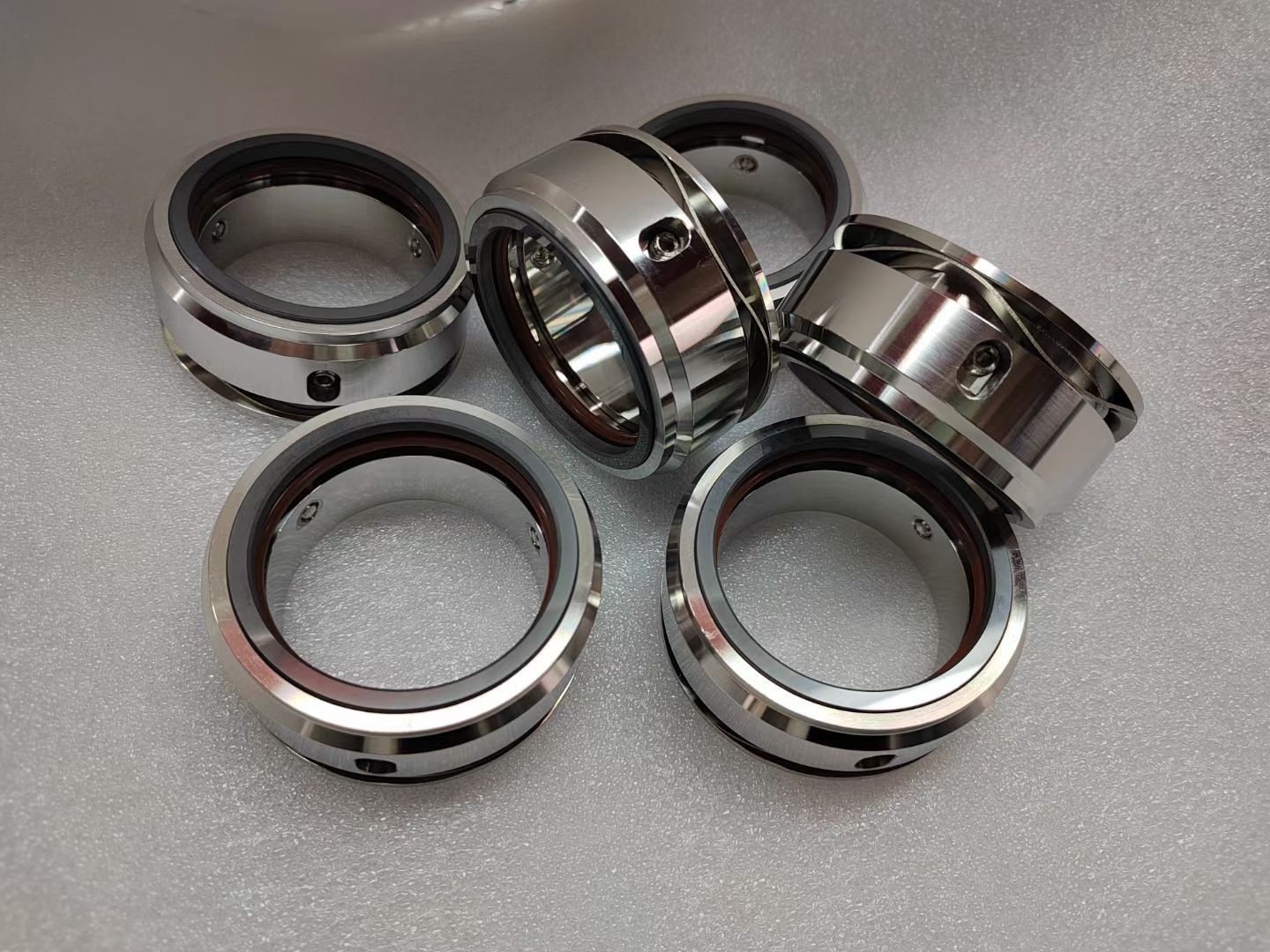

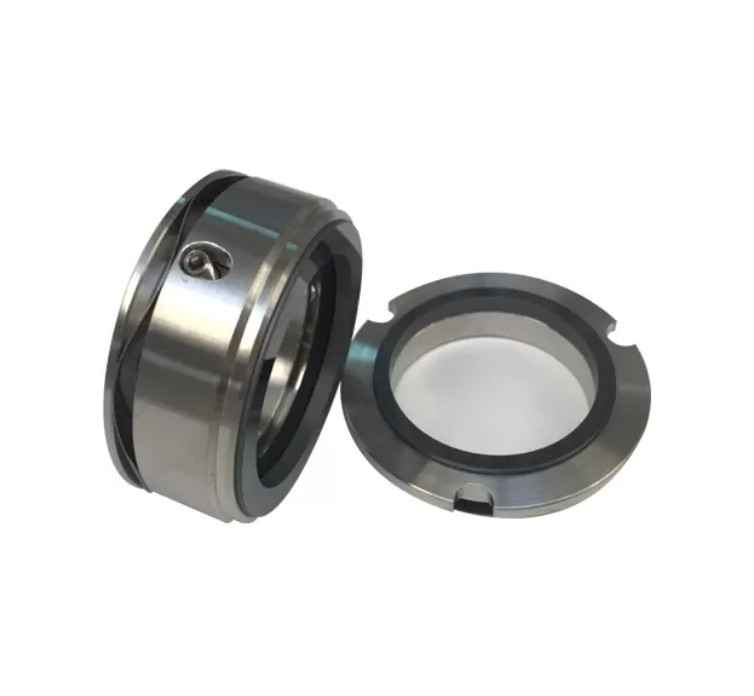

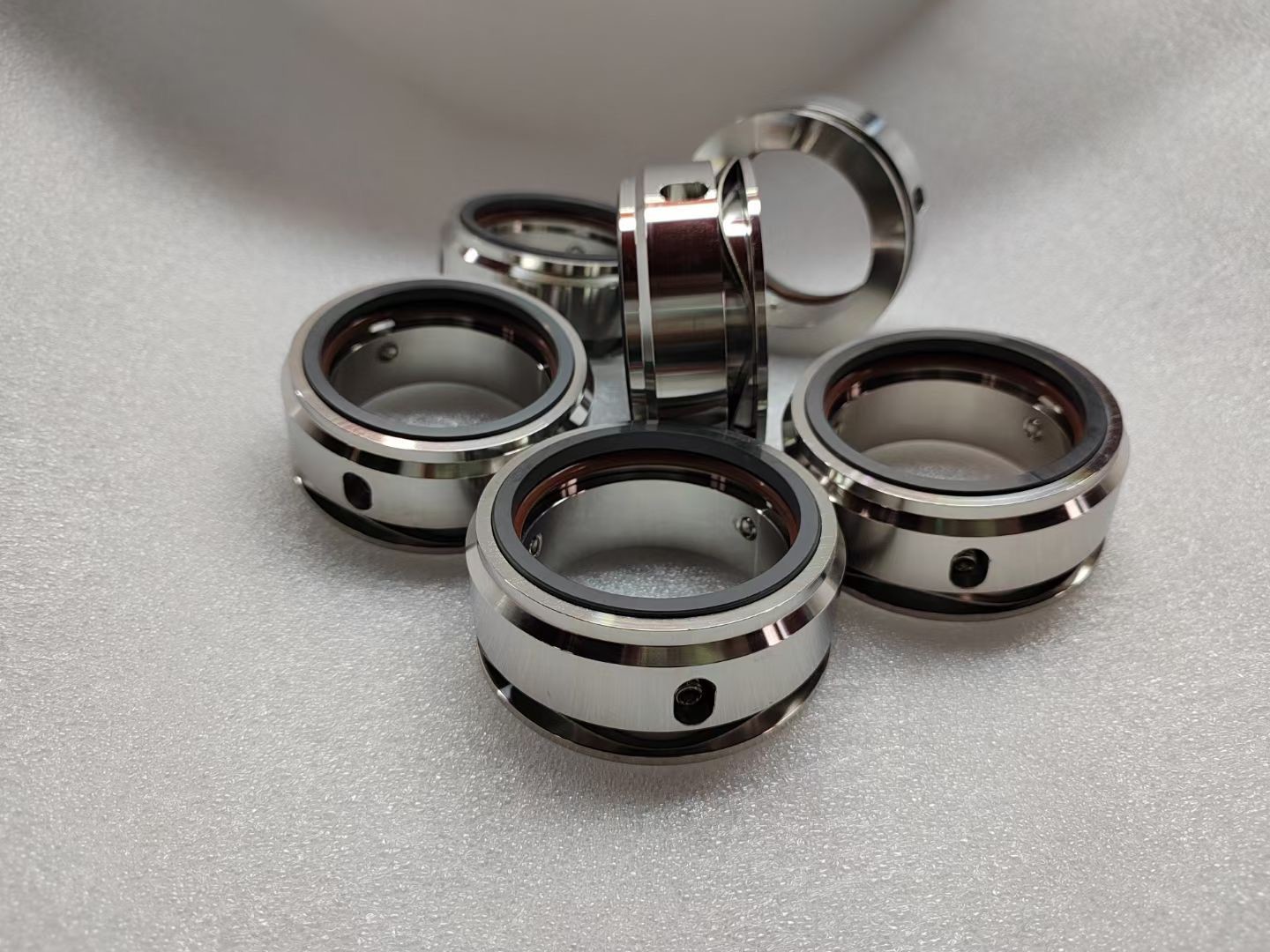

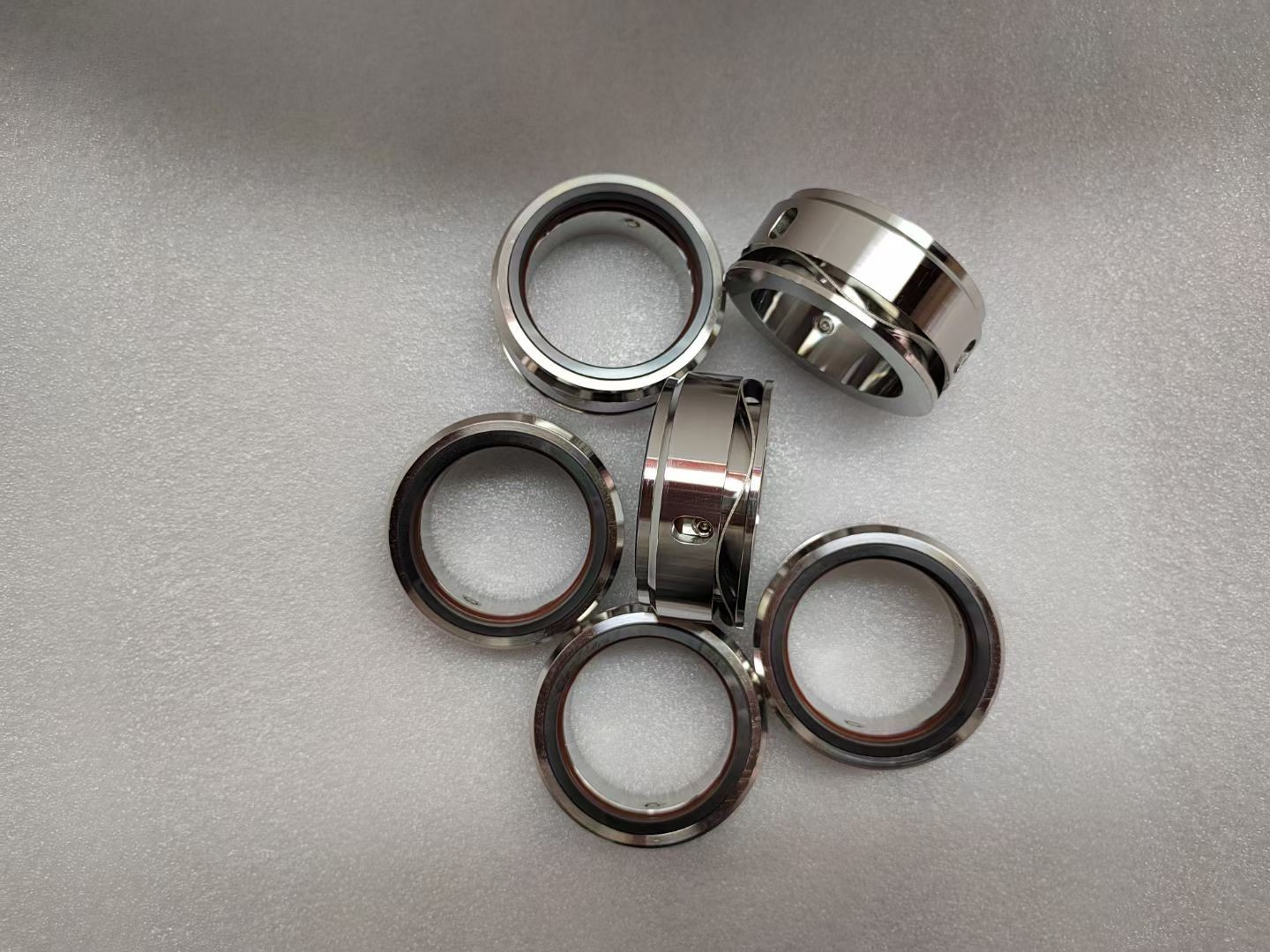

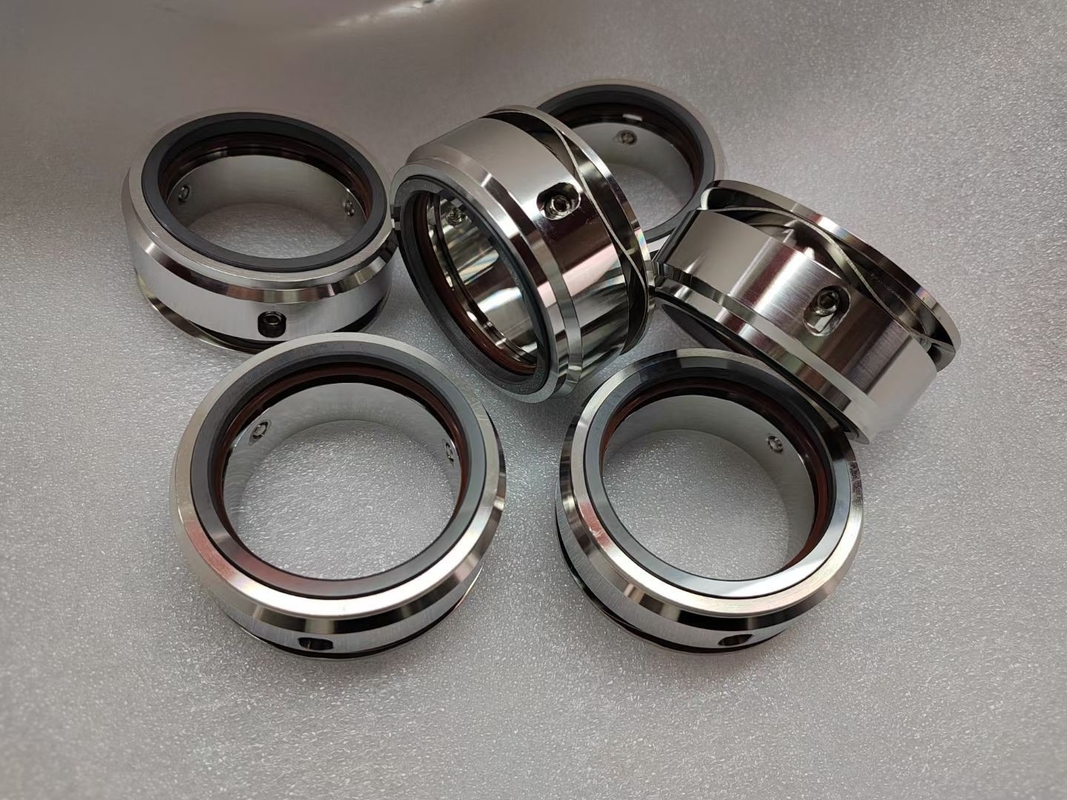

Wave Spring Mechanical Seal Replace AES W03 Alfa

Minimum Order Quantity : 1PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: W03 wave spring

Detail Information

Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: China Aes Seal Aes Seal Manufacturers Certificate: ISO9001
Type: Multi Sprung Seals AES SSAI Standard: Standard
Size: 18-100MM Name: W03 Wave Spring Suit Alfa SSP SR Water Pump
High Light:

Wave Spring Mechanical Seal


Wave Spring APV Pump Seal


Alfa Mechanical Seal

Product Description

W03 Wave Spring Mechanical Seal Replace AES W03 Alfa SSP SR Water Pump​


  1. Type:W03 replace AES W03 wave spring suit Alfa SSP SR water pump
  2. Temperature:-40℃ to +250℃
  3. Pressure:≤1.2Mpa
  4. Speed:≤15m/s
  5. Non-shaft-fretting design to reduce cost of equipment overhaul
  6. Maximizes seal life in suspensions and liquids such as slurries given the smooth non-clogging profile
  7. Hydraulically balanced seal-face
  8. Premium drive integrity (milled metallic lug drive)


  • Stationary Ring: Silicon Carbide, Ceramic
  • Out barrel: Steel VS Carbon, TC, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, FFKM
  • Spring and Metal Parts: 316

Performance Capabilities:

-50℃ to 200℃, dependent on the elastomer
Up to 12 bar
Up to 15 m/s
End play/axial float allowance
Carbon, SiC, TC
Ceramic, SiC, TC
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

Wave Spring Mechanical Seal Replace AES W03 Alfa 0

Size/Metric D3 D7 L1 L4
20 31 30 19.1 10.7
30 41 41.3 19.1 10.9
35 45.5 47 19.1 12.2
45 58.2 58.3 21.1 11.6
55 72 69.6 22.1 13
75 96 92.2 25.8 14.5


Wave Spring Mechanical Seal Replace AES W03 Alfa 1


We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.



Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.


Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.


Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.


Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.


Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
