Rubber Bellow Seal For Vulcan Type 140 Pump Mechanical

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 140

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Vulcan Seal Certificate: ISO9001
Type: Mechanical Seal 140/142/143 Standard Or Nonstand: Standard
Style: Mechanical Seal Vulcan 140/142/143 Size: 10-100MM
High Light:

Vulcan Rubber Bellow Seal

,

Oil Pump Bellow Mechanical Seal

,

Vulcan Rubber Bellow Mechanical Seal

Product Description

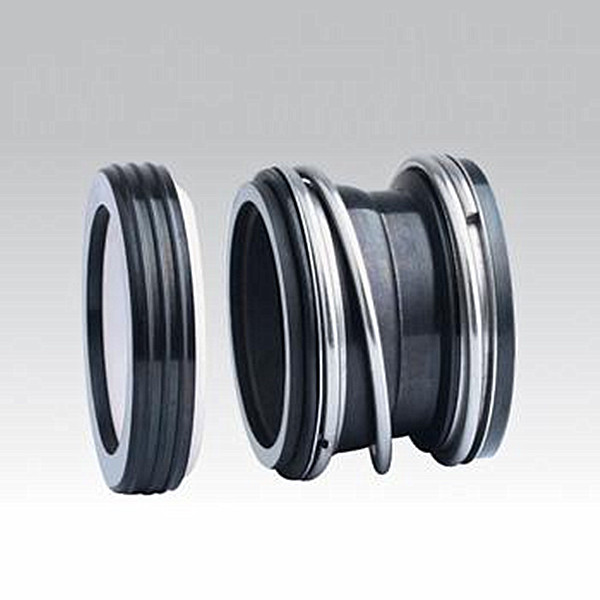

Rubber Bellow Seal For Vulcan Type 140 Pump Mechanical Seal



Operations Conditions:

  1. Vulcan 140/142/143
  2. Temperature: -40℃ to +150℃
  3. Pressure: ≤1.0MPa
  4. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless,
  • Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide
  • Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg,
  • Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded,
  • Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide
  • Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (FKM)
  • Spring and Metal Parts: Stainless Steel, Stainless Steel



Performance Capabilities:



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 0.6MPA
Speed
Up to 15m/s
End play/axial float allowance
±0.1mm
Size
10-100MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
  • 1. it is equivalent to  Vulcan 140/142/143
  • 2. Our seals can replace the original seals.
  • A robust rubber bellows seal with a wide, larger than DIN, cross section for optimum flexibility and durability.
  • Type 140 series seals are supplied as standard with a ‘O’-Ring mounted stationary to suit common,
  • originally European, housing dimensions.

Rubber Bellow Seal For Vulcan Type 140 Pump Mechanical 0



W

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
