ALF LA Replacement 92A-35 Mechanical Pump Shaft Seal Single Spring

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 92A-35

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: LKH(P07-31.7) Certificate: ISO9001
Type: For FBD Standard: Standard
Style: Equal To AES-P07 Mechanical Seals For Sanitary Pump Product Name: AES Type P07 Mechanical Seal For Sanitary Pump
High Light:

92A-35 pump shaft seal

,

92A-35 mechanical shaft seal

,

single spring pump shaft seal

Product Description

Mechanical Seal Centrifugal Pump Shaft Seal Design AESSEAL P07 Mechanical Seal For LKH Series Pump



Operational Conditions:

  1. AES type P07 mechanical Seal for sanitary pump with single spring
  2. Application: replacement for food pumps
  3. 3. Specification: single face seal, single spring
  4. 4. Certification: ISO9001, SGS
  5. Temperature: -20ºC to +180ºC
  6. Pressure: ≤2.5MPa
  7. Speed: ≤15m/s

Materials:

  • Stationary Ring: CAR,CER,SIC,SSIC
  • Rotary Ring: Q5, Resin Impregnated Carbon Graphite(Furan), SIC
  • Secondary Seal: FKM, NBR,EPDM
  • Spring and Metal Parts: 304/316

Performance Capabilities

LKH(P07-31.7) mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
10mm to 80mm,
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316




1. .it is equivalent to

LKH(P07-31.7)

2.Our seals can replace the original seals.

3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.

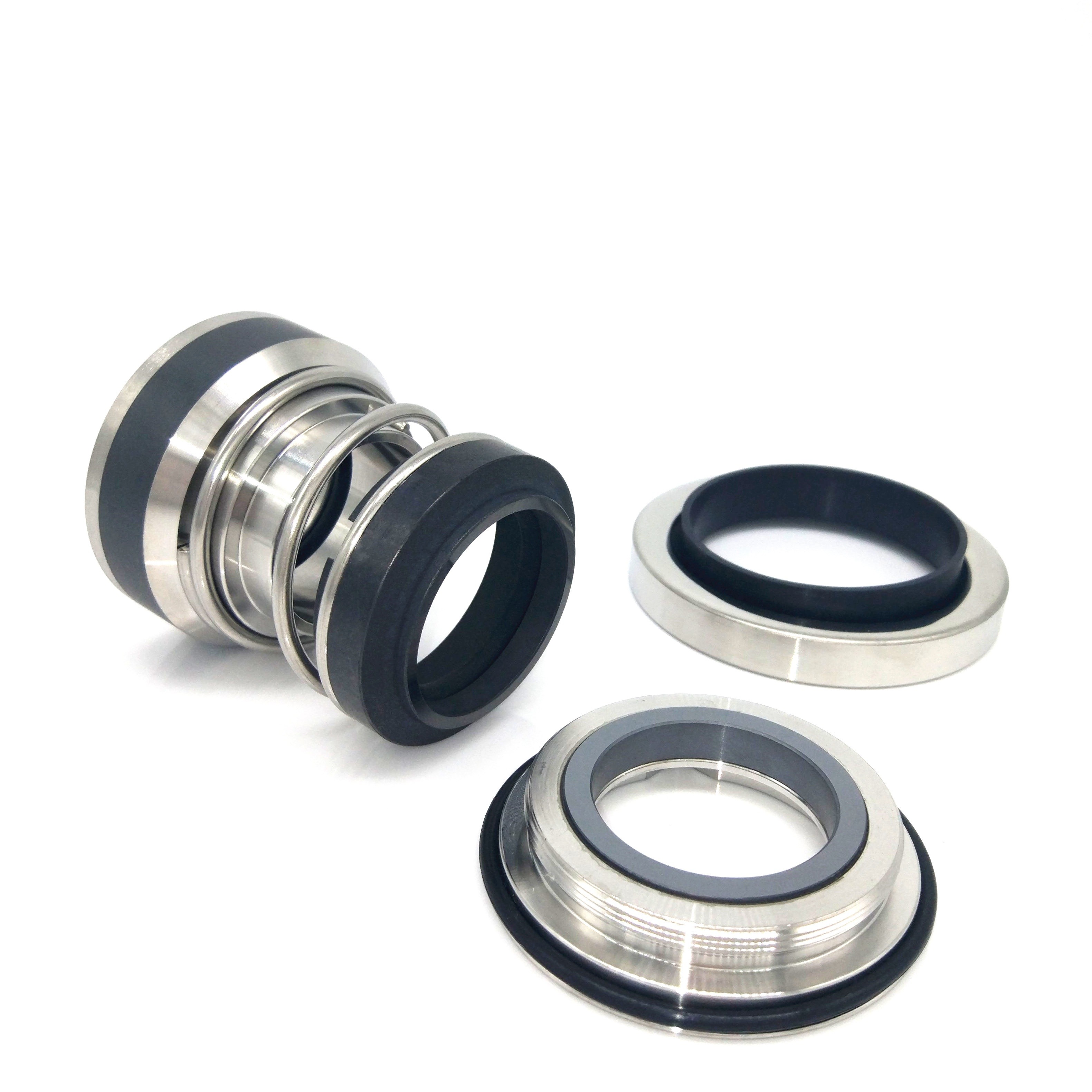

ALF LA Replacement 92A-35 Mechanical Pump Shaft Seal Single Spring 0

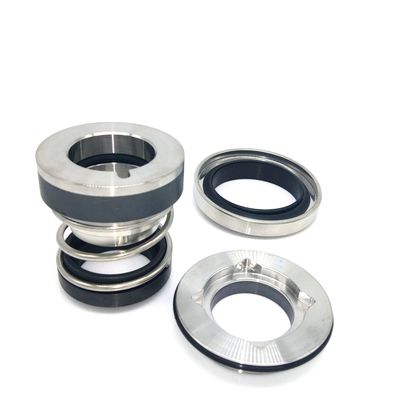

ALF LA Replacement 92A-35 Mechanical Pump Shaft Seal Single Spring 1

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
