100mm John Crane 502 Water Pump Mechanical Seal For Industrial Pumps

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 502

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: John Crane Mechanical Seal Type 502 Replacement Certificate: ISO9001
Type: 502 Standard: Standard
Style: Bellows Mechanical Seals 502 Replacement: John Crane 502 Seal Aesseal B07 Seal Sterling 524 Seal
High Light:

502 water pump mechanical seal

,

100mm Water Pump Mechanical Seal

,

100mm water pump shaft seal

Product Description

John Crane 502 Water Pump Mechanical Seal 100mm For Industrial Pumps



Operational Conditions:

  1. Structure Description:
    Equivalent to AES B07, John Crane Type 502 mechanical seal
    Rubber bellows design
    Operating Limits:
    Temperature:-20---120℃
    Speed: 15m/s
    Pressure: 25bar
    Standard size: 14mm--100mm

Materials:

  • Rotary Face: Carbon / SIC.
  • Stationary Seat: Ceramic / SIC.
  • Bellows: NBR / EPDM / FKM.
  • Spring: SS304 / SS316.
  • Metal Parts: SS304 / SS316.


Performance Capabilities



 john crane 502mechanical seal rotary seal mixer seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
14mm to 100mm
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316
  • 1.Material: resin carbon /Silicon Carbide /FKM /Stainless than Steel SS316
  • 2.Stationary :BO
  • 3.Operating Limits:
  • Pressure: less than or equal to 4MPa
  • Speed: less than or equal to 13m/s
  • Temperature(degree centigrade): from -30 to +200
  • 4.NOTE :The standard seat for the TS 502 seal is the BO seat (DIN24960). Alternative seats can also be used, such as the BP and BC seats.
  • 5.to replace John crane 502 shaft size 50mm,AESSEAL B07S shaft size 50mm ,STERLING seal 524S shaft size 50mm
  • 6.Our cetifications :ISO9001:2008,ISO/TS16949:2009,ISO 14001:2004,SGS,ROSH,REACH,FDA,WARS,NSF and so on.

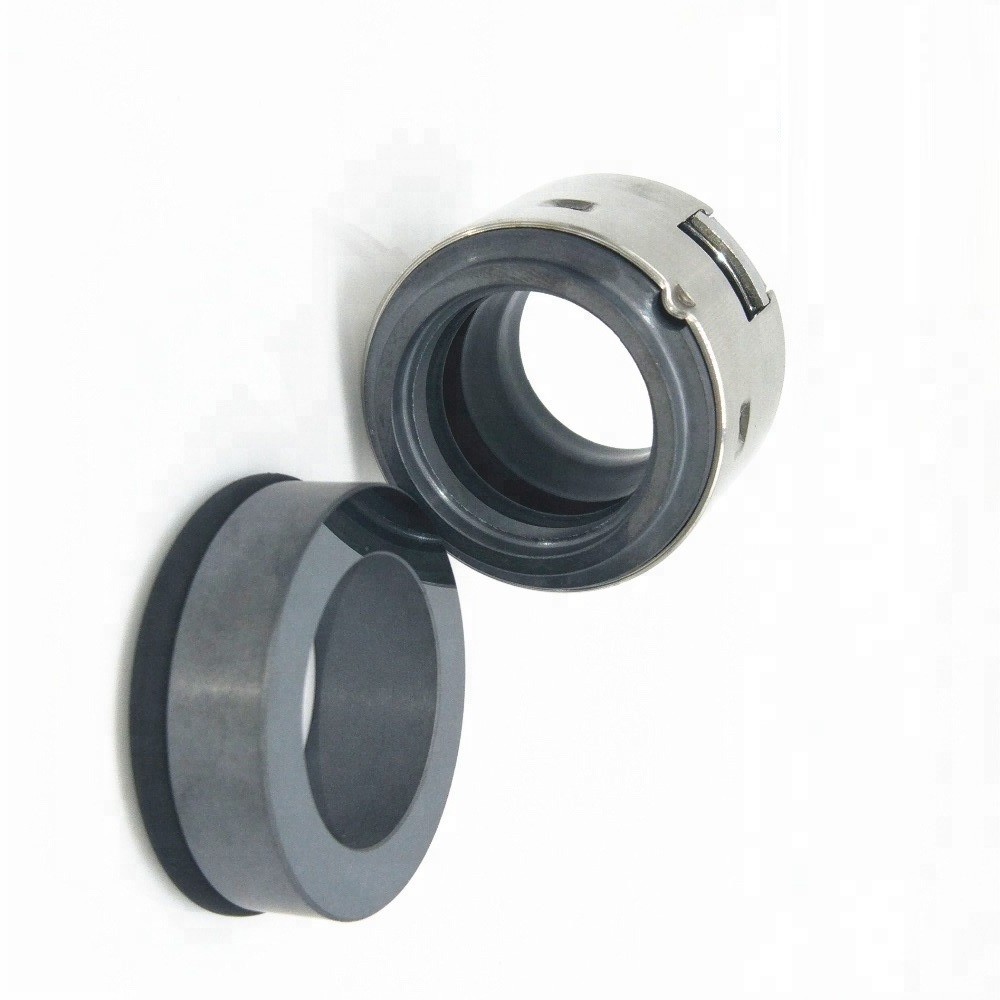

100mm John Crane 502 Water Pump Mechanical Seal For Industrial Pumps 0

502 Dimensions(mm)
d D3 D6 D7 L3 L4 L8
14 24 21 25 23.0 12.0 12.8
16 26 23 27 23.0 12.0 12.8
18 32 27 33 24.0 13.5 14.5
20 34 29 35 24.0 13.5 14.5
22 36 31 37 24.0 13.5 14.5
24 38 33 39 26.7 13.3 14.3
25 39 34 40 27.0 13.0 14.0
28 42 37 43 30.0 12.5 13.5
30 44 39 45 30.5 12.0 13.0
32 46 42 48 30.5 12.0 13.0
33 47 42 48 30.5 12.0 13.0
35 49 44 50 30.5 12.0 13.0
38 54 49 56 32.0 13.0 14.0
40 56 51 58 32.0 13.0 14.0
43 59 54 61 32.0 13.0 14.0
45 61 56 63 32.0 13.0 14.0
48 64 59 66 32.0 13.0 14.0
50 66 62 70 34.0 13.5 14.5
53 69 65 73 34.0 13.5 14.5
55 71 67 75 34.0 13.5 14.5
58 78 70 78 39.0 13.5 14.2
60 80 72 80 39.0 13.5 14.2
63 83 75 83 39.0 13.5 14.2
65 85 77 85 39.0 13.5 14.2
68 88 81 90 39.0 13.5 14.2
70 89 83 92 45.5 14.5 15.2
75 96 88 97 45.5 14.5 15.2
80 104 95 105 45.0 15.0 15.7
85 108 100 110 45.0 15.0 15.7
90 114 105 115 50.0 15.0 15.7
95 118 110 120 50.0 15.0 15.7
100 124 115 125 50.0 15.0 15.7



100mm John Crane 502 Water Pump Mechanical Seal For Industrial Pumps 1100mm John Crane 502 Water Pump Mechanical Seal For Industrial Pumps 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
