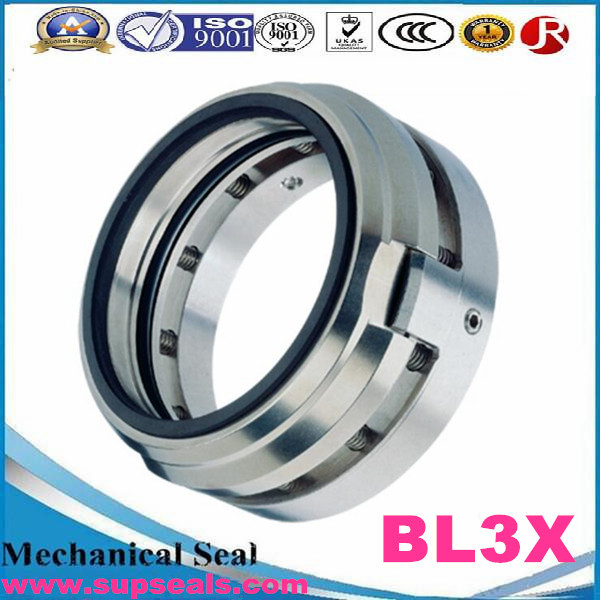

100MM Bl3X Medium Pressures Stationary Pump Mechanical Seals

Contact Now

100MM Bl3X Medium Pressures Stationary Pump Mechanical Seals

Minimum Order Quantity :	1PC	Price :	Negotiated
Packaging Details :	box as requirement	Delivery Time :	20-30DAYS
Payment Terms :	T/T, Western Union, L/C	Supply Ability :	1000PC/Month

Place of Origin:	MADE IN CHINA	Brand Name:	JR
Certification:	ISO9001	Model Number:	Fluliten BL3X

Detail Information
Material:	SIC SIC FKM	Function:	For Oil Pump, Water Pump
Transport Package:	Box	HS Code:	848420090
Specification:	Fluliten BL3X	Certificate:	ISO9001
Type:	Fluliten BL3X Mechanical Seal	Standard:	Standard
Size:	20,48,65,80,90,100MM	Name:	Fluliten BL3X Seal Water Pump Seal
High Light:	Medium Pressure Pump Mechanical Seals , Bl3X Pump Mechanical Seals , 100MM stationary mechanical seal

Product Description

Fluliten Mechanical Seal Bl3X Solution for Medium and High Pressures

Description:

Solution for large diameter equipment on medium and high pressures; it is widely used on large machinery, multistage pumps, boiler feedwater pumps and agitators.
The BL3X is a single component seal with type X pinned stationary seat, multi-spring,pressure balanced and can rotate in either direction.

Equipped with three drive lugs on the rotating body it can tolerate strong vibration and mechanical stresses.
The O-ring is easily removed and refitted when assembling the seal on shafts with keyways, threads or sharp edges.

Type:Suit ABS AFP-Series submersible pumps
Replacement:Vulcan 1632,AES W14,Burgmann MS30/MS32, Lidering AB-30
Temperature:-20℃ to +140℃
Pressure:≤1.2Mpa
Speed:≤15m/s

2. Materials:

Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:

Temperature	-20℃ to 180℃, dependent on the elastomer
Pressure	Up to 10 bar
Speed	Up to 15 m/s
End play/axial float allowance	±0.1mm
Size	25mm 35mm 55mm
Brand	JR
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, FKM etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, DryRunning Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal,Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
