O Ring Fristam Pump Mechanical Seal Pillar US2 Mechanical Pump Shaft Seal

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: US2

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Fristam Pump Mechanical Seal Pillar US2 Certificate: ISO9001
Type: US2 Standard: Standard
Style: Us2 Single-Spring Mechanical Seal Application: Replace Pillar Us2 Single-Spring Mechanical Seal
High Light:

Fristam Mechanical Pump Shaft Seal

,

Pillar US2 Mechanical Pump Shaft Seal

,

US2 Fristam Pump Mechanical Seal

Product Description

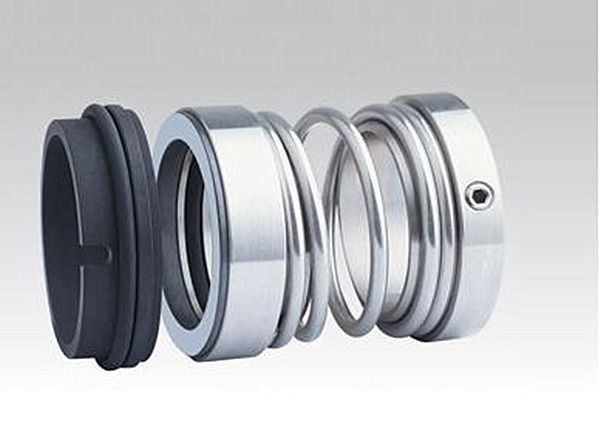

Fristam Pump Mechanical Seal Pillar US2 O-Ring Mechanical Pump Shaft Seal



Operational Conditions:

  1. Temperature: -20ºC to +180ºC
  2. Pressure: ≤1MPa
  3. Speed: ≤16m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, TC, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • Standard: JRBP
  • Alternative: JRBO
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities



Temperature -20℃ to 180℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 16 m/s
End play/axial float allowance
±0.1mm
Size 30mm to 100mm
Brand JR
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • Single -Spring SealCRUS2 Mechanical Seal Can be Widely Used in Clean water Sewage water Oil and other Moderately Corrosive Fluids
  • This mechanical seal is an alternative to the AES P08U+C03U.

O Ring Fristam Pump Mechanical Seal Pillar US2 Mechanical Pump Shaft Seal 0

O Ring Fristam Pump Mechanical Seal Pillar US2 Mechanical Pump Shaft Seal 1

O Ring Fristam Pump Mechanical Seal Pillar US2 Mechanical Pump Shaft Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
