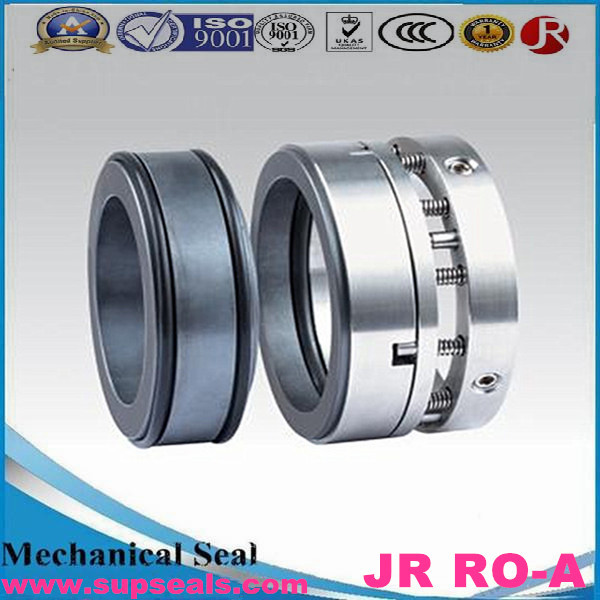

Mutiple Spring Metal Bellow Seals Replace Flowserve RO Seal For Repair Pump

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: R0-A

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Mechanical Seal RO-A Seal Certificate: ISO9001
Type: Multiple Spring Mechanical Seal RO-A Standard Or Nonstand: Standard
Style: Mechanical Seal Flowserve RO Seal Size: 20-100mm
High Light:

Mutiple Spring Flowserve RO Seal


Mutiple Spring Metal Bellow Seals


Flowserve RO Metal Bellow Seals

Product Description

Mechanical Seal Mutiple Spring Seal Equivalent To Flowserve RO Seal Metal Bellow Seals
Operations Conditions:

  1. Replace Flowserve RO pump seal for repair pump
  2. Temperature:-20--180℃
  3. Speed:15m/s
  4. Pressure:10bar
  5. Standard Size:20--100mm


  • Rotary ring: silicon carbide,carbon,
  • Secondary seal: NBR,EPDM,FKM,PTFE
  • Variant with PTFE secondary seals for high chemical resistance
  • Spring and parts: SS304,316
  • Easy to install and uninstall

Performance Capabilities:

-20℃ to 180℃, dependent on the elastomer
Up to 2.5MPA
Up to 15 m/s
End play/axial float allowance
20mm -100mm
Carbon, SiC, TC
Ceramic, SiC, TC
SS304, SS316
Metal parts
SS304, SS316
PackingIndividual packing ,1 pc in 1 small box is available as well
  • RO-A is single, unbalanced, multi-spring pusher seal for general purpose applications. A simple, proven and dependable design features an open, rotating compression unit that imparts a turbulent flow of the process fluid which helps keep solids away from the seal faces and removes seal generated heat. The flexibly mounted insert compensates for misalignment to ensure seal face contact. Off-the-shelf availability in standard configurations for most chemical pumps.


Mutiple Spring Metal Bellow Seals Replace Flowserve RO Seal For Repair Pump 0

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request



Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.


Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.


Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.


Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
