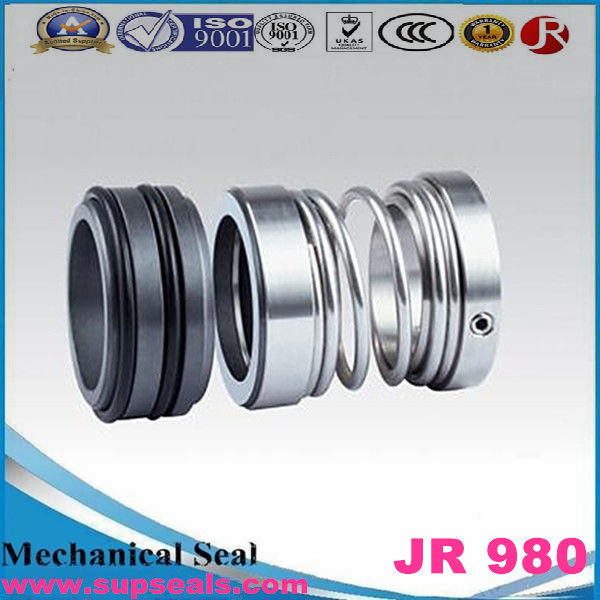

980 20mm Water Pump Mechanical Seal Marine Standard
980 20mm Water Pump Mechanical Seal Marine Standard 980 20mm Water Pump Mechanical Seal Marine Standard
Contact Now

980 20mm Water Pump Mechanical Seal Marine Standard

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 980

Detail Information
Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Pump Seal Mechanical Seal Roten 1500 Seal Certificate: ISO9001
Type: Aesseal P080 Seal Standard Or Nonstand: Standard
Style: Pillar US-1 Mechanical Seal Size: 20-120mm
High Light:

980 Water Pump Mechanical Seal

,

20mm Water Pump Mechanical Seal

,

20mm Water Pump Seal

Product Description

Mechanical Seal 980 Replace For Pillar US1 AES P080 Seal For Hot Water Pump  Marine Standard Seal For Pump Repair

Operations Conditions:

  1. Roten 1500 seal
  2. Aesseal P080 seal
  3. Pillar US-1
  4. Speed: ≤20m/s
  5. Pressure: ≤1MPa
  6. Temperature: -20ºC to +180ºC

Materials:

  • 1-Rotary face: Stainless steel/SIC/TC

    2.Stat Ring: Carbon/SIC/TC

  • 3- Bellows: EPDM / FKM / M1 / PTFE.
  • 4- Spring: SS304 / SS316.
  • 5- Metal parts: SS304 / SS316.

Performance Capabilities:


Operational conditions: Materials
temperature -20℃to +200℃ Stationary ring Q2, U2,B,
Pressure <<1 Mpa Rotary ring U22,Q22
Speed <<25M/S Secondary seal P,E,N,V,Aflas
Standard DIN24960 Spring and metal parts F,G,
Application: clean water, sewage water, Oiland other moderately corrosive fluids

replace rotary shaft seal Burgmann US1.


  • Replace rotary shaft seal Burgmann US1.

  • This seal Is designed 10 have dimensions meeting the corresponding
    requirements of standards establi shed by Japanese Marine Equipment
    Association. In ordor to prevent corrosion by sea water, it is lu rnlshed with mating face·or plasma flame luslble ceramics

  • Application: seals are primarily used in in Clean water,sewage water,oil and other moderately corrosive fluids etc.

    It is ideal with high or pulsing counterpressure or with viscous or sticky fluids.

980 20mm Water Pump Mechanical Seal Marine Standard 0



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
