Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals
Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals
Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals
Contact Now

Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: Vulcan Type 194

Detail Information
Material: SIC SIC FKM HS Code: 848420090
Specification: Burgmann Seal Vulcan Type 194 Mechanical Seal Certificate: ISO9001
Type: Vulcan Type 194 Seal Standard Or Nonstand: Standard
Function: For Oil Pump, Water Pump Size: 12-40MM
Product Name: Mechanical Seal Vulcan Type 194 Sample: Allowed

Product Description

Mechanical Seal 194 Hidrostal Pump Mechanical Seals Spring Below Rubber Seals



Operations Conditions:



  1. Single Spring Mechanical Seal Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  2. Axial diameter:28 28.575 38.1 50.8 63.5 76.2
    TC/TC/V TC/TC/NBR SIC/SIC/V SIC/SIC/NBR
  3. Temperature: -30°C~200°C
  4. Pressure: ≤1.2MPa
  5. Speed: ≤ 12 m/Sec
  6. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.

Materials:

  • Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,
  • Ni-binder Tungsten Carbide Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,
  • Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded Secondary Seal:Nitrile(NBR),
  • Ethylene Propylene(EPDM),Fluorocarbon Rubber(FKM) Spring and Metal Parts:Stainless Steel,Stainless Steel
  • Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids

Performance Capabilities

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 28 28.575 38.1 50.8 63.5 76.2mm
Brand JR
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.

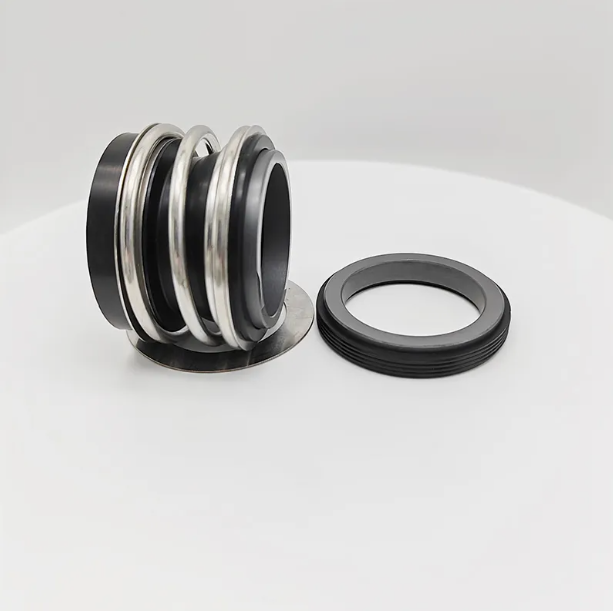

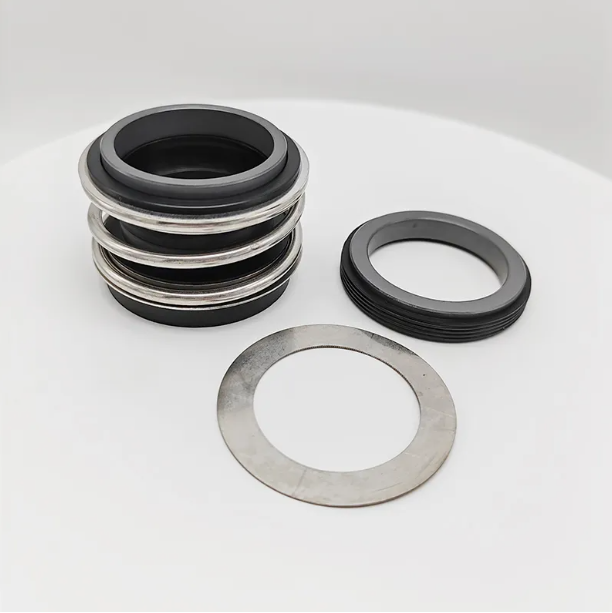

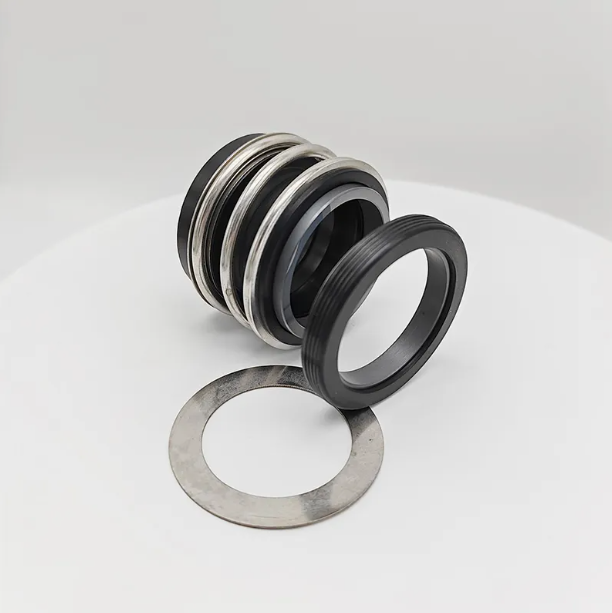

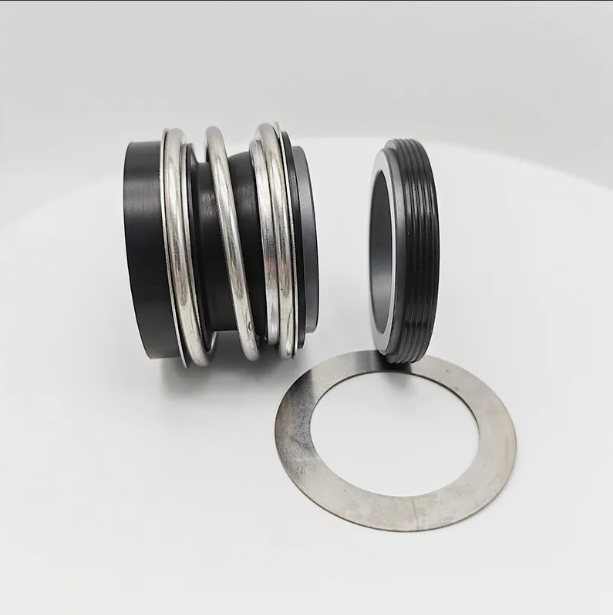

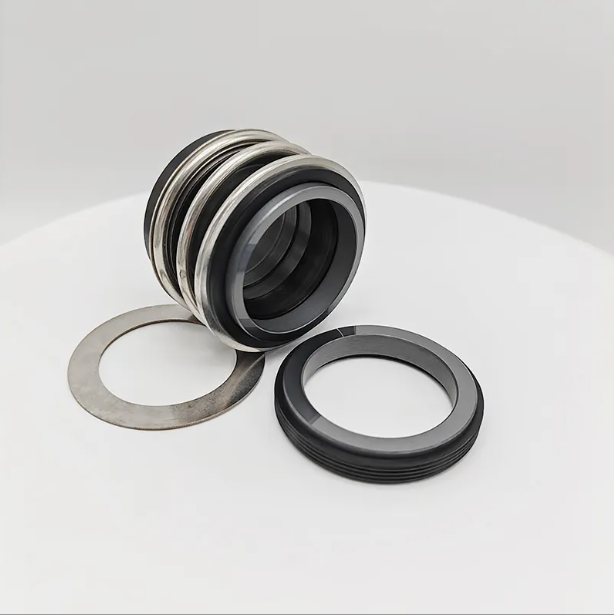

The Vulcan Seals Type 194 Hidrostal® robust rubber bellows seals can replace the Hidrostal® “G” type seals. Seal sizes 0286 and above are supplied with a steel back washer, to separate the seal bellows from the shaft circlip


Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals




DØ (Imperial) DØ (Metric) Seal Size Code D1 (in) D1 (mm) D3 (in) D3 (mm) L1 (in) L1 (mm) L2 (in) L2 (mm) OEM Ref.
0.625 15.88 0158 1.187 30.14 1.102 28.00 0.875 22.23 0.405 10.28 G016, M0.6
0.787 20.00 0200 1.500 38.10 1.417 36.00 1.181 30.00 0.394 10.00 G020
0.787 20.00 0200 1.378 35.00 1.594 40.50 0.846 21.50 0.295 7.50 G020K
0.787 20.00 0200 1.500 38.10 1.594 40.50 0.846 21.50 0.405 10.28 G020KZ
1.125 28.58 0286 1.750 44.44 1.850 47.00 1.062 26.97 0.437 11.10 G1.1
1.500 38.10 0381 2.125 53.98 2.283 58.00 1.125 28.58 0.437 11.10 G1.5
2.000 50.80 0508 2.750 69.85 2.795 71.00 1.500 38.10 0.500 12.70 G2.0
2.500 63.50 0635 3.375 85.73 3.543 90.00 1.812 46.02 0.562 14.28 G2.5
3.000 76.20 0762 3.875 98.43 4.016 102.00 2.062 52.37 0.625 15.88 G3.0
3.740 95.00 0950 4.876 123.85 5.157 131.00 2.067 52.50 1.059 26.90 G095
3.937* 100.00 1000 4.876 123.85 5.157 131.00 2.067 52.50 1.059 26.90 G100





Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals

Mechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft SealsMechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft SealsMechanical Seal Vulcan Seals Type 194 Hidrostal Rubber Bellows Shaft Seals

We specialize in the manufacturing, installation, export and wholesale of a comprehensive range of high-quality industrial seals, including:
Single Spring Mechanical Seals, Single Spring Seals, Balanced & Unbalanced Spring Seals, External Mounted Seals, PTFE Bellow External Mounted Seals, Cartridge Balanced Seals, Multiple Spring Balanced Seals, Dry Running Reverse Balanced Seals, Agitator Double Acting Unbalanced Seals, Single Conical Helical Springs, Rubber Bellow Seals, Multi-Spring Seals, Metal Bellow Seals, Elastomer Bellow Seals, Conical Spring Seals, Air Condition Compressor Seals, and Auto Cooling Seals.

We also supply full series of mechanical seals compatible with pumps from leading brands such as Flygt, Grundfos, APV, Grindes, Fristam, ABS, Alleeiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang and many more.

Beyond our standard product lineup, we offer full custom manufacturing services: we can produce seals strictly according to your provided samples or technical drawings, and also develop custom solutions tailored to your specific operational requirements. We support material adjustments to meet different working condition parameters — simply share your detailed needs with us, and our team will deliver a targeted solution for you.
