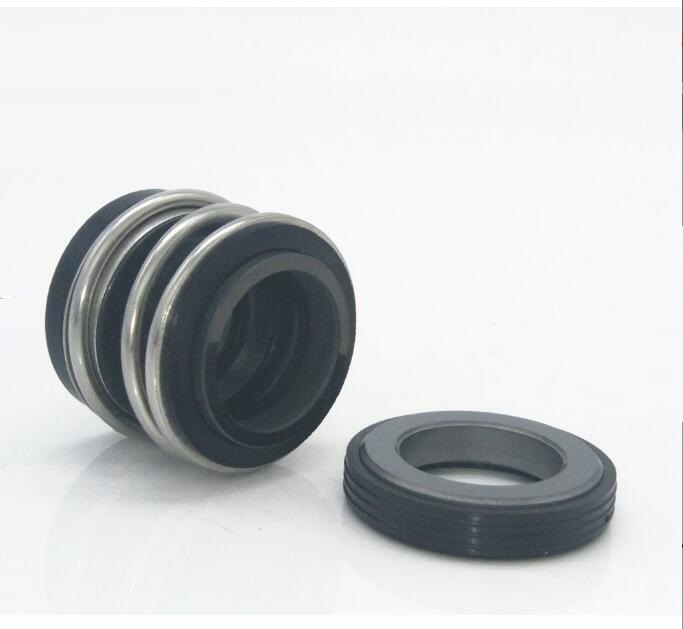

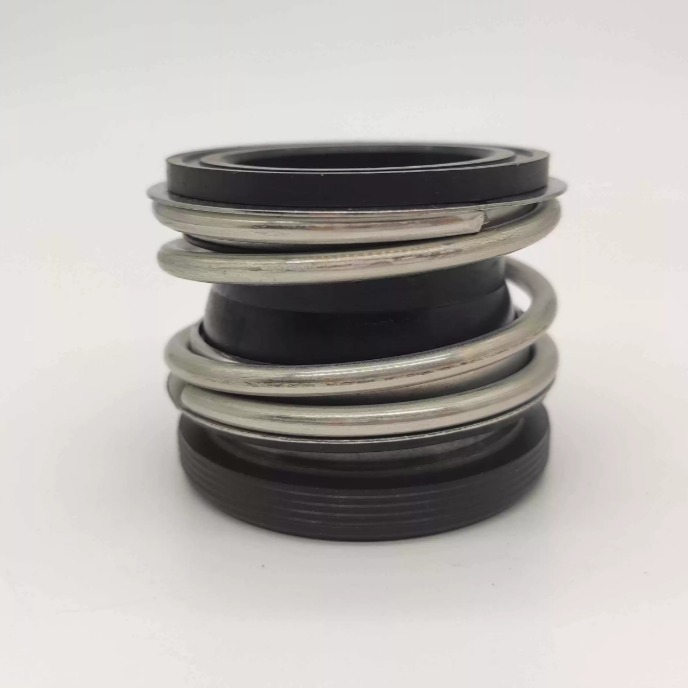

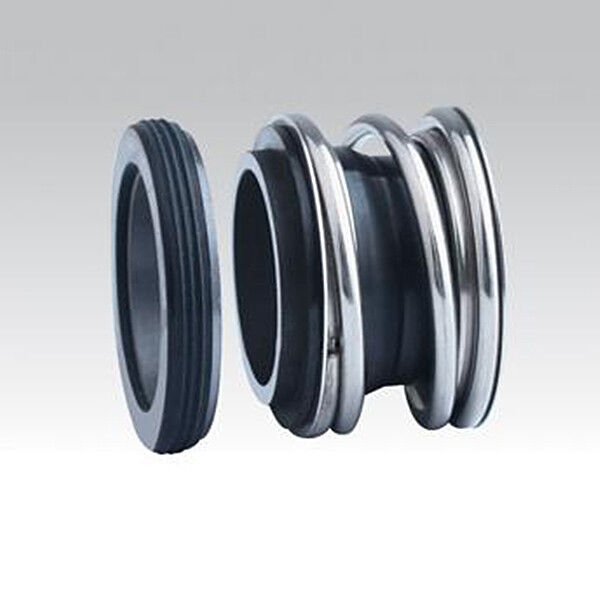

Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal
Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal
Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal
Contact Now

Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 CE Model Number: MG1

Detail Information
Material: Cer Car Nbr SIC SIC FKM Function: Single Spring Mechanical Seal, Water Pump
Specification: Burgmann Seal MG1 Mechanical Seal Certificate: ISO9001 CE
Type: Burgmann MG1 Elastomeric Bellows Seal Standard Or Nonstand: Burgmann Mechanical Seals, MG1/MG12/MG13/MG1S20 Serie Standard
Size: Single Spring Mechanical Seal 12-100MM Product Name: Mechanical Seal Burgmann MG1, MG12 And MG13
Sample: Allowed HS Code: 848420090
Balanced: Elastomer Bellows Rotating, Balanced, Independent Of Direction Of Rotation
Highlight:

Burgmann MG1 mechanical seal

,

elastomer bellow mechanical seal

,

single spring mechanical seal

Product Description

Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal



Operations Conditions:



  1. Single Spring Mechanical Seal MG1 MG12 MG13
  2. Equivalent to Bergmann MG1,MG12,MG13,MG1S20 mechanical seal
    Rubber bellows design
  3. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  4. Temperature: -30°C~200°C
  5. Pressure: ≤1.2MPa
  6. Speed: ≤ 12 m/Sec
  7. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.
  8. Shaft seal with encapsulated spring
    Rubber bellow acting as secondary seal around the shaft
    Can be combines with O-ring or block seats
  9. The Burgmann MG1 is a rotor, which can be categorized as a rubber bellow rotor. It is an alternative to the Qseals QRB01,
  10. Vulcan 19, Vulcan Type 19 and 61 others. It is suited for the ABS AF 530, ABS AV 14-4 VX 186, ABS PIRANHA 23/2 and 1002 others.

Materials:

  • Spring in stainless steel
    Rubber bellow in EPDM or Viton rubber
    Seal ring in carbon or silicon
    The seat is made of ceramic or silicon

Performance Capabilities



Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 12mm to 75mm
Brand JR
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.
  • Eagle Burgmann MG1 mechanical seals, used in water pump , sewage pump, process pump
    Structure Description: Equivalent to Bergmann MG1,MG12,MG13,MG1S20 mechanical seal, Rubber bellows design
  •
    Single Spring Mechanical Seal
    Burgmann MG series mg1S20 mg1 mg12 mg13 mechanical seal for pump
  • Burgmann MG13 Mechanical Pump Shaft Seal for Chemical Pump
  • Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary
  • Aesseal B02/B012/B013 seal
  • Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193
  • Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU
  • Roten L3 / Roten L3k / Roten L3
The Burgmann MG1, MG12 and MG13 are robust, high-quality elastomer bellows mechanical seals designed for a wide range of industrial applications.
MG1 interchangeable with Vulcan 20/10, 20H, 22
MG12 interchangeable with Burgmann RMG12
MG13 interchangeable with Burgmann H10
These unbalanced single seals feature a rotating bellows design that is independent of the direction of rotation. The special bellows design protects the seal faces during installation and provides a large axial movement capability to accommodate shaft deflections.

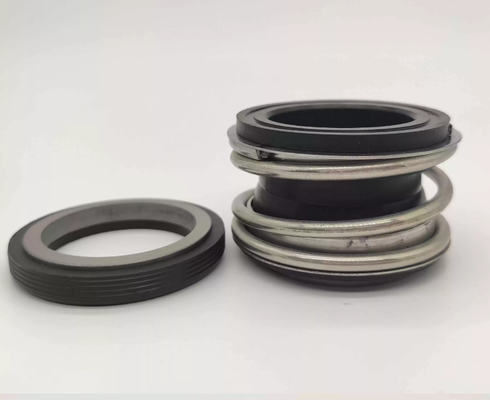

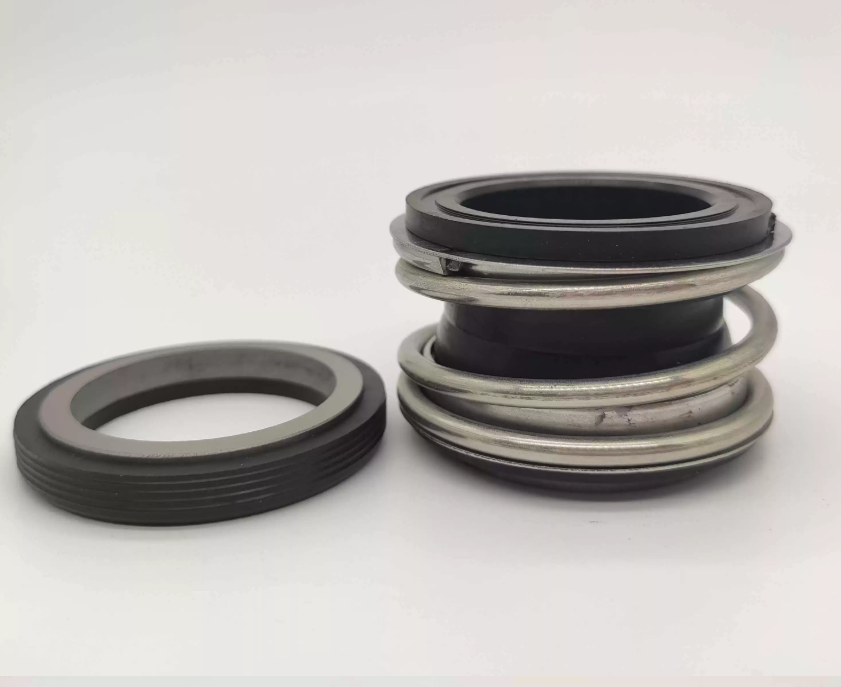

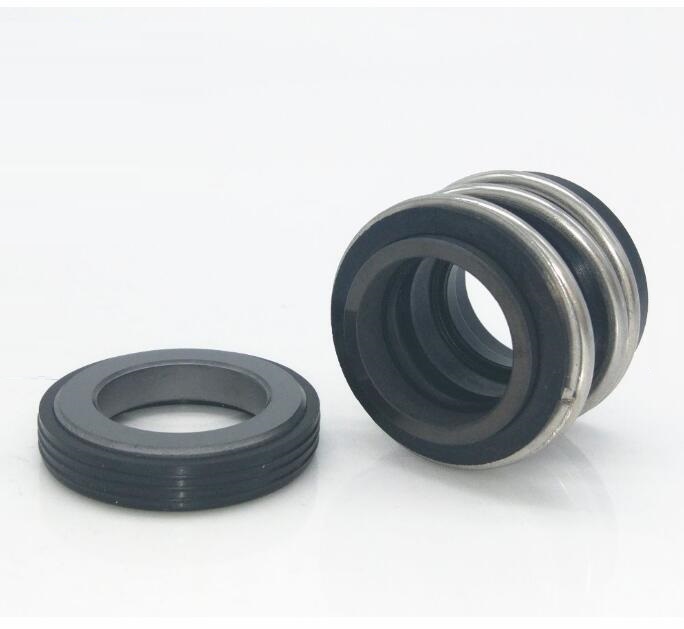

Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal



Burgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow SealBurgmann Mechanical Seal MG1, MG12, MG13 Elastomer Bellow Seal

Welcome to our professional mechanical seal product line! We focus on manufacturing, installing, exporting and wholesaling a wide selection of top-quality seals, covering Industrial Seals, Single Spring Seals, Balanced & Unbalanced Spring Seals, External Mounted Seals, PTFE Bellow External Mounted Seals, Cartridge Balance Seals, Multiple Spring Balance Seals, Dry Running Reverse Balance Seals, Agitator Double Acting Unbalance Seals, Single Conical Helical Springs, Rubber Bellow Seals, Multi Spring Seals, Metal Bellow Seals, Elastomer Bellow Seals, Conical Spring Seals, Air Condition Compressor Seals and Auto Cooling Seals.

We have also developed complete mechanical seal solutions for almost all mainstream global pump brands, including Flygt, Grundfos, APV, Grindes, Fristam, ABS, Alleeiler, EMU, GEA, Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang and many more.

If you have special needs, we are more than capable of helping! We can produce seals exactly according to your samples or drawings, and even design brand-new products tailored to your unique working scenarios. We can adjust different material options to meet various operating parameter requirements. Don't hesitate to reach out to us with your specific demands anytime!





Are you a factory or a trading company?
We are a 100% real manufacturing factory in Ningbo, China, with 12+ years of experience in mechanical seal production, and our top professional sales team offers 24/7 full-process trade support for you.

Can I get a free sample before ordering?
Sure! Standard seal samples are free, you only need to cover the small courier fee. We can ship samples out within 3 working days after confirmation.

Where is your factory? How can I visit it?
Our factory is based in Ningbo, China. You can fly directly to Ningbo Airport or Shanghai Airport, and we will arrange a free car to pick you up. All clients from home and abroad are warmly welcomed to visit us!

How about your quality control system?
Quality is our No.1 priority. We strictly control every production step from raw material to finished product, and our factory has passed ISO9001 certification. 100% inspection before delivery is guaranteed.

What is your delivery time?
Normally 10-20 working days after receiving your prepayment. For hot-selling models in stock, we can ship within 3 days.

What payment terms do you accept?
For sample shipping cost, PayPal and T/T are both available. For large orders, we support T/T at sight, and we can negotiate better terms for bulk orders.

Is OEM service available?
Yes! We provide full OEM/ODM services for all products. Customized drawings, materials, logos and packaging are all supported.

Can I buy pumps and pump parts from you?
Of course! We not only make mechanical seals, but also supply various pumps and pump parts, such as lobe pumps, compound homogeneous pumps, homogeneous emulsification pumps and more.
