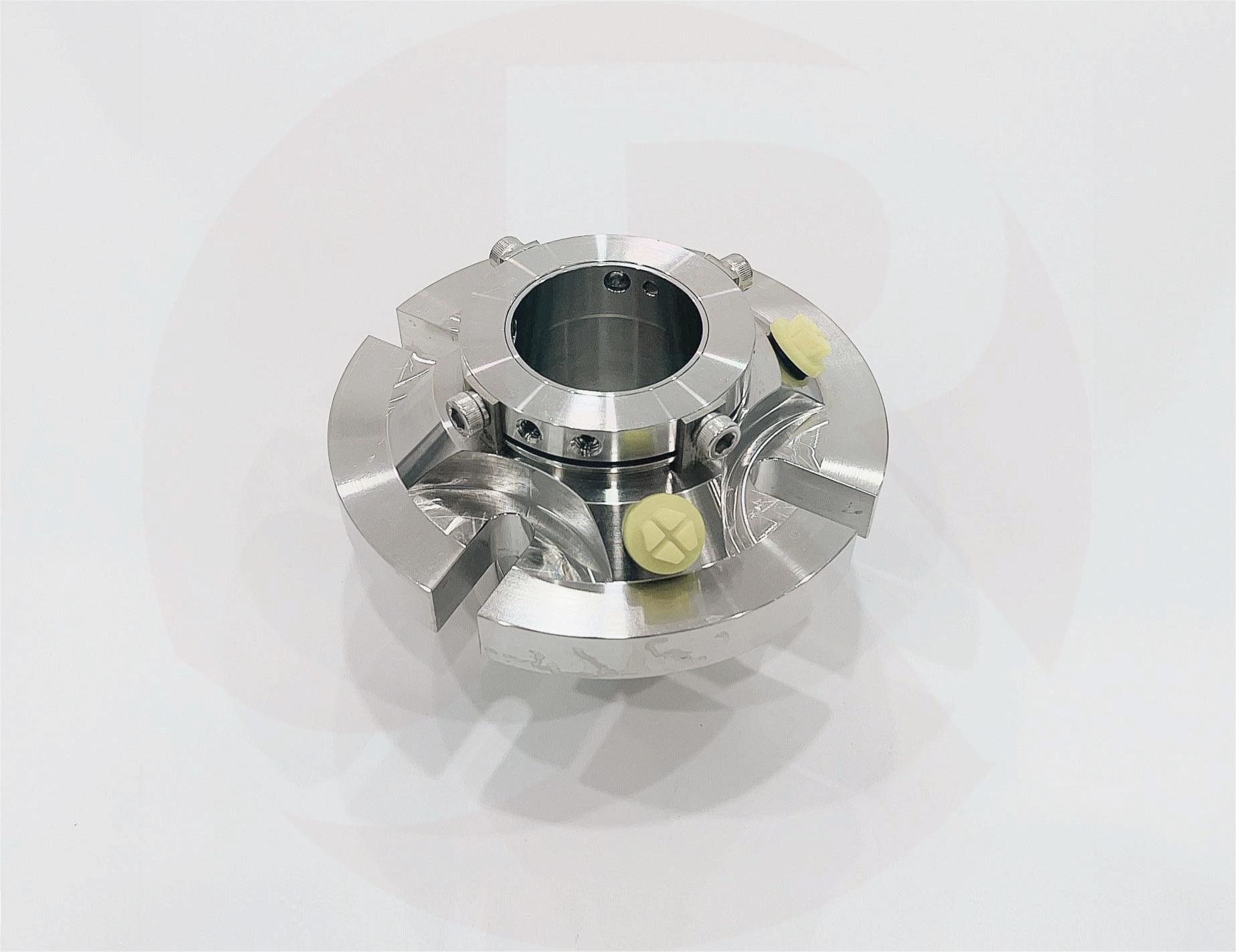

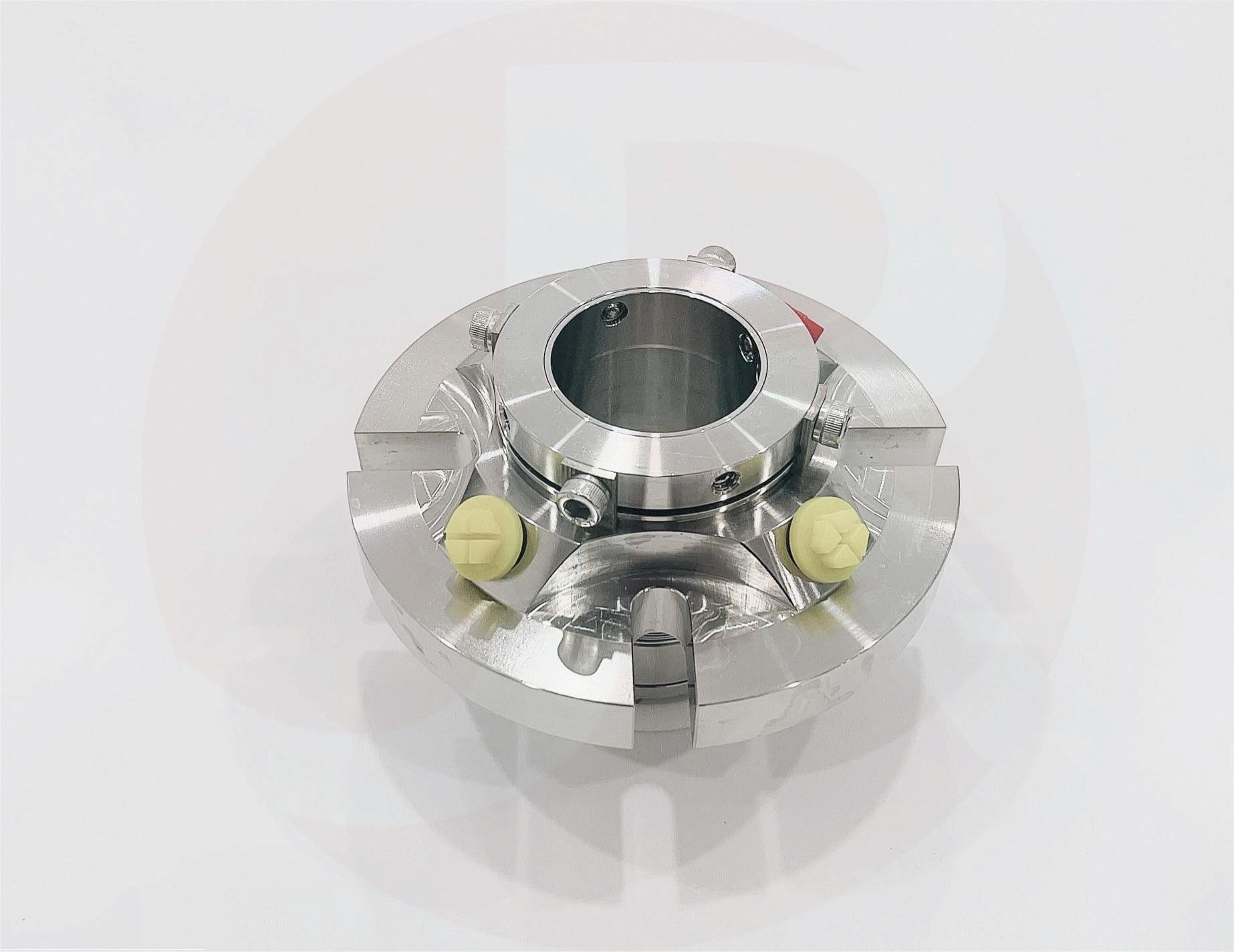

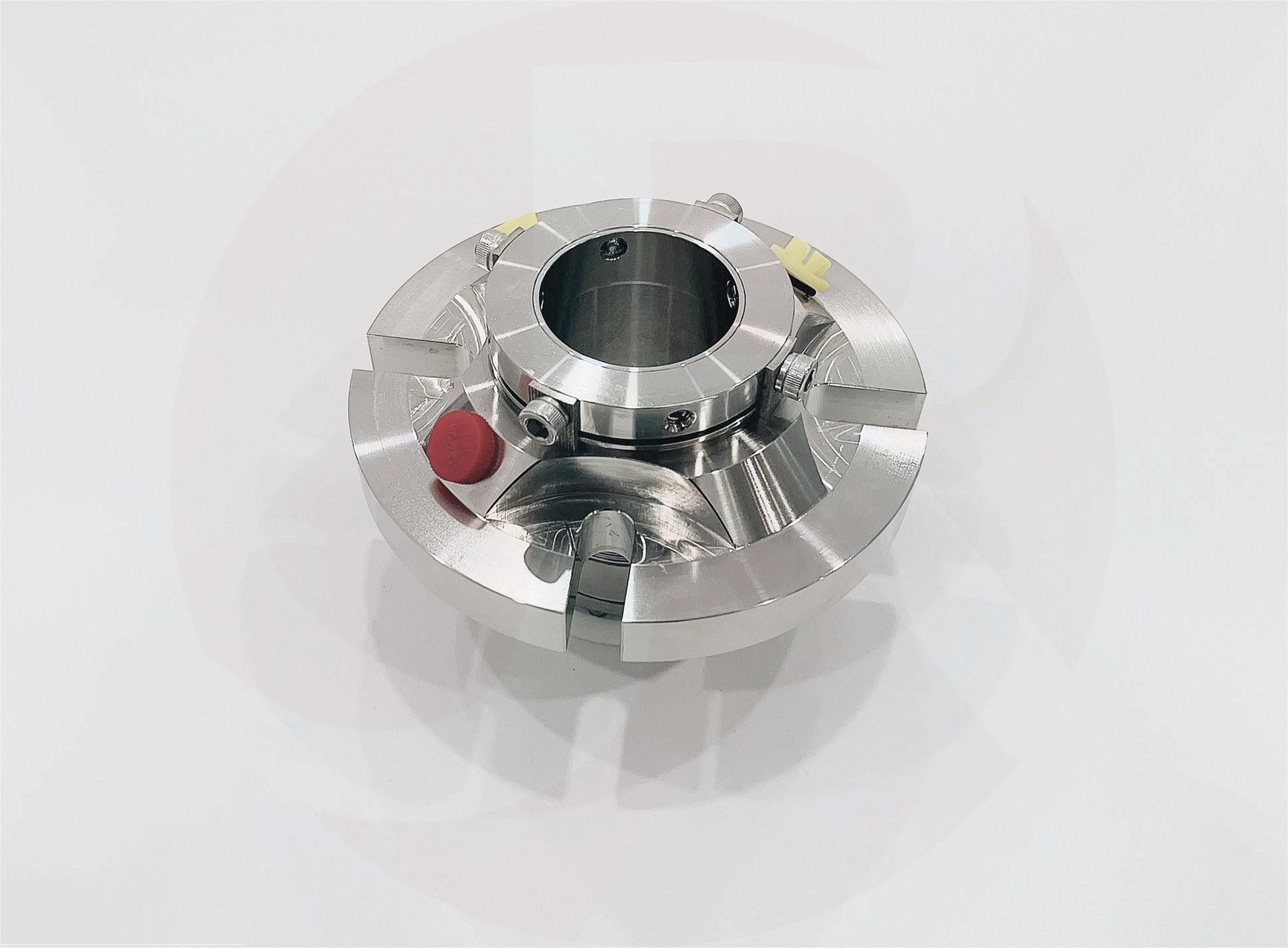

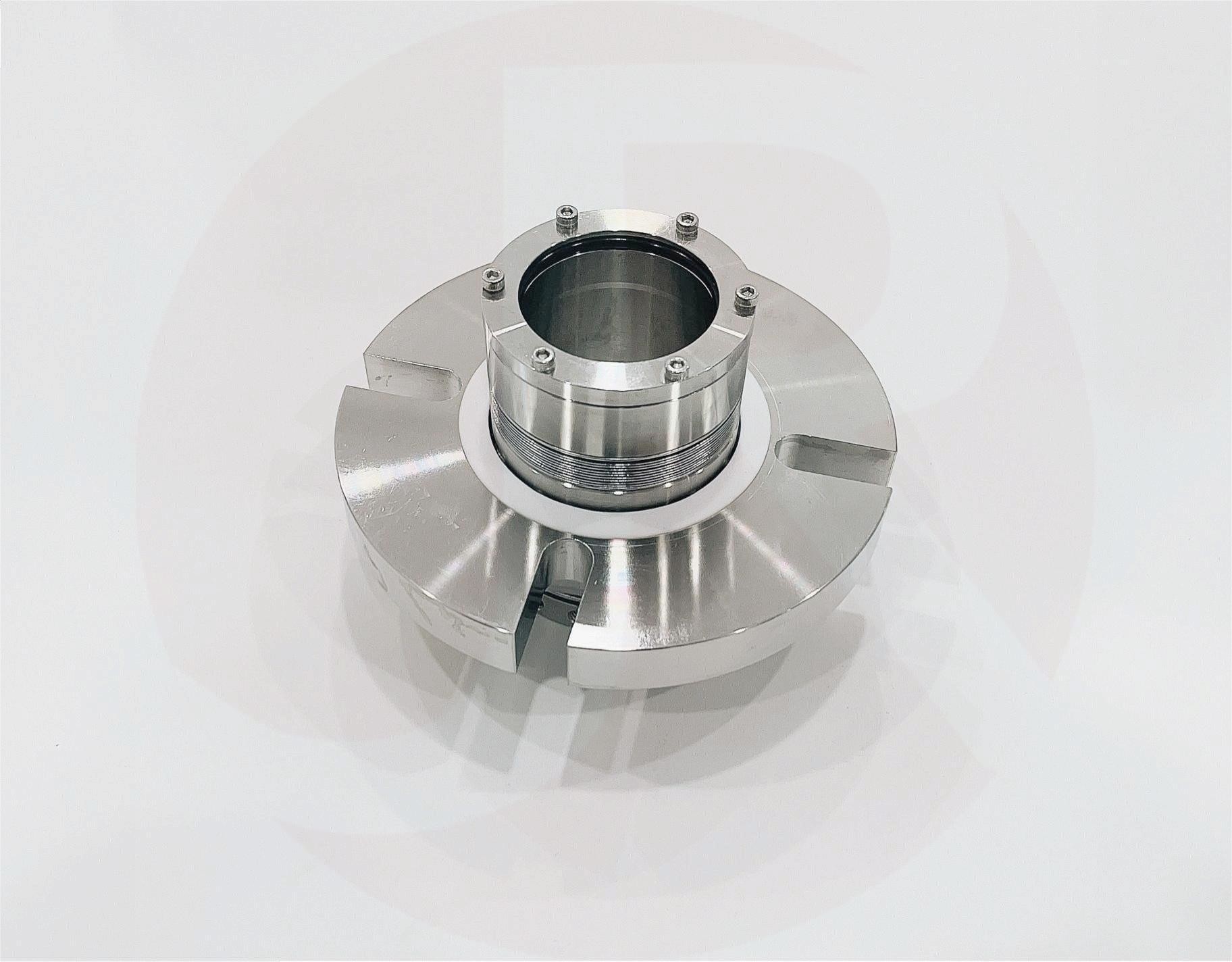

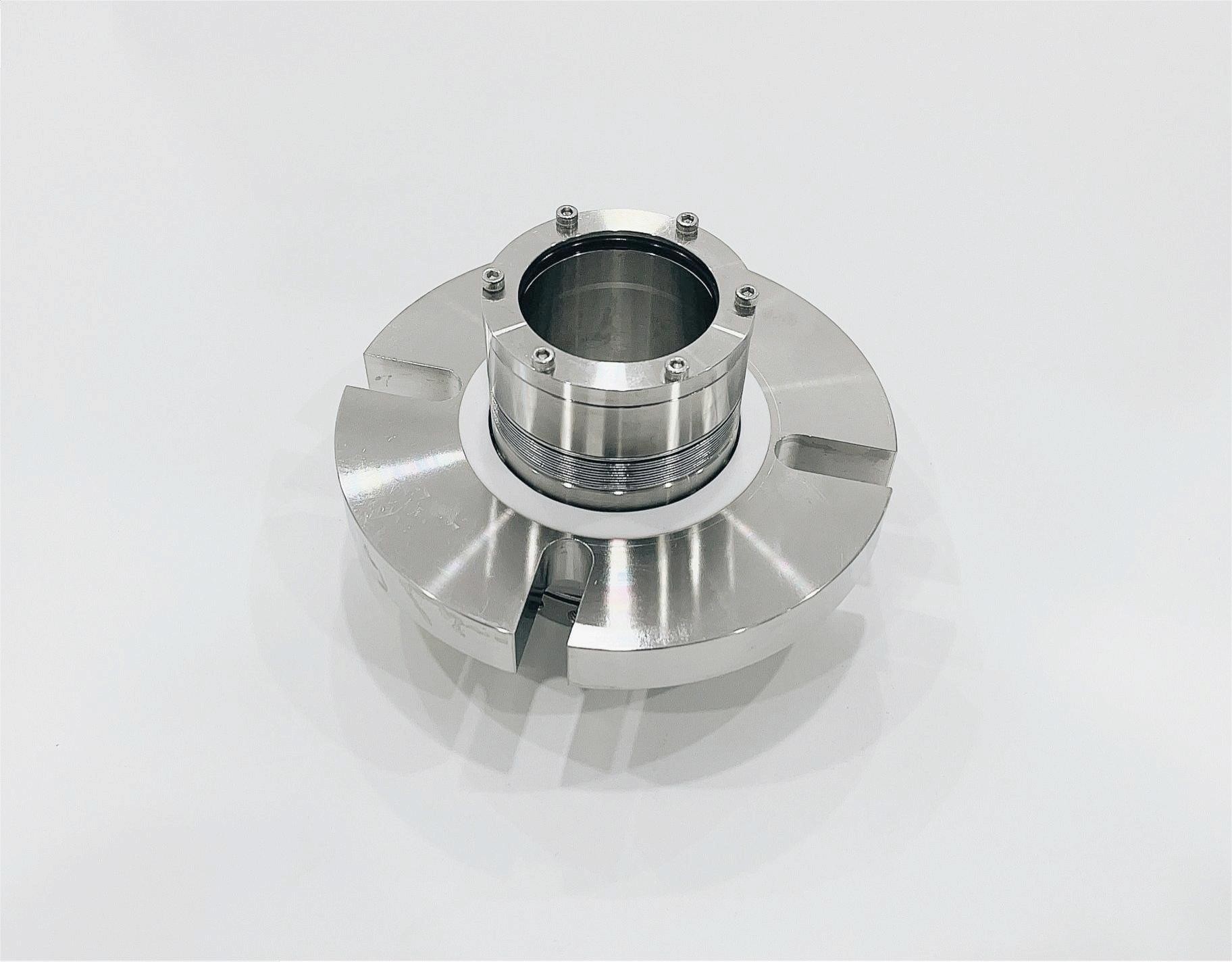

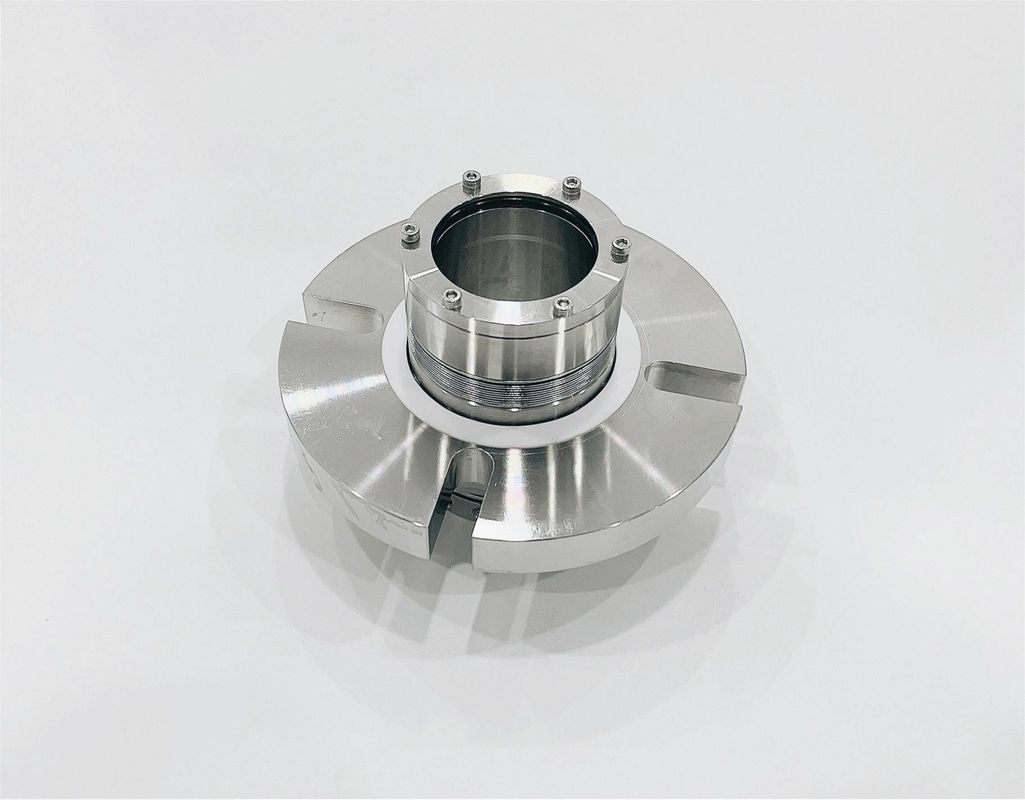

AES Metal Bellow Cartridge Mechanical Seal Type BQFD
AES Metal Bellow Cartridge Mechanical Seal Type BQFD AES Metal Bellow Cartridge Mechanical Seal Type BQFD AES Metal Bellow Cartridge Mechanical Seal Type BQFD AES Metal Bellow Cartridge Mechanical Seal Type BQFD AES Metal Bellow Cartridge Mechanical Seal Type BQFD
Contact Now

AES Metal Bellow Cartridge Mechanical Seal Type BQFD

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: BQFD

Detail Information
Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: BQFD Cartridge Seal Mechanical Shaft Seal Certificate: ISO9001
Type: Mechanical Seal BQFD Cartridge Mechanical Sea Standard Or Nonstand: Standard
Style: BQFD Cartridge Mechanical Sea Size: 24-100mm
Highlight:

AES Metal Bellow Cartridge Mechanical Seal

,

BQFD Metal Bellow Cartridge Mechanical Seal

,

Standard Mechanical Seal

Product Description

AES Metal Bellow Cartridge Mechanical Seal Type BQFD


Operations Conditions:

  1. The BQFD™ (Bellows Quench Flush Drain) range of single cartridge mechanical seals uses many of the same modular parts as a BSIV™ but has the added features of Quench and Drain, making it usable in more diverse applications.

    Features:

    Cartridge design for reliable installation
    Hydraulically balanced seal face loading, which maximizes seal life and allows for vacuum service capability
    The BQFD™ range has quench flush and drain ports with optional restriction bush (BQFD-R)
    BQFD™ sizes available from 1.000" to 5.000" (24mm - 125mm)


Materials:

  • Stationary Ring: Ceramic/Sic/TC
  • Rotary Ring: Carbon/Sic/TC
  • Secondary Seal: NBR/EPDM/Vit
  • Spring and Metal Part: Stainless Steel


Performance Capabilities:


Temperature
-20℃ to 200℃, dependent on the elastomer
Pressure
Up to 2.5MPA
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
 24mm-100mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
  • AES Metal Bellow Cartridge Mechanical Seal Type BQFD 0







AES Metal Bellow Cartridge Mechanical Seal Type BQFD 1AES Metal Bellow Cartridge Mechanical Seal Type BQFD 2AES Metal Bellow Cartridge Mechanical Seal Type BQFD 3AES Metal Bellow Cartridge Mechanical Seal Type BQFD 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
