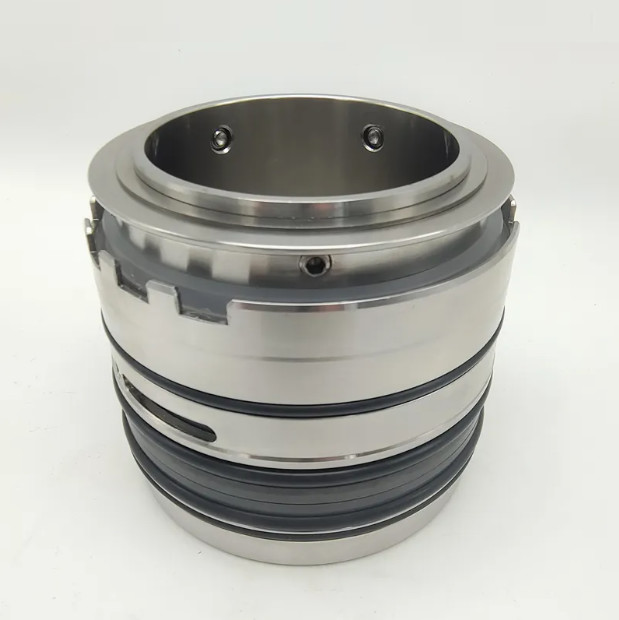

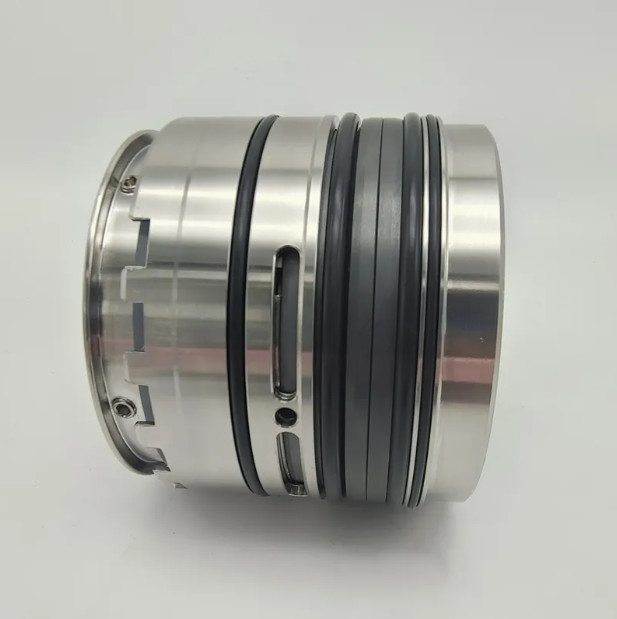

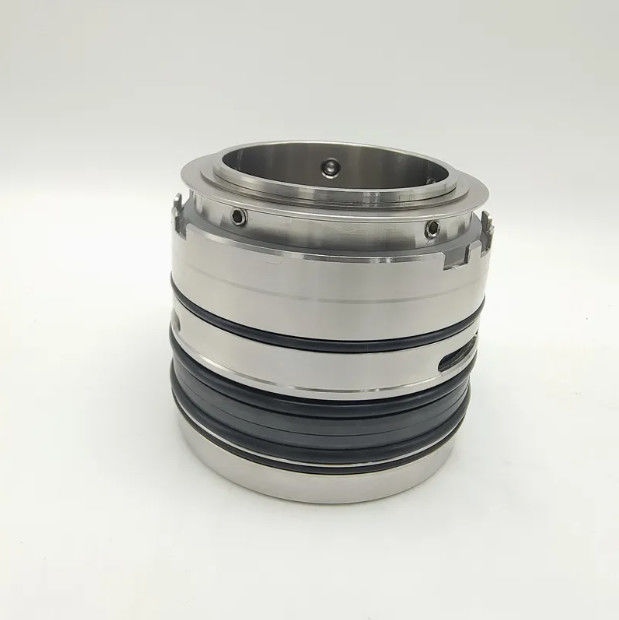

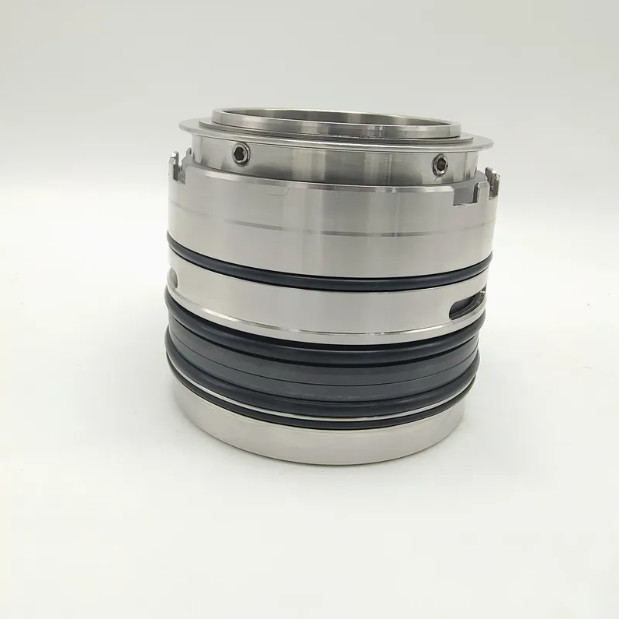

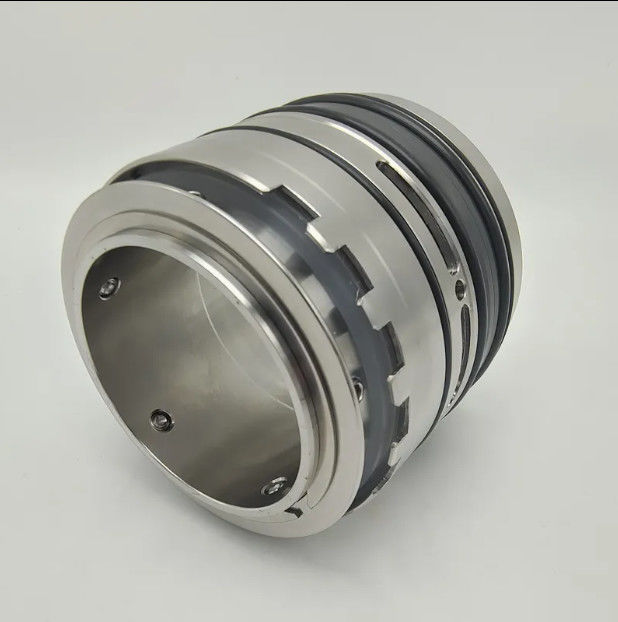

Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps
Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps
Contact Now

Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: Uns-57

Detail Information
Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Netzsch Tornado T2 Pump Seal Certificate: ISO9001
Type: Uns-57 Standard: Standard
Style: Mechanical Seal Application: Uns-57 Netzsch Mechanical Seal
Highlight:

Netzsch Tornado T2 Pumps Mechanical Seal

,

Tornado T2 Pumps Mechanical Seal

,

Uns-57 Netzsch Mechanical Seal

Product Description

Mechanical Seal 68B Industrial Shaft Seals For John Crane 87 Seal Aesseal W03 Seal Roplan



Operational Conditions:

  1. Uns-57 Netzsch Mechanical Seal
  2. Temperature: -30°C~200°C
  3. Pressure: ≤1.2MPa
  4. Speed: ≤ 12 m/Sec
  5. Design feature: Elastomeric bellows seal design including kinds of stationary ring, complying with DIN24960 and ISO3069

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, TC, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities



sulzer pump Aesseal W03 seal  68B  mechanical seal rotary seal mixer seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
20mm to 75mm
Face: Carbon, SiC, TC
Pressure:Up to 10 bar
Seat: Ceramic, SiC, TC
Speed:Up to 15 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316
  • Mechanical Seal For Other Pump Model is available in our factory, inquiry please.
    Pump model :2 NE 40/2NE 50/2NE 60/2NE 80/2 NES 30A/2 NL 30A/2 NL 40/2 NL 40A/ 2NU 100A/3NE 06/4 NE 20/4NE 30/ HL401 15/LAK 164 140/LN96 160/NE100/NE15/2NE 15/4NE15/ 2NE20/2NE 30/NE40/2NE40/NE50/NE60/NE80/NM003/NM03/NM011/NM11/NM015/NM15/NM021/NM21/NM031/NM31 NM038/NM38/NM038,NM39/NM038SA 02 S 12F/NM045,NM45/NEMO NM 045 SY02S1/NM053,NM53/ NM063/NM63/NM063 BY02S08B/NM076,NM76/NM076BY /NM063SY 02/NM 090,NM90/Nemo NM 105/NM125/ NM148/NM165/NM180/Nemo NT120/NEP 60B2 N50/NEP60 C 4N30/NES 30A/NM series hygienic seal(053 model) NMNL 60 2/NU 30 A/NU 40 B/T10/T20/T30/T40/T50

Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps 0Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps 1Mechanical Seal Uns-57 Netzsch For Netzsch Tornado T2 Pumps 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
