W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump

Minimum Order Quantity : 10PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: W016U

Detail Information

Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Certificate: ISO9001 Type: John Crane Mechanical Seal In Pump Metal Bellow Seal 515E
Standard Or Nonstand: Standard Specification: 515E John Crane Mechanical Seal
Size: Inch As Drawing Product Name: Metal Bellow Mechanical Seal 515E
Highlight:

W016U Mechanical Seal

,

Alfa-Laval Mechanical Seal

,

Hyclean Pump Mechanical Seal

Product Description

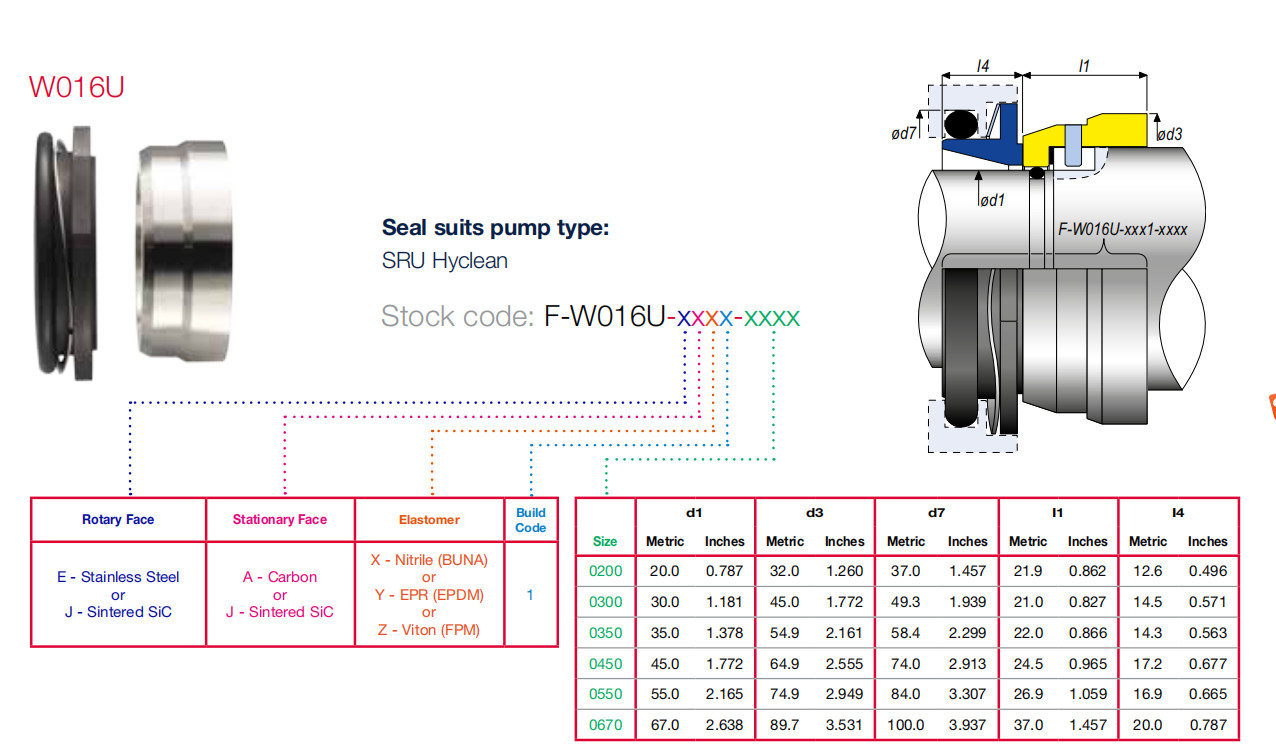

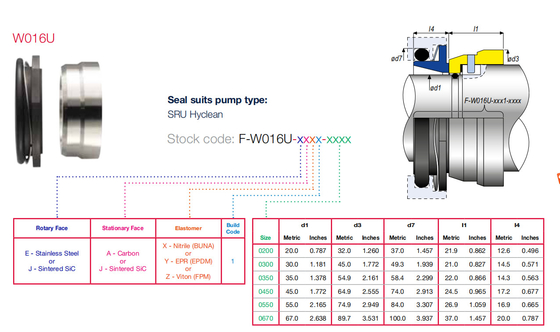

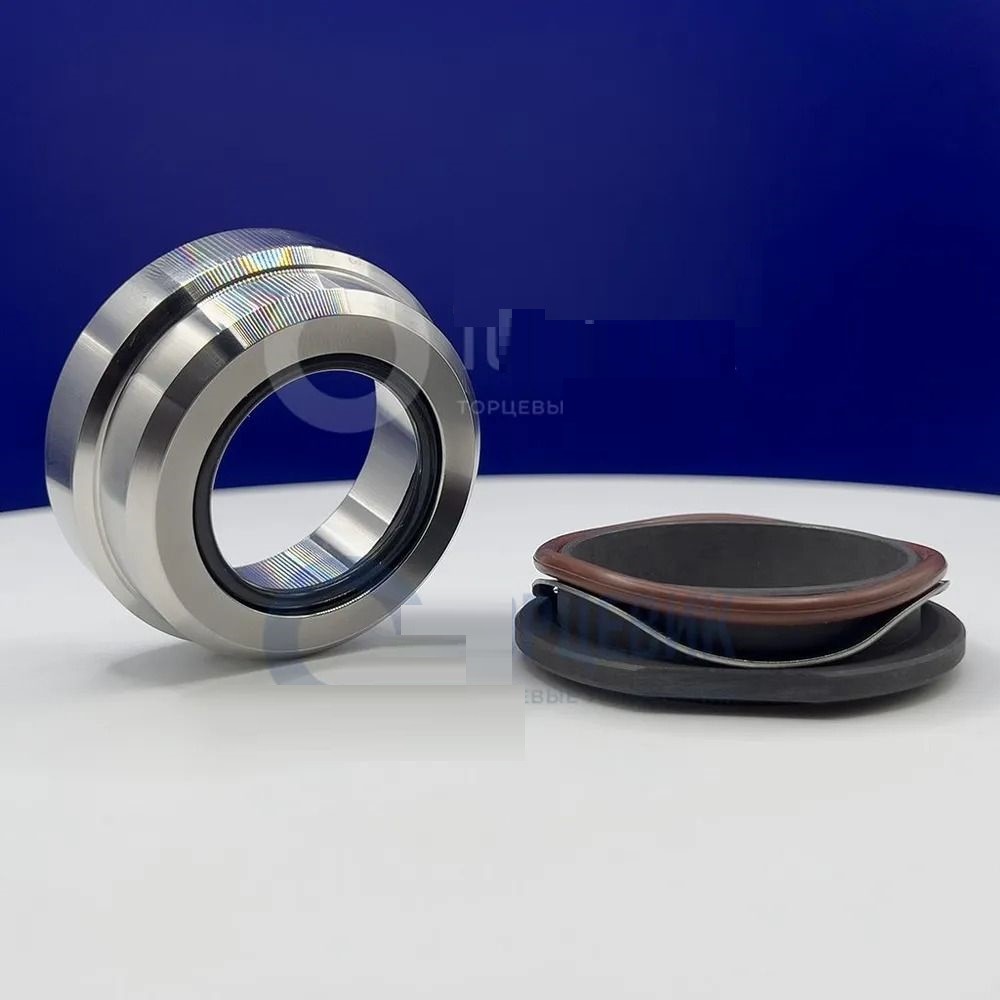

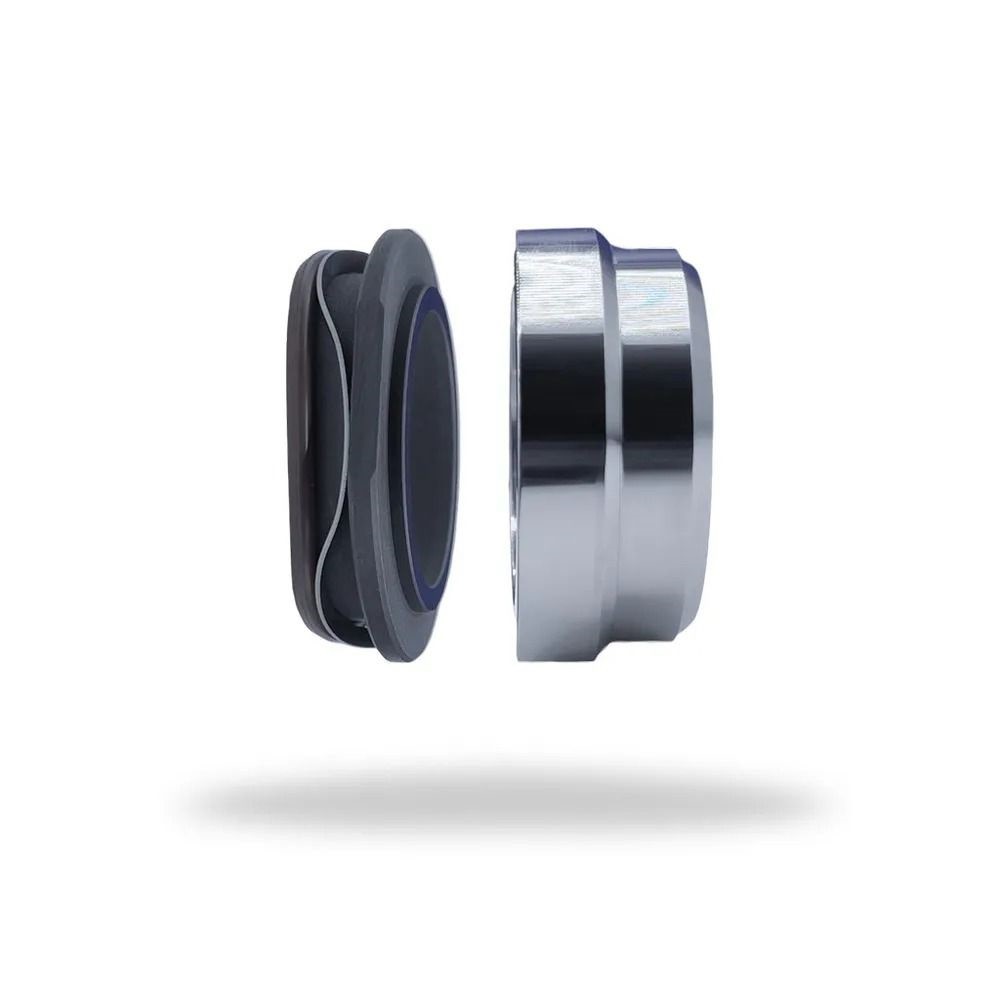

W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump


Operational Conditions:

  1. Temperature:-20---180℃
  2. Speed:15m/s
  3. Pressure:10bar
  4. Standard Size:10-80mm
  5. W016U Mechanical Seals to suit Alf SRU Hyclean Pumps.
    6 sizes - 20mm, 30mm, 35mm, 45mm, 55mm and 67mm.

    Standard materials: Stainless Steel versus Carbon with EPDM Elastomers (Viton option available).

    Available in Food Grade materials as standard (with FDA compliant materials).

Materials:

  • Seal ring:Car,Sic,Ssic,TC
  • Secondary seal:NBR,FKM,EPDM etc.
  • Spring and metal parts:304,316,HAST.C


Performance Capabilities

mechanical seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
20mm, 30mm, 35mm, 45mm, 55mm and 67mm.
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Part

              W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump 0W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump 1W016U Mechanical Seal Wave Spring Seal For Alfa-Laval Sru Hyclean Pump 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
