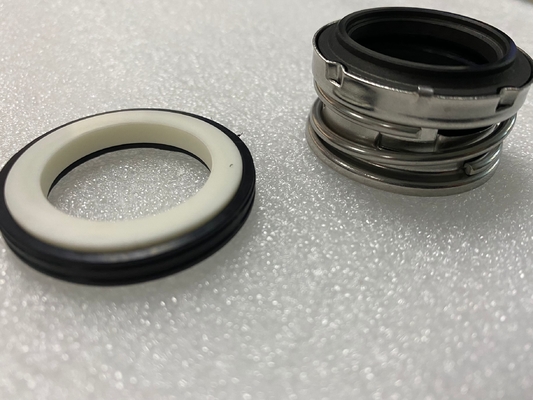

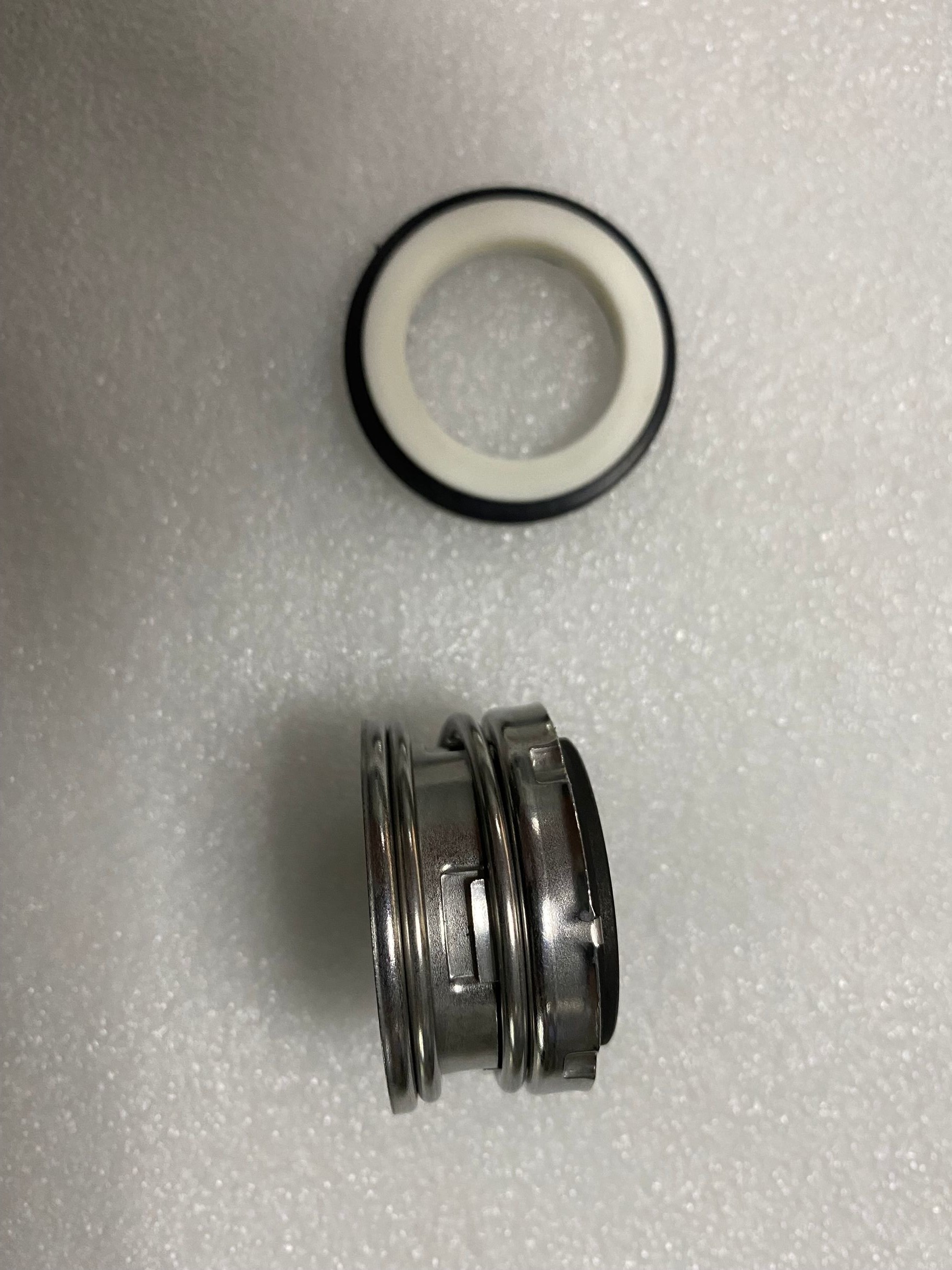

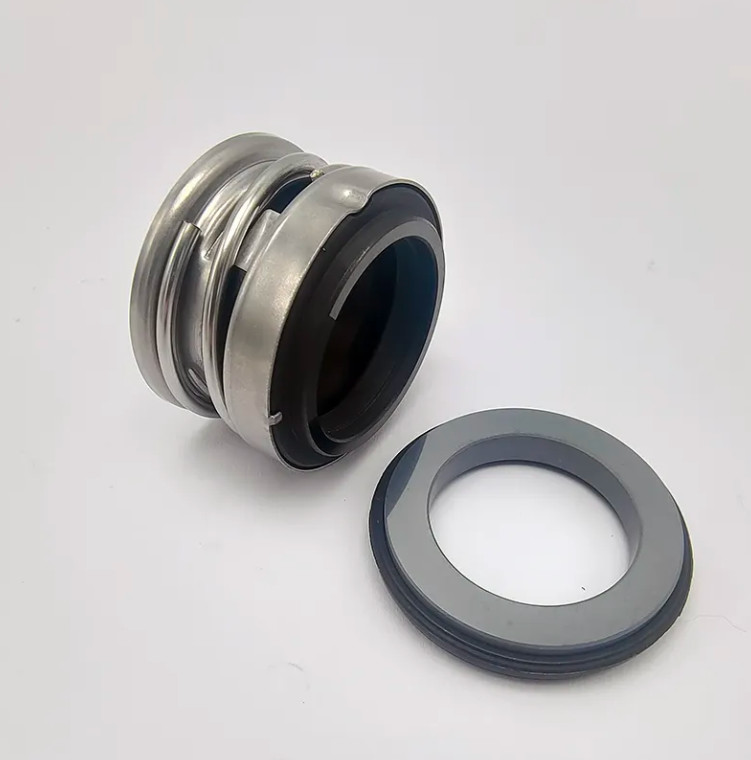

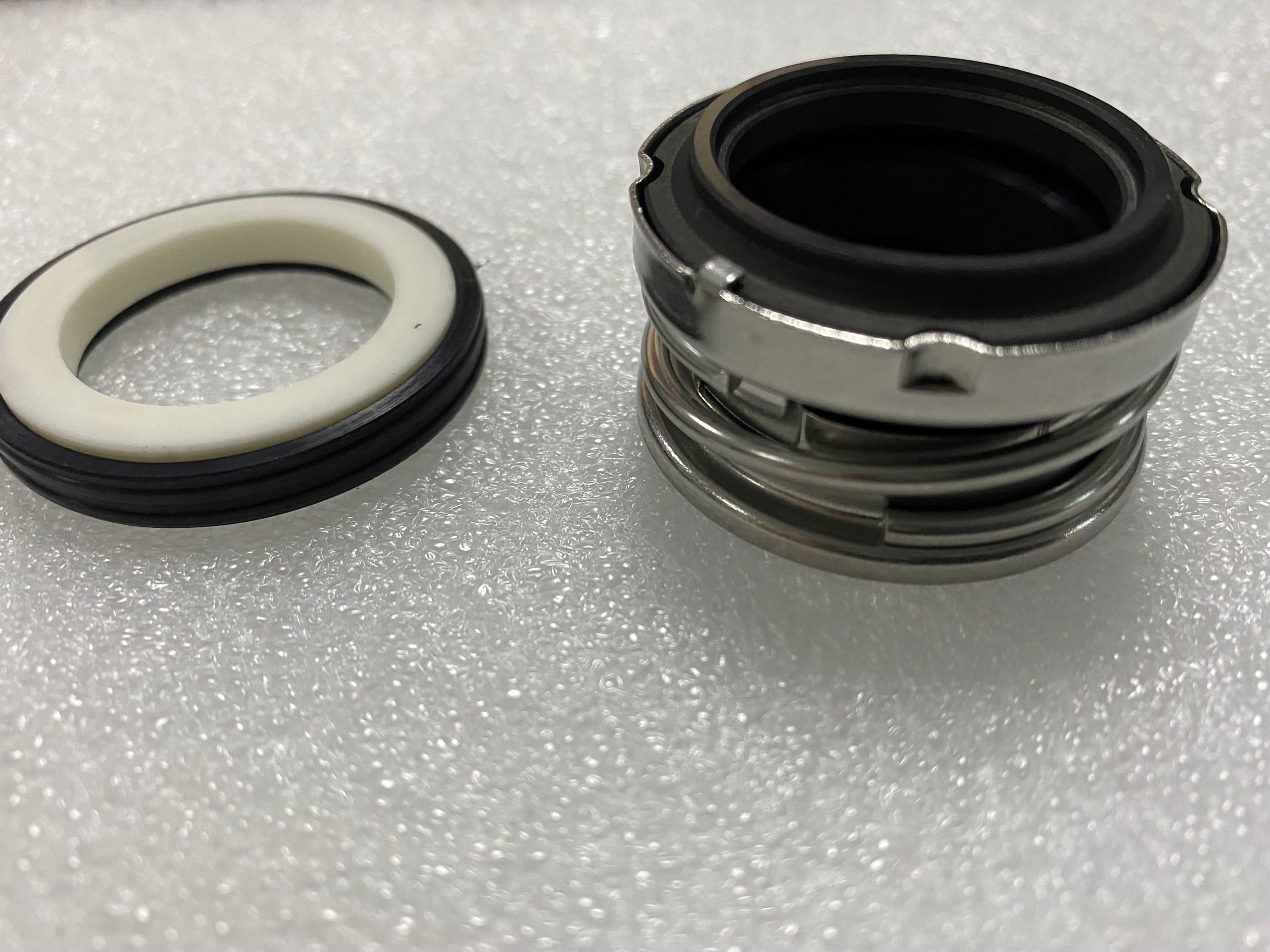

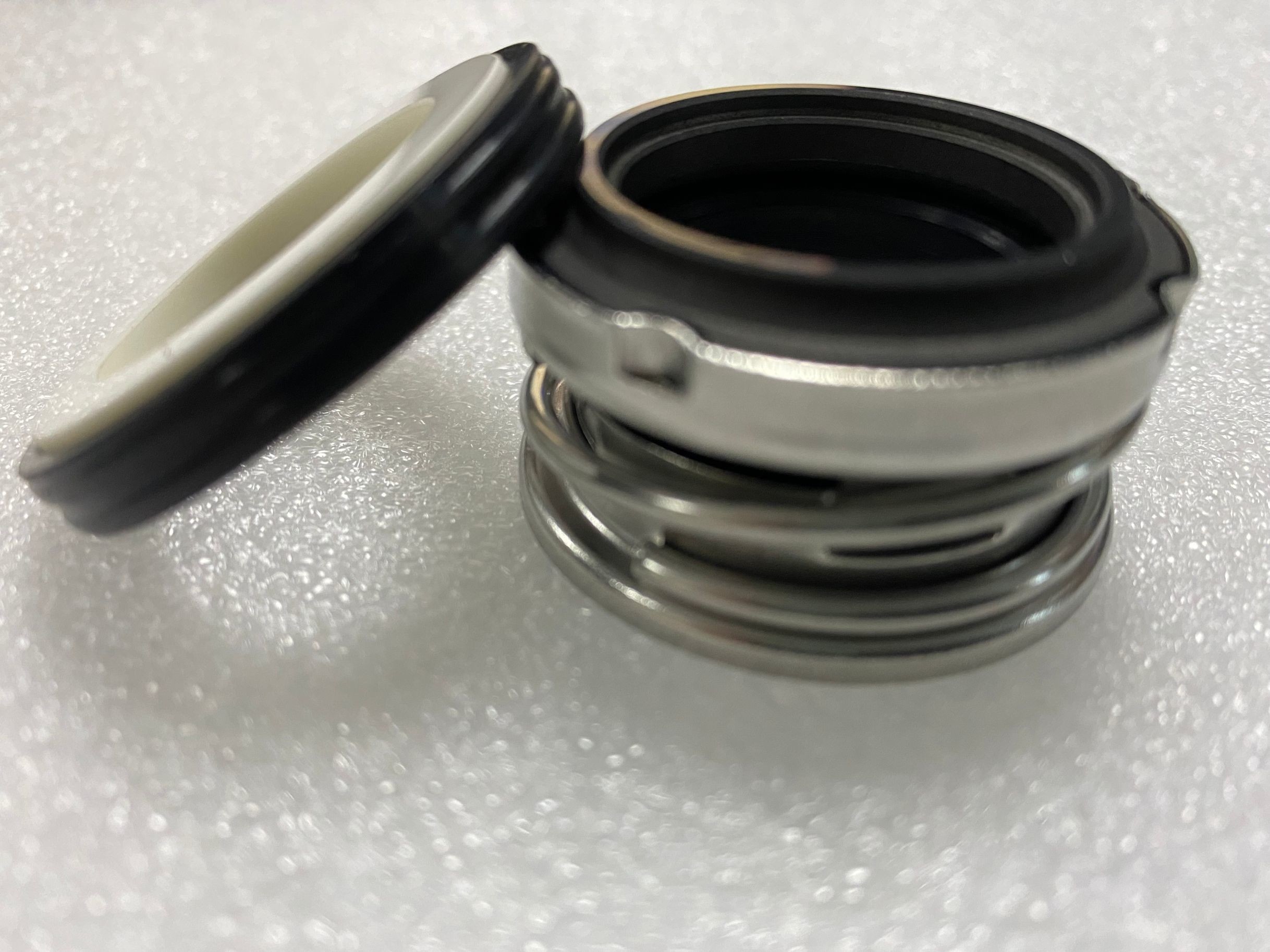

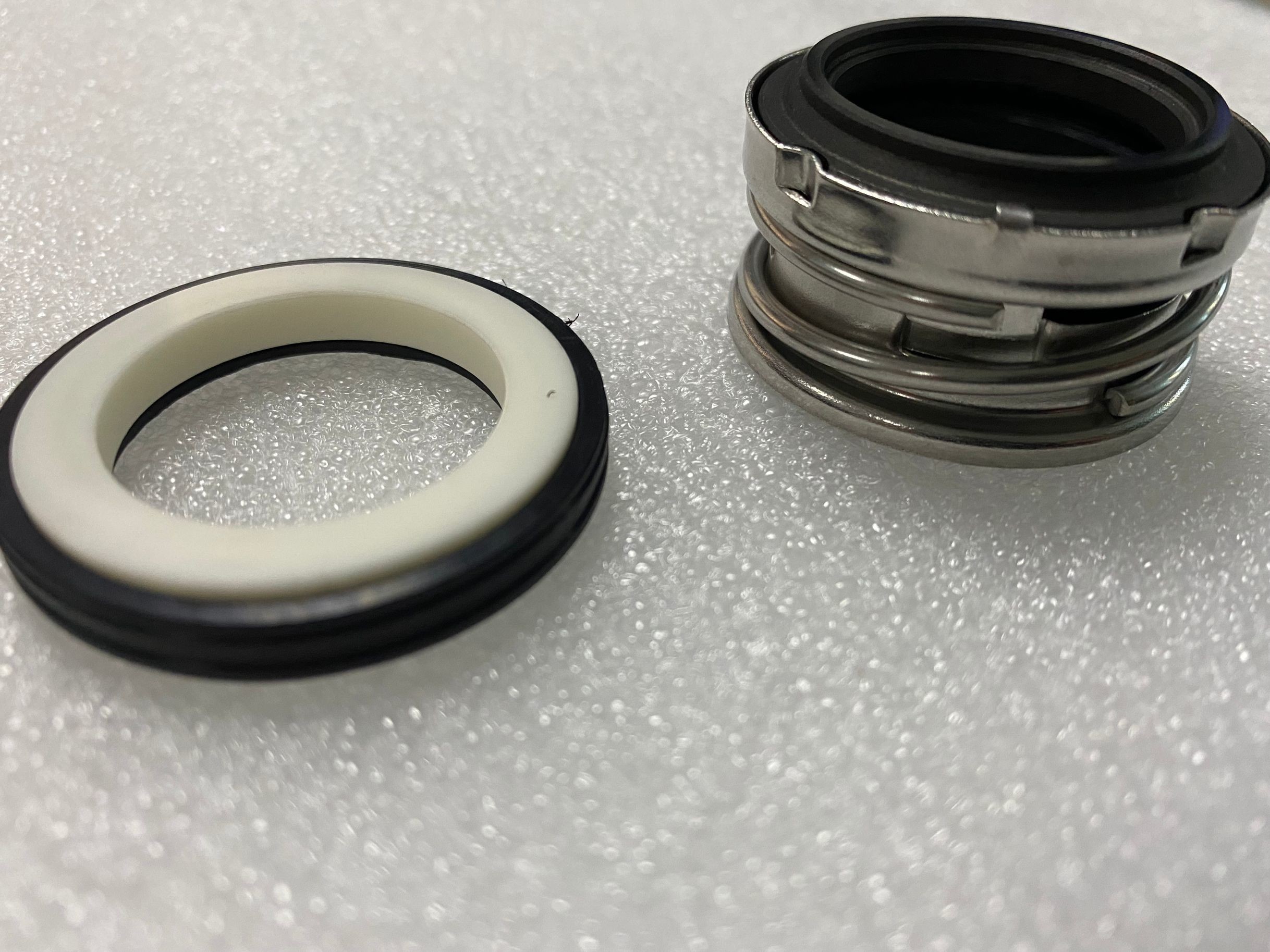

Ebara 262 Mechanical Seal For Ebara FSA/FSC Submersible Pump

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: Ebara 262

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
HS Code: 848420090 Specification: Burgmann Seal EA560 Mechanical Seal
Certificate: ISO9001 Type: Burgmann Seal
Standard Or Nonstand: Standard Style: Mechanical Seal
Size: 14-100MM Product Name: Water Pump Mechanical Seal 560A Single-Spring Mechanical Seal Replace Aesseal (replace MTU FP/T3S)
Highlight:

Ebara 262 Mechanical Seal

,

Submersible Pump Mechanical Seal

Product Description

Mechanical Seal Untuk Pompa Ebara 262 Diameter 25mm 35mm Submersible Pump Mechanical Seal

Operations Conditions:

  1. Similar to mechanical seal ebara EA 262
  2. Temperature:-20ºC to +120ºC
  3. Pressure:≤1.0MPa
  4. Speed:≤15m/s

Material:

  • 1- Rotary Face: Carbon / SIC / TC.
  • 2- Stationary Seat: Ceramic / SIC / TC.
  • 3- Bellows: NBR / EPDM / FKM.
  • 4- Spring: SS304 / SS316.
  • 5- Metal Parts: SS304 / SS316.


Performance Capabilities



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
25MM,35MM,45MM,
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail  As Requirment
Model EA-262-25
50x40 FSHA
65x50 FSHA
65x50 FSJA
80x65 FSGA
80x65 FSHA
100x80 FSGA
Model EA-262-35
80x65 FSJA
80x65 FSKA
100x80 FSHA
100x80 FSJA
100x80 FSGCA
100x80 FSHCA
125x100 FSKA
150×125 FSHA
150x125 FSJA
200x150 FSHA
Model EA-262-40
100x65 FSKA
125x100 FSJCA
Model EA-262-45
125x100 FSLA
150x125 FSKA
150x125 FSLA
200x150 FSJA



Mechanical Seal for bellow pump is available in our factory, contact us please
Ebara L Seal
Ebara Standard Seal
Ebara H Seal
Ebara 3604061132
Ebara 360400024
Ebara 3S 65-200/22
Ebara 3DS 65-160/9.2
Ebara 3LSF 80-250/55
Ebara CMA 2.00
Ebara 3MHS 32-160
Ebara 3LM 40-200
Ebara 3PF 40-200/R
Ebara 3DP 40-200/5.5
Ebara 3LSF 32-160/2.2
Ebara 3SH 65-200/15
Ebara 3DP 50-200/9.2
Ebara 3LSF 40-160/4.0
Ebara 3SHS 65-160/15
Ebara 3M 50-160
Ebara CMB 400-550
Ebara 3MHS 65-125/4.0
Ebara 3LM 65-160/15
Ebara 3PF 50-200/R
Ebara MV Ebara 3LPF 65-160

.

Ebara 262 Mechanical Seal For Ebara FSA/FSC Submersible Pump 0Ebara 262 Mechanical Seal For Ebara FSA/FSC Submersible Pump 1Ebara 262 Mechanical Seal For Ebara FSA/FSC Submersible Pump 2Ebara 262 Mechanical Seal For Ebara FSA/FSC Submersible Pump 3Ebara 262 Mechanical Seal For Ebara FSA/FSC Submersible Pump 4

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
