Water Pump Mechanical Seal 92-35 For ALF Pump LKH 10 15 20 25 35 40 45 50 60

Minimum Order Quantity : 1PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: JR 92-35

Detail Information

Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Alf Pump Seal Mechanical Seal Certificate: ISO9001
Type: Mechanical Seal For Alf Pump LKH Standard Or Nonstand: Standard
Product Name: Alf Pump Seal Double Face 92-35mm Application: Alf Laval ALC Pumps Mechanical Seal 92-35
High Light:

ALF Pump Mechanical Seal

,

Water Pump Mechanical Seal 92-35

,

FKM Mechanical Water Pump Seal

Product Description

Mechanical Seal Water Pump Seal 92-35 for ALF Pump LKH 10 15 20 25 35 40 45 50 60



Description:



Operational Conditions:

  1. Temperature: -20ºC to +180ºC
  2. Pressure: ≤1.2MPa
  3. Speed: ≤10m/s
  4. 92-35 Mechanical Seal For Alf Pump LKH 10,15,20,25,35,40,45,50,60

 Materials:

  • Stationary Ring: Steel, Silicon Carbide, TC
  • Rotary Ring: Carbon
  • Secondary Seal: NBR, EPDM, FKM
  • Spring and Metal Parts: Steel
  • 2. Size: 35MM

Performance Capabilities:



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
35mm
Brand
JR
Face
Carbon, SiC
Seat
SUS304,SUS316,SIC,TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • 92-35 range of the Mechanical seals ,replacement of kinds of ALF Pump Series.
  • Replacement to:Aesseal P07 seal 35mm

CM 1,1A,1B,1C et 1D;GM 1,1A,2,2A;EM 1C,EM 1D
FM OS,0,1,1A,1AE,2,2A,3,3A,4 et 4A
MR166A,166B,166E
ME155AE,GM1,GM1A,GM2,GM2A,MA166E
MR 185,185A,200 et 200A
Tri-Flo(Tri-Clover) Series CL
LHK 10,15,20,25,35,40,45,50 et 60
LHK series pump with a flushed seal chamber
LHK series pump with a flushed seal chamber -S
LHK series pump with a flushed seal chamber and Double seals
LKHI,LKHP,LKHSP,LKH 100 series multi-stage
LHK 70&80
ALC-pompen voorzien van type F-dichtingen,No:31460-3500
Tri-Clover C-series
Tri-Clover "Centrifugal 200"
Rotor LKPL,NMOG and SRU series ,OEM "R90 Seals"
Alf LKR-Series agitators
Alf ALC-Series pumps
Alf IMO pumps

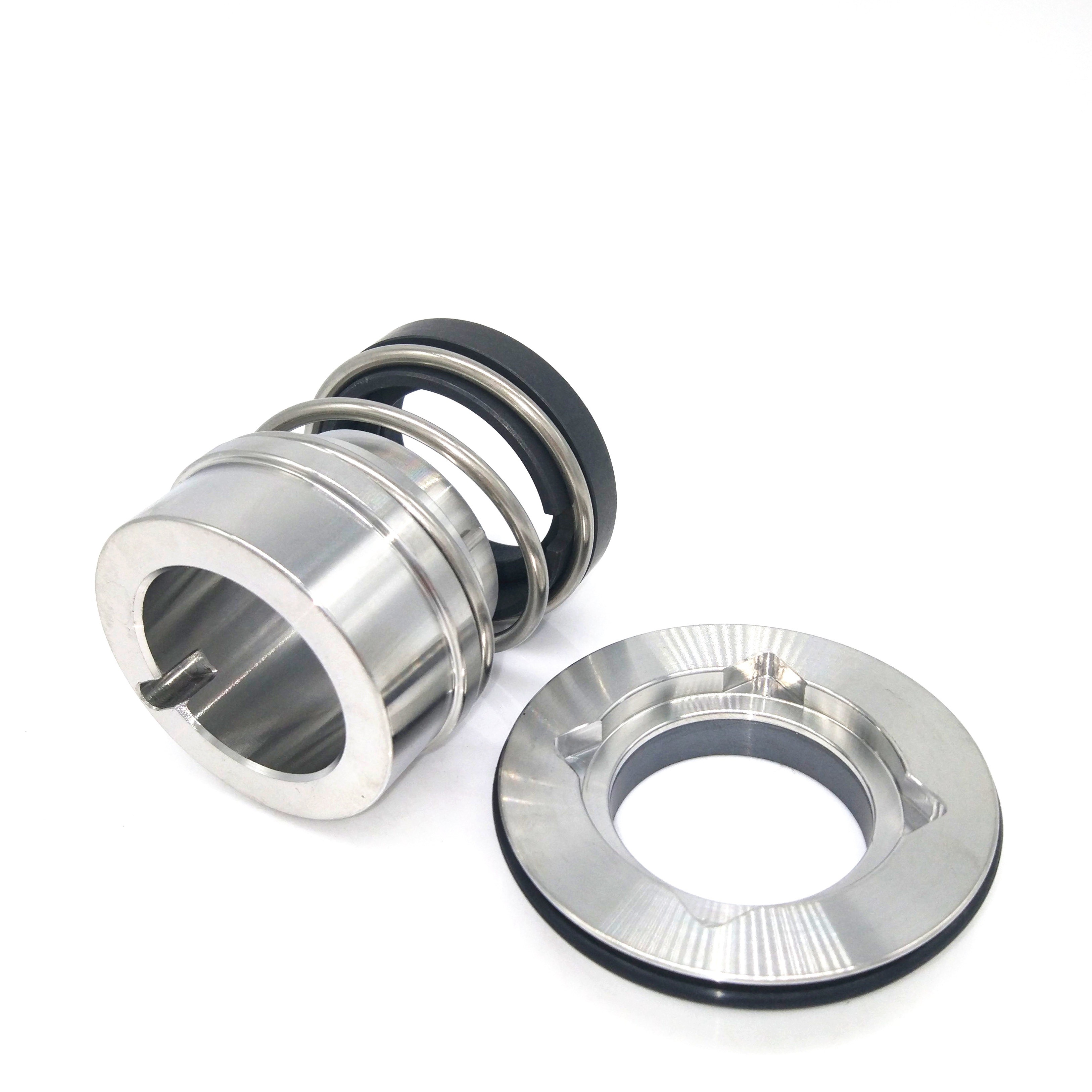

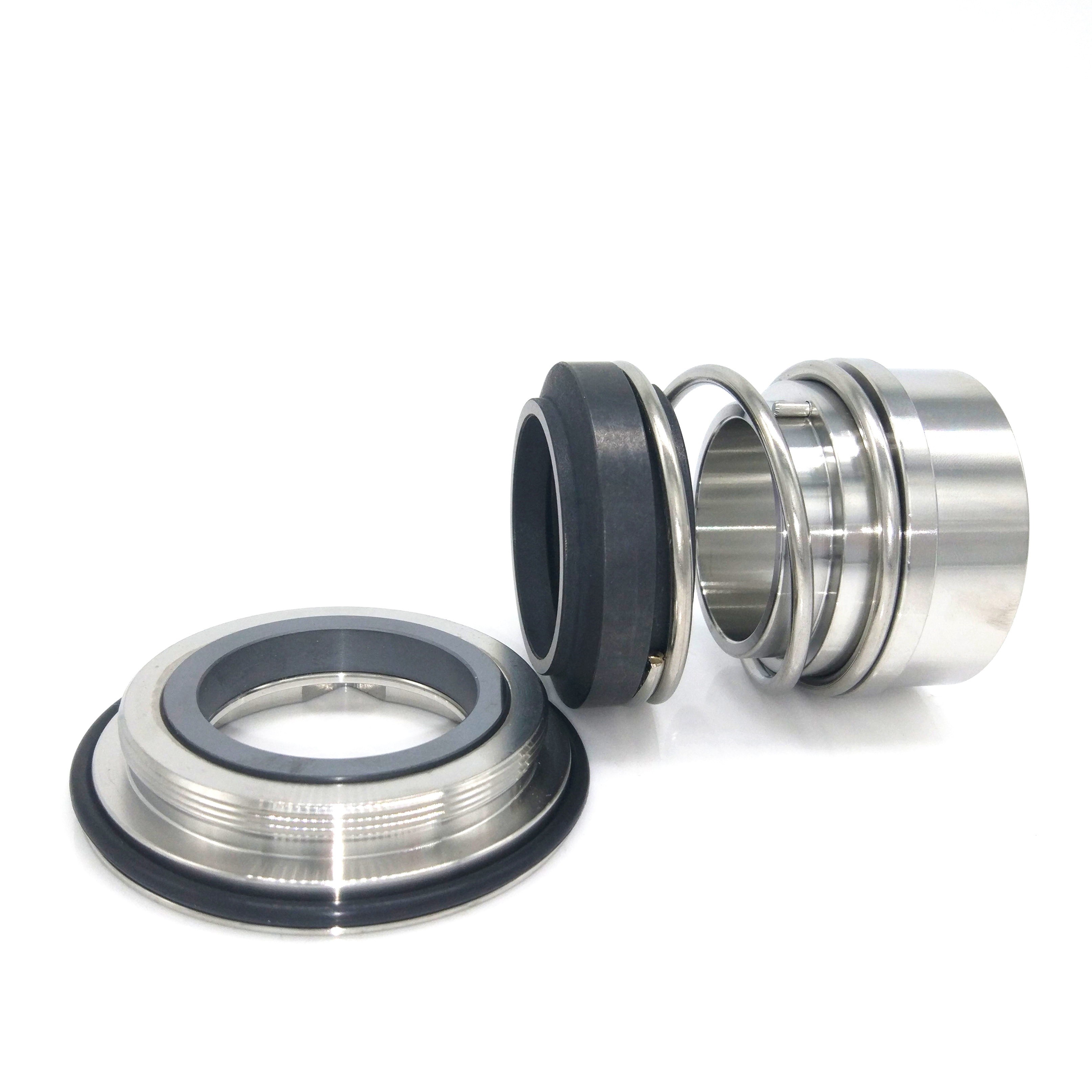

Water Pump Mechanical Seal 92-35 For ALF Pump LKH 10 15 20 25 35 40 45 50 60 0

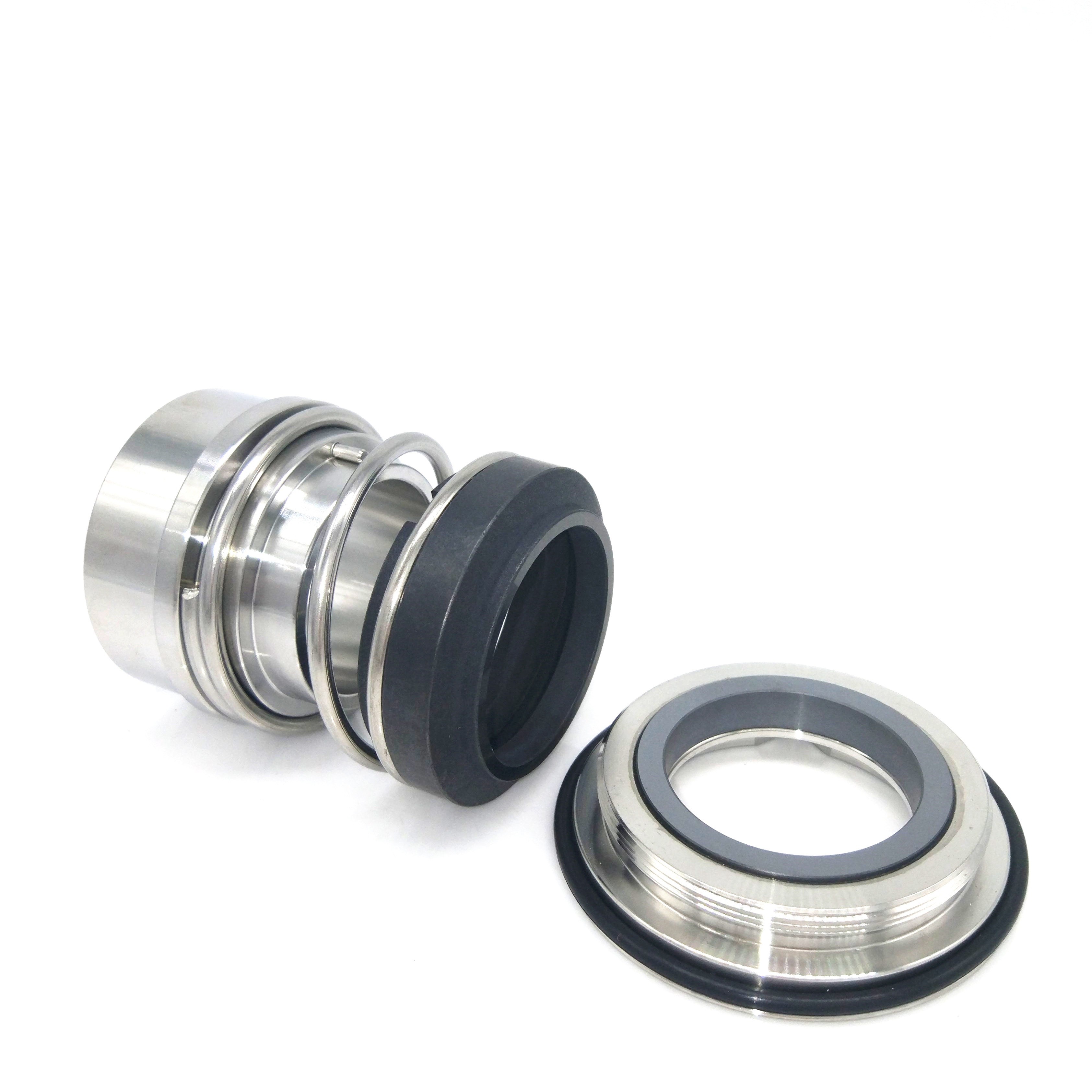

Water Pump Mechanical Seal 92-35 For ALF Pump LKH 10 15 20 25 35 40 45 50 60 1

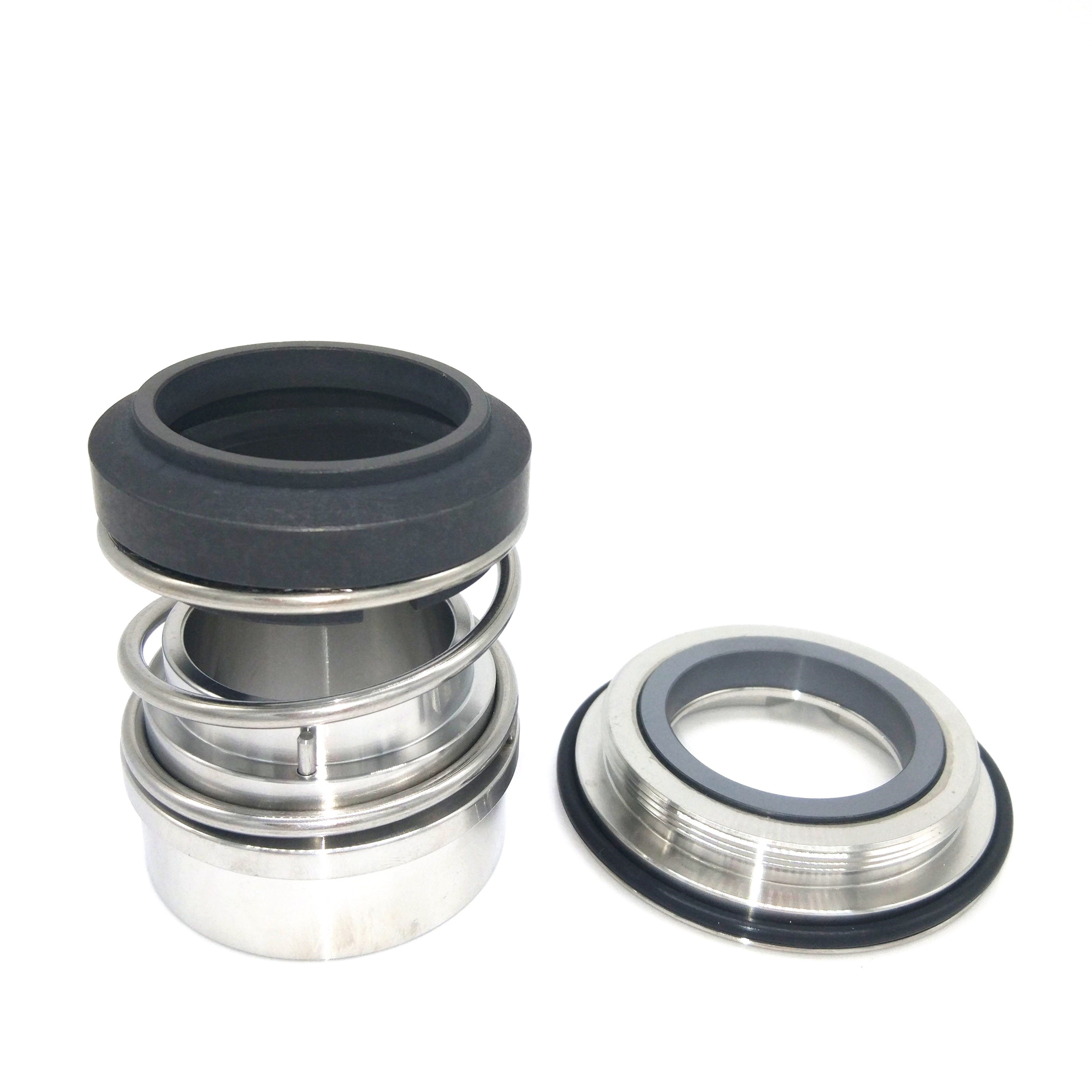

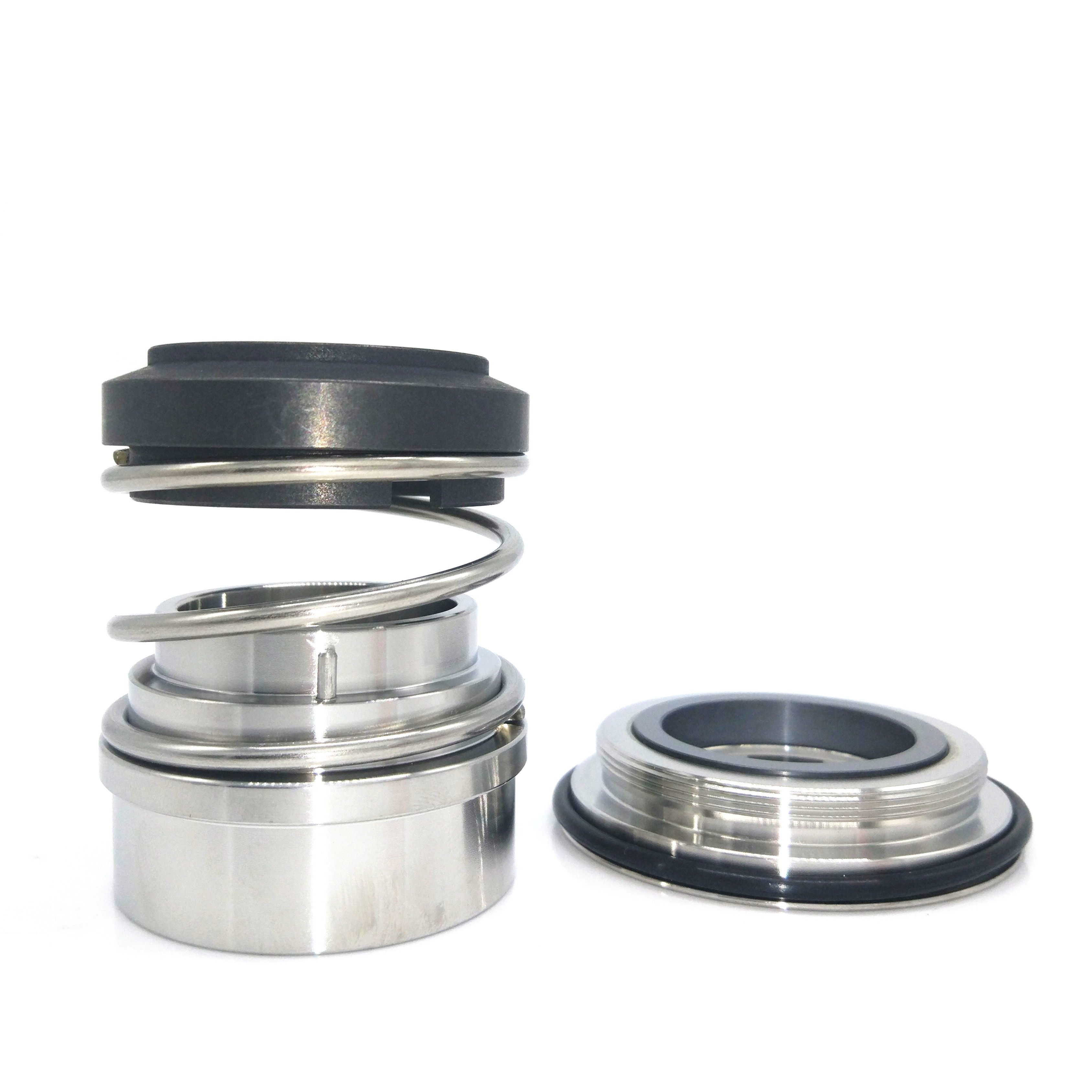

Water Pump Mechanical Seal 92-35 For ALF Pump LKH 10 15 20 25 35 40 45 50 60 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
