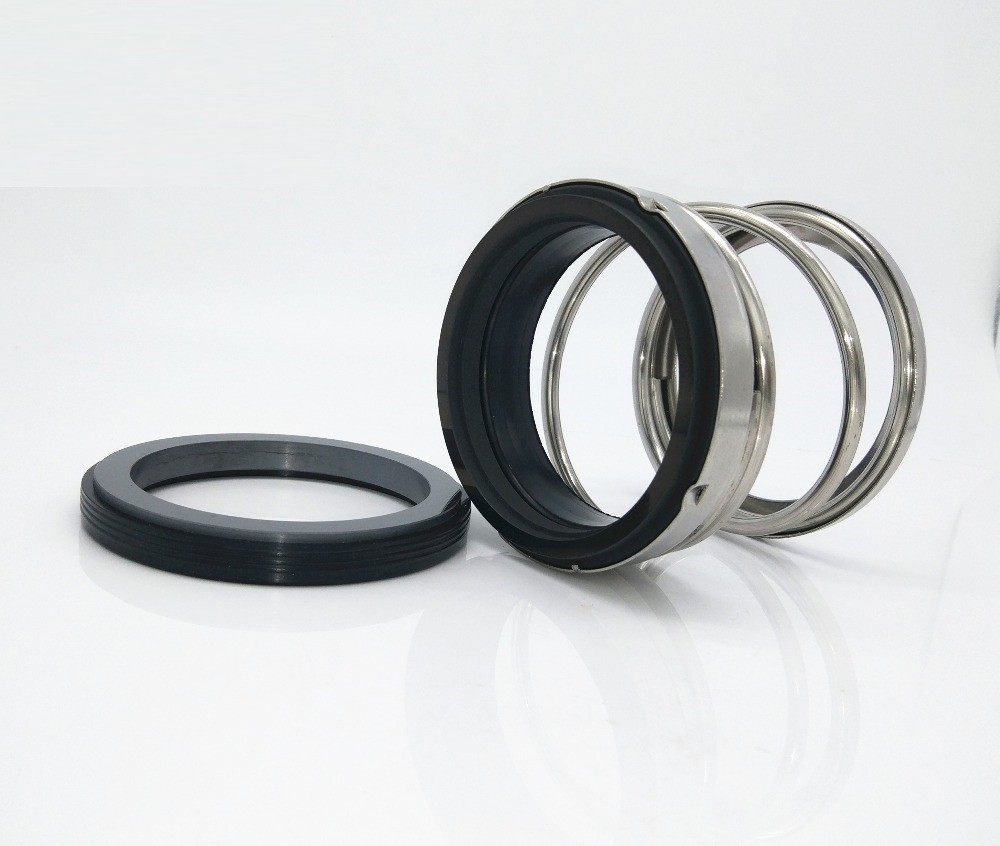

Mechanical Seal Water Pump Sealing Ring BIA Type 21 Type 43

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: BIA

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Burgmann BIA Mechanical Seal Certificate: ISO9001
Type: Burgmann Seal Standard Or Nonstand: Standard
Style: Mechanical Seal Size: 14-100MM
High Light:

14MM Water Pump Mechanical Seal

,

100MM Water Pump Mechanical Seal

,

Burgmann BIA mechanical seal

Product Description

Mechanical Seal Water Pump Sealing Ring BIA, Type 21, Type 43​



Description:

Structural Features: single end, unbalanced, independent direction of rotation, rubber bellow, bellow transmission. This component has a compact structure with good compatibility, stablity and easy installation

  1. Structure: Single End
  2. Pressure: Medium Pressure Mechanical Seals
  3. Speed: General Speed Mechanical Seal
  4. Temperature: General Temperature Mechanical Seal
  5. Performance: Wear
  6. Standard: DIN24960, ISO3069, GB6556
  7. Model NO.: BIA, Type 21, and Type 43
  8. Balance: Unbalanced
  9. Specification: Inner Diameter: 12 mm to 100 mm

Materials:

  • Face: Carbon, SiC, TC
  • Seat: Ceramic, SiC, TC
  • Bellow: NBR, EPDM, FKM etc.
  • Spring: SS304, SS316
  • Metal parts: SS304, SS316
  • Structure: Single End
  • Pressure: Medium Pressure Mechanical Seals
  • Speed: General Speed Mechanical Seal
  • Temperature: General Temperature Mechanical Seal
  •



Performance Capabilities:



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
14mm to 90mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.From 14mmto 20mm is packed in plastic sheets grouply and M box.

2.From 25mm to 90mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.



  • BIA (also known as Type 21 or Type 43) Mechanical Seal for Clean Water Pumps, Piping Pumps and Vacuum Pumps
  • Structural Features: single end, unbalanced, independent direction of rotation, rubber bellow, bellow transmission. This component has a compact structure with good compatibility, stablity and easy installation.
  • Industrial Standards: DIN24960, ISO3069, GB6556
  • Scopes of Application: widely used in oil and water circulation pumps, piping pumps, and vacuum pumps for industries such as sewage treatment and paper-making. This product can be an alternative to similar products from EG&G SEAL OL.



Mechanical Seal Water Pump Sealing Ring BIA Type 21 Type 43 0



Mechanical Seal Water Pump Sealing Ring BIA Type 21 Type 43 1Mechanical Seal Water Pump Sealing Ring BIA Type 21 Type 43 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
