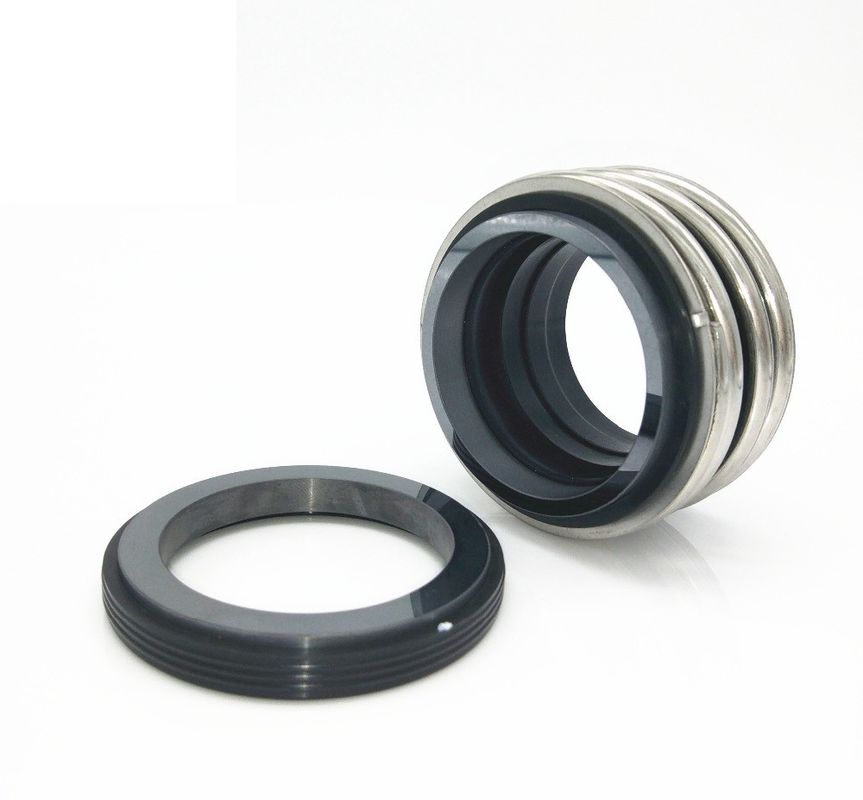

MG1 Burgmann Mechanical Seal For Pump Different Sizes And Material OEM

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: MG1

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
HS Code: 848420090 Specification: Burgmann Seal 155 Mechanical Seal
Certificate: ISO9001 Type: Burgmann MG1 Seal
Standard Or Nonstand: Standard Size: 12-40MM
Product Name: Mechanical Seal MG1 Sample: Allowed
Pump: Burgmann
High Light:

Burgmann MG1 Mechanical Seal

,

MG1 Mechanical Seal For Pump

,

OEM Burgmann Mechanical Seal MG1

Product Description

MG1 Burgmann Mechanical Seal For Pump Different Sizes And Material ,OEM Seal

Elastomer Bellow Seal Burgmann MG1 MG12 MG13 Mechanical Seal For Pump



Operations Conditions:



  1. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  2. Temperature: -30°C~200°C
  3. Pressure: ≤1.2MPa
  4. Speed: ≤ 12 m/Sec
  5. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.

Materials:

  • Stationary Ring:Ceramic(Alumina),Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless,
  • Ni-binder Tungsten Carbide Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,
  • Silicon Carbide Sintered Pressureless,Silicon Carbide Reaction Bonded Secondary Seal:Nitrile(NBR),
  • Ethylene Propylene(EPDM),Fluorocarbon Rubber(FKM) Spring and Metal Parts:Stainless Steel,Stainless Steel
  • Applications:Clean Water,Sewage Water,Oil and other moderately corrosive fluids

Performance Capabilities

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 12mm to 75mm
Brand LM
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.

  • Burgmann MG series mg1S20 mg1 mg12 mg13 mechanical seal for pump
  • Burgmann MG13 Mechanical Pump Shaft Seal for Chemical Pump
  • Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary
  • Aesseal B02/B012/B013 seal
  • Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193
  • Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU
  • Roten L3 / Roten L3k / Roten L3



MG1 Burgmann Mechanical Seal For Pump Different Sizes And Material OEM 0



MG1 Burgmann Mechanical Seal For Pump Different Sizes And Material OEM 1MG1 Burgmann Mechanical Seal For Pump Different Sizes And Material OEM 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
