Water Pump Mechanical Seal Burgmann MG13 With G60 Silicon Carbide Vton

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: MG13

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
HS Code: 848420090 Certificate: ISO9001
Type: Burgmann MG13 Seal DIMER TCP.13-60. Standard Or Nonstand: Standard
Size: 12-100MM Product Name: Mechanical Seal Burgmann MG13, Lidering М212.N13,
Sample: Allowed Metal Parts: SS316,SS304
High Light:

Burgmann MG13 Water Pump Mechanical Seal


Silicon Carbide Water Pump Mechanical Seal


Silicon Carbide Mechanical Seal Burgmann

Product Description

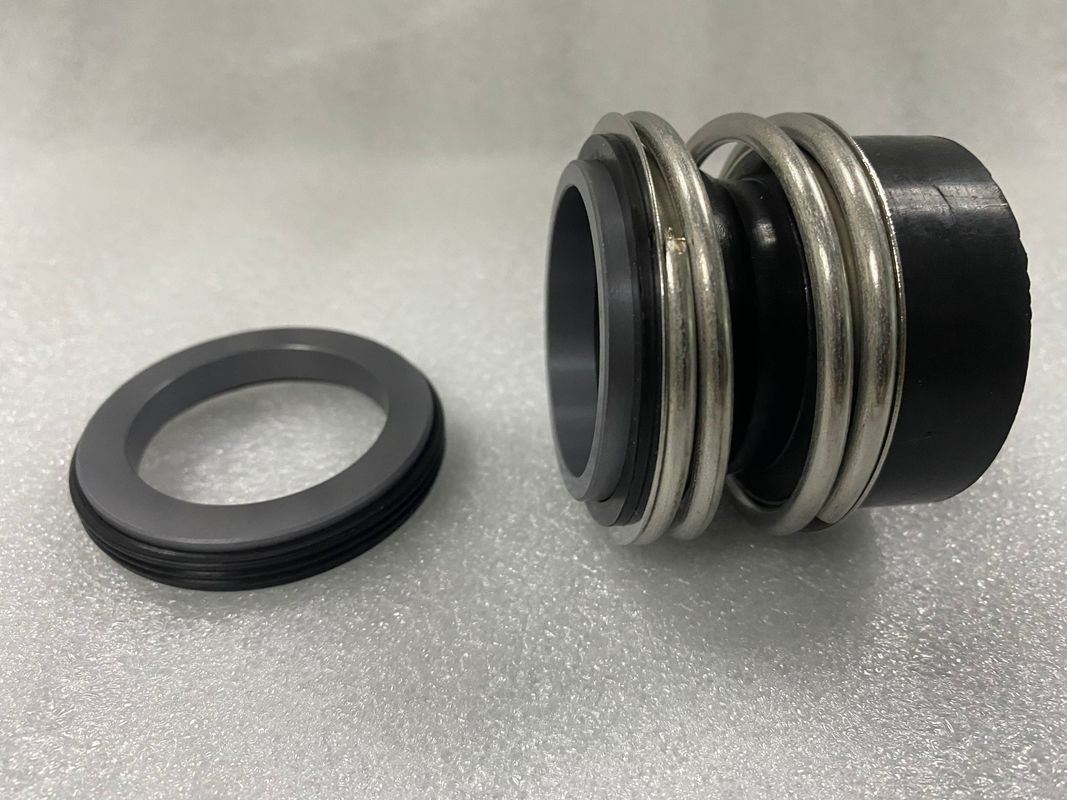

Water Pump Mechanical Seal Burgmann MG13 With G60 Silicon Carbide Vton


Operations Conditions:


  1. Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
  2. Temperature: -30°C~200°C
  3. Pressure: ≤1.2MPa
  4. Speed: ≤ 12 m/Sec
  5. Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.


  • Rotary Face: Carbon / SIC / TC.
  • Stationary Seat: Ceramic / SIC / TC.
  • Bellows: NBR / EPDM / FKM.
  • Spring: SS304 / SS316.
  • Metal Parts: SS304 / SS316.
Performance Capabilities
-30℃ to 200℃, dependent on the elastomer
Up to 10 bar
Up to 15 m/s
End play/axial float allowance
12mm to100mm
Carbon, SiC, TC
Ceramic, SiC, TC
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.From 12mm to 20mm is packed in plastic sheets grouply and M box.

2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.
  • Mechanical seal MG13 - is lees commonly used among "MG" seria. The dimensions are the same as for MG1 and MG12, but with prolonged plain spigal portion of the bellows for providing the mounting length.
  • The seal is applied to cenrifugal pumps for water and drainage water.
  • Application to the following pumps is available: Grundfos (NB).
  • Analogs: Burgmann MG13, Lidering М212.N13, DIMER TCP.13-60.
  • Burgmann MG13 Mechanical Pump Shaft Seal for Chemical Pump
  • Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary
  • Aesseal B02/B012/B013 seal
  • Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193
  • Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU
  • Roten L3 / Roten L3k / Roten L3

Water Pump Mechanical Seal Burgmann MG13 With G60 Silicon Carbide Vton 0


Water Pump Mechanical Seal Burgmann MG13 With G60 Silicon Carbide Vton 1Water Pump Mechanical Seal Burgmann MG13 With G60 Silicon Carbide Vton 2Water Pump Mechanical Seal Burgmann MG13 With G60 Silicon Carbide Vton 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
