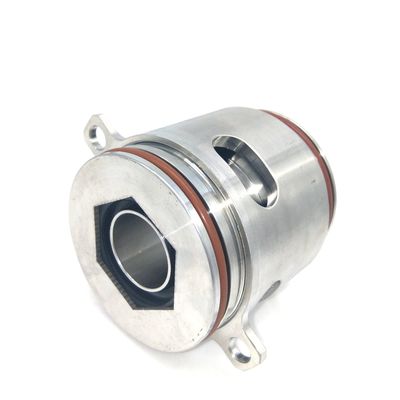

22mm 32mm Double Face Grundfos Sarlin Pump Mechanical Seal Submersible

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: JR GLF-13 22mm 32mm

Detail Information

Style: Mechanical Seal Material: Car/cer/v And SIC SIC FKM
Size: 22mm 32mm Function: For Oil Pump, Water Pump
Specification: Sarlin Pump Mechanical Seal HS Code: 848420090
Certificate: ISO9001 Type: For Grundfos Pump 22mm 32mm
Standard: Standard Temperature: -30℃ To 200℃, Dependent On The Elastomer
Pump: Sarlin Face: Double Face
High Light:

Double Face Grundfos Pump Mechanical Seal

,

Sarlin Pump Mechanical Seal

,

Submersible Grundfos Pump Mechanical Seal

Product Description

SE 22mm And 32mm Doubel Face Grundfos Sarlin Pump Mechanical Seal Submersible Pump Seals

Mechanical Seal For Grundfos Type 22 32MM GLF SE/SL/SV Submersible Pump Seals

Description:
  1. GLF-SE-22 22MM  32MM Grundfos type SE
  2. 96102361/96102360 Cartridge seal for Grundfos ST/SE/SLV/SEG pumps!
  3. the standard shaft size for SE are 22mm and 32mm
  4. Temperature: -20ºC to +180ºC
  5. Pressure: ≤1.2MPa
  6. Speed: ≤10m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids



Performance Capabilities:



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
22MM 32MM
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.
  • Mechanical Seal for Grundfos SE1 SEV SL1 SLV Submersible Pump Seals
  • Shaft dimension: 22mm /32mm Material Group: SIC/SIC/FKM EPDM TC/TC/FKM or EPDM Application: Grundfos SE series SE(SE-22,SE-32



22mm 32mm Double Face Grundfos Sarlin Pump Mechanical Seal Submersible 0



22mm 32mm Double Face Grundfos Sarlin Pump Mechanical Seal Submersible 1

22mm 32mm Double Face Grundfos Sarlin Pump Mechanical Seal Submersible 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
