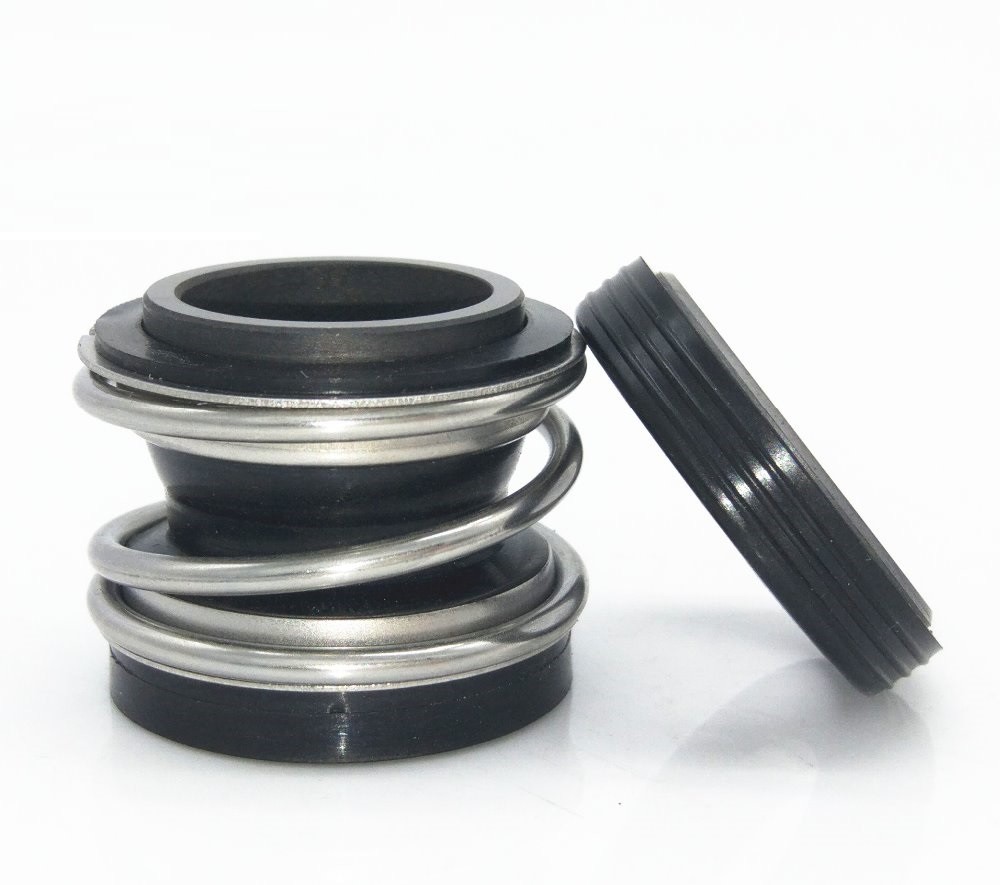

Mg1 Shaft Size 25mm Elastomeric Machined Mechanical Seal Ring

Minimum Order Quantity : 100PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: MG1

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
HS Code: 848420090 Specification: Burgmann Seal 155 Mechanical Seal
Certificate: ISO9001 Type: Burgmann MG1 Seal
Standard Or Nonstand: Standard Size: 12-40MM
Product Name: Mechanical Seal MG1 Sample: Allowed
High Light:

25mm machined mechanical seal

,

MG1 machined mechanical seal

,

25mm elastomeric sealing ring

Product Description

Elastomer Bellow Seal Burgmann MG1 MG12 MG13 Mechanical Seal For Pump



Operations Conditions:

  1. Structure Description:
  2. Equivalent to Bergmann MG1,MG12,MG13,MG1S20 mechanical seal
  3. Rubber bellows design
  4. Operating Limits:
  5. Temperature:-20---120℃
  6. Speed: 10m/s
  7. Pressure: 12bar
  8. Standard size: 10mm--100mm
  9. For plain shafts
  10. Single and dual seal
  11. Elastomer bellows rotating
  12. Balanced
  13. Independent of direction of rotation
  14. No torsion on bellows

Materials:



  • Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)
  • Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)
  • Elastomer: NBR (P), EPDM (E), FKM (V),
  • HNBR (X4)
  • Metal parts: CrNiMo steel (G), Hastelloy (M)
  • Further materials upon request.



Performance Capabilities

Temperature -30℃ to 200℃, dependent on the elastomer
Pressure Up to 10 bar
Speed Up to 15 m/s
End play/axial float allowance ±0.1mm
Size 12mm to 75mm
Brand LM
Face Carbon, SiC, TC
Seat Ceramic, SiC, TC
Elastomer NBR, EPDM, FKM etc.
Spring SS304, SS316
Metal parts SS304, SS316
Packing Detail

1.From 12mm to 20mm is packed in plastic sheets grouply and M box.


2.From 22mm to 100mm is wrapped in plastic paper individually then grouply in M box.

3.Individual packing ,1 pc in 1 small box is available as well with cost of packing added.

  • MG1 can Replace AESSEAL B02,BURGMANN MG1,FLOWSERVE 190, and MTU FG1,which is widely used for Hecker HN 410SU and other kinds of pumps. we usually have 4 types of stationary seat for customer's choice,G4,G6,G60 and G9. The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Mg1 Shaft Size 25mm Elastomeric Machined Mechanical Seal Ring 0

MG1 Series
d(mm) D3 D6 D7 L3 L31 L32 L33 L4
10 22.5 17 21 14.5 25.9 33.4 25.0 6.6
12 25.0 19 23 15.0 25.9 33.4 25.0 6.6
14 28.5 21 25 17.0 28.4 33.4 25.0 6.6
15 28.5 - - 17.0 28.4 33.4 25.0 -
16 28.5 23 27 17.0 28.4 33.4 25.0 6.6
18 32.0 27 33 19.5 30.0 37.5 25.0 7.5
19 37.0 - - 21.5 30.0 37.5 25.0 -
20 37.0 29 35 21.5 30.0 37.5 25.0 7.5
22 37.0 31 37 21.5 30.0 37.5 25.0 7.5
24 42.5 33 39 22.5 32.5 42.5 25.0 7.5
25 42.5 34 40 23.0 32.5 42.5 25.0 7.5
28 49.0 37 43 26.5 35.0 42.5 33.0 7.5
30 49.0 39 45 26.5 35.0 42.5 33.0 7.5
32 53.5 42 48 27.5 35.0 47.5 33.0 7.5
33 53.5 42 48 27.5 35.0 47.5 33.0 7.5
35 57.0 44 50 28.5 35.0 47.5 33.0 7.5
38 59.0 49 56 30.0 36.0 46.0 33.0 9.0
40 62.0 51 58 30.0 36.0 46.0 33.0 9.0
42 65.5 - - 30.0 36.0 51.0 41.0 -
43 65.5 54 61 30.0 36.0 51.0 41.0 9.0
45 68.0 56 63 30.0 36.0 51.0 41.0 9.0
48 70.5 59 66 30.5 36.0 51.0 41.0 9.0
50 74.0 62 70 30.5 38.0 50.5 41.0 9.5
53 78.5 65 73 33.0 36.5 59.0 41.0 11.0
55 81.0 67 75 35.0 36.5 59.0 41.0 11.0
58 85.5 70 78 37.0 41.5 59.0 41.0 11.0
60 88.5 72 80 38.0 41.5 59.0 41.0 11.0
65 93.5 77 85 40.0 41.5 69.0 49.0 11.0
68 96.5 81 90 40.0 41.2 68.7 49.0 11.3
70 99.5 83 92 40.0 48.7 68.7 49.0 11.3
75 107.0 88 97 40.0 48.7 68.7 52.0 11.3
80 112.0 95 105 40.0 48.0 78.0 56.0 12.0
85 120.0 100 110 41.0 46.0 76.0 56.0 14.0
90 127.0 105 115 45.0 51.0 76.0 59.0 14.0
95 132.0 110 120 46.0 51.0 76.0 59.0 14.0
100 137.0 115 125 47.0 51.0 76.0 62.0 14.0





Mg1 Shaft Size 25mm Elastomeric Machined Mechanical Seal Ring 1Mg1 Shaft Size 25mm Elastomeric Machined Mechanical Seal Ring 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
