Aesseal P0204U Elastomer Bellows Seal

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: JR
Certification: ISO9001
Model Number: Type 2
Payment & Shipping Terms:
Minimum Order Quantity: 10PC
Price: Negotiated
Packaging Details: box as requirement
Delivery Time: 20-30DAYS
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PC/Month

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: John Crane Seal Type 2 Certificate: ISO9001
Type: For Aesseal P0204U Seal Flowserve 52 Seal US Seal D Seal Standard: Standard
Style: Mechanical Seal Product Name: John Crane Type 2 Mechanical Seals
High Light:

P0204U Elastomer Bellows Seal


Non Pusher Elastomer Bellows Seal


P0204U Elastomer Bellows Mechanical Seal

Product Description

Mechanical Seal Type 2 John Crane Type 2 Seal For Aesseal P0204U Seal Multi-purpose Non-pusher Elastomer Bellows Seal


Operational Conditions:

  1. Dimensions: 0.500” – 4.750”
  2. Max Pressure: 150 PSI / 10 BAR
  3. Max Temperature: 160°C / 320°F
  4. Velocity: 20 M/S / 4000 FPM


  • ROTARY FACES: Carbon Graphite, Silicon Carbide, Tungsten Carbide
  • STATIONARY SEATS: Ceramic, Silicon Carbide, Tungsten Carbide, Stainless Steel
  • BELLOWS: Buna, FKM, EPDM, Aflas, Neoprene
  • METAL PARTS: 304 SS standard or 316 SS option available

Performance Capabilities

-30℃ to 200℃, dependent on the elastomer
Up to 14 bar
Up to 13 m/s
End play/axial float allowance
0.5" to 4"
Carbon, SiC, TC
Ceramic, SiC, TC
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

















  • Replacement to: John Crane 2 type seal Aesseal P0204U seal
  • Flowserve 52 seal US Seal D seal
  • Unbalance
  • Non-clogging single spring
  • Bi-directional
  • Elastomer bellows
  • Set screw lock collar available

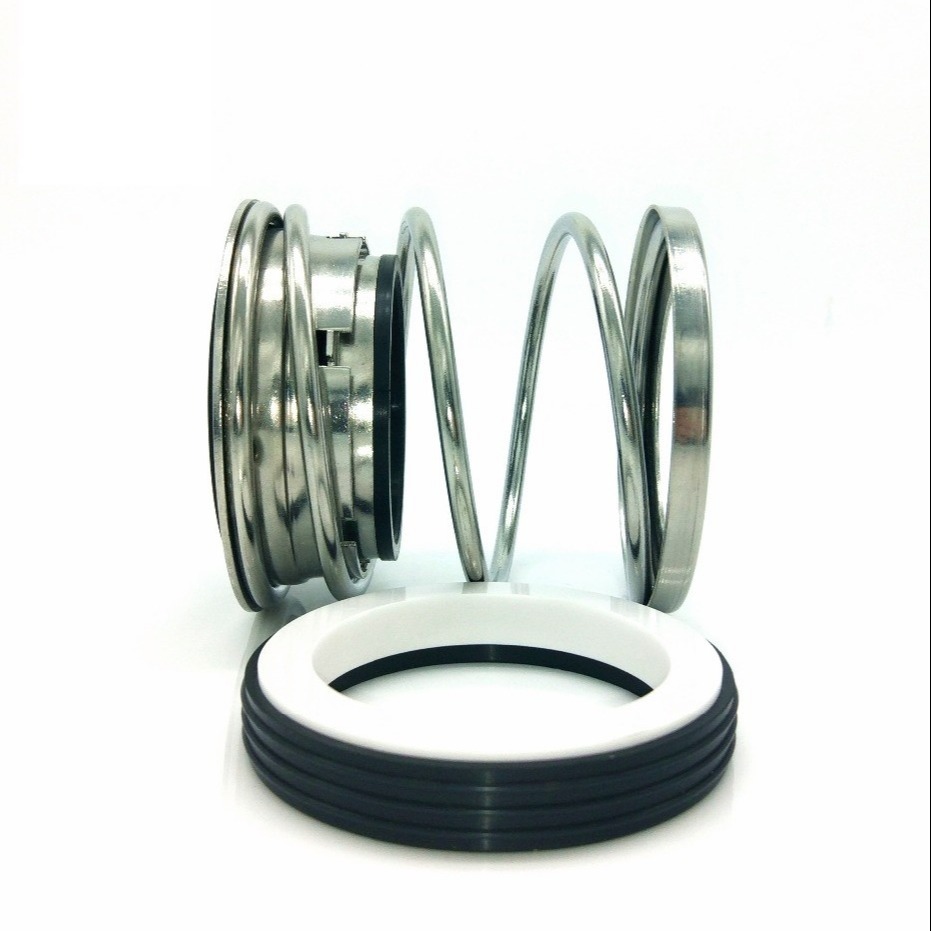

Aesseal P0204U Elastomer Bellows Seal 0

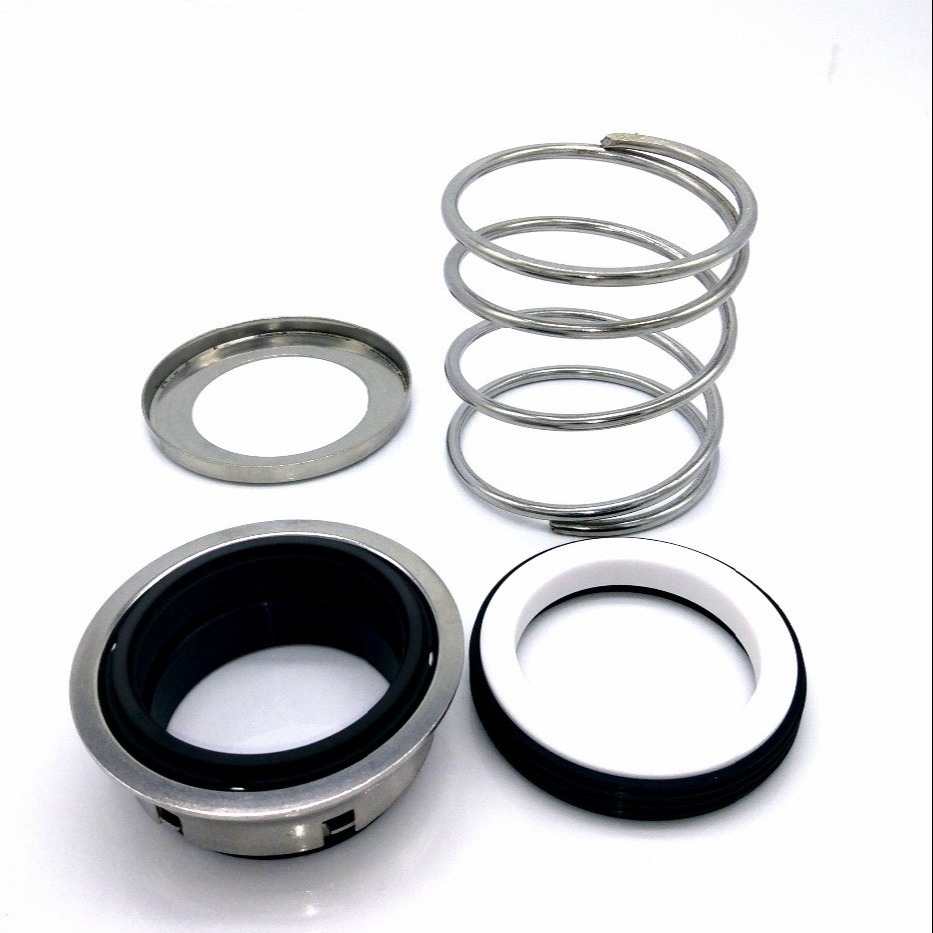

Aesseal P0204U Elastomer Bellows Seal 1

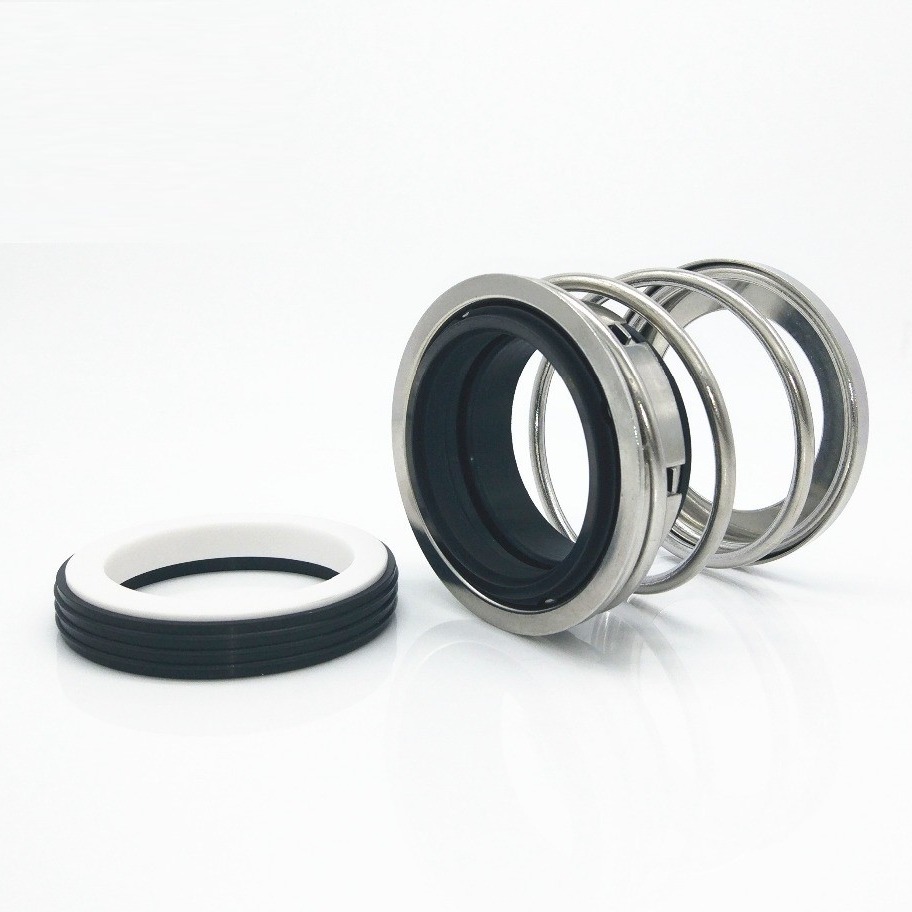

Aesseal P0204U Elastomer Bellows Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,


All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request



Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.


Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.


Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.


Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
