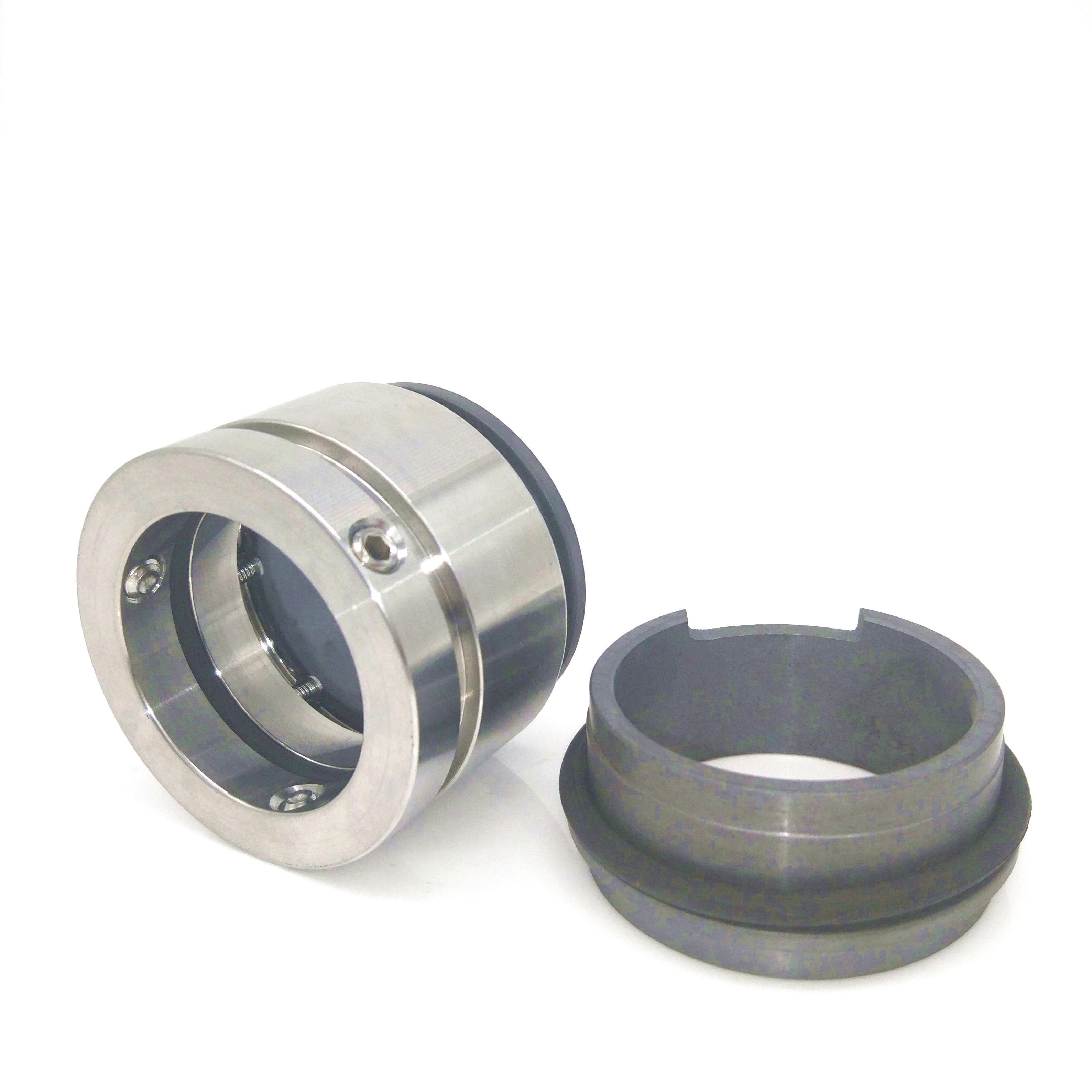

Shaft Size 25mm Cartridge Mechanical Seal Water Pump Seal Speed Less 15 M/S

Minimum Order Quantity : 5PC Price : Negotiated
Packaging Details : box as requirement Delivery Time : 20-30DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 100000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: iso9001 Model Number: JR GLF-20

Detail Information

Style: Mechanical Seal Material: SIC SIC FKM
Size: 25mm 32mm 38mm 50mm 65mm Function: For Oil Pump, Water Pump
Specification: Grundfos Pump Mechanical Seal HS Code: 848420090
Certificate: ISO9001 Type: For Grundfos Pump
Standard: Standard Temperature: -30℃ To 200℃, Dependent On The Elastomer
High Light:

15 M/S Cartridge Mechanical Seal

,

25mm Cartridge Mechanical Seal

,

25mm Water Pump Seal

Product Description

Mechanical Seal CR CRN Shaft Size 25mm 32mm 38mm 50mm 65mm Cartridge Seal For Water Pump

Description:

Operational Conditions:

  1. Temperature: -20ºC to +180ºC
  2. Pressure: ≤2.5MPa
  3. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities



Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
25mm 32mm 38mm 50mm 65mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

Mechanical Seal For Water Pumps Groundfo Pump Seal CR Pump 25mm 32mm 38mm50mm 65mm

Shaft Size 25mm Cartridge Mechanical Seal Water Pump Seal Speed Less 15 M/S 0

Shaft Size 25mm Cartridge Mechanical Seal Water Pump Seal Speed Less 15 M/S 1Shaft Size 25mm Cartridge Mechanical Seal Water Pump Seal Speed Less 15 M/S 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
