93-22MM Water Pump Mechanical Seal Vulcan Seal Centrifugal Pump Seal

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: JR
Certification: iso9001
Model Number: 93-22MM
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: box as requirement
Delivery Time: 20-30DAYS
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000PC/Month

Detail Information

Material: SIC SIC FKM Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Alf Pump Seal Mechanical Seal Certificate: ISO9001
Type: Alf Pump Standard Or Nonstand: Standard
Product Name: Alf Pump Seal Double Face 93- 22mm Application: Machanical Seal For Alf Pump
High Light:

22mm Centrifugal pump Mechanical Seals

,

15m/s centrifugal pump mechanical seal

,

Double Face centrifugal pump seal

Product Description

Vulcan Type 93-22MM Mechanical Seal AES P07 Seal For Pumps For ALF Pump


Description:


Operational Conditions:

  1. Temperature: -20ºC to +200ºC
  2. Pressure: ≤1.0MPa
  3. Speed: ≤15m/s

Materials:

  • Stationary Ring: Steel, Silicon Carbide, TC
  • Rotary Ring: Carbon
  • Secondary Seal: NBR, EPDM, FKM
  • Spring and Metal Parts: Steel
  • 2. Size:22MM



Performance Capabilities

Temperature
-30℃ to 200℃, dependent on the elastomer
Pressure
Up to 10 bar
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
22mm
Brand
JR
Face
Carbon, SiC
Seat
SUS304,SUS316,SIC,TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Idividual Packing
Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.



Mechanical Seal Parts Eor Water Pump MR166A MR166B MR166E



Replacement to:

CM 1,1A,1B,1C et 1D;GM 1,1A,2,2A;EM 1C,EM 1D
FM OS,0,1,1A,1AE,2,2A,3,3A,4 et 4A
MR166A,166B,166E
ME155AE,GM1,GM1A,GM2,GM2A,MA166E
MR 185,185A,200 et 200A
Tri-Flo(Tri-Clover) Series CL
LHK 10,15,20,25,35,40,45,50 et 60
LHK series pump with a flushed seal chamber
LHK series pump with a flushed seal chamber -S
LHK series pump with a flushed seal chamber and Double seals
LKHI,LKHP,LKHSP,LKH 100 series multi-stage
LHK 70&80
ALC-pompen voorzien van type F-dichtingen,No:31460-3500
Tri-Clover C-series
Tri-Clover "Centrifugal 200"
Rotor LKPL,NMOG and SRU series ,OEM "R90 Seals"
Alf LKR-Series agitators
Alf ALC-Series pumps
Alf IMO pumps

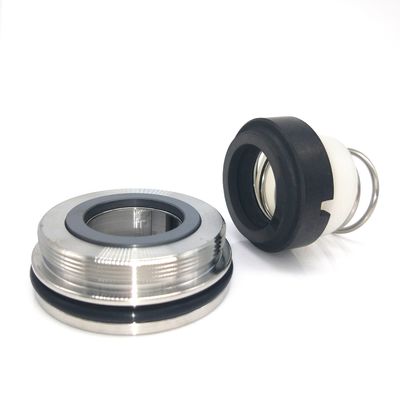

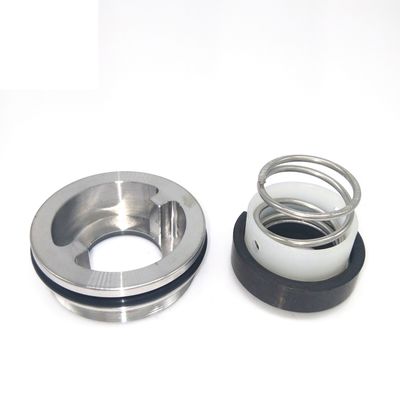

93-22MM Water Pump Mechanical Seal Vulcan Seal Centrifugal  Pump Seal 0

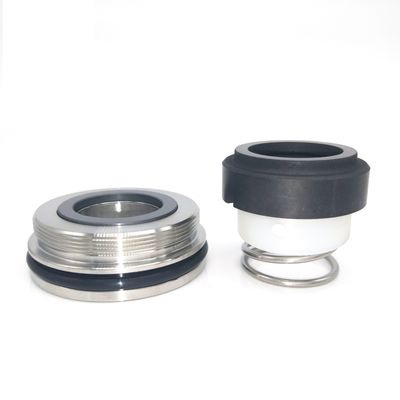

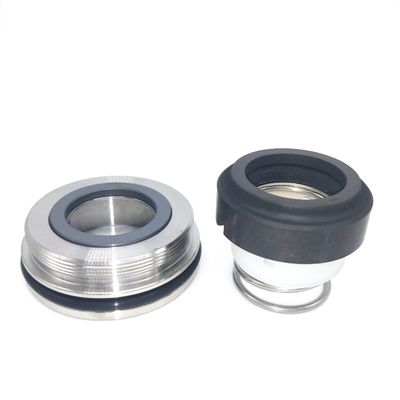

93-22MM Water Pump Mechanical Seal Vulcan Seal Centrifugal  Pump Seal 193-22MM Water Pump Mechanical Seal Vulcan Seal Centrifugal  Pump Seal 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
