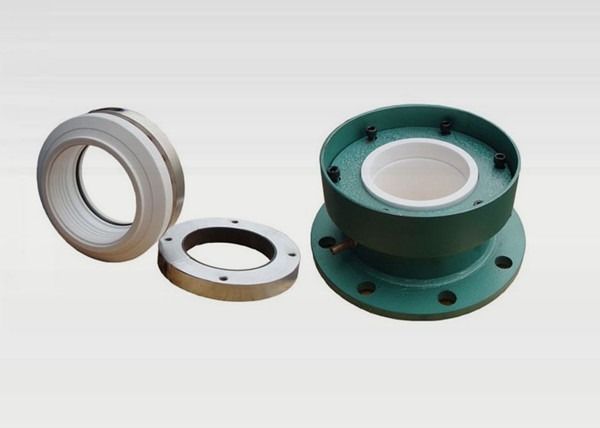

FKM Elastomers 1MPA Water Pump Mechanical Seal PTFE Rotary Ring Face

Minimum Order Quantity : 100PC Price : USD0.1-100
Packaging Details : box as requirement Delivery Time : 10DAYS
Payment Terms : T/T, Western Union, L/C Supply Ability : 10000000PC/Month
Place of Origin: MADE IN CHINA Brand Name: JR
Certification: ISO9001 Model Number: 212

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Reactor Seal Certificate: ISO9001
Type: 212 Mounted Ptfe Reactor Seal Standard Or Nonstand: Standard
Style: Teflon Spring Energized Seals Application: Shaft Seal
High Light:

FKM Elastomers Water Pump Mechanical Seal

,

1MPA Water Pump Mechanical Seal

,

FKM Elastomers PTFE Mechanical Seal

Product Description

Mechanical Seal For Water Pump 212 Mounted Ptfe Reactor Seal Bellows Mechanical Seal



Operations Conditions:
  1. Pressure: 0 to 0.5 MPa
  2. Temperature: - 30 ºC to 180 ºC
  3. Linear Speed: 2 m/s or less



Materials:
  • Rotary Ring Face: PTFE
  • Stationary Ring Face: 09AL2O3/TC/SS304
  • Elastomers: FKM/PTFE
  • Springs: SS304/SS316
  • Metal Parts: SS304/Q235/Glass Lining


Performance Capabilities



Temperature
-30℃ to 180℃, dependent on the elastomer
Pressure
Up to 1MPA
Speed
Up to25 m/s
End play/axial float allowance
±0.1mm
Size
16-100
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
  1. Structure: Single-End
  2. Pressure: General Pressure Mechanical Seals
  3. Speed: General Speed Mechanical Seal
  4. Temperature: General Temperature Mechanical Seal
  5. Performance: Wear and Corrosion
  6. Standard: HG/T2057-2003
  7. Model NO.: 212
  8. Balance: Balanced
  9. Specification: Inner Diameter: 40 mm to 180 mm







FKM Elastomers 1MPA Water Pump Mechanical Seal PTFE Rotary Ring Face 0



We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request





Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.



Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.



Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!



Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.



Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.



Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.



Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.



Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
