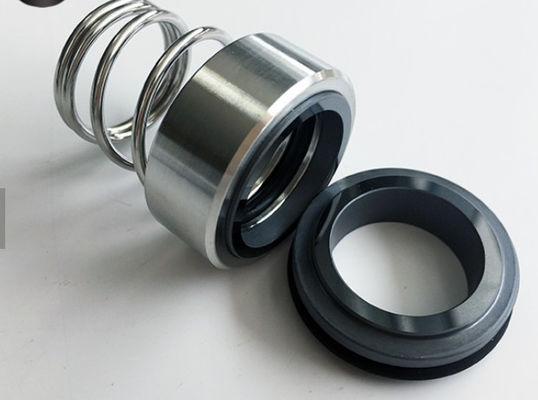

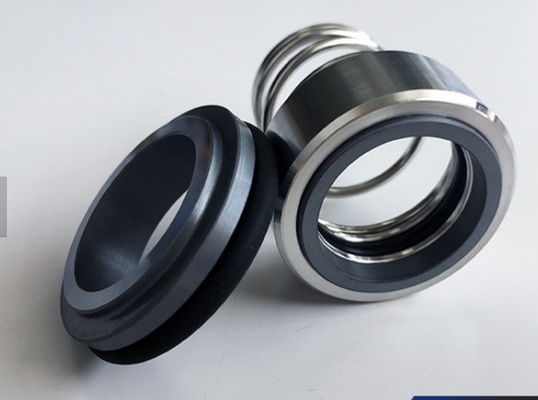

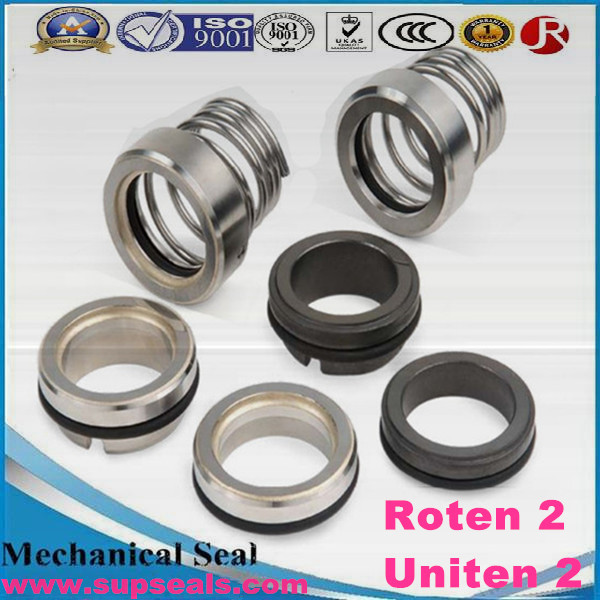

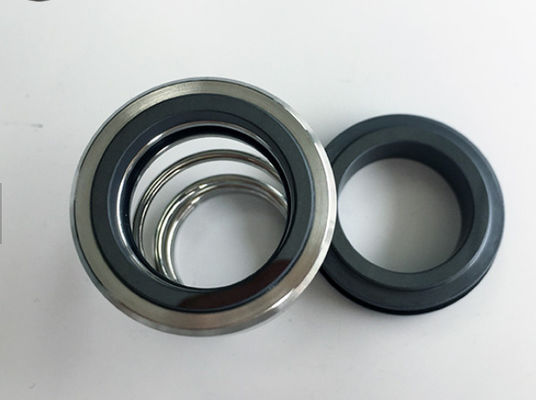

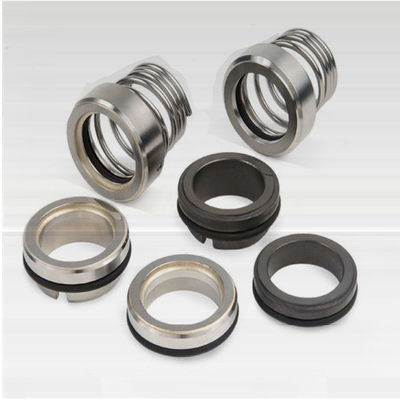

Name: Roten 2 Single Spring Mechanical Seal
Brand: JR
SKU: Roten 2
Rating: 4.7 (183 reviews)

Detail Information
Material:	SIC SIC FKM CAR CER NBR	Function:	For Oil Pump, Water Pump
Transport Package:	Box	HS Code:	848420090
Specification:	Sterling SU2 Vulcan 12 Roten 2 Seal	Certificate:	ISO9001
Type:	For Flowserve 42D Latty T900D	Standard:	Standard
Style:	Mechanical Seal Burgmann BT-RN NU .DIN Uniten 2	Product Name:	Mechanical Seal Roten 2 AES Seal T03D
High Light:	Roten 2 Single Spring Mechanical Seal , 20mm Single Spring Mechanical Seal , Roten 2 Single Spring Seal

Product Description

Mechanical Seal Roten Seal Burgmann BT-RN NU Single Spring Roten Uniten 2 Seal

Operational Conditions:

Shaft diameter: d1 = 10 100 mm (0.39" ... 3.94")
Pressure: Up to 10 bar (145 PSI),
Temperature: t = -30 °C +200 °C (-22 °F +392 °F)
Sliding velocity: vg = 10 m/s (2000 fpm)
Admissible axial movement: ±2.0 mm

Materials:

Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM, PTFE
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities

Roten 2 mechanical seal
Operational Condtions	Size	Material
Temperature: -30℃ to 200℃ dependent on the elastomer	20mm to 100mm,	Face: Carbon, SiC, TC
Pressure:Up to 25 bar		Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s		Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm		Other Metal Part :SS304 SS316

1. Features of structure:
Burgmann Bt-Rn Seals Roten 2 Seal Flowserve 42 Seal
2.Our seals can replace the original seals.
3.If it is not the one you need ,you can pass us your drawing ,material,shaft size for quotation.
4.Customized products and OEM is welcomed
5. 12 YEARS EXPERIENCE ,We provide Factory Price,High Quality ,Fast Delivery and Best Sevice.

Roten 2 Single Spring Mechanical Seal 0

Roten 2 Single Spring Mechanical Seal 1

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.

At the meantime, we could manufacture seals according to your sample or drawing, and design as your request

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.

Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.

Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.

Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.

Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.

Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on

Tag:

Product Details:
Place of Origin:	MADE IN CHINA
Brand Name:	JR
Certification:	ISO9001
Model Number:	Roten 2
Payment & Shipping Terms:
Minimum Order Quantity:	5PC
Price:	Negotiated
Packaging Details:	box as requirement
Delivery Time:	20-30DAYS
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	100000PC/Month

Roten 2 Single Spring Mechanical Seal
