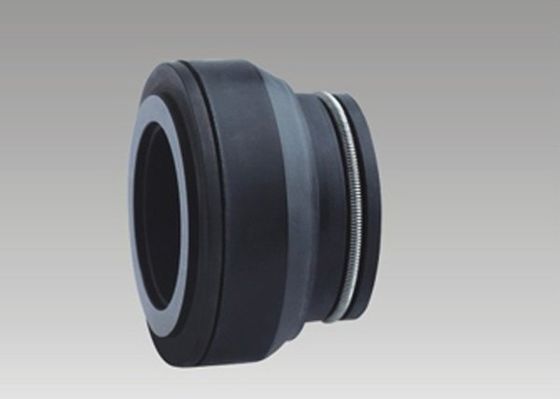

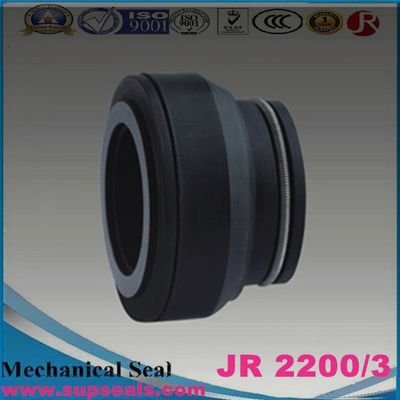

2200/3 Lowara Mechanical Seal

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: JR
Certification: ISO9001
Model Number: 2200/3
Payment & Shipping Terms:
Minimum Order Quantity: 100PC
Price: Negotiated
Packaging Details: box as requirement
Delivery Time: 10DAYS
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000000PC/Month

Detail Information

Material: SIC SIC FKM Cer Car Nbr Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: Mechanical Seal 2200/3 Seals Pump Mechanical Shaft Seal Certificate: ISO9001
Type: Mechanical Seal 2200/3 Pump Seal For Sanitary Pump 2200/2 Standard Or Nonstand: Standard
Style: Mechanical Seal 2200/3 For Sanitary Pump Size: 22mm
High Light:

22mm Lowara Mechanical Seal

,

2200/3 Lowara Mechanical Seal

,

2200/3 Mechanical Shaft Seal

Product Description

Mechanical Seal 22mm For Sanitary Pump 2200/3 Mechanical Seal Used For Food Beverage And Dairy Industries


Operations Conditions:

  1. mechanical seal for sanitary pump
  2. Speed:≤15m/s
  3. Pressure:≤2.5bar
  4. Temperature:-20ºC to +200ºC

Materials:

  • Stationary Ring: Ceramic/Sic/TC
  • Rotary Ring: Carbon/Sic/TC
  • Secondary Seal: NBR/EPDM/Vit
  • Spring and Metal Part: Stainless Steel


Performance Capabilities:


Temperature
-20℃ to 200℃, dependent on the elastomer
Pressure
Up to 2.5MPA
Speed
Up to 15 m/s
End play/axial float allowance
±0.1mm
Size
22mm
Brand
JR
Face
Carbon, SiC, TC
Seat
Ceramic, SiC, TC
Elastomer
NBR, EPDM, FKM etc.
Spring
SS304, SS316
Metal parts
SS304, SS316
Packing Individual packing ,1 pc in 1 small box is available as well
  • 2200/s seals used for Food, Beverage And Dairy Industries
    Materials: Outboard encased rotary, carbon face
    Size: 22mm



2200/3 Lowara Mechanical Seal 0

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,



All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request
