Type 2100 Rubber Bellow Seal

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: JR
Certification: ISO9001
Model Number: 2100
Payment & Shipping Terms:
Minimum Order Quantity: 5PC
Price: Negotiated
Packaging Details: box as requirement
Delivery Time: 20-30DAYS
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100000PC/Month

Detail Information

Material: SIC SIC FKM CAR CER NBR Function: For Oil Pump, Water Pump
Transport Package: Box HS Code: 848420090
Specification: John Crane Type 2100 Certificate: ISO9001
Type: 2100 Standard: Standard
Style: Mechanical Seal Application: John Crane 2100 Aesseal B05 Seal Flowserve Pac-Seal 140 Sterling 540
High Light:

Type 2100 Rubber Bellow Seal

,

G6 Seat Rubber Bellow Seal

,

Type 2100 Industrial Mechanical Seals

Product Description

Mechanical Seal Rubber Bellow Seal Type 2100 John Crane Mechanical Seal For Water Pump



Operational Conditions:

  1. Designed for demanding applications, the Type 2100 mechanical seal is a compact, unitized, single-spring elastomer bellows seal that offers maximum durability and performance.
  2. Temperature: -20ºC to +180ºC
  3. Pressure: ≤2.5MPa
  4. Speed: ≤15m/s

Materials:

  • Stationary Ring: Ceramic, Silicon Carbide, TC
  • Rotary Ring: Carbon, TC, Silicon Carbide
  • Secondary Seal: NBR, EPDM, FKM, PTFE
  • Spring and Metal Parts: Steel
  • 3. Seat Type:
  • Standard: JRG60
  • Alternative: JRG6
  • 4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids


Performance Capabilities



sulzer pump John crane 2100 mechanical seal rotary seal mixer seal
Operational Condtions
Size
Material
Temperature:
-40℃ to 200℃ dependent on the elastomer
10mm to 100mm
Face: Carbon, SiC, TC
Pressure:Up to 25 bar
Seat: Ceramic, SiC, TC
Speed:Up to 20 m/s
Elastomer:NBR, EPDM, FKM
End Play /axial float Allowance:±1.0mm
Other Metal Parts : SS304, SS316



1.1. 2100 have 3 different type of rubber tail. 2100 is short standard as L1, 2100K is L11, 2100N is L12.
 We have G60 seat as standard, and G6 Seat is available s well.

2. Our seals can replace the original seals.

John Crane 2100
Aesseal B05
Flowserve Pac-Seal 140
Sterling 540
Vulcan 14DIN

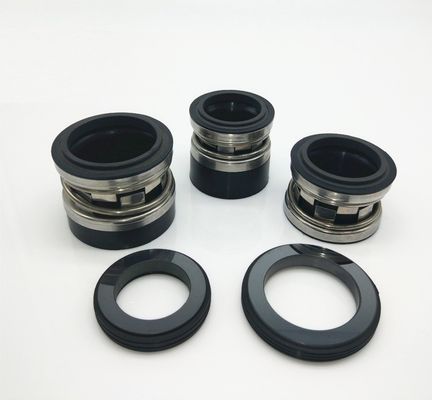

Type 2100 Rubber Bellow Seal 0

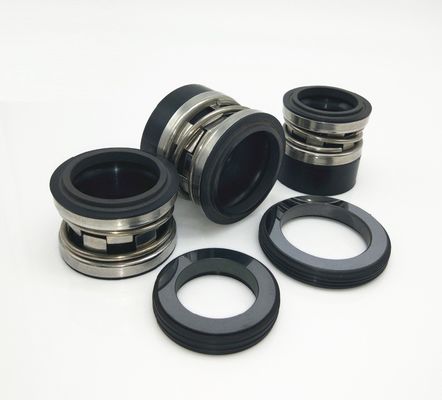

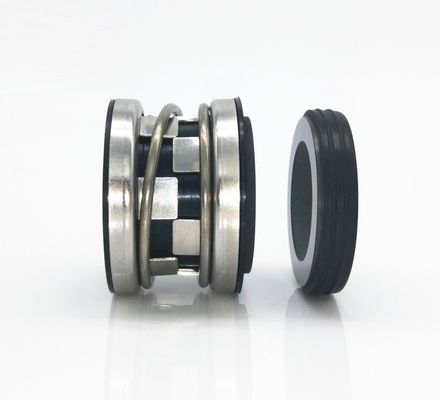

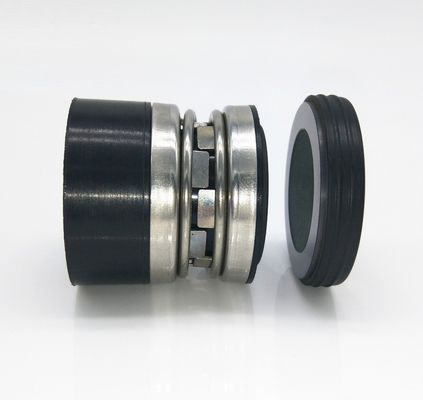

Type 2100 Rubber Bellow Seal 1Type 2100 Rubber Bellow Seal 2Type 2100 Rubber Bellow Seal 3

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.



At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
