30mm Auto Water Pump Seals

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: JR
Certification: iso9001
Model Number: F
Payment & Shipping Terms:
Minimum Order Quantity: 10PC
Price: Negotiated
Packaging Details: box as requirement
Delivery Time: 10-20DAYS
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000000PC

Detail Information

Material: CAR CER NBR Function: For Car Pump, Car Compressor
Transport Package: Box HS Code: 848420090
Specification: 10mm-30mm And Inch Size As Requirment Certificate: ISO9001
Size: Standard Type: Water Pump
Product Name: Auto Water Pump Application: Auto Engine
High Light:

30mm Auto Water Pump Seals


0.5MPa Auto Water Pump Seals


30mm Water Pump Mechanical Seal

Product Description

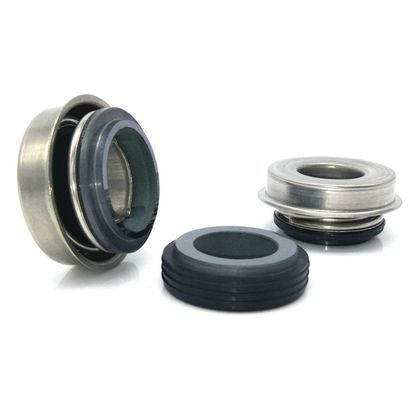

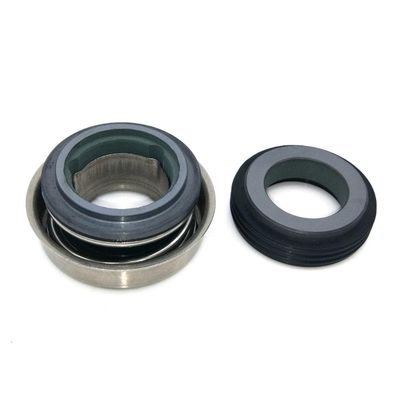

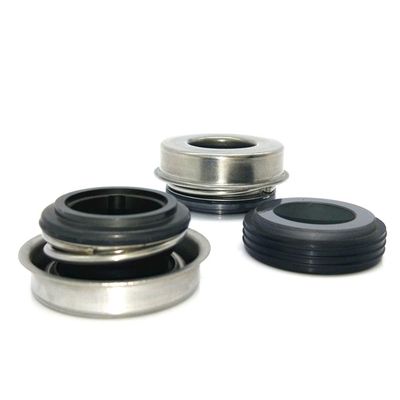

Mechanical Pump Seals F Series Rubber Seal Auto Parts Water Pump Mechanical Seal
Operating Limits:
  1. F Inch Size Mechanical Shaft Seal For Chemical Pump Water Pump
  2. Pressure: ≤0.5MPa
  3. Rotary Speed: ≤10m/s
  4. Temperature: -30ºC~+200ºC
  5. Medium: Clean water, seawater,
  6. gas engine antifreeze


  • Rotary Ring(Ceramic/SiC)
  • Stationary Ring(/Carbon)
  • Secondary Seal (nbr/FKM)
  • Spring & Other Parts (Sus304)

Performance Capabilities:

-30℃ to 200℃, dependent on the elastomer
Up to 10 bar
Up to 15 m/s
End play/axial float allowance
10mm to 30mm
Carbon, SiC, TC
Ceramic, SiC, TC
SS304, SS316
Metal parts
SS304, SS316
Packing Detail
1.From 10mm to 20mm is packed in plastic sheets grouply and M box.

2.From 25mm to 30mm is wrapped in plastic paper individually then grouply in M box.




30mm Auto Water Pump Seals 0

30mm Auto Water Pump Seals 130mm Auto Water Pump Seals 2

We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,

All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA

Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.


At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.



Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.


Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.


Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!


Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.


Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.


Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.


Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.


Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
